Birtley has the only complete range of steel lintels manufactured from structural grade steels: S275JR/S355JR to EN10025- 2:2004. All Supergalv lintels are Hot-Dip Galvanized, post fabrication, in accordance with BS EN 1461:2009, giving an unrivalled 65μm zinc coating to all surfaces.

All external cavity wall lintels (exc SX/XHD) are insulated with expanded polystyrene to BS EN 13163. The insulation is CFC, HCFC and HFA free and has an ozone depletion potential of zero.

Birtley lintels have been tested to BS 476-20:1987 to determine the fire resistance of the load bearing elements of construction.

_Authorlintel.technical@birtleygroup.co.uk
_Authorized ByRW
_Bim Spec Guid1
_BS Bible Version15
_Created Bylintel.technical@birtleygroup.co.uk
_Current Revision2
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeB20
Asset TypeFixed

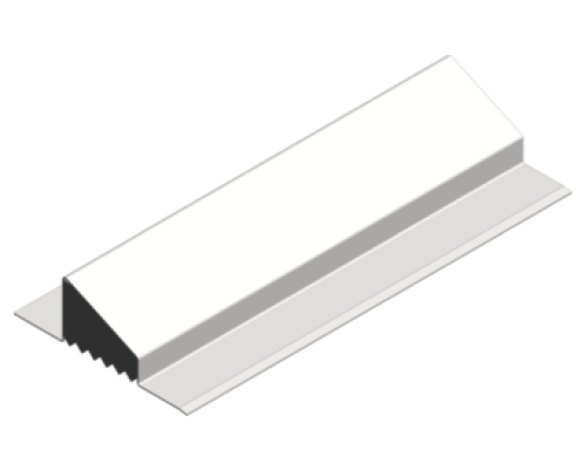

BIM Object NameBirtleyGroup_SpecialtyEquipment_StandardDutyCavityWallLintel_CB150_(750-1500)
Classification NameUniclass 2015
Classification ValuePr_20_85_48_11
Code Performancen/a
Color65µm Hot Dip Galvanized to BS EN ISO 1461:2009
Constituentsn/a
Created Bylintel.technical@birtleygroup.co.uk
Created On2018-07-19T09:00:00
Depth110 mm
DescriptionStandard duty cavity lintel suitable for cavity sizes of 150-165mm
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.birtleylintels.co.uk/product/cb150/#
Documentation Maintenancen/a
Documentation Technicalwww.birtleylintels.co.uk/product/cb150/#
Duration UnitYears
End Bearing150 mm
Expected Life0
Featuresn/a
Find A Stockistwww.birtleylintels.co.uk/stockist-locator
Finish65µm Hot Dip Galvanized to BS EN ISO 1461:2009
Fire TestFire Test reports in accordance with BS476 are available upon request
Galvanised SteelS275 with 65 micron zinc coating hot dip galvanized post manufacture in accordance with BS EN ISO 1461:2009
Graden/a
Ifc Export AsIfcBeam
Ifc Export TypeIfcBeamTypeEnum.LINTEL
InsulationInsulation-Polystyrene
KeynoteL
ManufacturerBirtley Group
Manufacturer NameBirtley Group
MaterialMild Steel S275JR to BS EN10025-2:2004
Max Lintel Length1500 mm
Method For Assessment Of LoadIn accordance with BS 5977: Part 1 1981 (1986) AMD
Min Lintel Length750 mm
ModelCB150
Model NumberCB150-750-1500
Model ReferenceCB150
NBS DescriptionPrefabricated steel lintels
NBS Object NameBirtley Group - Prefabricated steel lintels
NBS Office Master Tagn/a
NBS Reference45-80-50/406
Nominal Depth110 mm
Nominal Height0 mm
Production Year2018
Referenced StandardEN846-9:2000/2016
Replacement Costn/a
Sales Emaillintel.sales@birtleygroup.co.uk
Sales Tel0191 411 2244
Shapen/a
Size750mm - 1500mm
Spare Partsn/a
Stainless Steel1.4301; other grades are available upon request
StandardDesigned in accordance with EN845-2:2013
SteelSteel, Galvanized
Technical Emaillintel.technical@birtleygroup.co.uk
Technical Tel0191 410 6631
TestingFire Test reports in accordance with BS476 are available upon request
Type CommentsCB150-750-1500
Type NameCB150-750-1500
U2 K GalvanisationS275 with 150 micron zinc coating hot dip galvanized post manufacture in accordance with BS EN ISO 1461:2009
UDL20.00 kN
URLwww.birtleygroup.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partslintel.sales@birtleygroup.co.uk
Weight Per M7.85 kg/m
Width338 mm
