iTwenty Eight - Industrial Radiant Heating & Cooling Panels
1.2k
0
- / 5Rate this product
Available for:

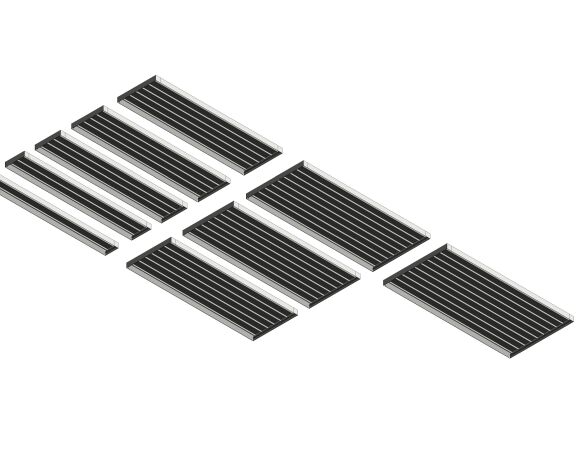

The iTwenty Eight panels have large bore waterways (28mm x 1.5mm thick) and incorporate header arrangements for flow splitting/joining. Individual modules of up to six metres offer opportunities for long runs of panels combined with low pressure drops and can be arranged to maintain same end flow and return pipes at runs of up to 70m. This reduces the extent of services, pipework and installation time and costs.

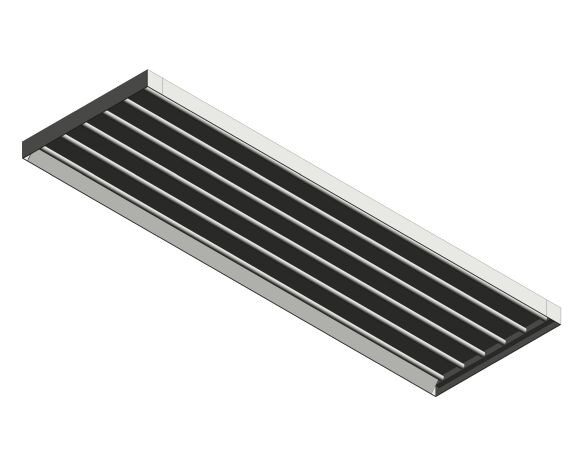

The product’s radiant surface is formed from a series of prefitted/removable lightweight aluminium profiles either plain or perforated. The finished profile exposes the underside of the water tubes which combines with the anti-convective edges to increase the radiant output to 81% of the total with a radiant emissivity of 0.95.
The combination of steel waterways and the aluminium radiant fascia allows the weight of the panel to be reduced without compromising its strength and durability. The panels have been tested for ball resistance to DIN 18032. If required the radiant profiles can be replaced on site without special tooling.
Read more
