Omega Tumbled is a classic rectangular block paving with tumbled edges to create the appearance of a traditional-aged pavement, whilst offering stability for all aspects of trafficking.

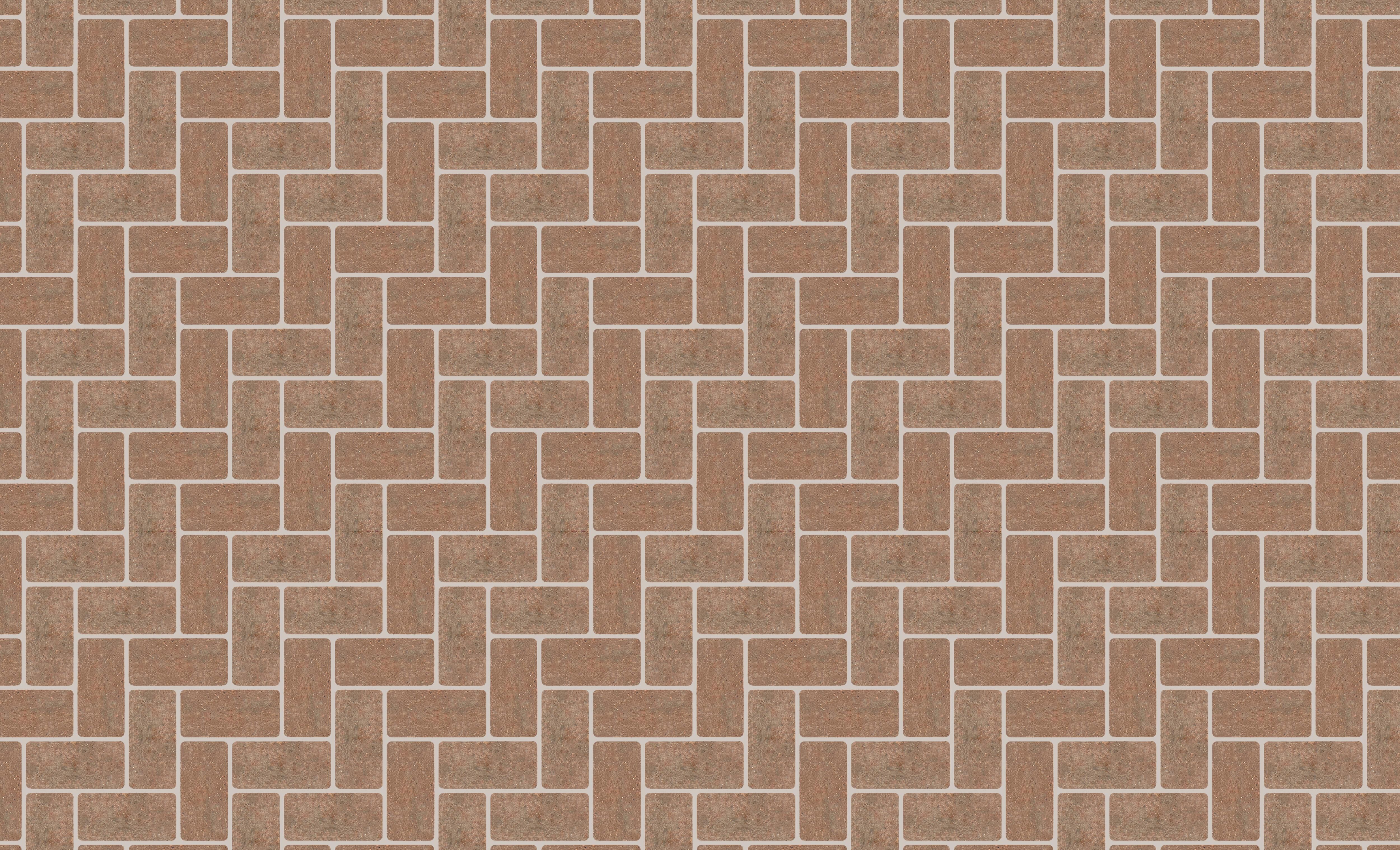

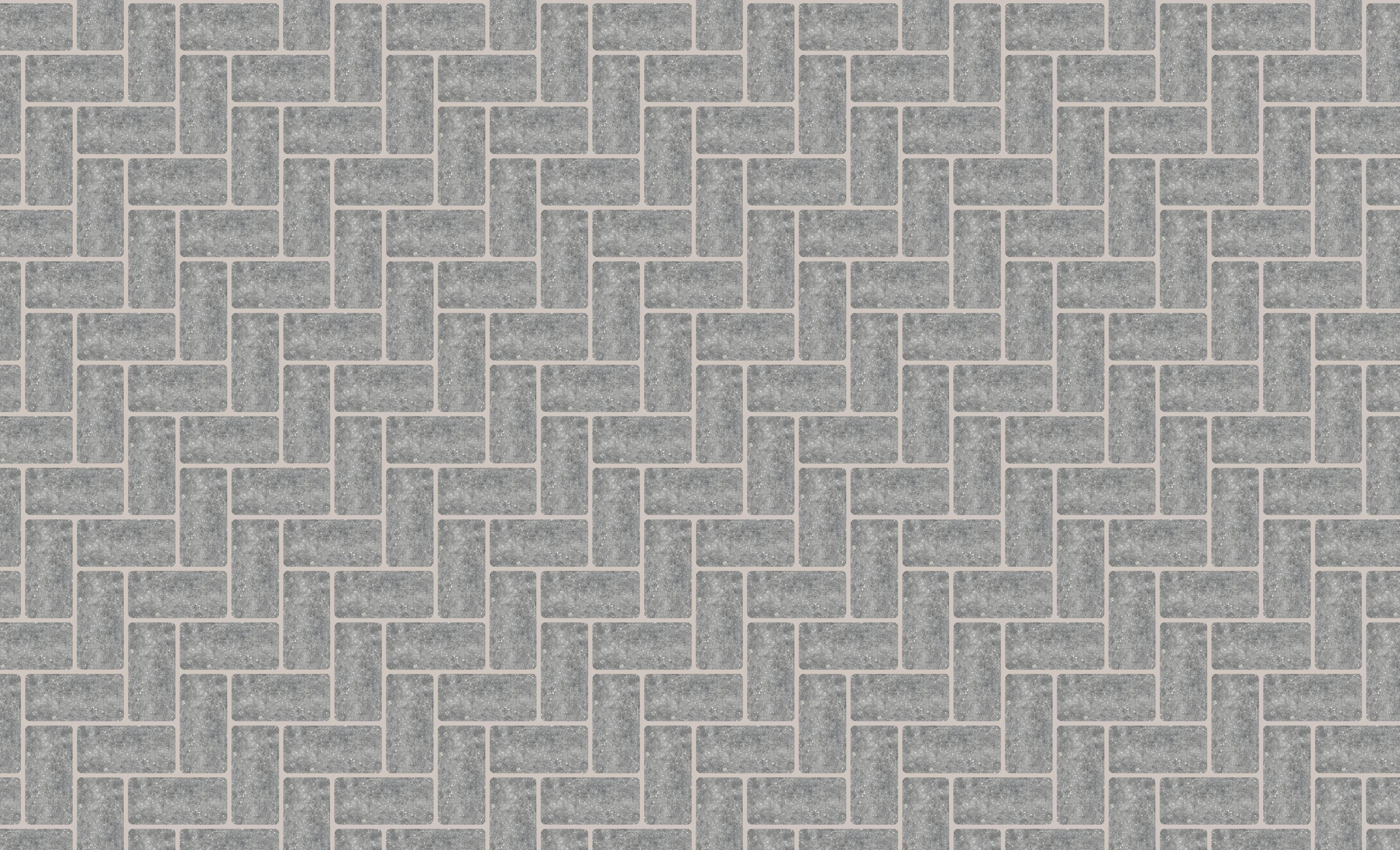

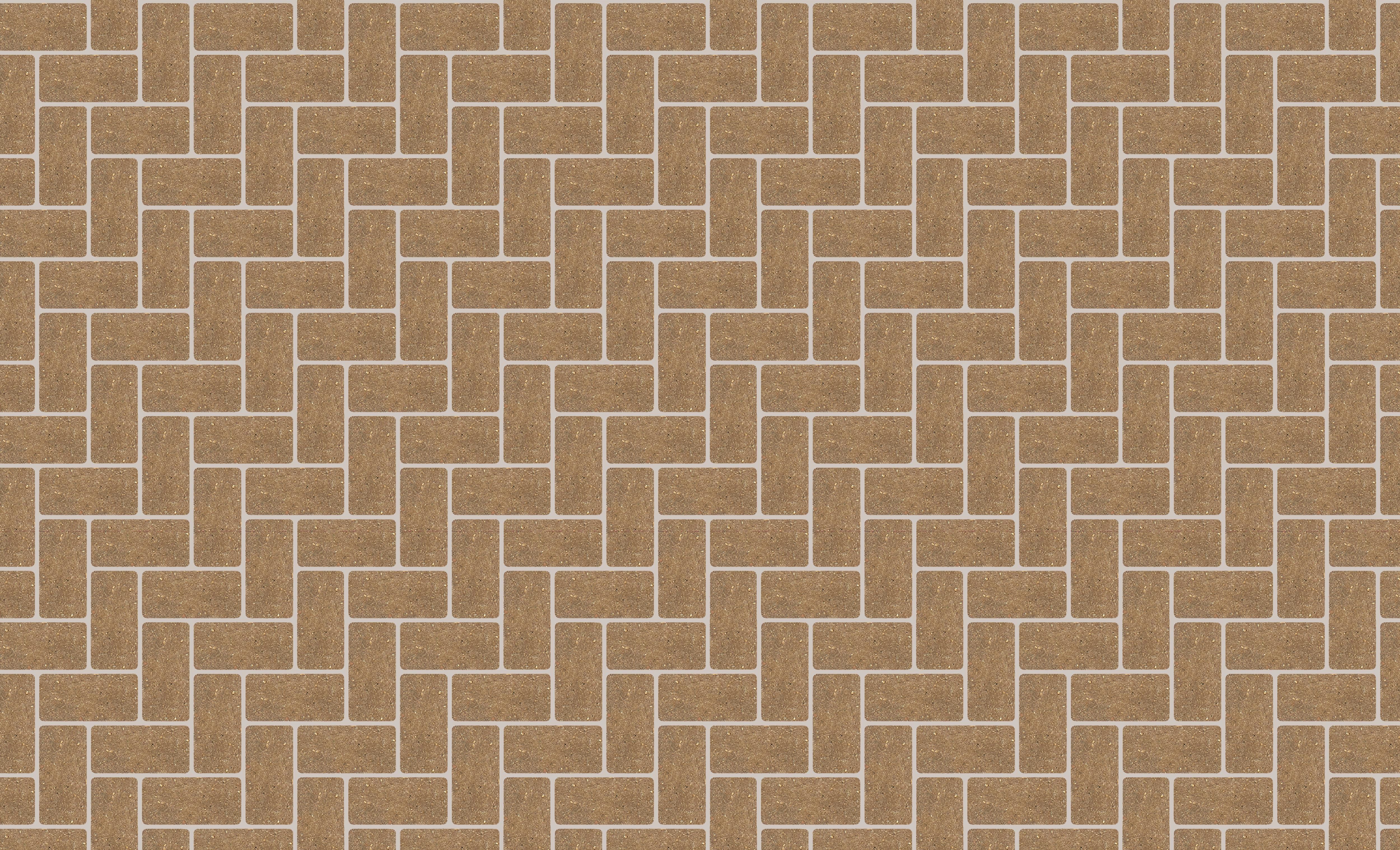

Omega Tumbled is predominately used in heavy-duty, commercial applications and can be installed in a wide range of patterns, with the strong herringbone pattern being a popular choice due to its interlocking, robust design. Available in 80mm, Omega Tumbled is a versatile paver and is also ideal for urban and residential areas requiring a rustic look and feel.

Manufacturing StandardBS EN 1338: 2003
Product TypePrecast Concrete Paving Blocks Incorporates 80mm Omega Tumbled Block Paving
ApplicationDomestic and Commercial use; hardstanding for vehicular & pedestrian pavements including footpaths, cycle tracks, driveways, adoptable highways, commercial pavements, heavy duty pavements, roof top and balcony applications etc. (please see www.brettpaving
StrengthCharacteristic tensile splitting strength ≥ 3.6 Mpa; Failing load ≥ 250 N/mm
Abrasion Resistance≤ 23mm - Determined by Wide Wheel Abrasion Test
DurabilityClass 3 ≤ 1,0kg/m² with no individual result ≤ 1,5kg/m²
Slip / Skid ResistanceUnpolished Slip Resistance Value ≥ 55 - Potential for slip - Low
Reaction to fireClass A1 when used for internal flooring
External Fire PerformanceDeemed to satisfy
Emission of asbestosNo content
Thermal Conductivity1.2 W/(mK)
