MERLYN - Ionic Essence Framed 2 Dr Quadrant

by MERLYN

Download Add to collection

Description

Mershield Stayclear protected glass. Quick release double rollers for easy clean. Smooth gliding opening action. Colour matched chrome magnetic seals. Concealed fixings. Adjustment for easy & secure fixing. Chrome finish incl. top cover caps. Reversible. 20 Year Guarantee.

This download contans the Ionic Essence Framed 2 Dr Quadrant Range created by bimstore.co.uk for Merlyn.

This component is created in Revit 2014 and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

01/03/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

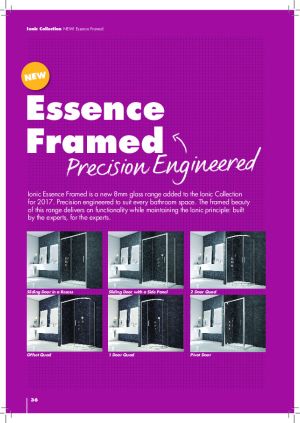

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Bim Spec Guid0
_Bimstore Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2010100
Asset TypeFixed
B620.000000000000 mm
BIM Object NameCaseworkEnclosures_Merlyn_IonicEssenceFramed_2DrQuadrant
Classification NameUniclass2015
Classification ValuePr_40_20_06_79
Code Performancen/a
ColorChrome
Constituentsn/a
Created Byinfo@merlyn.ie
Created On2016-09-01-T00:00:00
Curve580.700000000000 mm
Depth1000.000000000000 mm
DescriptionMershield Stayclear protected glass. Quick release double rollers for easy clean. Smooth gliding opening action. Colour matched chrome magnetic seals. Concealed fixings. Adjustment for easy & secure fixing. Chrome finish incl. top cover caps. Reversible. 20 Year Guarantee.
Distance38.260776491760 mm
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2050
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2050
Door Ga548.239223508240 mm
Duration UnitYears
Expected Life0
FeaturesMershield Stayclear protected glass. Quick release double rollers for easy clean. Smooth gliding opening action. Colour matched chrome magnetic seals. Concealed fixings. Adjustment for easy & secure fixing. Chrome finish incl. top cover caps. Reversible. 20 Year Guarantee.
Graden/a
Height1900.000000000000 mm
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeSurface
KeynoteN13/375
ManufacturerMerlyn
Manufacturer NameMerlyn
MaterialGlass & Chrome
Material Merlyn ChromeMerlyn - Chrome
Material Merlyn GlassMerlyn - Glass
Material Merlyn RubberMerlyn - Rubber
ModelIonic Essence Framed - 2 Dr Quadrant
Model NumberIonic Essence Framed - 2 Dr Quadrant
Model ReferenceIonic Essence Framed - Quadrant - 1000mm
NBS DescriptionShower enclosures
NBS Object NameMerlyn - Shower enclosures
NBS Office Master Tagn/a
NBS Reference45-35-70/332
Nominal Depth1000.000000000000 mm
Nominal Height1900.000000000000 mm
Nominal Length950.000000000000 mm
Production Year2016
Referenced StandardCE Standards
Replacement Costn/a
ShapeCorner
Size1000mm
Spare Partsn/a
Type CommentsIonic Essence Framed - Quadrant - 1000mm
Type NameIonic Essence Framed - Quadrant - 1000mm
URLwww.ionicbymerlyn.com/product/essence-framed-2-door-quadrant/
Warranty Descriptionn/a
Warranty Duration Labor20
Warranty Duration Parts20
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@merlyn.ie
Warranty Guarantor Partsinfo@merlyn.ie
Width950.000000000000 mm
