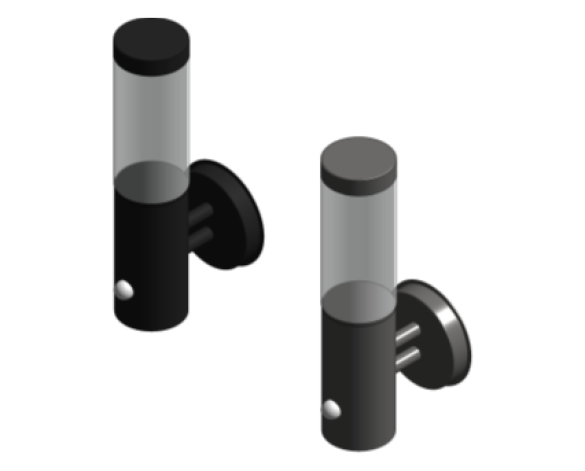

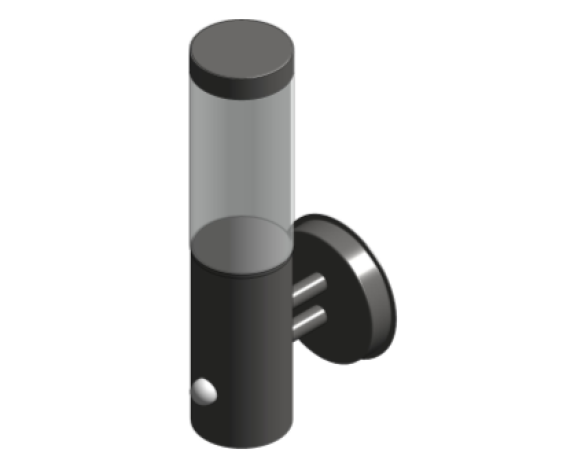

316 Marine Grade Stainless Steel P-Lux Modern Post Lantern - GL4689LU

Object metadata

• _AuthorRyan Lashley
• _Bim Spec Guid1
• _Bimstore Bible VersionVersion 14 - UK Edition
• _Created Bywww.bimstore.co.uk
• _Current Revision0
• _Distributed Bywww.bimstore.co.uk
• Accessibility Performancen/a
• Assembly CodeD5020200
• Asset TypeFixed
• BIM Object NameMechanicalEquipment_Lighting_GreenLighting_PLuxLEDLanterns_GL4689LU
• Classification NameUniclass2015
• Classification ValuePr_70_70_48_46
• Clearance Zone MaterialClearanceZone_GreenLightingLtd
• Code Performancen/a
• ColorStainless Steel & Black
• Constituentsn/a
• Created Bysales@greenlighting.co.uk
• Created On2016-09-01-T00:00:00
• Default Elevation1219 mm
• Description316 Marine Grade Stainless Steel P-Lux Modern Post Lantern / Black Aluminium Modern Post Lantern
• Documentation Certificatesn/a
• Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1838

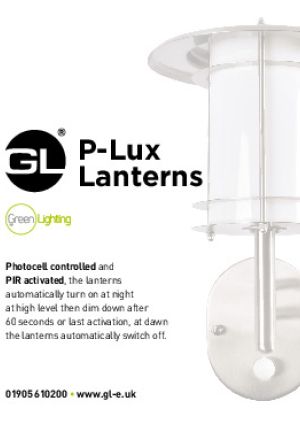

• Documentation Literaturespecifi.bimstore.co.uk/document/share/1847
• Documentation Maintenancen/a
• Documentation Technicaln/a
• Duration UnitHours
• Expected Life50000
• Features316 Marine Grade Stainless Steel P-Lux Modern Post Lantern / Black Aluminium Modern Post Lantern
• FinishStainless Steel / Black Matt UV Resistant Paint
• FunctionalityThroughout the night, when triggered by movement, the P-LUX will LUX-UP to 8W to provide full luminance to the area. After 60 seconds from the last activation the P-LUX will dim back down to 2W.
• Graden/a
• Ifc Export AsIfcLightFixtureType
• Ifc Export TypeNOTDEFINED
• IP Rating44
• KeynoteV90/560
• Lamp4000K (P-LUXLMCW-6W)
• LensOpal Polycarbonate
• Lens MaterialPolycarbonate_GreenLightingLtd_Opal
• ManufacturerGreen Lighting Ltd
• Manufacturer NameGreen Lighting Ltd
• MaterialMarine Grade Stainless Steel / Aluminium
• ModelP-Lux LED Lanterns
• Model NumberGL4689LU
• Model ReferenceP-Lux LED Lanterns
• NBS DescriptionLight-emitting diodes (LED) luminaires
• NBS Object NameGreen Lighting Ltd - Light-emitting diodes (LED) luminaires
• NBS Office Master Tagn/a
• NBS Referencen/a
• Nominal Depth155 mm
• Nominal Height339 mm
• Nominal Length119 mm
• Power Factor0.9PF
• Primary MaterialMetal_GreenLightingLtd_PaintFinishBlack_Matt
• Production Year2016
• Product URLwww.greenlighting.co.uk/products/stainless-steel-modern-post-lantern/
• Referenced Standardn/a
• Replacement Costn/a
• Secondary MaterialPlastic_GreenLightingLtd_White
• SensorP-LUX3 Type C (P-Lux3/2215)
• Shapen/a
• SizeL: 119mm H: 339mm D: 155mm
• Spare Partsn/a
• Type CommentsGL4689LU
• Type NameP-Lux LED Lanterns
• URLwww.greenlighting.co.uk/
• Warranty Descriptionn/a
• Warranty Duration Labor1
• Warranty Duration Parts2
• Warranty Duration UnitYears
• Warranty Guarantor Laborsales@greenlighting.co.uk
• Warranty Guarantor Partssales@greenlighting.co.uk
