740AJ - Articulating Boom Lift

Object metadata

• _AuthorJLG
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.jlg.com/
• _Current Revision1
• _Distributed Bywww.bimstore.co/

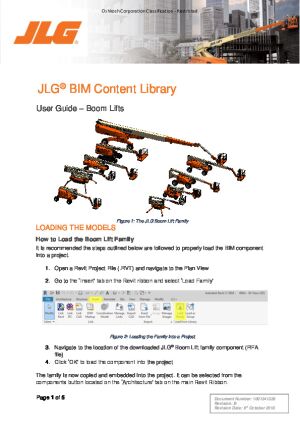

• _Object User Guidewww.bimstore.co/products/740aj-articulating-boom-lift/document/object-user-guide
• Aa78.00 °
• Aa 1258.00 °
• Accessibility Performancen/a
• AE5500 mm
• A Ea36.00 °
• A Ea 1144.00 °
• Articulating Jib1.83 m articulating jib
• Assembly CodeE1030100
• Asset TypeMovable
• Auxiliary Power12v DC
• Axle OscillationFixed Axle

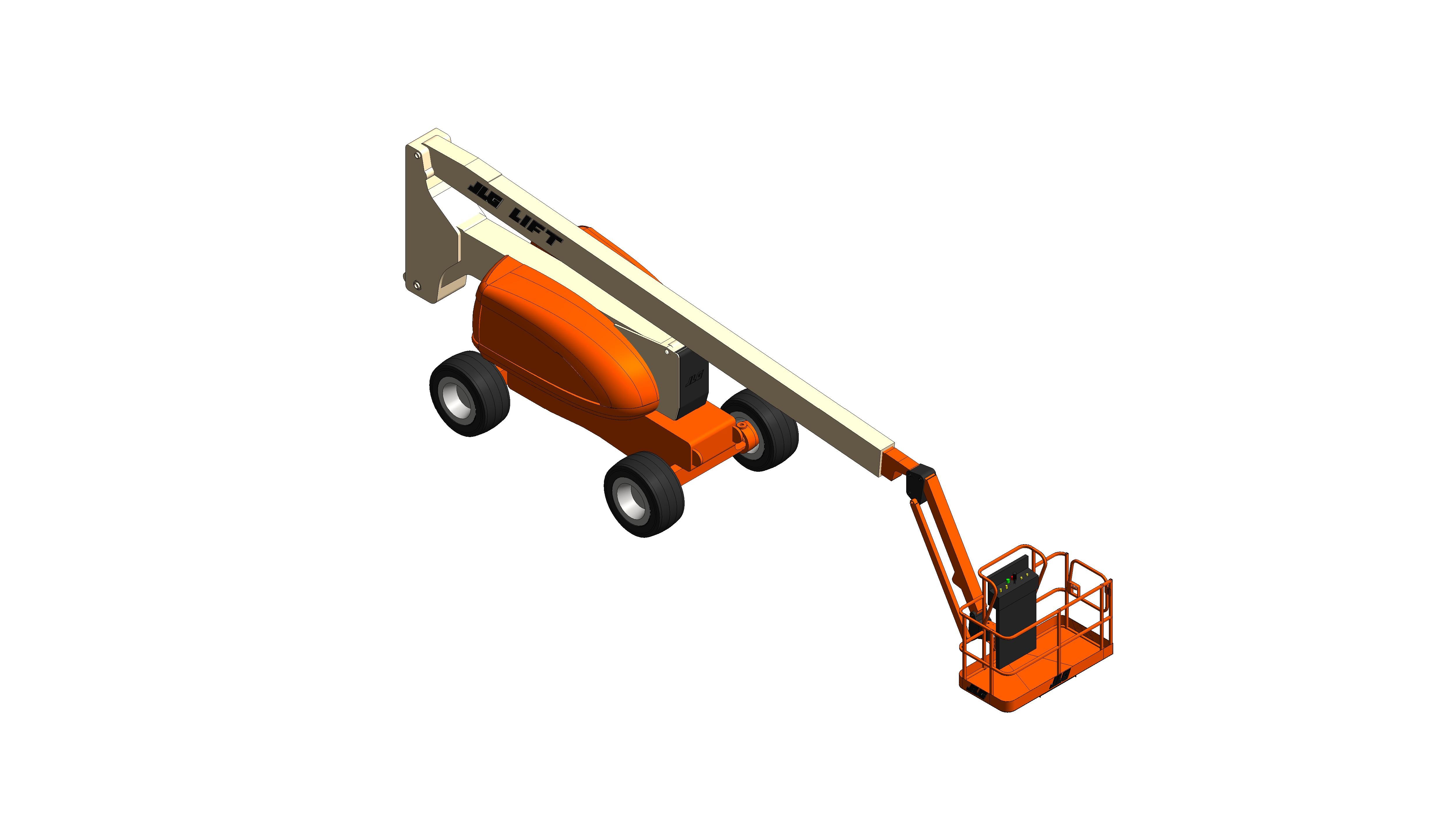

• BIM Object NameJLG_Site_ArticulatingBoomLift_740AJ
• Classification NameUniclass2015
• Classification ValueTE_30_30_10_60
• Code Performancen/a
• Colorn/a
• Constituentsn/a
• Created Bywww.jlg.com/
• Created On2020-12-01T09:30:00
• Descriptionn/a
• Diesel EngineDeutz T4F TD2.9L 67hp
• Documentation Certificateswww.bimstore.co/products/740aj-articulating-boom-lift/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/740aj-articulating-boom-lift/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/740aj-articulating-boom-lift/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/740aj-articulating-boom-lift/document/maintenance-information

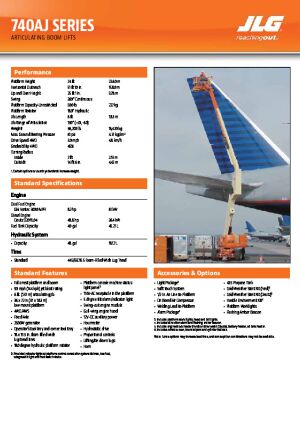

• Documentation Technicalwww.bimstore.co/products/740aj-articulating-boom-lift/document/technical-data-sheet
• Drive Speed6.60 kph (4.1 mph)
• Duration UnitYears
• Expected Life0
• Featuresn/a
• Finishn/a
• Fuel Tank Capacity151L (40 gal)
• Graden/a
• Gradeability45%
• Ha78.00 °
• Ha 1258.00 °
• Horizontal Outreach15.80 m (51 ft 10 in)
• Hydraulic Platform Rotator180 degree Hydraulic platform rotator
• Hydraulic Tank Capacity95 L (25 gal)
• Ifc Export AsIfcTransportElement
• Ifc Export TypeIfcTransportElementType
• Ja46.66 °
• Ja 1133.34 °
• J Ha36.00 °
• J Ha 1216.00 °
• Jib Overall Length1.83 m (6 ft 0 in)
• Jib Range Of Articulation130°
• KeynoteX
• Machine Weight ANSI16,420 kg (36,200 lbs)
• Machine Weight CE16,420 kg (36,200 lbs)
• ManufacturerJLG
• Manufacturer NameJLG
• MaterialSteel
• Max Ground Bearing Pressure ANSI4.27kg/cm2 (61 psi)
• Max Ground Bearing Pressure CE5.0 kg/cm2 (84 psi)
• ModelArticulating Boom Lift - 740AJ
• Model NumberArticulating Boom Lift - 740AJ
• Model ReferenceArticulating Boom Lift
• NBS DescriptionLift platforms
• NBS Object NameJLG - Lift platforms
• NBS Office Master Tagn/a
• NBS Referencen/a
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• P Ha46.66 °
• P Ha 1226.66 °
• Platform Capacity Unrestricted ANSI227 kg (500 lbs )
• Platform Capacity Unrestricted CE230 kg (507 lbs)
• Platform Height22.56 m (74 ft 0 in)
• Platform Side Entry0.91 x 1.83 m
• Platform Size 0.91 x 1.83 m (3 ft 0 in x 6 ft 0 in)
• Production Year2020
• Reach7
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsn/a
• Tilt Alarm Indicator Light3 Degrees = CE/AUS, 5 Degrees = Japan
• Turning Radius Inside2.13 m ( 7 ft 0 in)
• Turning Radius Outside4.42 m ( 14 ft 6 in)
• Type CommentsHeight=-1.50m(-4'-11")_Reach=12.17m(39'-11")
• Type NameHeight=-1.50m(-4'-11")_Reach=12.17m(39'-11")
• Tyres18-625 Foam Filled
• Unique Model Reference FAPL1001156800
• Up And Over Height7.64 m (25 ft 0.75 in)
• URLwww.jlg.com
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborwww.jlg.com/
• Warranty Guarantor Partswww.jlg.com/
