9mm Vented Soffit

by Swish Building Products

Download Add to collection

Description

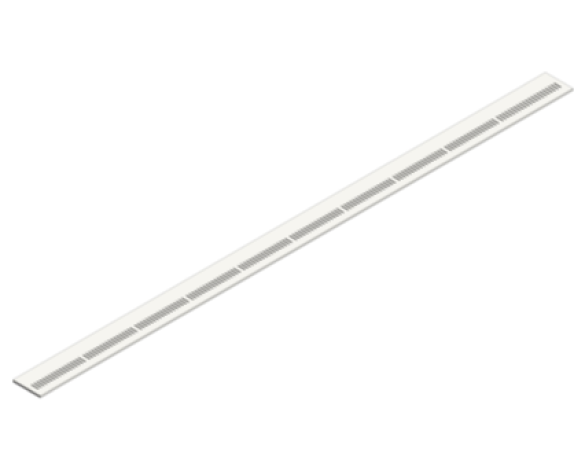

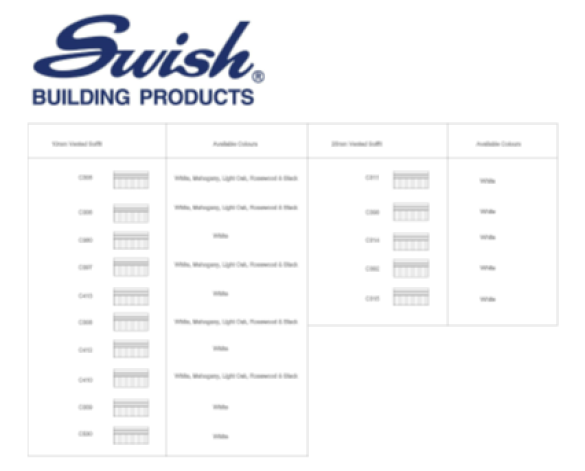

A range of plain and vented soffits available in white and colours. Vented soffits are available as either 10mm or 25mm continuous air gap equivalents.

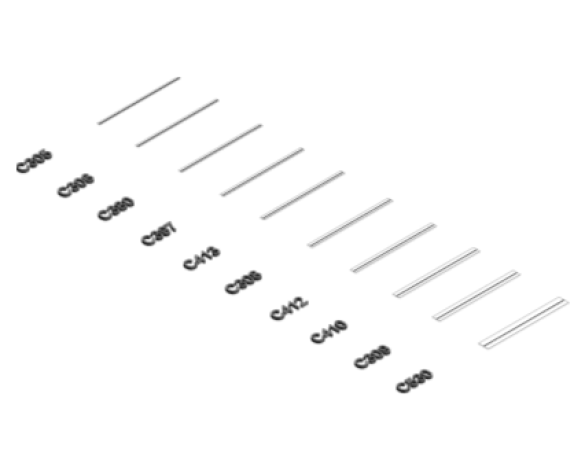

This download includes the Swish Building Products Vented Soffits (10mm & 25mm), created in Revit 2014 by www.bimstore.co.uk

Object Data

1 Revision

Last Updated

24/02/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_BIMspec_GUID0
_created byJoe Shaw
_current revision0
_distributed bywww.bimstore.co.uk
Assembly CodeB3010500
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_30_59_94_78
Created Bywww.swishbp.co.uk
Created OnJanuary 2016
DescriptionA range of plain and vented soffits available in white and colours. Vented soffits are available as either 10mm or 25mm continuous air gap equivalents.
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1485
Documentation Literaturespecifi.bimstore.co.uk/document/share/1482
Documentation Technicalspecifi.bimstore.co.uk/document/share/1482
Duration UnitYears
Expected Life0
KeynoteR10/321
ManufacturerSwish Building Products
Model9mm Soffit Boards
NBS Object NameSoffit Grilles
NBS ReferencePr_30_59_94_78
Offset27 mm
One Length280 mm
Production Year2016
Type CommentsC305
Type NameC305
URLwww.swishbp.co.uk
Warranty Duration UnitYears
Width150 mm
