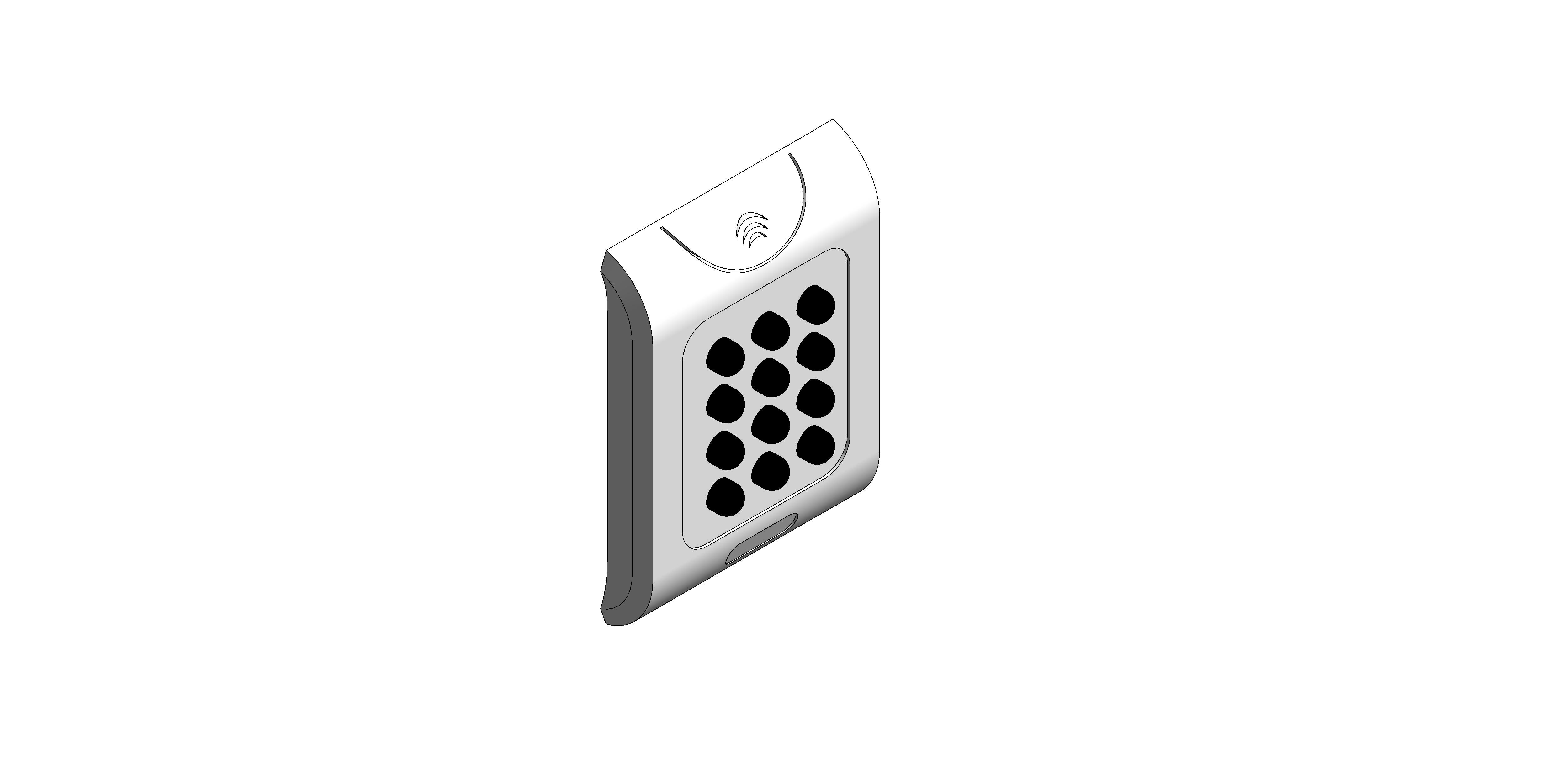

ACT Pro 1050 EV1 Access Controller (V54504-F124-A100)

by ACRE International

Download Add to collection

Description

MIFARE® DESFire EV1 features mutual three-pass authentication using 128-bit AES encryption. DESFire EV1 cards can hold up to 28 different applications and 32 files per application. Each MIFARE DESFire EV1 card has a unique serial number.

Object Data

1 Revision

Last Updated

07/12/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

BS8541-2

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

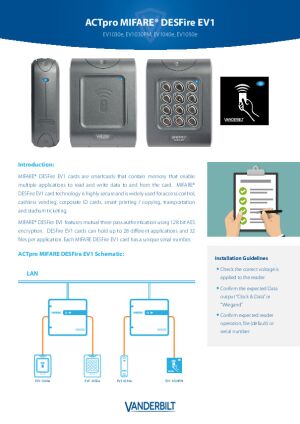

Product Data Sheet

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/act-pro-1050-ev1-access-controller-v54504-f124-a100/document/object-user-guide
Accessibility Performancen/a
Accessoriesn/a
Additionaln/a
Air Humidityn/a
Anti Maskn/a
Assembly CodeD5030800
Asset TypeFixed
Audion/a
BIM Object NameVanderbilt_AccessControlReader_ACTproEV1_1050e
Button MaterialPlastic, Opaque Black
Card Capacityn/a
Card CompatibilityMIFARE ISO 14443A Compatible
Card Read Distancen/a
Card TechnologyMIFARE ISO 14443A Compatible
Case MaterialPlastic, Opaque White
CategoryAccess Control Card Reader
Classification NameUniclass2015
Classification ValuePr_75_30_30_03
Code Performancen/a
Collision Spacen/a
ColorGray
Constituentsn/a
Created Bysupport.uk@acre-int.com
Created On2022-12-06T09:00:00
Default Elevation0 mm
DescriptionMIFARE DESFire EV1 cards are smartcards that contain memory that enable multiple applications to read and write data to and from the card. MIFARE DESFire EV1 card technology is highly secure and is widely used for access control, cashless vending, corporate ID cards, smart printing / copying, transportation and stadium ticketing. MIFARE DESFire EV1 features mutual three pass authentication using 128 bit AES encryption. DESFire EV1 cards can hold up to 28 different applications and 32 files per application. Each MIFARE DESFire EV1 card has a unique serial number.
Detection Characteristics Rangen/a
DisplayNo
Documentation Certificateswww.bimstore.co/products/act-pro-1050-ev1-access-controller-v54504-f124-a100/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/act-pro-1050-ev1-access-controller-v54504-f124-a100/document/installation-guide
Documentation Literaturewww.bimstore.co/products/act-pro-1050-ev1-access-controller-v54504-f124-a100/document/product-literature
Documentation Maintenancewww.bimstore.co/products/act-pro-1050-ev1-access-controller-v54504-f124-a100/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/act-pro-1050-ev1-access-controller-v54504-f124-a100/document/technical-data-sheet
Door Capacityn/a
Duration UnitYears
Ean Upc Code7330082004515
Ecology Certificatesintranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
EnvironmentIndoor
EOL Resistorn/a
Expected Life0
FeaturesMIFARE® DESFire EV1 features mutual three pass authentication using 128 bit AES encryption. DESFire EV1 cards can hold up to 28 different applications and 32 files per application. Each MIFARE DESFire EV1 card has a unique serial number.
Finishn/a
Graden/a
Housing Protectionn/a
Ifc Export AsIfcAlarm
Ifc Export TypeIfcAlarmType
IndicatorsLED
InterfaceClock & Data / Wiegand
KeynoteW
LanguagesEnglish, Danish, German, Spanish, French, Italian, Swedish
ManufacturerVanderbilt
Manufacturer NameVanderbilt
Materialn/a
Metadatan/a
Microwaven/a
ModelEV1050e
Model NumberV54504-F124-A100
Model ReferenceEV1050e
MountingWall
NBS DescriptionAccess control units
NBS Noten/a
NBS Object NameVanderbilt - Access control units
NBS Office Master Tagn/a
NBS Reference90-75-05/430
Nominal Depth21 mm
Nominal Height128 mm
Nominal Length95 mm
Number Of On Board Relaysn/a
Number Of On Board Zonesn/a
Operating Current70 mA (Typical) 140 mA (max peak)
Operating Temperature-40°C to +50°C
Outputsn/a
Pet Immunityn/a
Production Year2022
Rangen/a
Referenced StandardCE (EU), BIS (IN), CN. Refer to: https://vanderbiltindustries.com/compliance-documents
RegionsWorldwide
Relay Outputsn/a
Replacement Costn/a
Screen MaterialGlass, Green
Sensitivity Evaluation Moden/a
ShapeRectangle

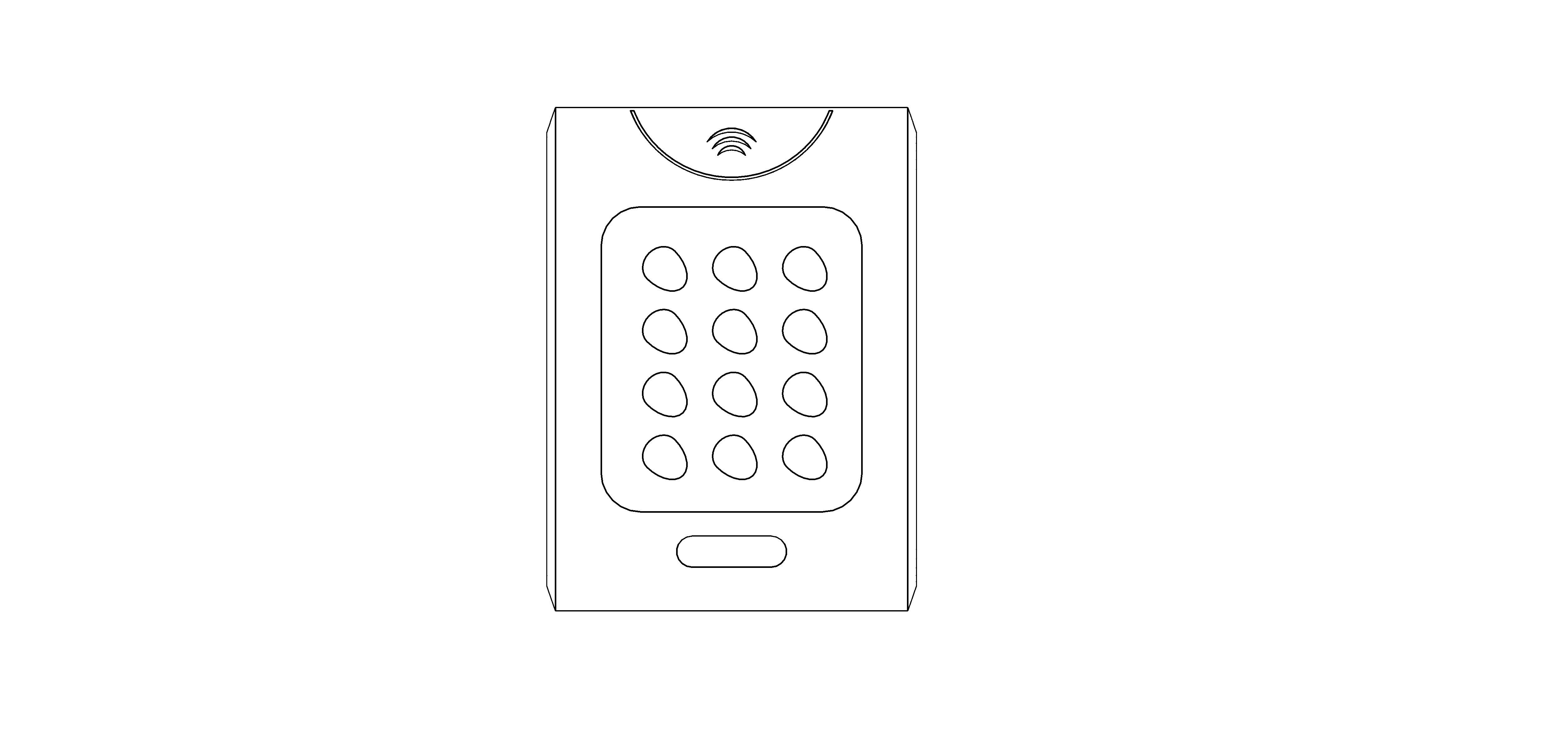

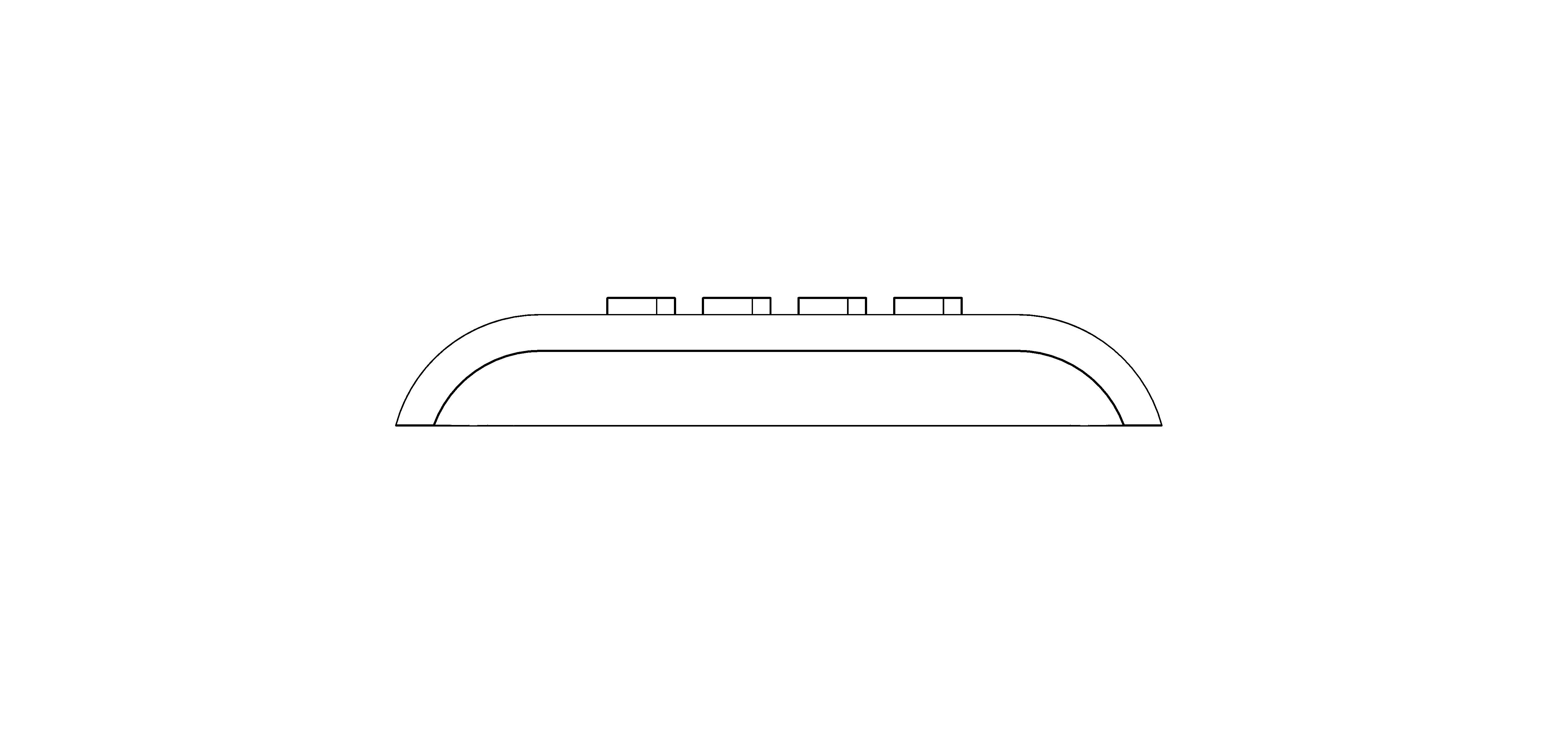

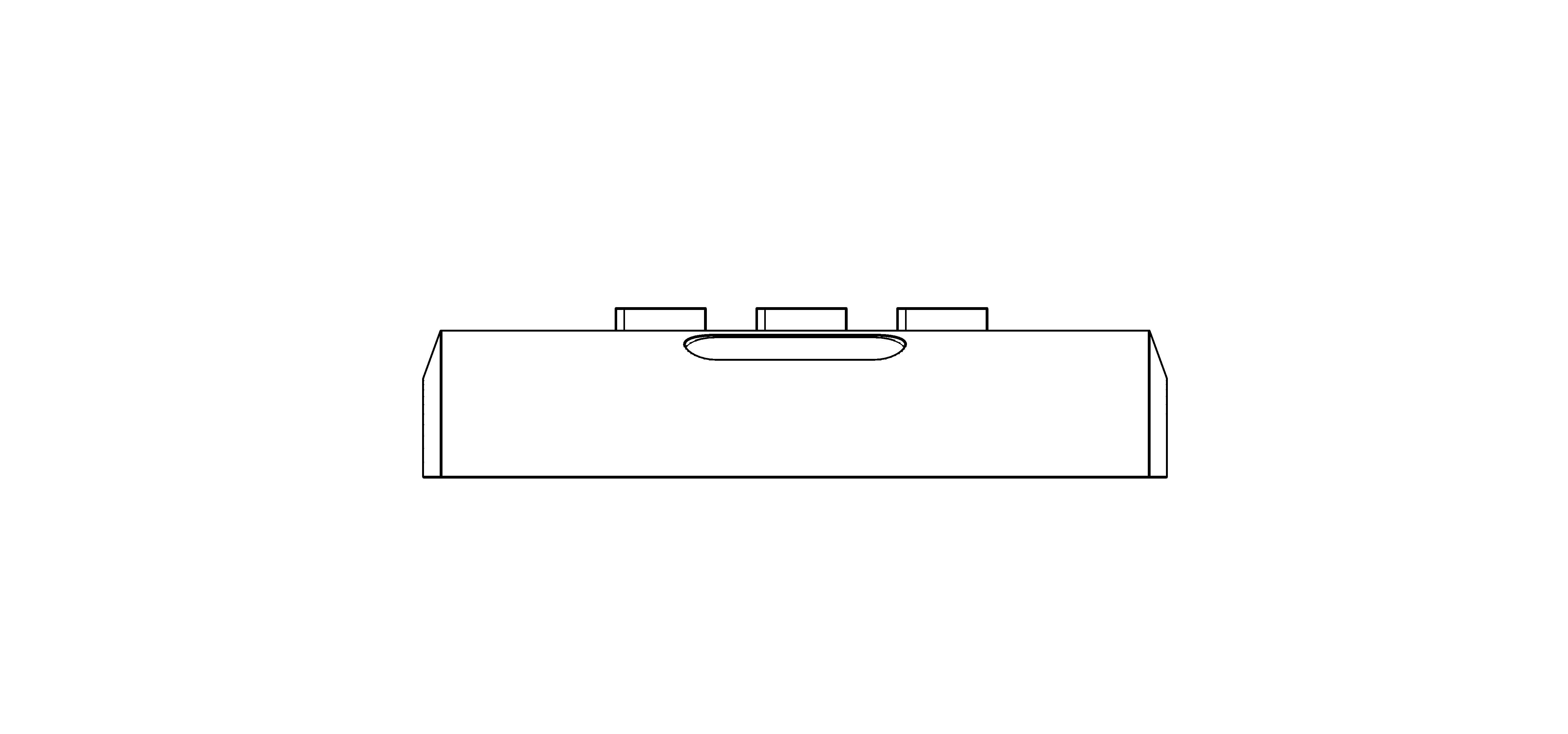

Size95mm(W) x 128mm(H) x 21mm(D)
Spare Partssupport.uk@acre-int.com
Supply Voltage12 - 24 Volt DC
Tamper Protectionn/a
TitleEV1050e ACTpro EV1 Reader with keypad
Type CommentsV54504-F124-A100
Type NameV54504-F124-A100
URLvanderbiltindustries.com/
Verificationn/a
Videon/a
Walking Speedn/a
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborsupport.uk@acre-int.com
Warranty Guarantor Partssupport.uk@acre-int.com
Weight0.155Kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
