Aero

by DW Windsor

Download Add to collection

Description

Specifications

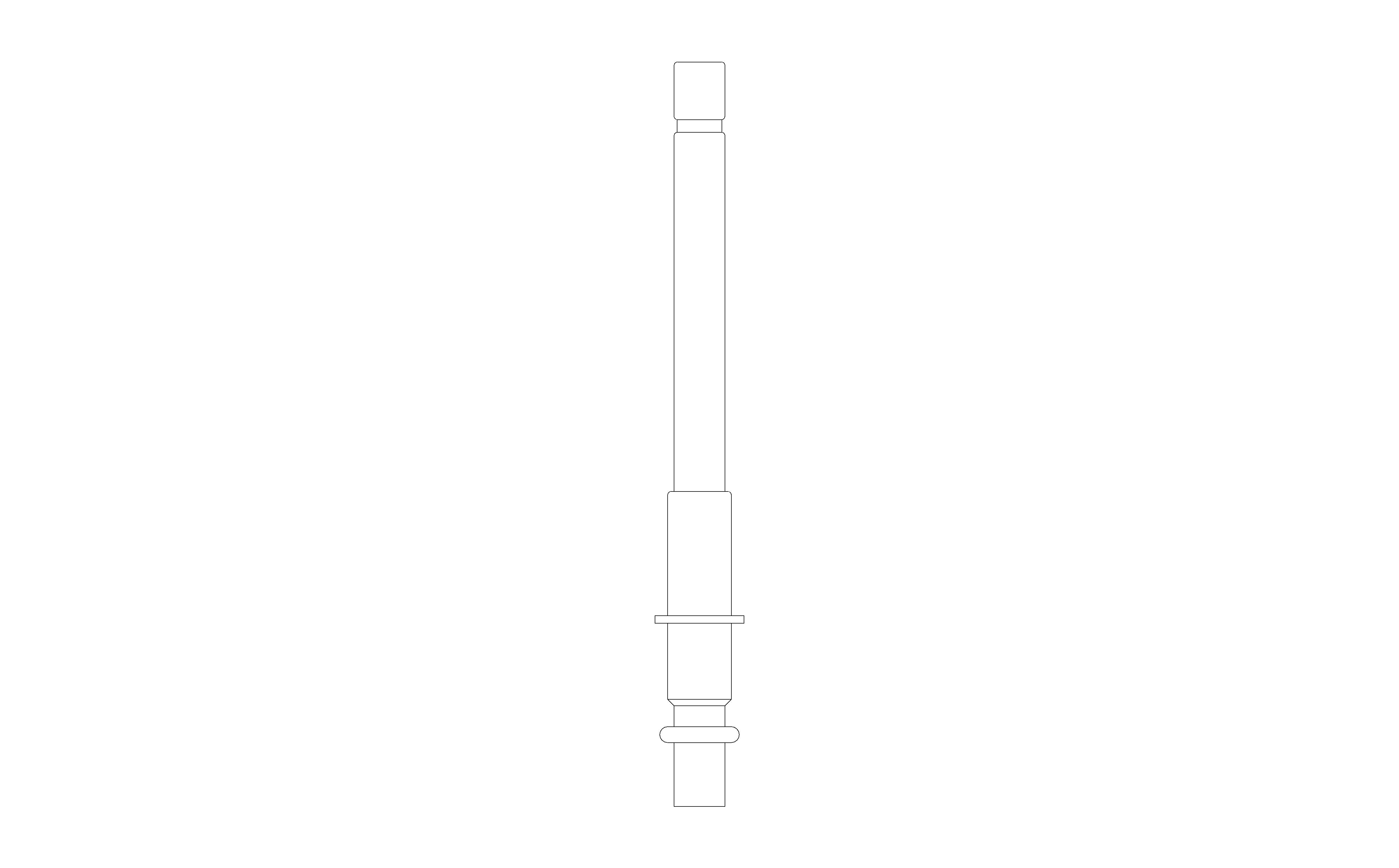

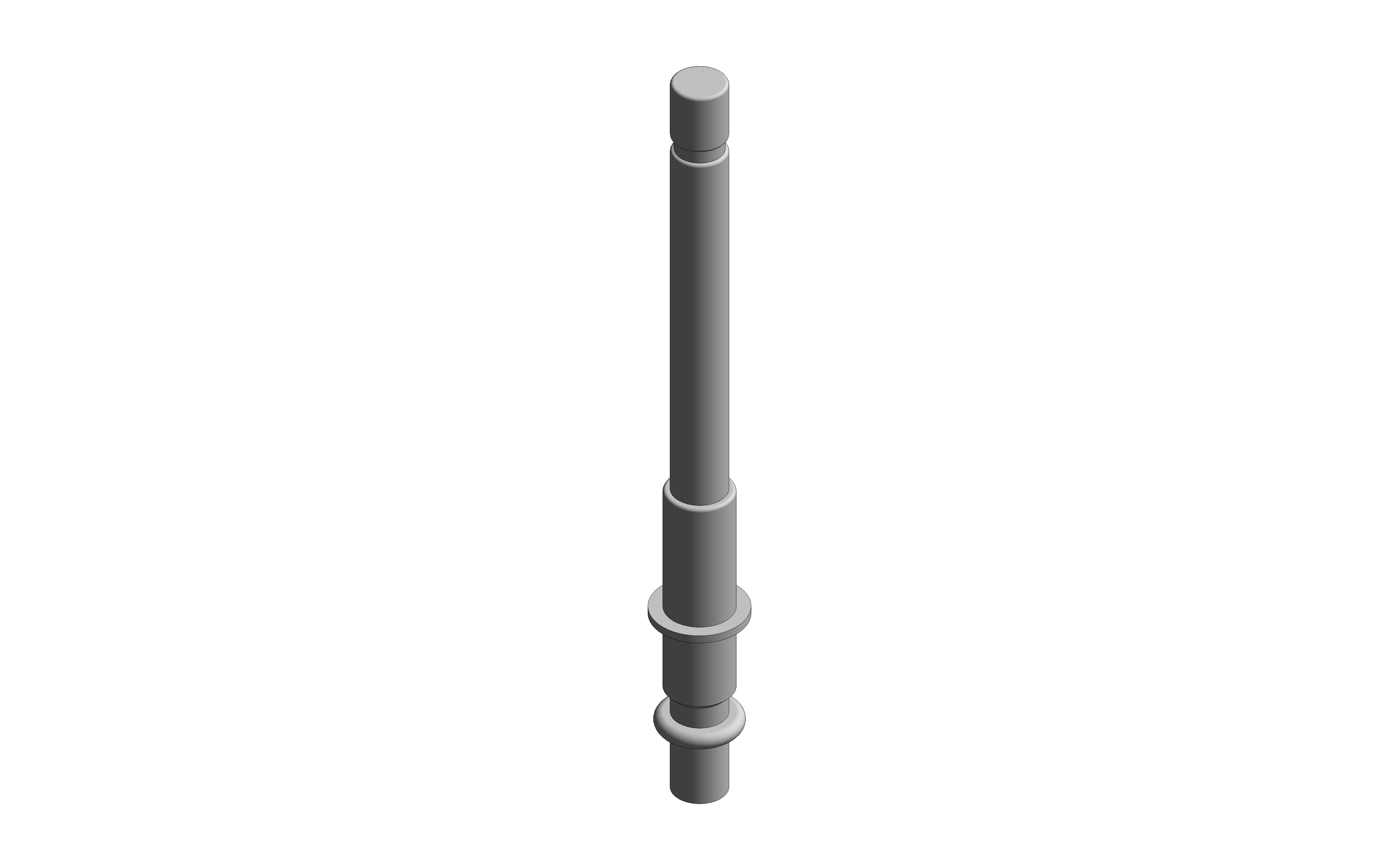

Cylindrical bollard made from cast aluminium with a layered ring forming an optical distinction towards the top and a distinct cylindrical base.

Mounting
Removable with 3p-Technology, consisting of a ground shell, junction piece with integrated breaking point, two clamping bolts, a hex head bolt and a lock nut. Alternative version available for embedding in concrete.

Measurements

Height above ground level: 870mm

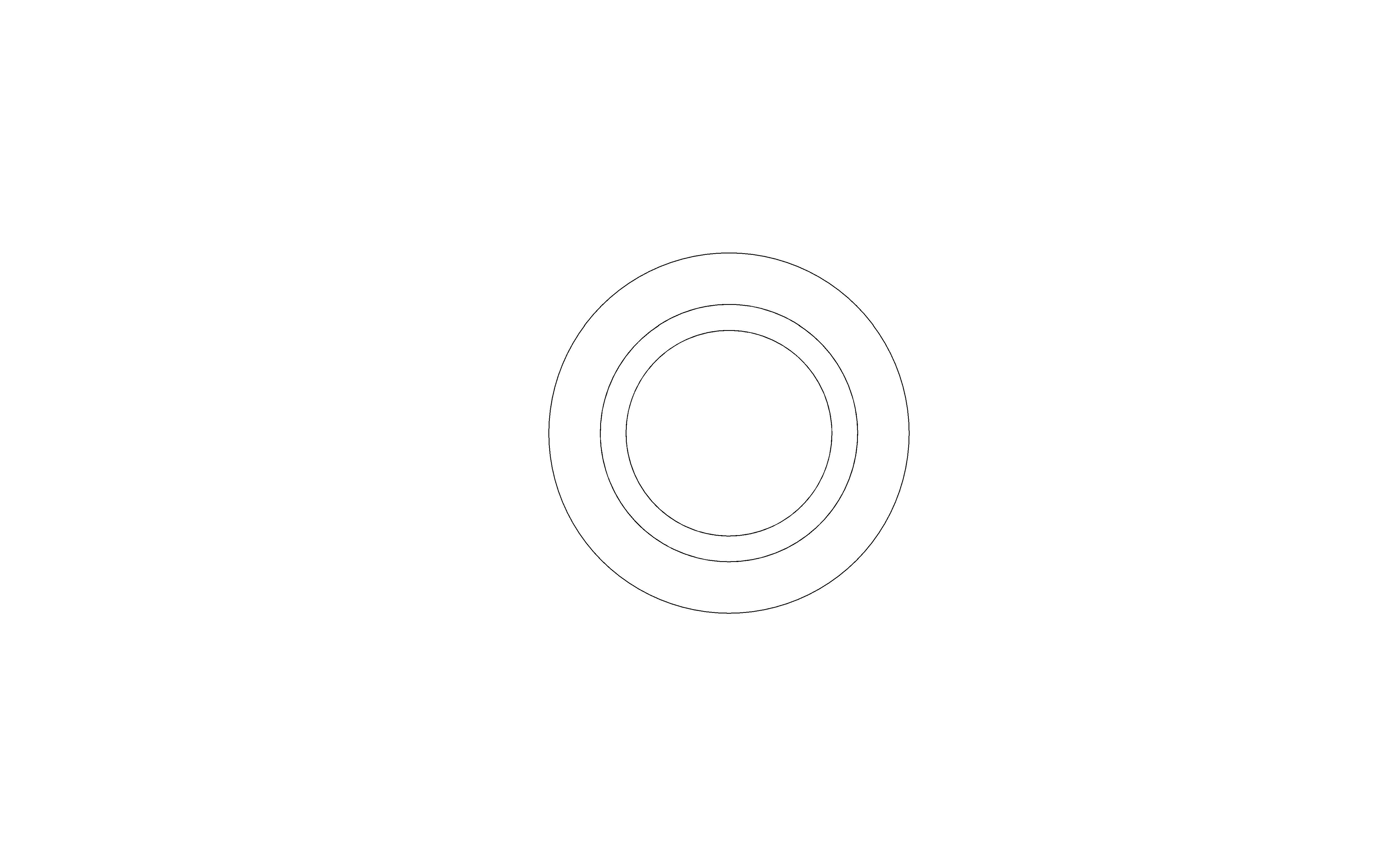

Diameter: 80mm /100mm
Height ground shell: 100mm, 300mm (standard) or 500mm
Weight: approx. 10.7kg (for fixed mounting + 1.5kg)

Object Data

1 Revision

Last Updated

13/02/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

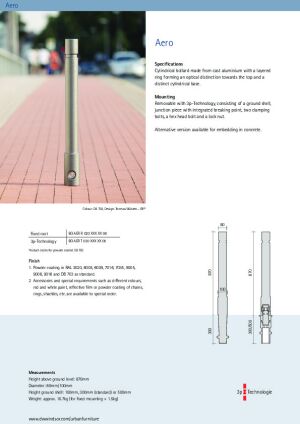

Product Literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
Accessibility Performancen/a
Assembly CodeG2040900
Asset TypeFixed
BIM Object NameDwWindsor_Site_Furniture_Bollards_Aero
Bollard MaterialDwWindsor_AnthraciteGrey_RAL7016
Bottom Diameter100 mm
Classification NameUniclass2015
Classification ValuePr_20_76_08_02
Code Performancen/a

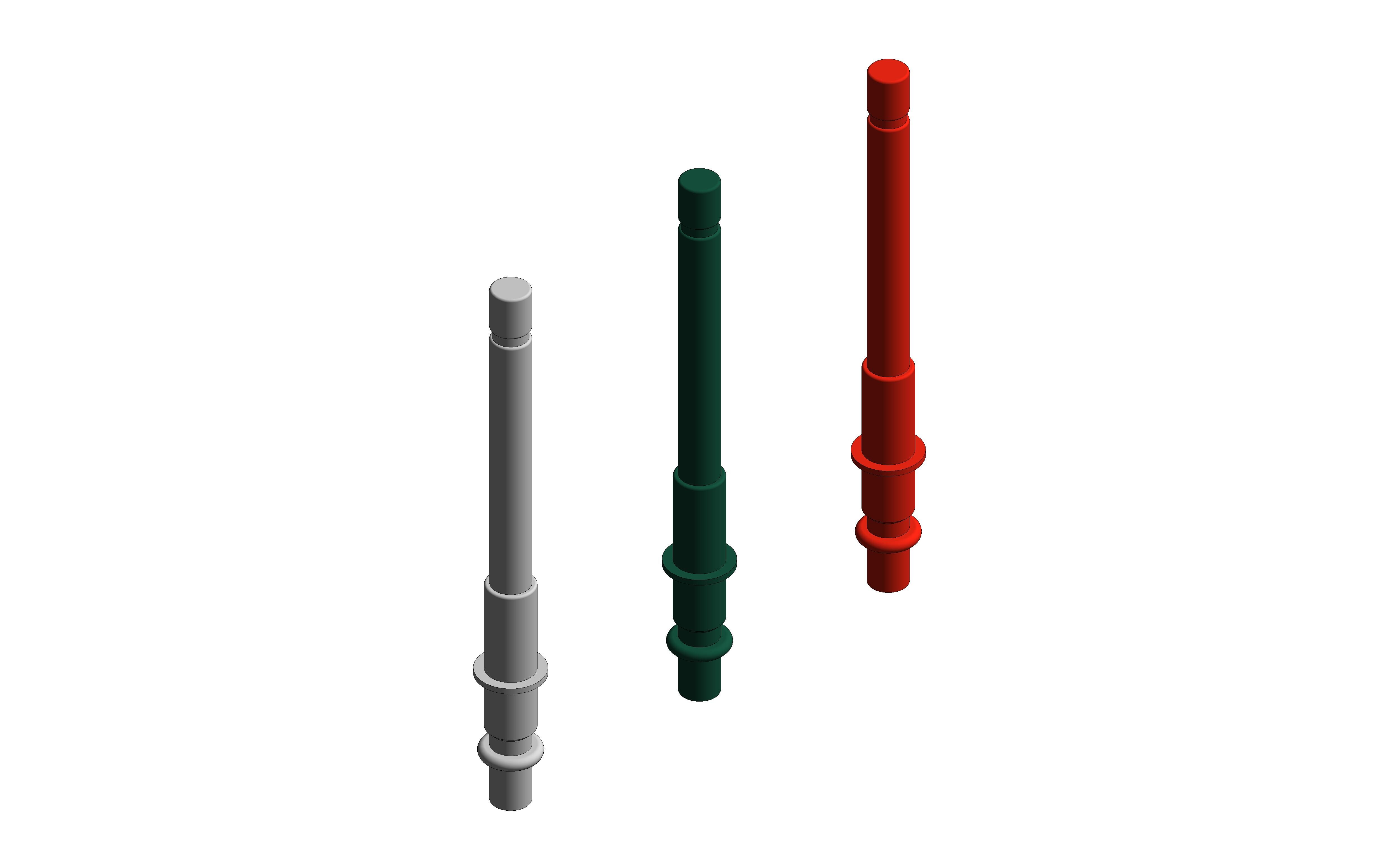

ColorAnthracite Grey
Constituentsn/a
Created Byinfo@dwwindsor.com
Created On2020-02-13T09:00:00
Default Elevation1219 mm
DescriptionCylindrical bollard made from cast aluminium with a layered ring forming an optical distinction towards the top and cylindrical base.
Documentation Certificateswww.dwwindsor.com/products/aero/
Documentation Installation Guidewww.dwwindsor.com/products/aero/
Documentation Literaturewww.bimstore.co/products/aero/document/product-literature
Documentation Maintenancewww.dwwindsor.com/products/aero/
Documentation Technicalwww.dwwindsor.com/products/aero/
Duration UnitYears
Expected Life0
Features3p-Technology: A cost saving mounting system. Alternative version available for embedding in concrete. Accessories and special requirements are available to special order.
FinishPolyester powder coat
Graden/a
Height Above Ground Level870 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteQ50/190
ManufacturerDW Windsor
Manufacturer NameDW Windsor
MaterialCast Aluminium
ModelBollards
Model NumberAero - Anthracite Grey
Model ReferenceBollards
NBS DescriptionAluminium alloy bollards
NBS Object NameDW Windsor - Aluminium alloy bollards
NBS Office Master Tagn/a
NBS Reference45-25-15/301
Nominal Depth80 mm
Nominal Length80 mm
Production Year2020
Referenced Standardn/a
Replacement Costn/a
ShapeCylindrical
Size870mm x 80mm
Spare Partsn/a
Top Diameter80 mm
Type CommentsAero - Anthracite Grey
Type NameAero - Anthracite Grey
URLwww.dwwindsor.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@dwwindsor.com
