Air Curtain - C-Series - Recessed

by Thermoscreens

Download Add to collection

Description

Compact and cost-effective, Thermoscreens C Series air curtains are specifically designed for applications where there’s limited headspace above the door. With a choice of surface or recessed mounting, there’s a C Series solution to suit any doorway, no matter how restricted the space may be.

Object Data

1 Revision

Last Updated

19/05/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

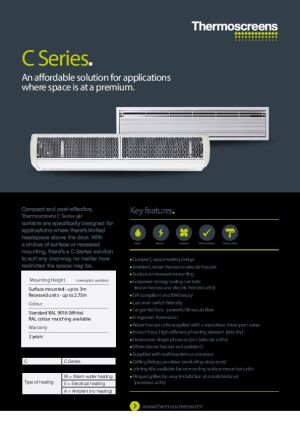

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/air-curtain-c-series-recessed/document/object-user-guide
a507.30 mm
A1129.00 mm
Accessibility Performancen/a
Assembly CodeD3090400
Asset TypeFixed
b488.21 mm
BIM Object NameThermoscreens_MechanicalEquipment_AirCurtains_C-Series_C1000AR
Classification NameUniclass2015
Classification ValuePr_70_60_36_02
Code Performancen/a
ColorRAL 9016
Constituentsn/a
Created Bysales@thermoscreens.com
Created On2022-01-20 T09:00:00
D140.00 mm
Default Elevation3000.00 mm
Depth301.00 mm
DescriptionCompact and cost-effective, Thermoscreens C Series air curtains are specifically designed for applications where there’s limited headspace above the door. With a choice of surface or recessed mounting, there’s a C Series solution to suit any doorway, no matter how restricted the space may be.
Documentation Certificateswww.bimstore.co/products/air-curtain-c-series-recessed/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/air-curtain-c-series-recessed/document/installation-guide
Documentation Literaturewww.bimstore.co/products/air-curtain-c-series-recessed/document/product-literature
Documentation Maintenancewww.bimstore.co/products/air-curtain-c-series-recessed/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/air-curtain-c-series-recessed/document/technical-data-sheet
Duration UnitYear
Expected Life0
Features- Compact, space-saving design - Ambient, water heated or electric heated - Surface or recessed mounting - Ecopower energy saving controls (water heated and electric heated units) - ErP compliant and BMS ready - Last man switch friendly - Tangential fans - powerful linear air flow - Integrated thermostat - Water heated units supplied with a motorised three-port valve - Instant heat, high-efficiency heating element (electric) - Downrated single phase output (electric units) - Filters (water heated and ambient) - Supplied with wall brackets as standard - Ceiling fixings provided (excluding drop-rods) - Joining kits available for connecting surface mounted units - Hinged grilles for easy installation and maintenance (recessed units)
Finishn/a
Graden/a
Grille 3 VisibilityNo
Heat Outputn/a
Height205.00 mm
Ifc Export AsIfcUnitaryEquipmentType
Ifc Export TypeAIRCONDITIONINGUNIT
KeynoteU
Length1179.00 mm
Loading Per Phase0.7 A
ManufacturerThermoscreens
Manufacturer NameThermoscreens
Materialn/a
Maximum Air Volume1190 m3/h
Maximum Velocity9.0 m/s
ModelC1000AR
Model NumberC1000AR
Model ReferenceThermoscreens C Series Air Curtain - Recessed
NBS DescriptionAir curtains
NBS Noten/a
NBS Object NameThermoscreens - Air curtains
NBS Office Master Tagn/a
NBS Reference90-40-35/310
Noise Output-High55 dB(A) @3m
Noise Output-Low50 dB(A) @3m
Noise Output-Medium53 dB(A) @3m
Nominal Depth301.00 mm
Nominal Height205.00 mm
Nominal Length1179.00 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare PartsMaster and slave lead: 6m [T5951110]; Ecopower extension lead: 10m [T5951112]; Ecopower extension lead: 15m [T5951113]; Ecopower extension lead: 30m [T5951114]; Extension lead coupler [T5951030]; Joining kit [T7308220]
Standard Grille Size1209 x 353 mm
Supply230V~1P&N
Type CommentsThermoscreens C Series Air Curtain - Recessed
Type NameThermoscreens C Series Air Curtain - Recessed
Type Of HeatingAmbient (no heating)
URLthermoscreens.com/
Warranty Descriptionn/a
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYear
Warranty Guarantor Laborsales@thermoscreens.com
Warranty Guarantor Partssales@thermoscreens.com
Weight19.00 kg
