Air Curtain - CS Vertical Series

by Thermoscreens

Download Add to collection

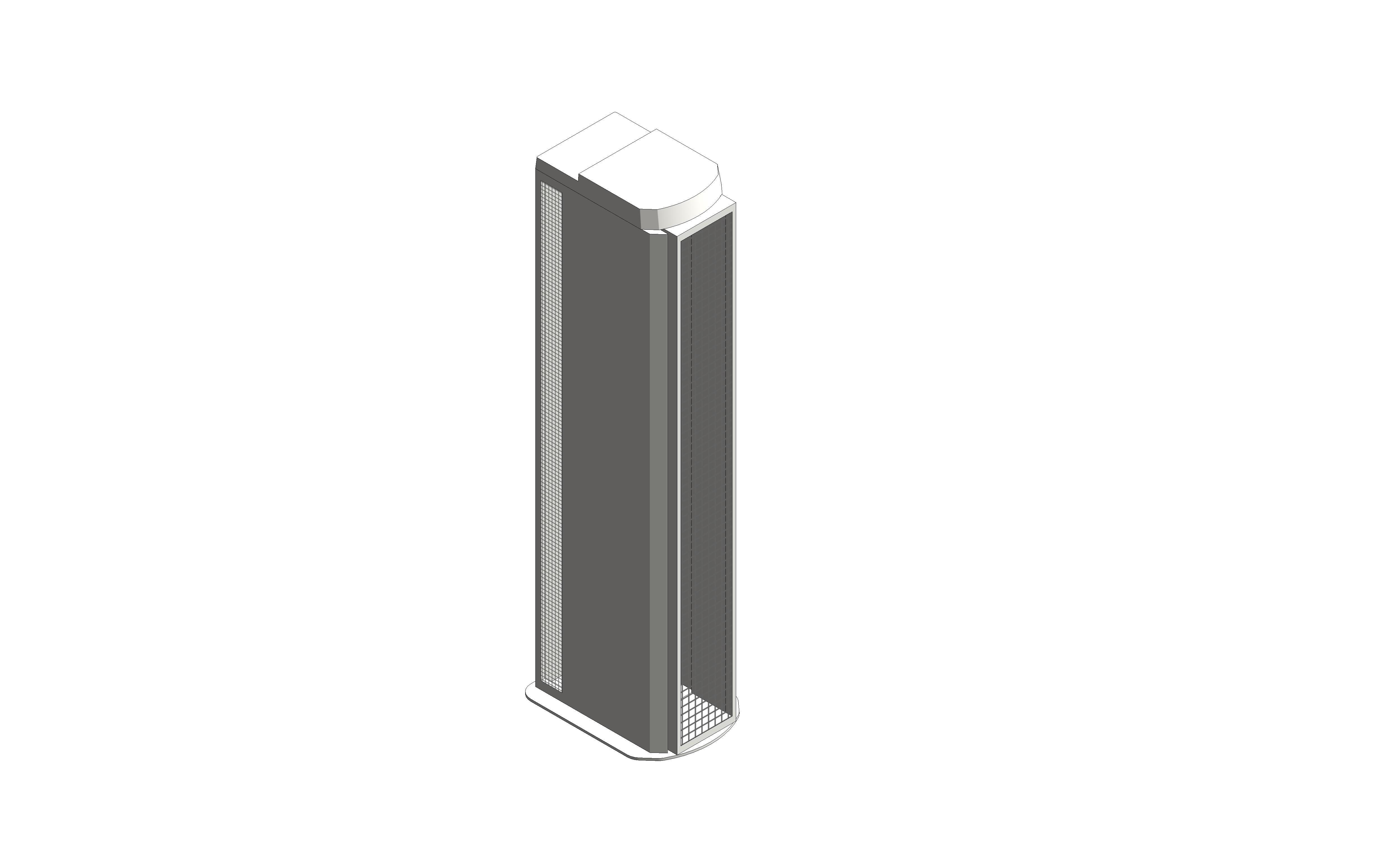

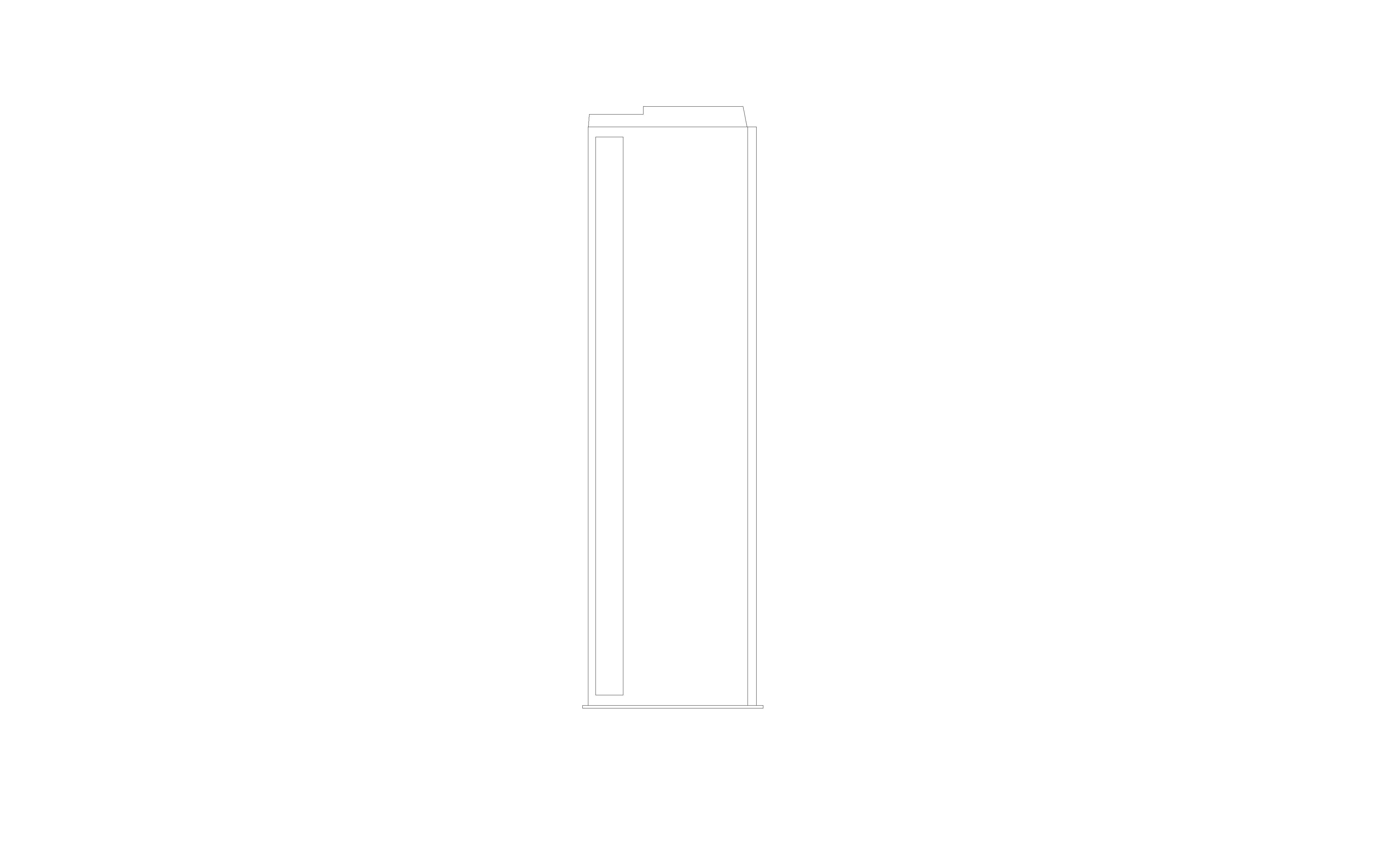

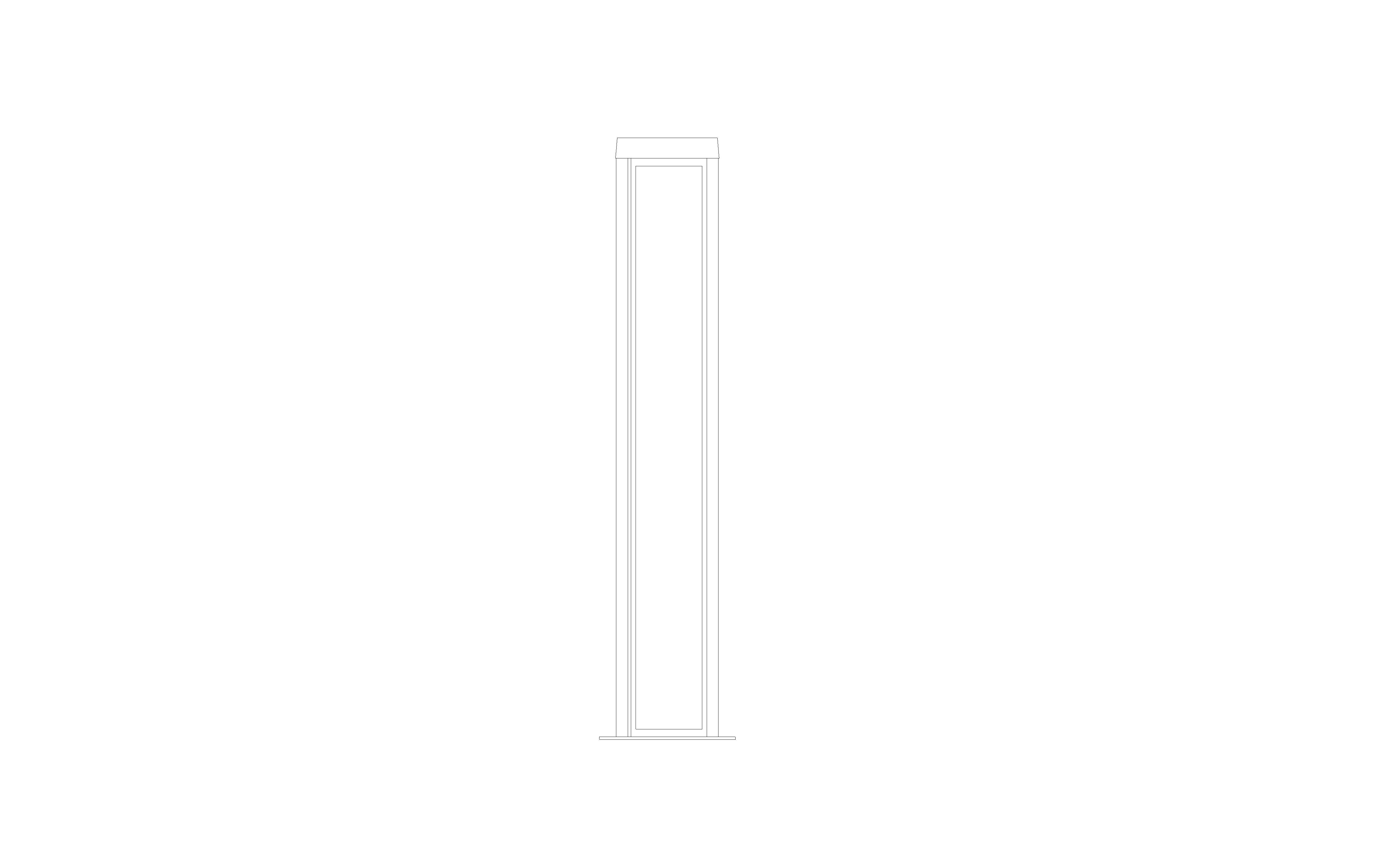

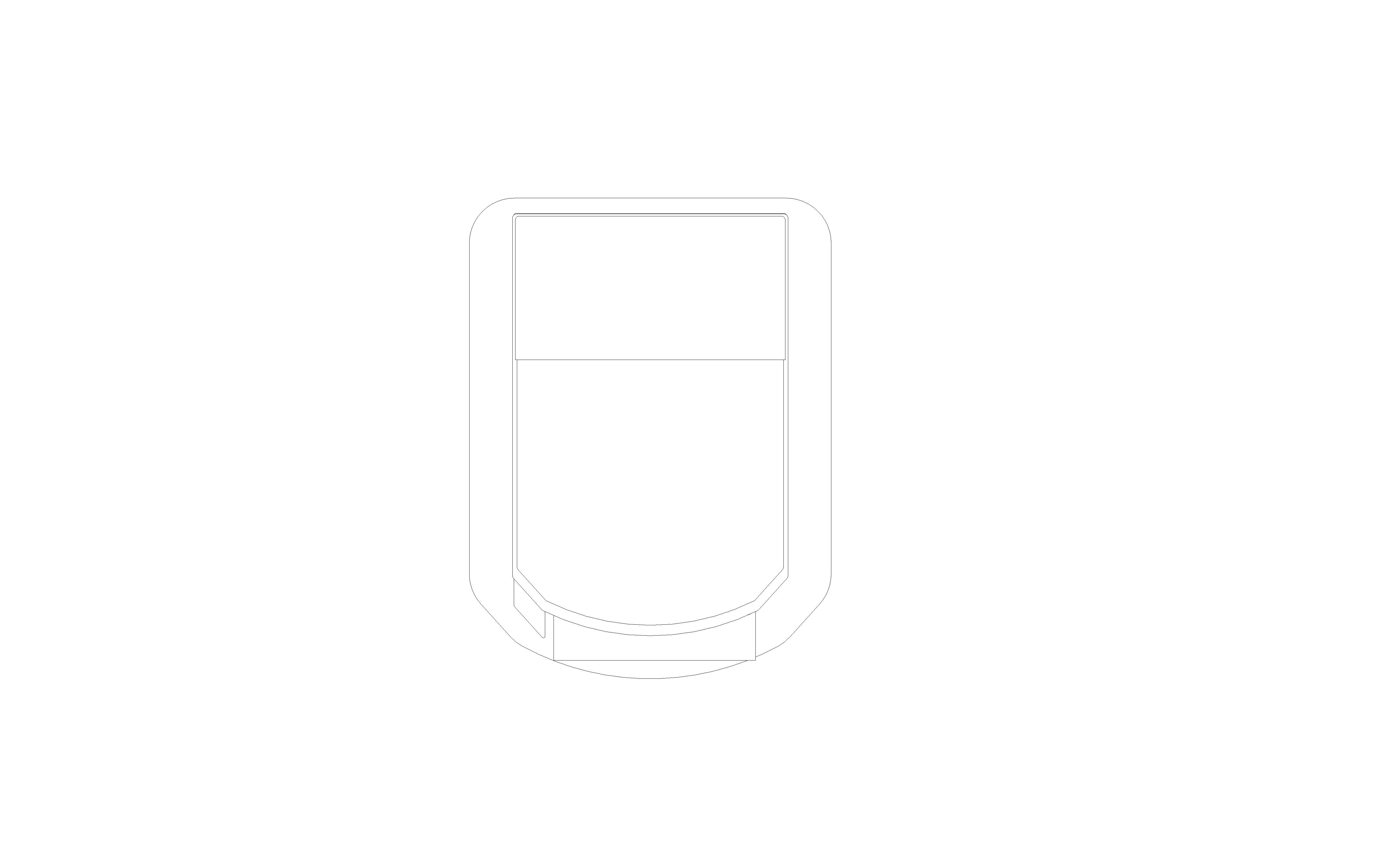

Description

Designed and engineered to maintain climate separation in cold stores with temperatures as low as -25 degrees.

The CS has advanced EC motor technology, so not only does it keep the cold store cold, but also keeps energy consumption to a minimum. The unit benefits from built-in frost protection to ensure unhindered access for goods.

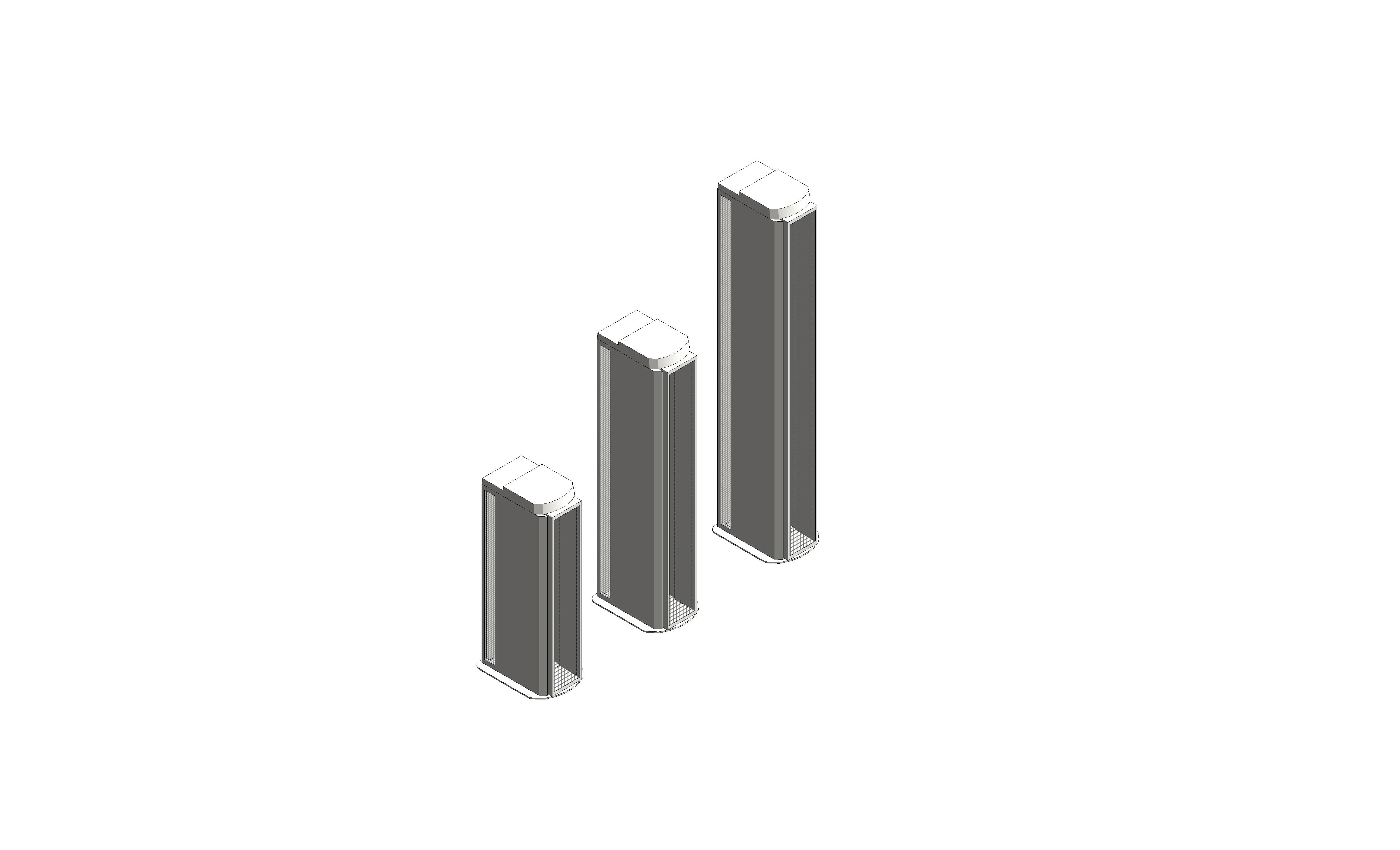

Available in 2 variants the CS and CS Max, which has been designed for areas where greater air velocity or a higher mounting height is needed.

Object Data

1 Revision

Last Updated

24/04/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

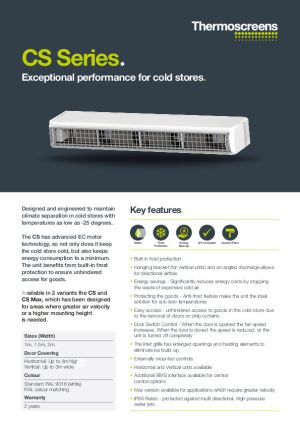

Accompanying literature

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/air-curtain-cs-vertical-series/document/object-user-guide
a1252.00 mm
Accessibility Performancen/a
Air Volume Flow Rate(Min/Max)502 - 1632 m3/h
Assembly CodeD3090400
Asset TypeFixed
BIM Object NameThermoscreens_MechanicalEquipment_AirCurtains_CSSeries_Vertical_LH
Body MaterialThermoscreens - Metal - PowderCoated - RAL9016
Classification NameUniclass2015
Classification ValuePr_70_60_36_02
Code Performancen/a
ColorStandard RAL 9016 (white)
Constituentsn/a
Created Bysales@thermoscreens.com
Created On2023-03-27 T09:00:00
Default Elevation3000.00 mm
DescriptionPowerful and very energy efficient, the RA (refrigerated areas) Air Curtain has been designed and engineered to maintain climate separation in refrigerated areas with temperatures as low as 0 degrees celsius. The unit is quiet in operation and reduces operating costs by preventing the escape of expensive conditioned air. Available in 2 variants the RA and RA Max, which has been designed for areas where greater air velocity or a higher mounting is needed.
Documentation Certificateswww.bimstore.co/products/air-curtain-cs-vertical-series/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/air-curtain-cs-vertical-series/document/installation-guide
Documentation Literaturewww.bimstore.co/products/air-curtain-cs-vertical-series/document/product-literature
Documentation Maintenancewww.bimstore.co/products/air-curtain-cs-vertical-series/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/air-curtain-cs-vertical-series/document/technical-data-sheet
Duration UnitYear
Effective Width Of Airstream1.10 m
Expected Life0
Features• Unhindered access to goods and refrigerated areas due to the removal of doors and strip curtains • Save energy and reduce operating costs by preventing the cold air escaping and the warm air entering the area • Prevents flying insects from entering food preparation areas due to the volume and velocity of air • Simple control – unit can be left running continuously or operated with a simple door switch • Variable airflow EC fans • Easy to install and maintain • Hanging bracket allows the unit to be positioned for directional airflow • Easy to control via companion App • Horizontal and Vertical units available • Additional BMS interface available for central control options • Max version available for applications which require greater velocity • IP66 Rated (Protected against multi-directional high pressure water jets)
Finishn/a
Graden/a
Ifc Export AsIfcUnitaryEquipmentType
Ifc Export TypeAIRCONDITIONINGUNIT
Intake MaterialThermoscreens - Metal - Grate
KeynoteU
ManufacturerThermoscreens
Manufacturer NameThermoscreens
Materialn/a
Maximum Door Width2.6m
Maximum Mounting Heightn/a
ModelCS1000V
Model NumberCS1000V
Model ReferenceThermoscreens CS Series Air Curtain
NBS DescriptionAir curtains
NBS Noten/a
NBS Object NameThermoscreens - Air curtains
NBS Office Master Tagn/a
NBS Reference90-40-35/310
Noise Level(Min/Max)52 - 70 dB(A) @3m
Nominal Depth498.00 mm
Nominal Height1300.00 mm
Nominal Length306.00 mm
Outlet MaterialThermoscreens - Metal - Grate - Small
Production Year2023
Rated Current1 A
Rated Electrical Power Input172 W
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1300 x 498 x 306mm
Spare Partsn/a
Specific Fan Power(Min/Max)0.09 - 0.38 W/l/s
Supply230v/1ph/50Hz
Type CommentsThermoscreens CS Series Air Curtain
Type NameCS1000V
URLthermoscreens.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration UnitYear
Warranty Guarantor Laborsales@thermoscreens.com
Warranty Guarantor Partssales@thermoscreens.com
Weight60.00 kg
