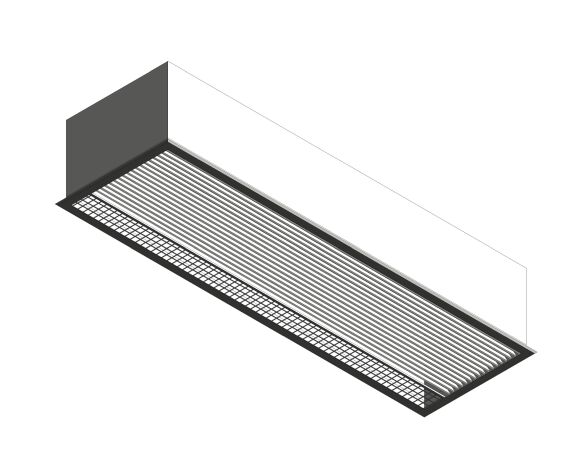

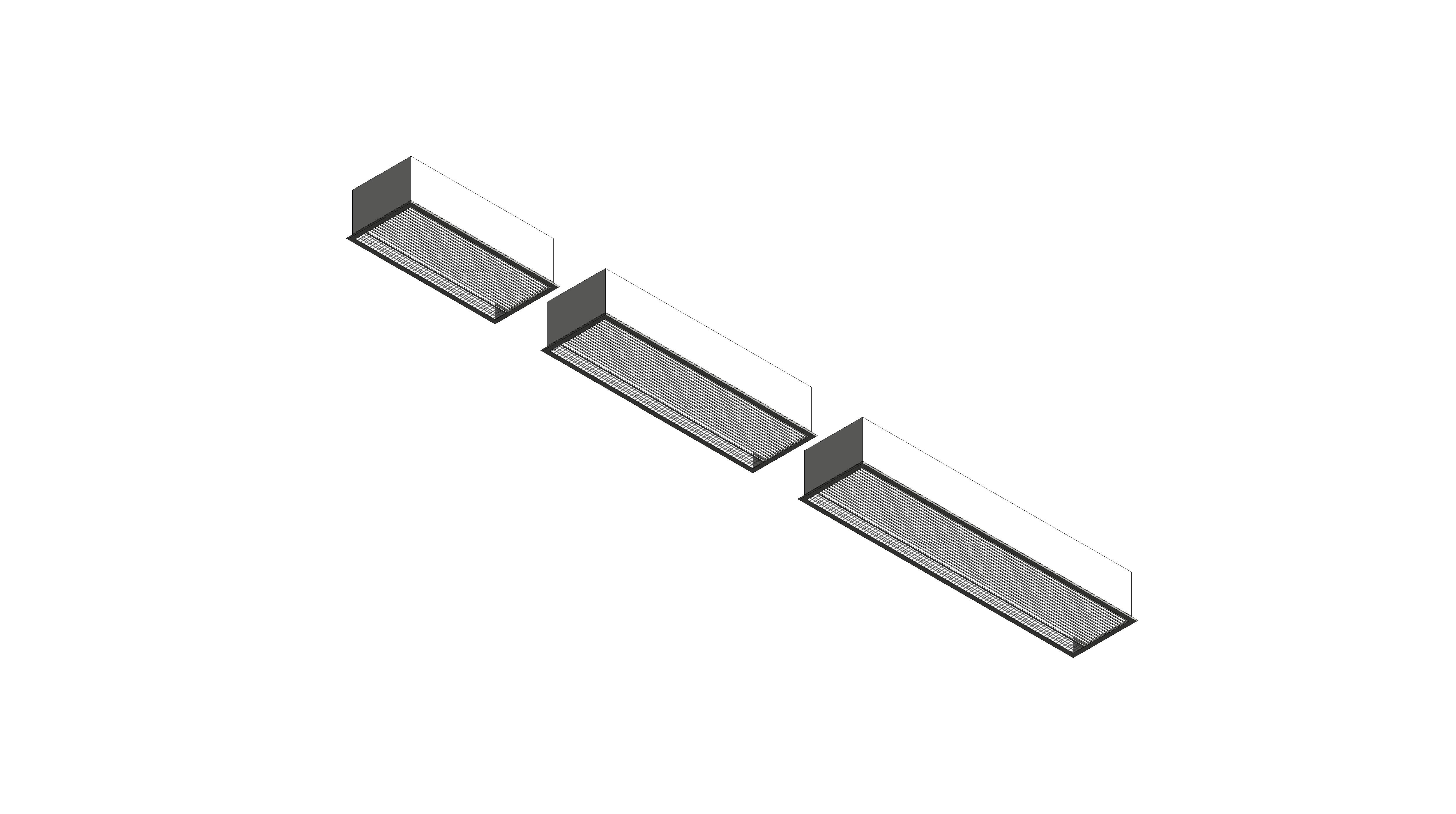

Air Curtain - HX Series - Recessed

by Thermoscreens

Download Add to collection

Description

Combining the latest Ecopower controls with industry-leading air separation technology, HX commercial air curtains are one of the most advanced solutions available in the UK. Very powerful and highly efficient, HX units deliver exceptional performance and outstanding energy savings.

Object Data

1 Revision

Last Updated

08/06/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Literature

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/air-curtain-hx-series-recessed/document/object-user-guide
A1185.00 mm
Accessibility Performancen/a
Assembly CodeD3090400
Asset TypeFixed
B729.00 mm
BIM Object NameThermoscreens_MechanicalEquipment_AirCurtains_HXSeries_HX1000AR
C933.00 mm
Classification NameUniclass2015
Classification ValuePr_70_60_36_02
Code Performancen/a
ColorRAL 9016
Constituentsn/a
Created Bysales@thermoscreens.com
Created On2022-01-25 T09:00:00
D1238.00 mm
Default Elevation3000.00 mm
Depth485.00 mm
DescriptionCombining the latest Ecopower controls with industry-leading air separation technology, HX commercial air curtains are one of the most advanced solutions available in the UK. Very powerful and highly efficient, HX units deliver exceptional performance and outstanding energy savings.
Documentation Certificateswww.bimstore.co/products/air-curtain-hx-series-recessed/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/air-curtain-hx-series-recessed/document/installation-guide
Documentation Literaturewww.bimstore.co/products/air-curtain-hx-series-recessed/document/product-literature
Documentation Maintenancewww.bimstore.co/products/air-curtain-hx-series-recessed/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/air-curtain-hx-series-recessed/document/technical-data-sheet
Duration UnitYear
E1100.00 mm
Expected Life0
Features- Industry-leading Ecopower Air Technology - Ambient, water heated or electric heated - Surface or recessed mounting - Ecopower energy saving controls - Weather compensation with optional outdoor air sensor - IP21 rated, ErP compliant and BMS ready - Air Plenum - delivers even air flow from the discharge nozzle - Converging Nozzles - creates a Venturi effect, fortifying the air barrier - Active Cellular Grille - shapes air as it passes through the grille - Water heated units fitted with a motorised three-port valve - 2 or 4 row coil options - water temperatures 45 - 90°C - Vertical variant available for water temperatures 80 - 90°C - One control unit operates up to eight HX units - Filters supplied as standard (ambient and water heated units) - Optional outdoor weather compensation air sensor - Vertical recessed variant for water temperatures 80 - 90°C - Instant heat - rapid cooldown, high efficiency heating element (electric)
Finishn/a
Graden/a
Grille 1 VisibilityNo
Grille 2 VisibilityNo
Grille 3 VisibilityNo
Heat Outputn/a
Height348.00 mm
Ifc Export AsIfcUnitaryEquipmentType
Ifc Export TypeAIRCONDITIONINGUNIT
KeynoteU
Length1185.00 mm
Loading Per Phase0.8 A
ManufacturerThermoscreens
Manufacturer NameThermoscreens
Materialn/a
Maximum Air Volume1370 m3/h
Maximum Velocity9.0 m/s
ModelHX1000AR
Model NumberHX1000AR
Model ReferenceThermoscreens HX Series Air Curtain
NBS DescriptionAir curtains
NBS Noten/a
NBS Object NameThermoscreens - Air curtains
NBS Office Master Tagn/a
NBS Reference90-40-35/310
Noise Output-High58 dB(A) @3m
Noise Output-Low48 dB(A) @3m
Noise Output-Medium55 dB(A) @3m
Nominal Depth485.00 mm
Nominal Height348.00 mm
Nominal Length1185.00 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1185 x 485 x 348mm
Spare PartsDoor limit switch [T7260200]; 3 Way mid position valve [T7260111]; End cap - LH [T7661204]; End cap - RH [T7661205]; Master and slave lead: 3M + coupler [T5951110]; 6M Extension cable + coupler [T5951111]; 10M Extension cable + coupler [T5951112]; 15M Extension cable + coupler [T5951113]; 30M Extension cable + coupler [T5951114]; Extension lead coupler [T5951030].
Supply230V~1P&N
Type CommentsThermoscreens HX Series Air Curtain
Type NameThermoscreens HX Series Air Curtain
Type Of HeatingAmbient
URLthermoscreens.com/
Warranty Descriptionn/a
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYear
Warranty Guarantor Laborsales@thermoscreens.com
Warranty Guarantor Partssales@thermoscreens.com
Weight45.00 kg
