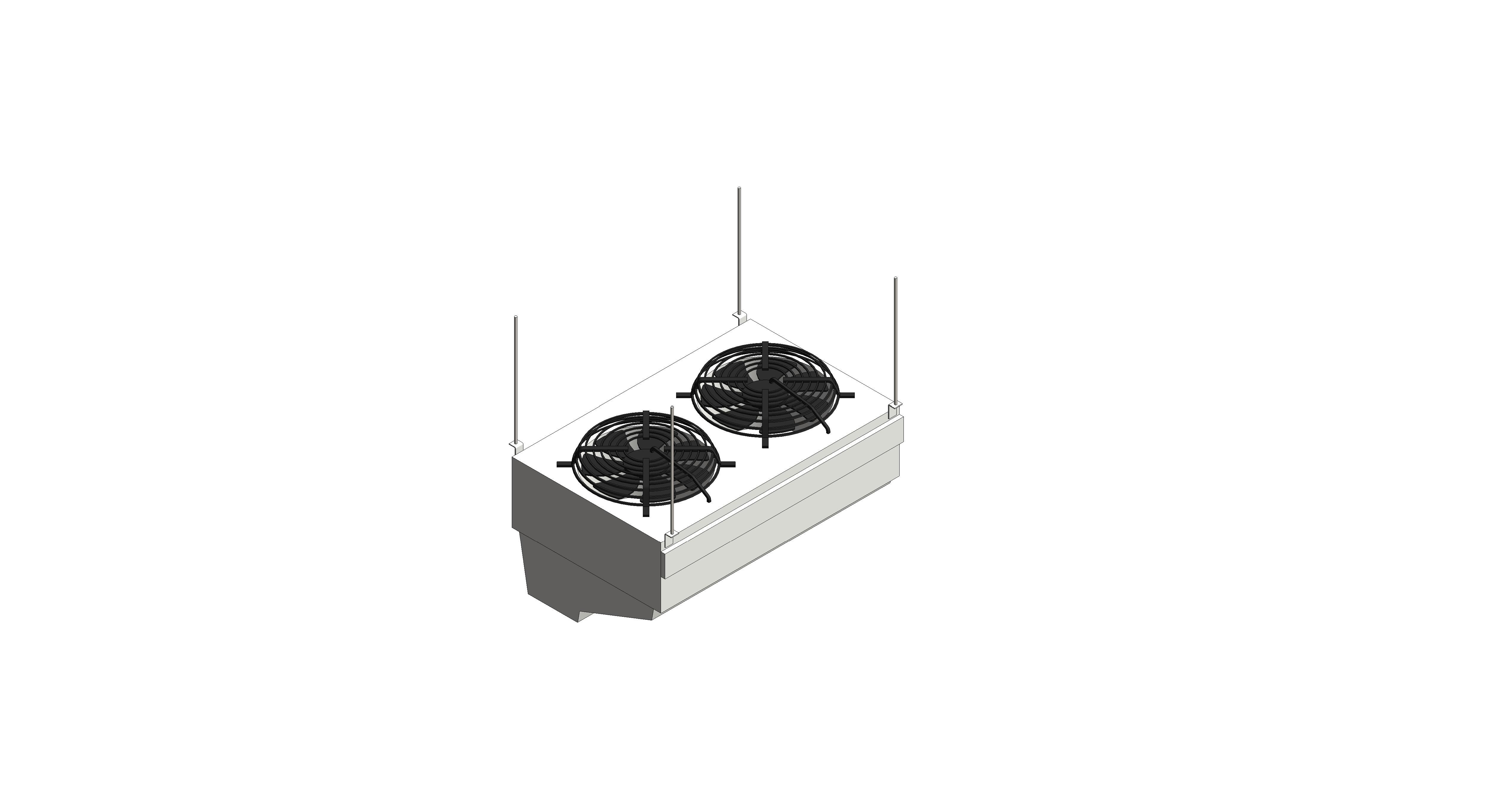

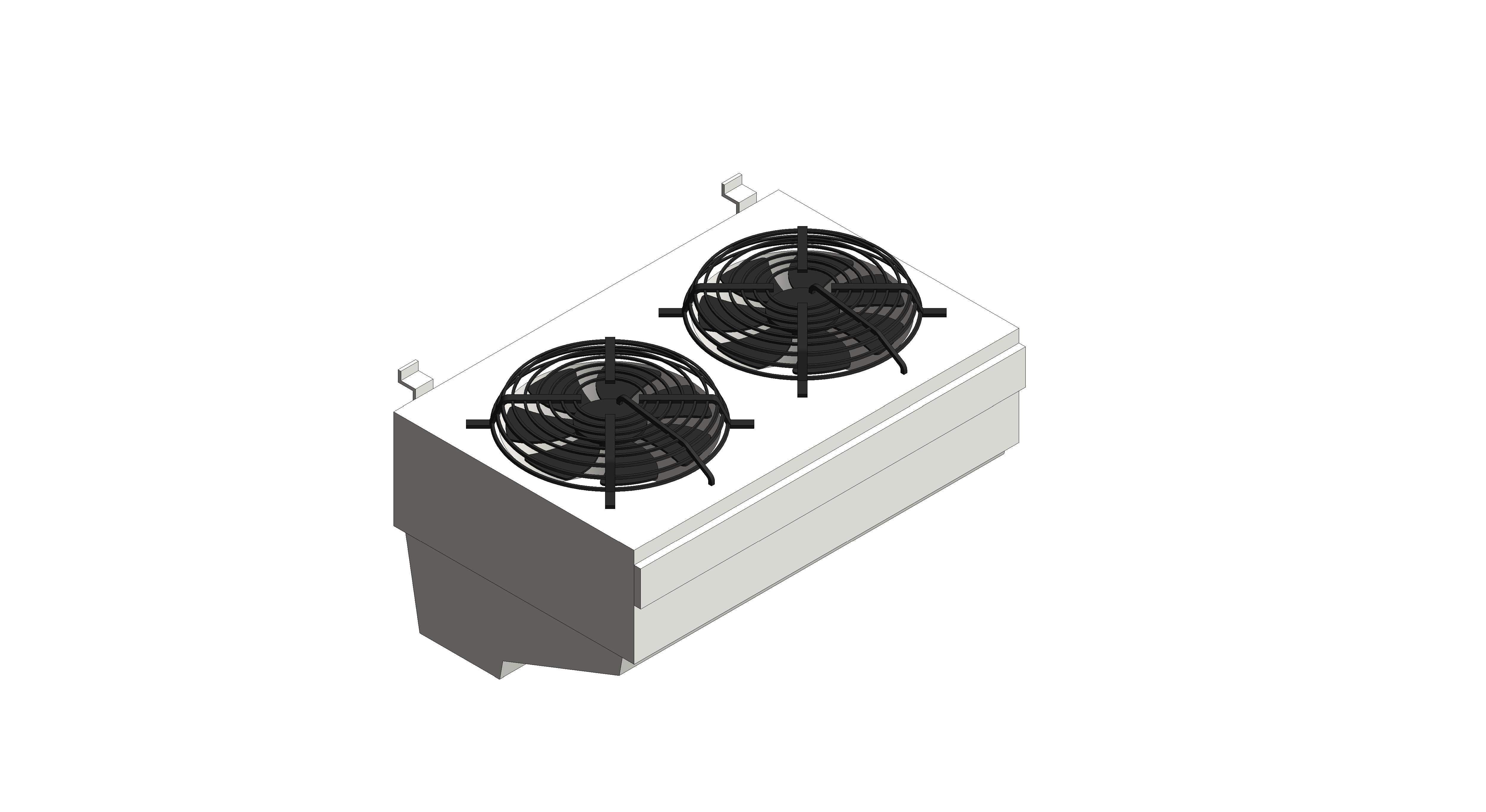

Air Curtain - IP Series - Surface Mounted

1.5k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

08/06/2022

Download BIM

Add to collection

Available for:

Robust and economical air curtain for industrial applications.

With the IP Industrial Performance Line, Thermoscreens introduces a new generation of industrial air curtains. In addition to optimum climate separation, the IP offers a sturdy design and innovative technology that increases its energy efficiency.

Key Features

Available as horizontal and vertical mounted units
Ecopower Airflow Technology
Controller with 5 settings
Patented Side Guard Technology
Pressure chamber system
Axial fans
IP21
5 years warranty
Easy to maintain

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/air-curtain-ip-series-surface-mounted/document/object-user-guide
A1100.00 mm
Accessibility Performancen/a
Assembly CodeD3090400
Asset TypeFixed
B925.00 mm
BIM Object NameThermoscreens_MechanicalEquipment_AirCurtain_IPSeries_IP1100A
Classification NameUniclass2015
Classification ValuePr_70_60_36_02
Code Performancen/a
ColorRAL 9016
Constituentsn/a
Created Bysales@thermoscreens.com
Created On2022-01-27 T09:00:00
D1031.00 mm
Default Elevation3000.00 mm
Depth725.00 mm
DescriptionIP air curtains combine highly efficient climate separation with sturdy design and technical innovation to deliver outstanding energy savings with minimal maintenance. For maximum efficiency, IP units can be controlled via a contact switch. Whenever the door is opened the air curtain is activated and the thermal output increases. When the door is closed the air flow speed automatically decreases and thermal output stops. A time delay switch allows deactivation to set based on how frequently the door is used.
Documentation Certificateswww.bimstore.co/products/air-curtain-ip-series-surface-mounted/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/air-curtain-ip-series-surface-mounted/document/installation-guide

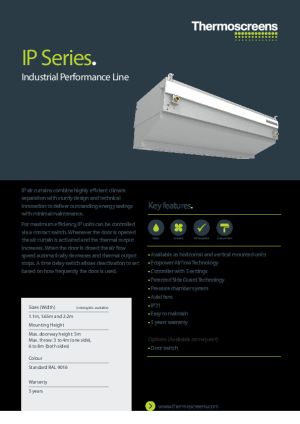

Documentation Literaturewww.bimstore.co/products/air-curtain-ip-series-surface-mounted/document/product-literature
Documentation Maintenancewww.bimstore.co/products/air-curtain-ip-series-surface-mounted/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/air-curtain-ip-series-surface-mounted/document/technical-data-sheet
Duration UnitYear
Efficiency5530 m3/h
Expected Life0
Features- Available as horizontal and vertical mounted units - Ecopower Airflow Technology - Controller with 5 settings - Patented Side Guard Technology - Pressure chamber system - Axial fans - IP21 - Easy to maintain - 5 years warranty
Finishn/a
Graden/a
Height275.00 mm
Ifc Export AsIfcUnitaryEquipmentType
Ifc Export TypeAIRCONDITIONINGUNIT
KeynoteU
Length1100.00 mm
ManufacturerThermoscreens
Manufacturer NameThermoscreens
Materialn/a
Maximum Air Flow Rate9.9 m/s
Maximum Power Consumption1.4 A
ModelIP1100A
Model NumberIP1100A
Model ReferenceThermoscreens IP Ambient Series Air Curtain
NBS DescriptionAir curtain
NBS Object NameThermoscreens - Air curtain
NBS Office Master Tagn/a
NBS Reference90-40-35/310
Noise Output59.1 dB(A)@3m
Nominal Depth725.00 mm
Nominal Height275.00 mm
Nominal Length1100.00 mm
Power400V 3~ 50Hz
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type1
Type CommentsThermoscreens IP Ambient Series Air Curtain
Type NameThermoscreens IP Ambient Series Air Curtain
URLthermoscreens.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYear
Warranty Guarantor Laborsales@thermoscreens.com
Warranty Guarantor Partssales@thermoscreens.com
Weight46.00 kg
