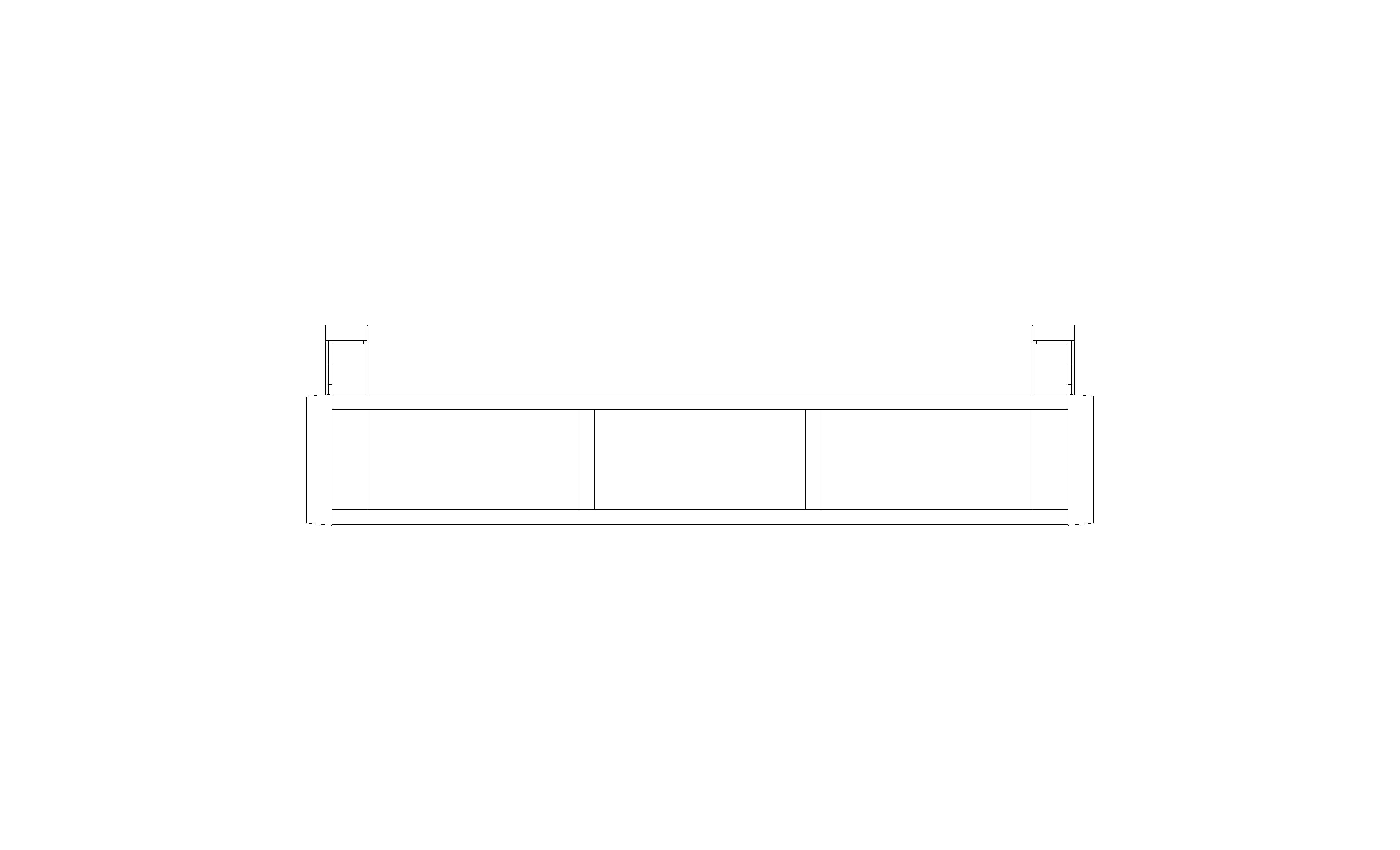

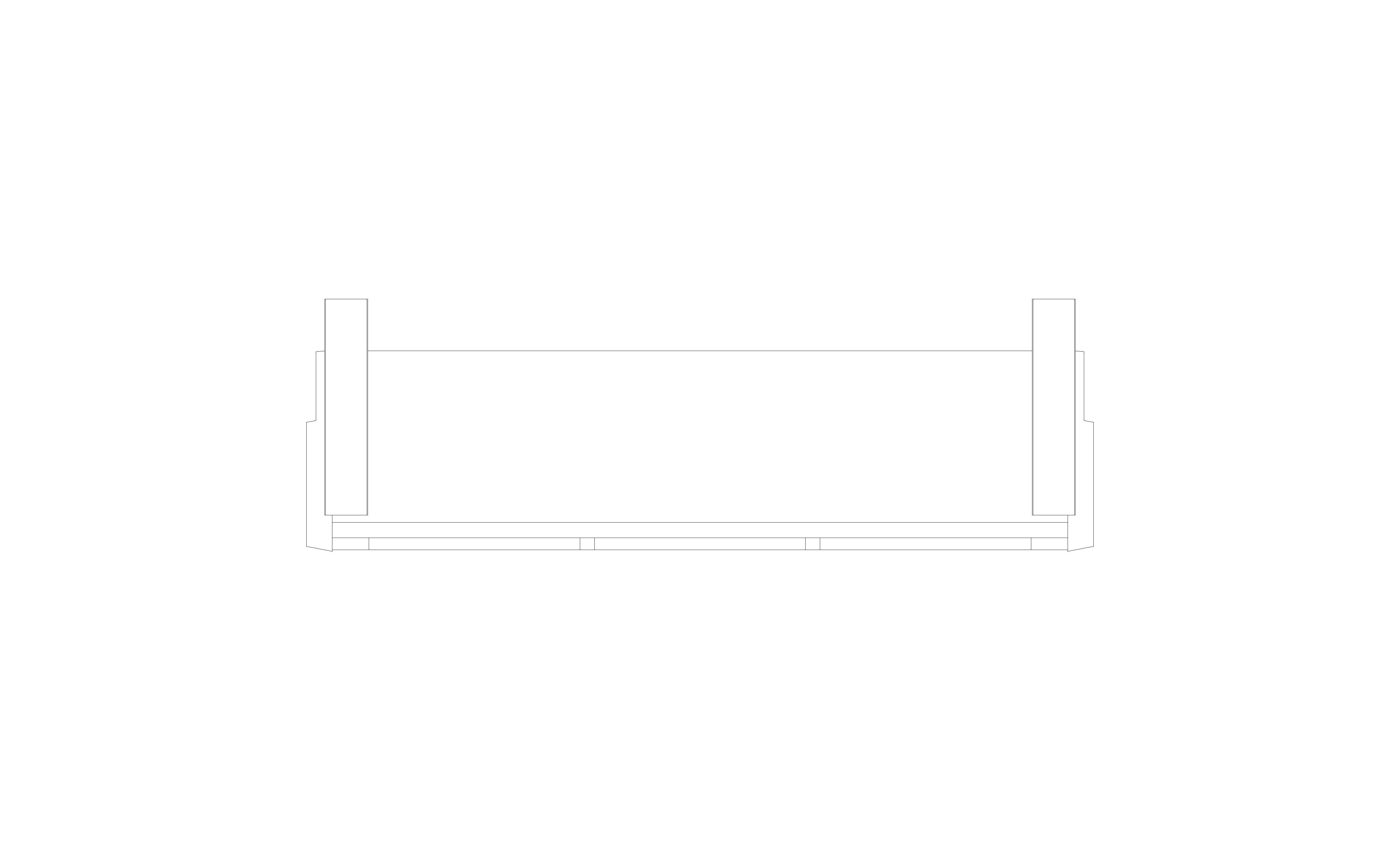

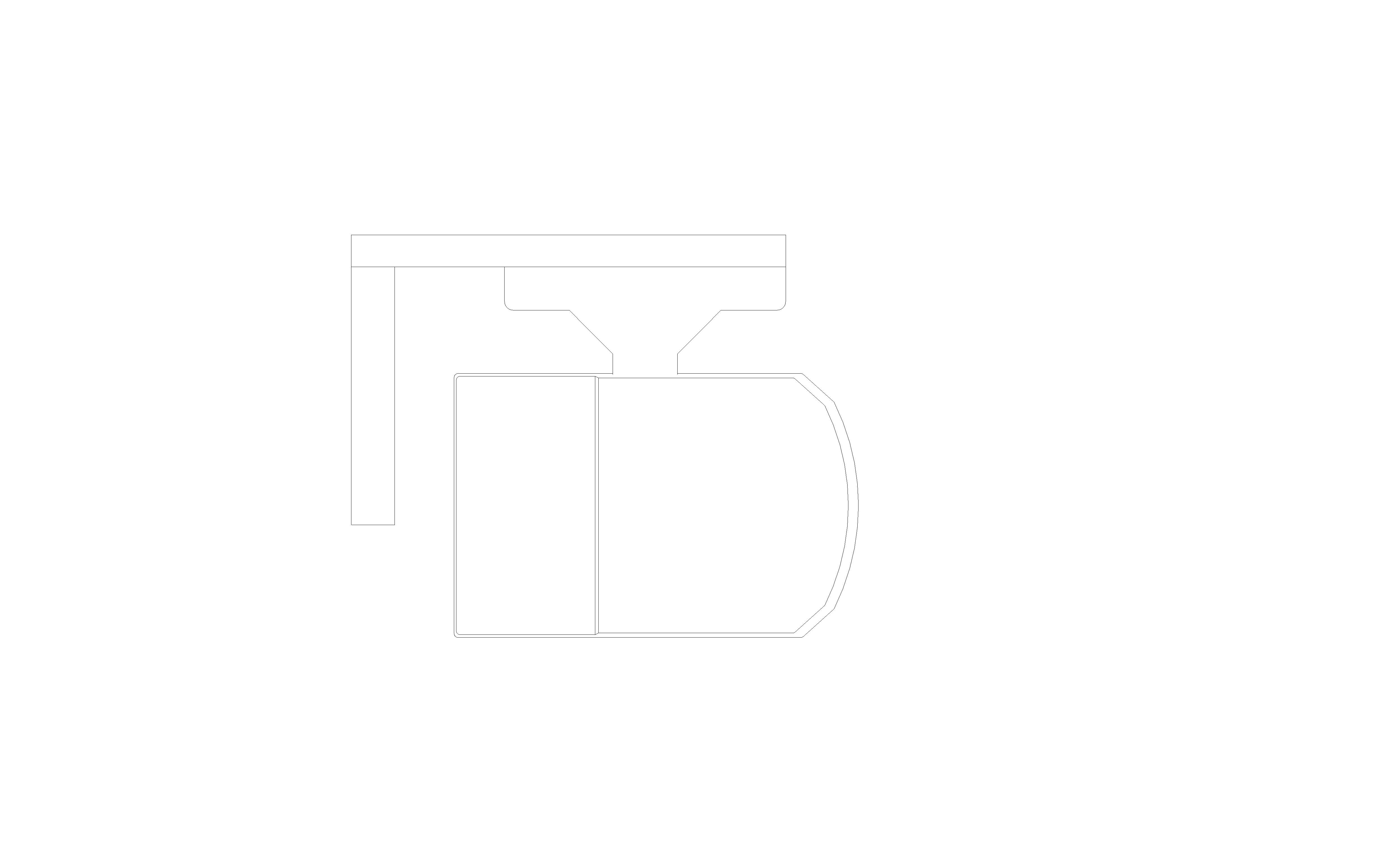

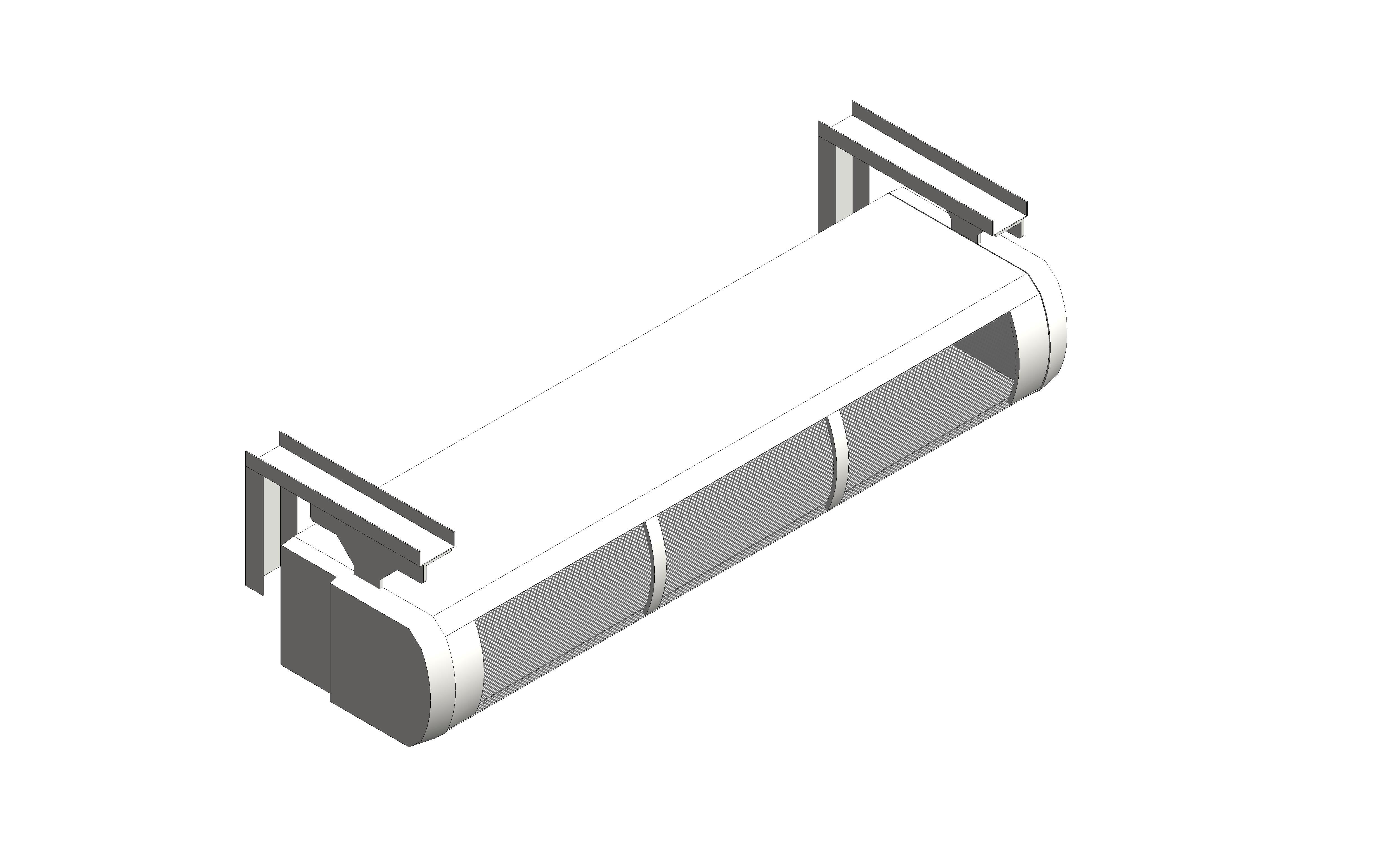

Air Curtain - RA Horizontal Series

by Thermoscreens

Download Add to collection

Description

Powerful and very energy efficient, the RA (refrigerated areas) Air Curtain has been designed and engineered to maintain climate separation in refrigerated areas with temperatures as low as 0 degrees celsius.

The unit is quiet in operation and reduces operating costs by preventing the escape of expensive conditioned air.

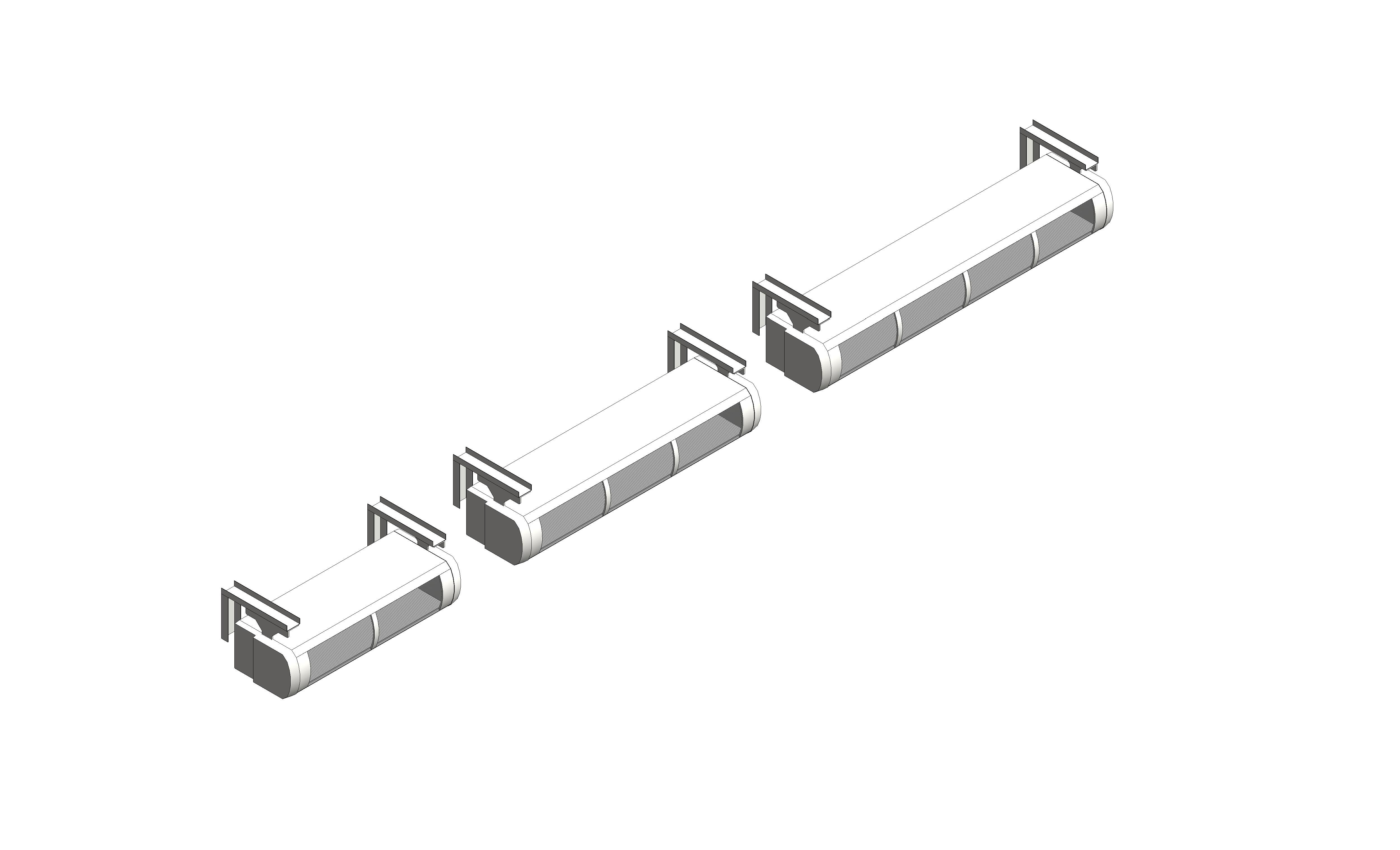

Available in 2 variants the RA and RA Max, which has been designed for areas where greater air velocity or a higher mounting is needed.

Object Data

1 Revision

Last Updated

24/04/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

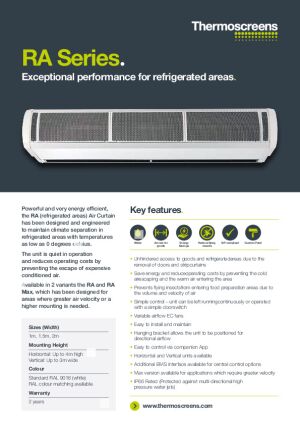

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/air-curtain-ra-horizontal-series/document/object-user-guide
a1220.20 mm
Accessibility Performancen/a
Air Volume Flow Rate(Min/Max)336 - 1479 m3/h
Assembly CodeD3090400
Asset TypeFixed
BIM Object NameThermoscreens_MechanicalEquipment_AirCurtains_RASeries_Horizontal
Body MaterialThermoscreens - Metal - PowderCoated - RAL9016
Classification NameUniclass2015
Classification ValuePr_70_60_36_02
Code Performancen/a
ColorStandard RAL 9016 (white)
Constituentsn/a
Created Bysales@thermoscreens.com
Created On2023-03-27 T09:00:00
Default Elevation3000.00 mm
DescriptionPowerful and very energy efficient, the RA (refrigerated areas) Air Curtain has been designed and engineered to maintain climate separation in refrigerated areas with temperatures as low as 0 degrees celsius. The unit is quiet in operation and reduces operating costs by preventing the escape of expensive conditioned air. Available in 2 variants the RA and RA Max, which has been designed for areas where greater air velocity or a higher mounting is needed.
Documentation Certificateswww.bimstore.co/products/air-curtain-ra-horizontal-series/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/air-curtain-ra-horizontal-series/document/installation-guide
Documentation Literaturewww.bimstore.co/products/air-curtain-ra-horizontal-series/document/product-literature
Documentation Maintenancewww.bimstore.co/products/air-curtain-ra-horizontal-series/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/air-curtain-ra-horizontal-series/document/technical-data-sheet
Duration UnitYear
Effective Width Of Airstream1.10 m
Expected Life0
Features• Unhindered access to goods and refrigerated areas due to the removal of doors and strip curtains • Save energy and reduce operating costs by preventing the cold air escaping and the warm air entering the area • Prevents flying insects from entering food preparation areas due to the volume and velocity of air • Simple control – unit can be left running continuously or operated with a simple door switch • Variable airflow EC fans • Easy to install and maintain • Hanging bracket allows the unit to be positioned for directional airflow • Easy to control via companion App • Horizontal and Vertical units available • Additional BMS interface available for central control options • Max version available for applications which require greater velocity • IP66 Rated (Protected against multi-directional high pressure water jets)
Finishn/a
Graden/a
Ifc Export AsIfcUnitaryEquipmentType
Ifc Export TypeAIRCONDITIONINGUNIT
Intake MaterialThermoscreens - Metal - Grille
KeynoteU
Length1305.00 mm
ManufacturerThermoscreens
Manufacturer NameThermoscreens
Materialn/a
Maximum Door Widthn/a
Maximum Mounting Height2.4 m
ModelRA1000
Model NumberRA1000
Model ReferenceThermoscreens RA Series Air Curtain
NBS DescriptionAir curtains
NBS Noten/a
NBS Object NameThermoscreens - Air curtains
NBS Office Master Tagn/a
NBS Reference90-40-35/310
Noise Level(Min/Max)52 - 70 dB(A) @3m
Nominal Depth468.00 mm
Nominal Height306.00 mm
Nominal Length1305.00 mm
Outlet MaterialThermoscreens - Metal - Grate - Small
Production Year2023
Rated Current1 A
Rated Electrical Power Input164 W
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1305 x 498 x 306mm
Spare Partsn/a
Specific Fan Power(Min/Max)0.06 - 0.4 W/l/s
Supply230v/1ph/50Hz
Type CommentsThermoscreens RA Series Air Curtain
Type NameRA1000
URLthermoscreens.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration UnitYear
Warranty Guarantor Laborsales@thermoscreens.com
Warranty Guarantor Partssales@thermoscreens.com
Weight60.00 kg
