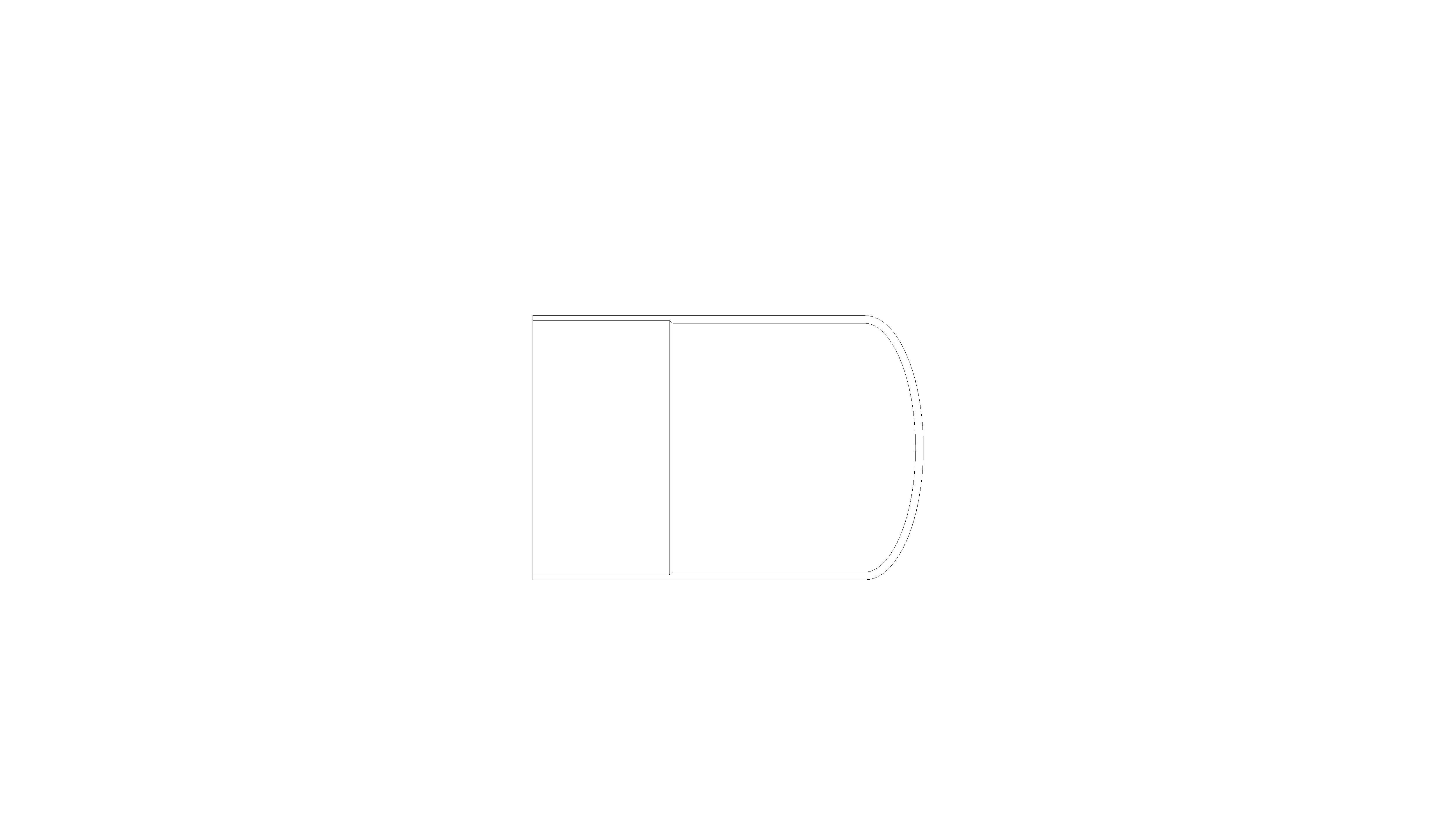

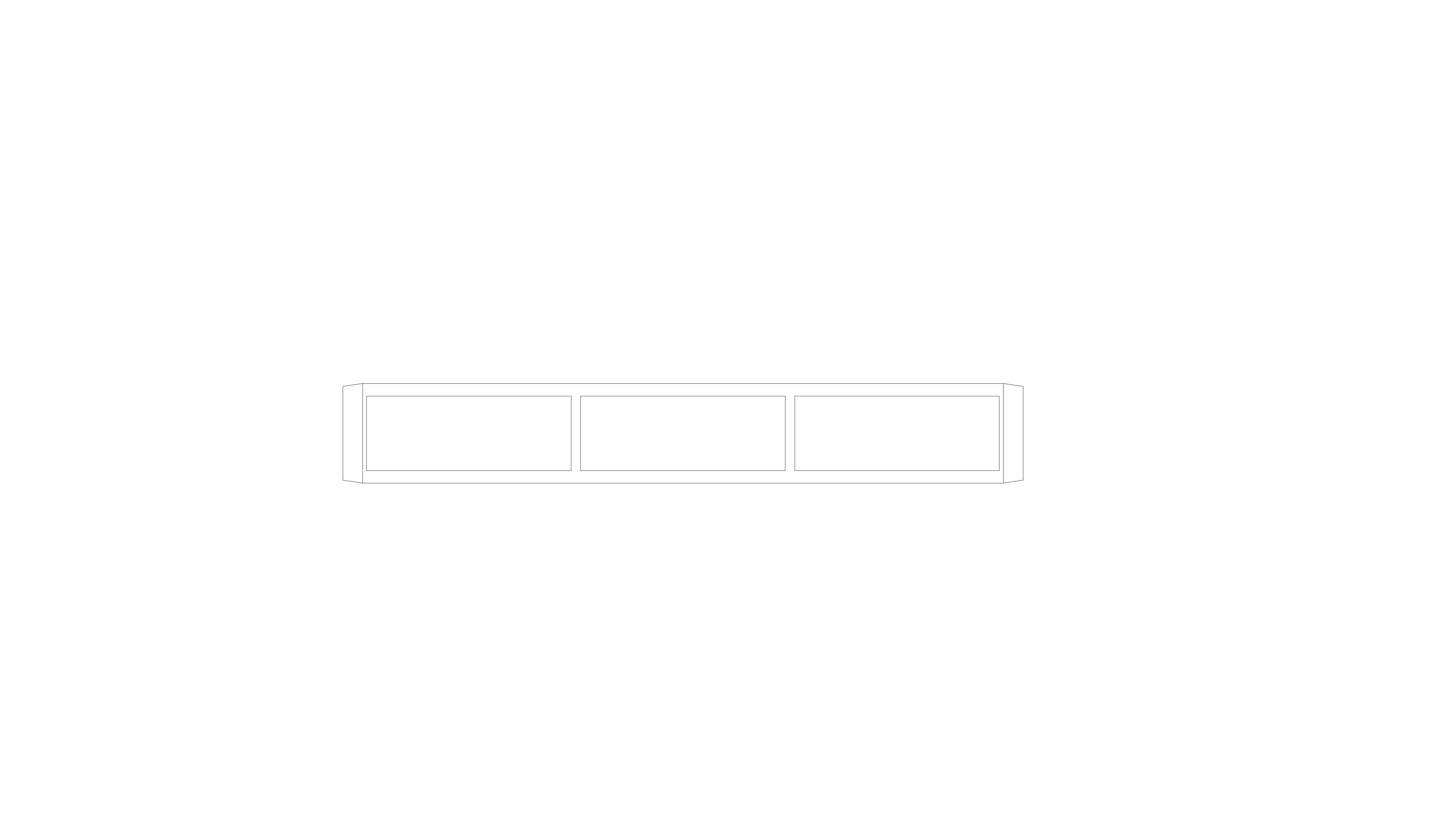

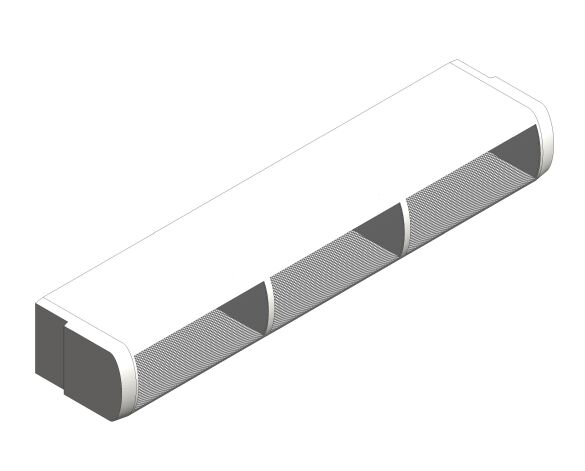

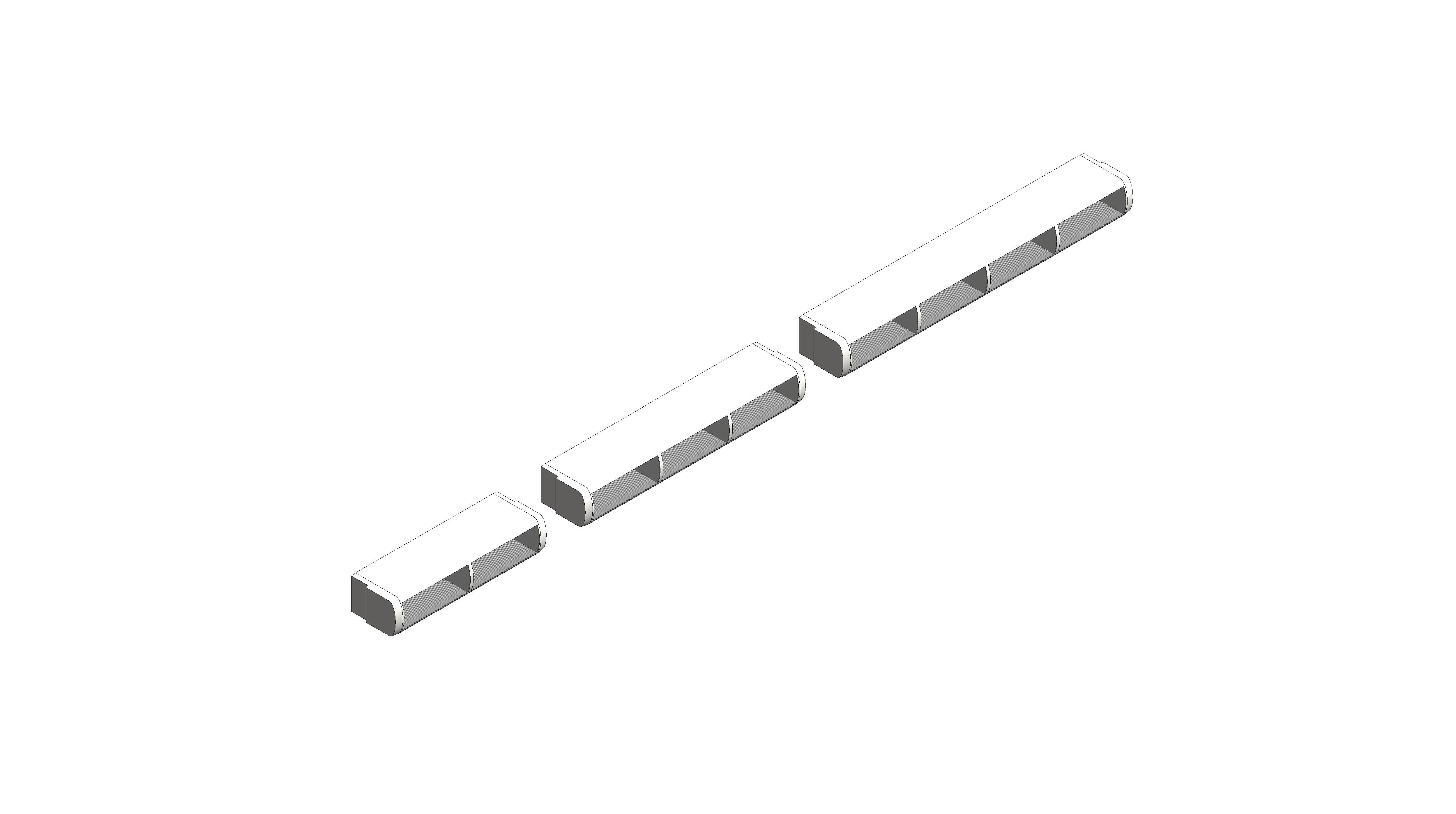

Air Curtain - T-Series - Surface Mounted

by Thermoscreens

Download Add to collection

Description

Tried, tested and proven, Thermoscreens T Series air curtains are the product of choice for commercial and retail environments of all types and sizes. Robust and very reliable they offer highly efficient air separation for virtually any doorway.

Object Data

1 Revision

Last Updated

19/05/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

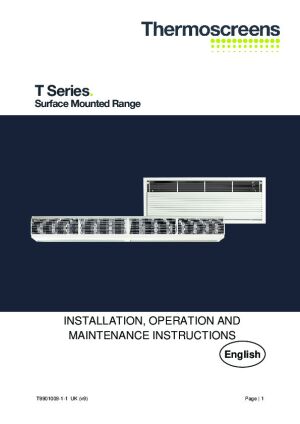

Installation Guide

Product Literature

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/air-curtain-t-series-surface-mounted/document/object-user-guide
A1196.00 mm
Accessibility Performancen/a
Assembly CodeD3090400
Asset TypeFixed
B700.00 mm
BIM Object NameThermoscreens_MechanicalEquipment_AirCurtains_TSeries_T1000A
C100.00 mm
Classification NameUniclass2015
Classification ValuePr_70_60_36_02
Code Performancen/a
ColorRAL 9016
Constituentsn/a
Created Bysales@thermoscreens.com
Created On2022-01-20 T09:00:00
D10000.00 mm
Default Elevation3000.00 mm
Depth255.00 mm
DescriptionTried, tested and proven, Thermoscreens T Series air curtains are the product of choice for commercial and retail environments of all types and sizes. Robust and very reliable they offer highly efficient air separation for virtually any doorway.
Documentation Certificateswww.bimstore.co/products/air-curtain-t-series-surface-mounted/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/air-curtain-t-series-surface-mounted/document/installation-guide
Documentation Literaturewww.bimstore.co/products/air-curtain-t-series-surface-mounted/document/product-literature
Documentation Maintenancewww.bimstore.co/products/air-curtain-t-series-surface-mounted/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/air-curtain-t-series-surface-mounted/document/technical-data-sheet
Duration UnitYear
E143.00 mm
Expected Life0
FeaturesVery energy efficient Ambient, water heated or electric heated Very energy efficient Ambient, water heated or electric heated Surface mounting Ecopower energy saving controls (water heated and electric heated units) ErP compliant and BMS ready Centrifugal fans provide powerful air flow High heat output Water heated units supplied with motorised three-port valve Sophisticated digital control system Downrated single phase output (electric units) Filters as standard on all surfaced mounted models End caps and wall brackets supplied as standard Door limit switch (advisable for water heated and ambient units only) EcoPower controller extension cables Ceiling fixings provided (excluding drop-rods) Joining kits available for connecting surface mounted units
Finishn/a
Graden/a
Grille 3 Length10.00 mm
Grille 3 Offset100.00 mm
Grille 3 VisibilityNo
Grille 3 Void Offset247.00 mm
Grille 4 Length10.00 mm
Grille 4 Offset100.00 mm
Grille 4 VisibilityNo
Grille 4 Void Offset287.00 mm
Heat Outputn/a
Height377.00 mm
Ifc Export AsIfcUnitaryEquipmentType
Ifc Export TypeAIRCONDITIONINGUNIT
KeynoteU
Length1196.00 mm
Loading Per Phase1.1 A
ManufacturerThermoscreens
Manufacturer NameThermoscreens
Materialn/a
Maximum Air Volume1320 m3/h
Maximum Velocity8.0 m/s
ModelT1000A
Model NumberT1000A
Model ReferenceThermoscreens T Series Air Curtain
NBS DescriptionAir curtains
NBS Noten/a
NBS Object NameThermoscreens - Air curtains
NBS Office Master Tagn/a
NBS Reference90-40-35/310
Noise Output-High56 dB(A) @3m
Noise Output-Low54 dB(A) @3m
Noise Output-Medium55 dB(A) @3m
Nominal Depth255.00 mm
Nominal Height377.00 mm
Nominal Length1196.00 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare PartsMaster and slave lead: 3M + coupler [T5951110]; 6M Extension cable + coupler [T5951111]; 10M Extension cable + coupler [T5951112]; 15M Extension cable + coupler [T5951113]; 30M Extension cable + coupler [T5951114]; Extension lead coupler [T5951030]; Joining kit [T7308200].
Supply230V~1P&N
Type CommentsThermoscreens T Series Air Curtain
Type NameThermoscreens T Series Air Curtain
Type Of HeatingAmbient
URLthermoscreens.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborsales@thermoscreens.com
Warranty Guarantor Partssales@thermoscreens.com
Water Flown/a
Water Pressure Drop(Coil)n/a
Water Pressure Drop(Valve)n/a
Weight27.00 kg
