Our Compress 3000 AWP is a state-of-the-art commercial heat pump that is perfect for both existing and new build installations in commercial and multi-family dwelling properties. Available in individual outputs ranging from 16kW to 89kW**, it can be cascaded up to 16 units to achieve an output of up to 1.42MW**. With 10 output capacities and the ability to be used for heating, domestic hot water and cooling, it is a versatile heat pump. Straightforward to install and maintain, the Compress 3000 AWP can be used as standalone or as part of a hybrid system. The heat pump is available in four hydraulic variants making it quick and easy to install with existing heat sources such as gas and oil boilers.

_AuthorSM
_Authorized Bybimstore
_Bim Spec Guid1
_BS Bible Version17
_Created Byhttps//www.bimstore.co
_Current Revision1
_Distributed Byhttps//www.bimstore.co
_Object User Guidewww.bimstore.co/products/air-to-water-heat-pump-cs3000awp-mb/document/object-user-guide
6 MonthlyMaintainance as per the IM
Access Clearance Bottom300
Access Clearance Front800
Access Clearance Left800
Access Clearance Rear800
Access Clearance Right800
Access Clearance Top6000mm
Accessibility Performancen/a
AnnuallyAnnual Service
Assembly CodeD3020
Asset TypeFixed
Bespoke Time FrameNo
BIM Object NameBosch_MechanicalEquipment_Air_to_water_Heat_Pump_CS3000AWP_16_MB
CE Approvaln/a
Classification NameUniclass2015
Classification Value90-40-05/430
Code PerformanceEU Regulations 811/2013, 812/2013, 813/2013 and 814/2013 of Directive 2010/30/EU
Coefficient Of Performance2.85
ColorGrey n/a
Condensate Drain Connection TypeThreaded
Condensate Drain Size1"
Condensate Drain TypePipe
ConfigurationSingle
Constituentsn/a n/a
Control OptionsN/A
Created Bycommercial.industrial@uk.bosch.com
Created On2023-08-10T:09:00:00
DailyNo
Default Elevation0 mm
DescriptionHigh output commercial reversible Air to Water Heat Pump offering excellent efficiency
Documentation Certificateswww.bimstore.co/products/air-to-water-heat-pump-cs3000awp-mb/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/air-to-water-heat-pump-cs3000awp-mb/document/installation-guide

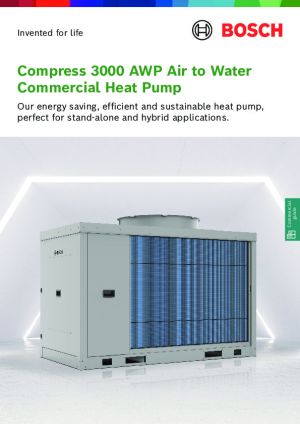

Documentation Literaturewww.bimstore.co/products/air-to-water-heat-pump-cs3000awp-mb/document/product-literature
Documentation Maintenancewww.bimstore.co/products/air-to-water-heat-pump-cs3000awp-mb/document/maintenance-information

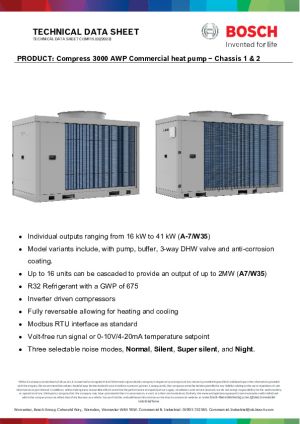

Documentation Technicalwww.bimstore.co/products/air-to-water-heat-pump-cs3000awp-mb/document/technical-data-sheet
Drain Connection SizeN/A
Duration UnitYears
Embodied CarbonN/A
Energy Technology ListN/A
Environmental Product DeclarationN/A
ErP Energy LabelN/A
Expected Life15
External MaterialSteel
FeaturesHigh efficiency Air to Water heat pumps
FinishPaint
Flow And Return Connection Size1" 1/2
Flow And Return Connection TypeVictaulic
Frequency50Hz
Full Load Current20.7A
Fuse RatingC25A
Graden/a
Green Guide For SpecificationN/A
Gross Weight351
Heater OperationSealed System
Heat Exchanger MaterialAluminium, Stainless Steel
Ifc Export AsIfcBoiler
Ifc Export TypeIfcBoilerTypeEnum.WATER
IK RatingN/A
IP RatingIP45
KeynoteT32
LargeNo
Life Cycle AnalysisN/A
Location Of ManufacturerItaly
ManufacturerBosch Thermotechnology
Manufacturer NameBosch Thermotechnology
MaterialSteel
Material Ingredient ReportingN/A
Max Air Flow Rate11520 m3/h
Max Air Temp Heat48°c
Max DHW Flow Temperature60
Max Heating Operating Pressure6 bar
Max Heating Water Flow Rate9.36 m3/h
Maximum Heating Output29.68 kW
Maximum Power Consumption14.3 kW
Min Air Temp Heating-20°c
Min Heating Operating Pressure0.6 bar
Minimum Heating Water Flow Rate3.24 m3/h
Minimum Power ConsumptionN/A
ModelCS3000AWP 16 MB
Model NumberCS3000AWP 16 MB
Model ReferenceCS3000AWP 16 MB
MonthlyNo
MountingFloor standing
NBS DescriptionAir to Water Heat Pumps
NBS Noten/a
NBS Object NameHeat Pumps
NBS Office Master Tagn/a
NBS ReferencePr_60_60_08_27
Nominal Depth991 mm
Nominal Height1180 mm
Nominal Length1919 mm
O&M Manualwww.bosch-thermotechnology.com
PhaseThree
Pipe Offset781 mm
Production Year2023
Product Model Number16 P
Product RangeCS3000 AWP
QuarterlyNo
Referenced StandardEN 14511 n/a
Replacement Costn/a
Responsible Extraction Of MaterialsN/A
Responsible Sourcing Of MaterialsN/A
Safety Valve Connection SizeN/A
Safety Valve Connection TypeThreaded
Seasonal Coefficient Of Performance4.41
Seasonal Space Heating Efficiency At W55126
ShapeRectangular (Horizontal)
Shipping Weight362
Sizen/a
Sound Pressure Level57
Spare Partsn/a
StandardYes
Starting Current10A
TypeMonoblock
Type CommentsCS3000AWP 16 MB
Type NameCS3000AWP 16 MB
URLwww.bosch-thermotechnology.com
Voltage400
Warranty Descriptionn/a
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partscommercial.industrial@uk.bosch.com
Warranty IDSerial number and end user registration
Water Content2.44
WeeklySystem Pressure Check
