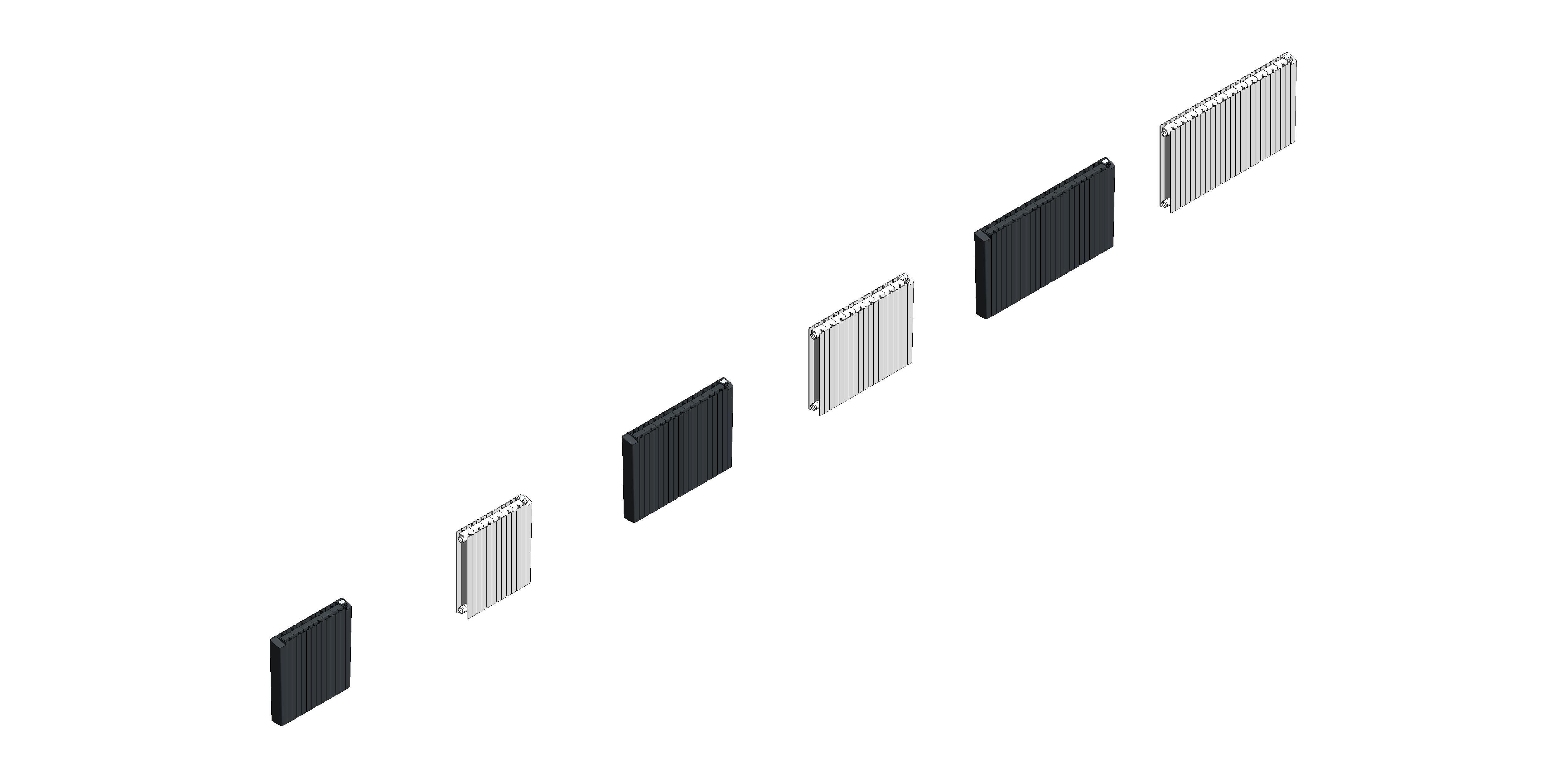

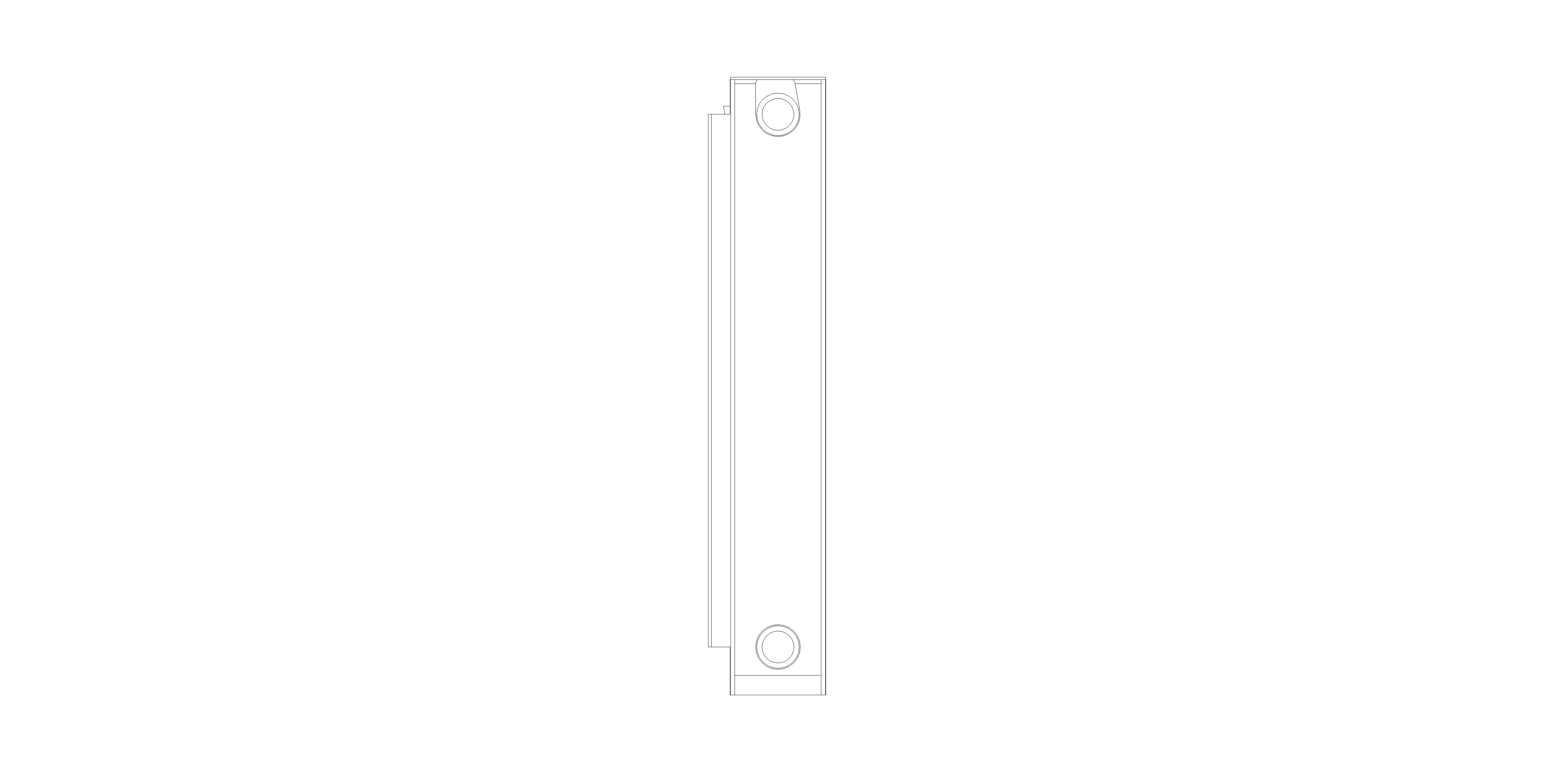

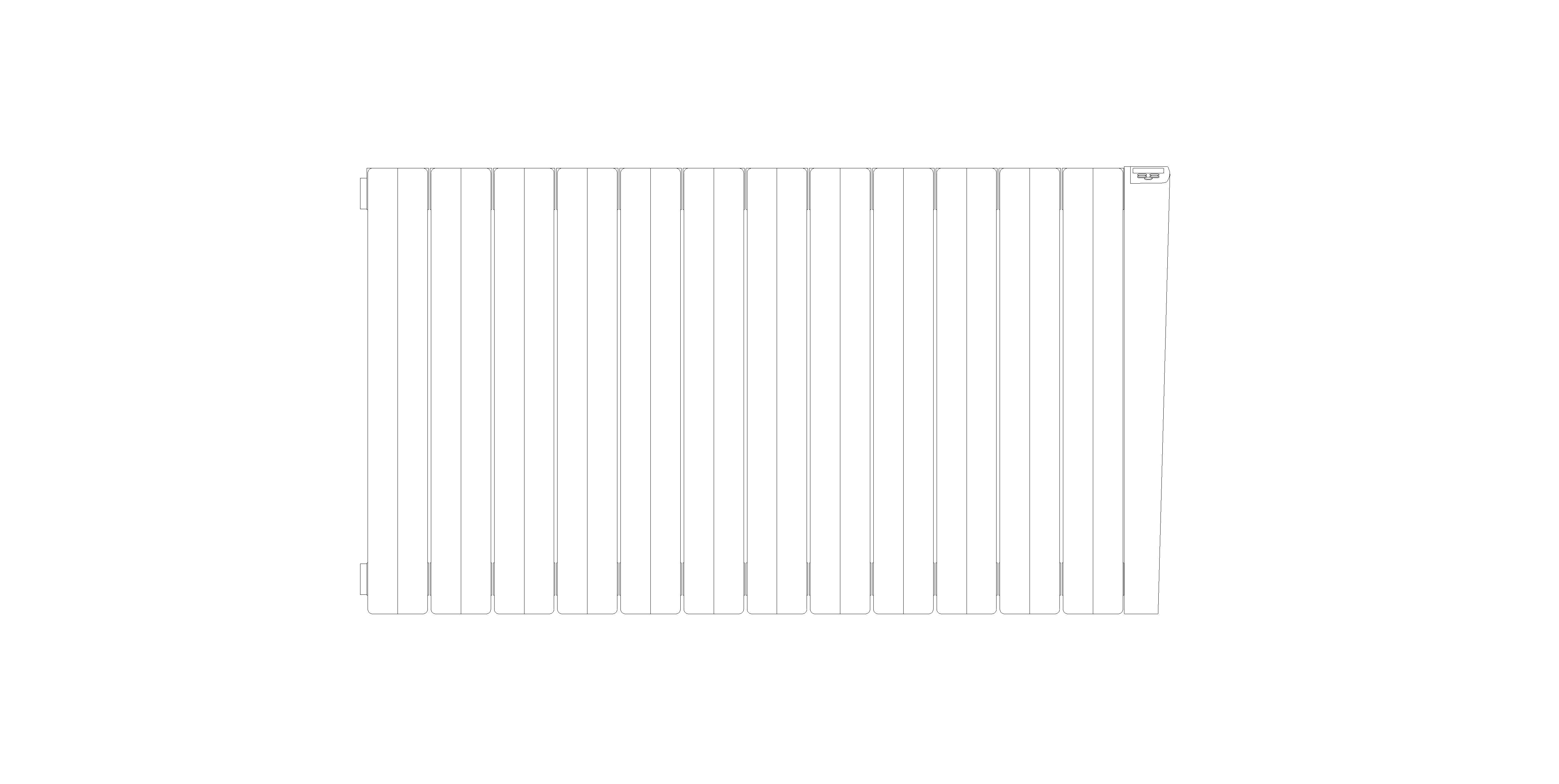

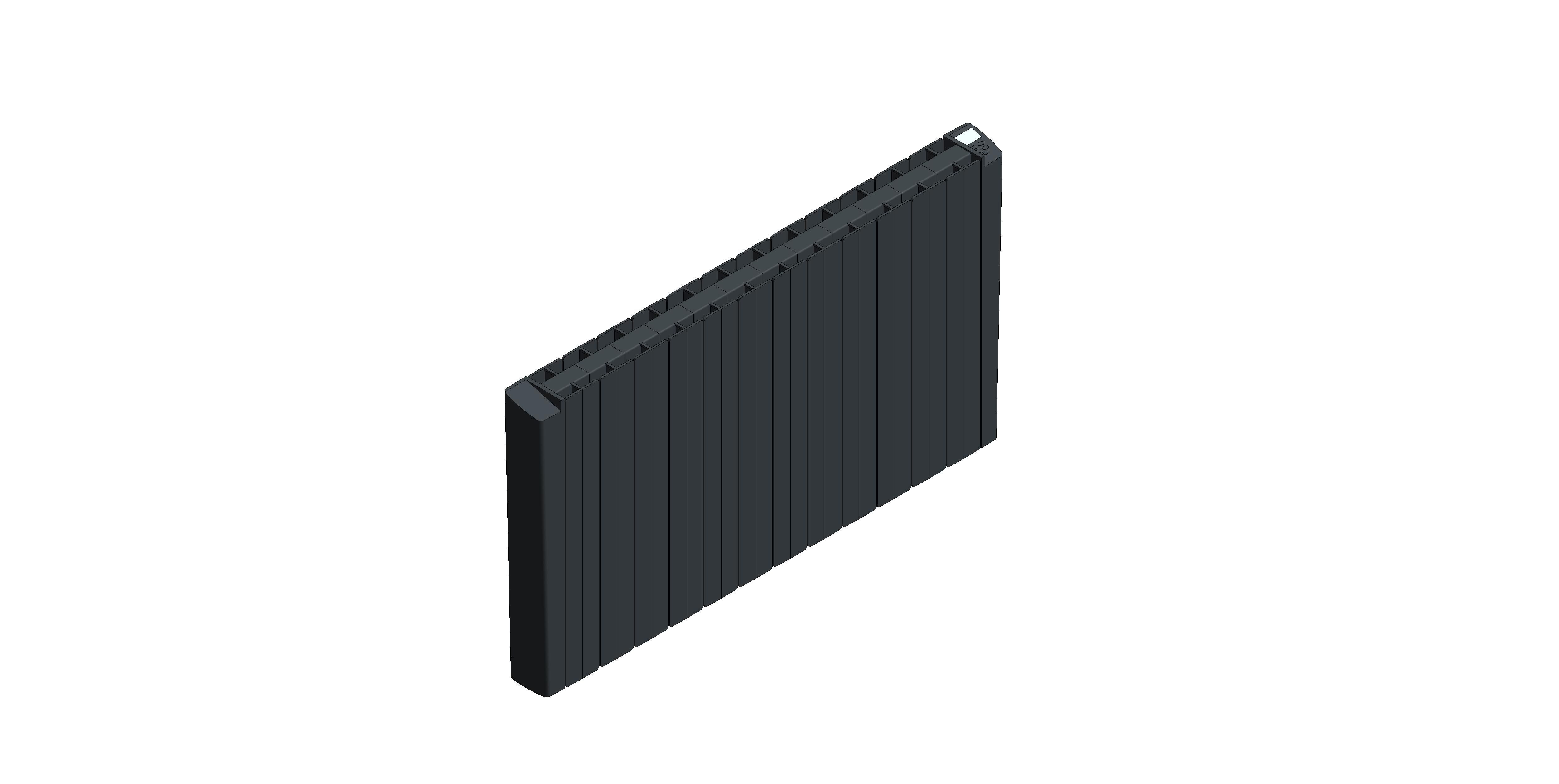

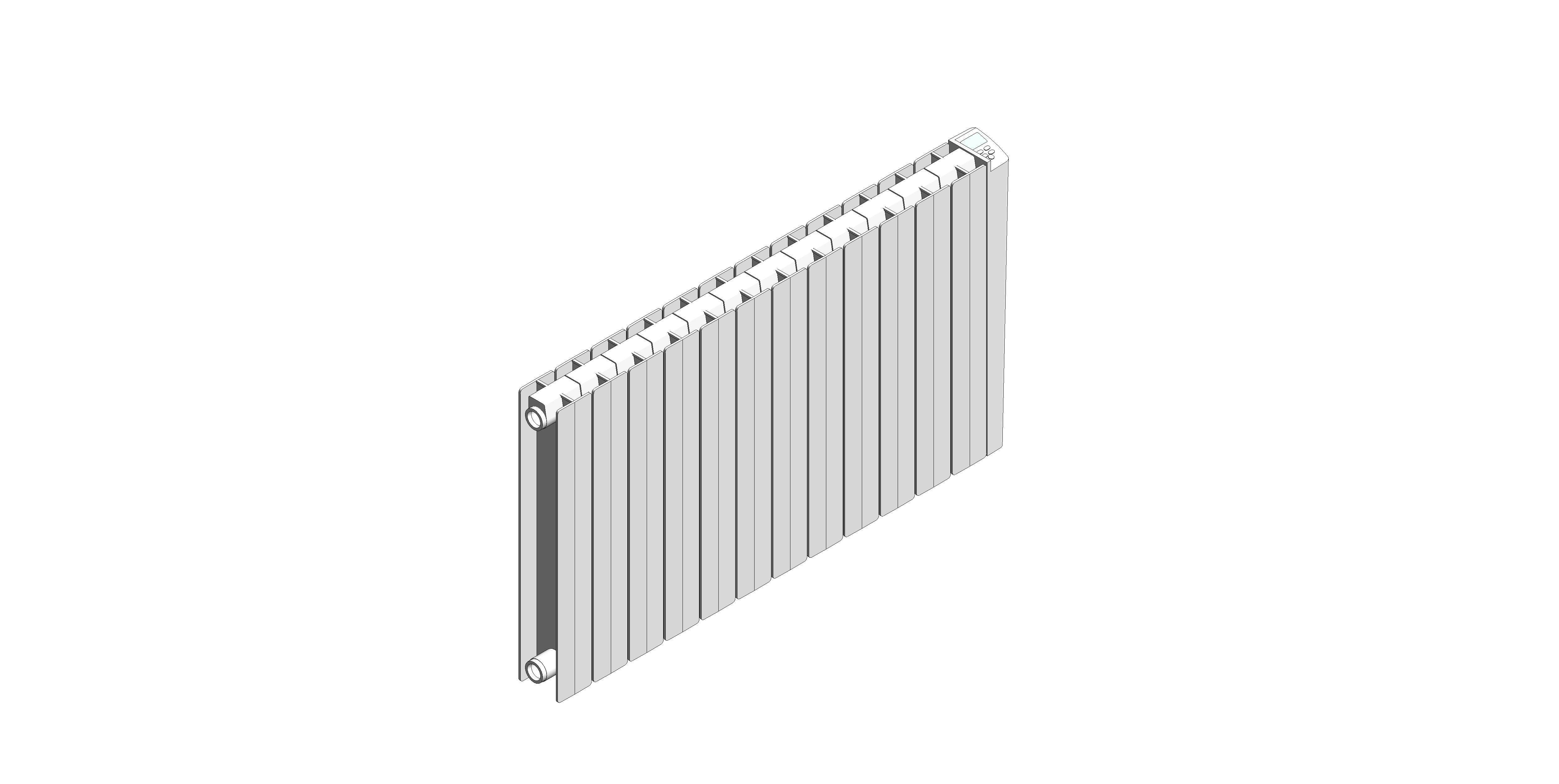

Alu Simple Dry Radiator

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• Accessibility Performancen/a
• Array12
• Assembly CodeD3020
• Asset TypeFixed
• BIM Object NameStelrad_MechanicalEquipment_Radiator_AluSimpleDry
• Btu/hr6828
• Classification NameUniclass2015
• Classification ValuePr_70_60_36_73
• Class Of ProtectionII
• Code Performancen/a
• ColorAnthracite
• Constituentsn/a
• ControlsIntegrated Control Panel & Infrared Remote Control
• Created Byinfo@stelrad.com
• Created On2024-01-11 T09:00:00
• Default Elevation0.00 mm
• DescriptionThe Alu Simple Dry is an aluminium radiator with double lateral tubes encasing a natural volcanic stone. Using dry inertia technology, the radiator heats the air in your rooms via a process of convection with a soft and continuous heat, this means less energy consumption and quicker heat up times as the internal stone gently adapts to the desired temperature. Corrosion resistant with no fluids or chemicals and with no chance of leaks, this has a high energy efficiency rating due to the stone’s natural ability to absorb, hold and radiate heat faster and for longer.
• Documentation Certificateswww.bimstore.co/products/alu-simple-dry/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/alu-simple-dry/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/alu-simple-dry/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/alu-simple-dry/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/alu-simple-dry/document/technical-data-sheet
• Duration UnitYear
• Expected Life0
• Featuresn/a
• Finishn/a
• Graden/a
• Heat Output2000 W
• Heat SourceDry Stone
• Ifc Export AsIfcSpaceHeater
• Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
• Indice Of ProtectionIP24
• KeynoteT
• ManufacturerStelrad
• Manufacturer NameStelrad
• Materialn/a
• ModelAlu Simple Dry
• Model NumberAlu Simple Dry
• Model Reference580mm(H) x 1080mm(L) - Anthracite
• NBS DescriptionRadiators
• NBS Noten/a
• NBS Object NameStelrad - Radiators
• NBS Office Master Tagn/a
• NBS Reference90-40-35/405
• Nominal Depth0.00 mm
• Nominal Height580.00 mm
• Nominal Length1080.00 mm
• Production Year2024
• Radiator FinishStelrad - Metal - Anthracite
• Referenced Standardn/a
• Replacement Costn/a
• Sizen/a
• Spare Partsn/a
• Type Comments580mm(H) x 1080mm(L) - Anthracite
• Type Name580mm(H) x 1080mm(L) - Anthracite
• UINE019-0580-1080
• URLwww.stelrad.com
• Voltage230V - 50Hz
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsinfo@stelrad.com
• Weight32.30 kg
