AluK BSF70 Folding Door System (5 Pane)

Unapproved This content has not yet been through the Bimstore QA process and as such may not meet our minimum standards for content hosting.

18.8k
2
4.7 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

12/08/2015

Download BIM

Add to collection

Available for:

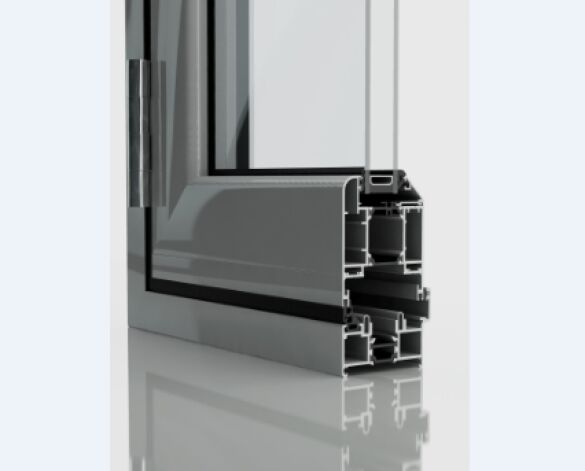

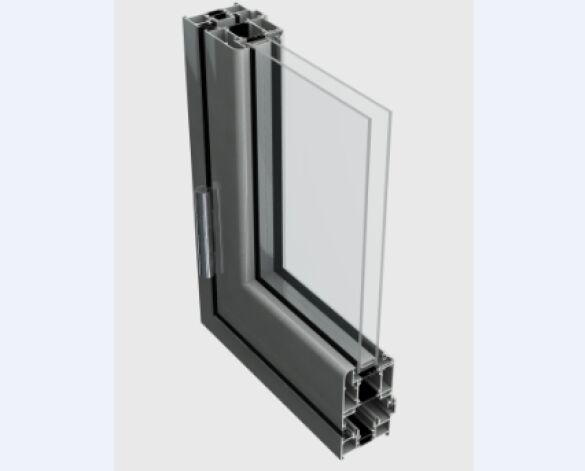

Versatile and flexible, the market leading BSF70 aluminium folding door system is available in a wide range of configurations to create the look you desire. Multiple doors can be combined with open-in or open-out options, in a variety of styles to create a wide expanse of opening. The narrow profile ensures that maximum glazing is achieved, flooding rooms with light

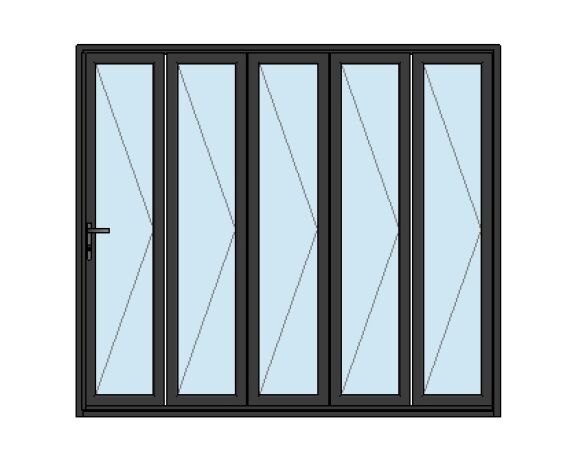

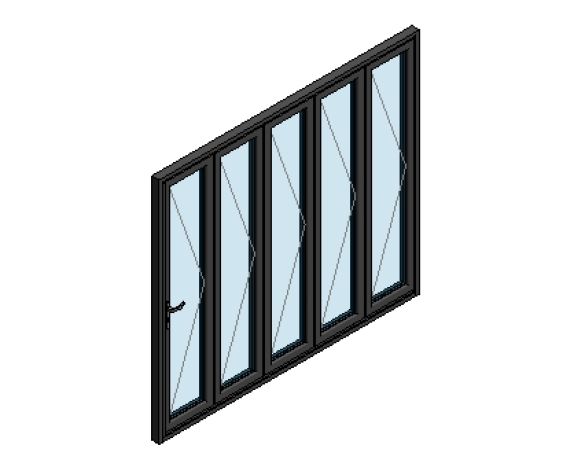

This download is for the AluK BSF70 5 Pane Folding Door System Component – Wall Insert

Object metadata

_BIMspec_GUID0
_created byS.Watkins, Aluk(GB)Ltd
_current revision1
_distributed bywww.bimstore.co.uk
Accessibility PerformanceCompliant with Approved Document Part M
Acoustic RatingRw (C;Ctr) 36 (-1;-3) db
Air PermeabilityNo Performance Data Available
Assembly CodeB2030110
AssetidentifierTo be added by approved system fabricator
Asset TypeFixed
Bar CodeTo be added by approved system fabricator
Beam Radiation Transmittance0
Certificationn/a
Closer Optionsn/a
Code Performancen/a
ColorTo be added by approved system fabricator
Configuration Options5 Pane Bi fold 5/5/0
ConstituentsTo be added by approved system fabricator
Construction Typen/a
Created ByS.Watkins, Aluk(GB)Ltd. bim@aluk.co.uk
Created OnFebruary 2015
DescriptionThe BSF70 folding door system is available in a wide range of configurations. Panels can be stacked inside or outside, to the left or right, or split stacked on both sides.
Documentation CertificatesTo be added by approved system fabricator
Documentation Installation GuideTo be added by approved system fabricator
DocumentationLink URLwww.aluk.co.uk/bsf70-folding-door-system.php
Documentation Literaturewww.aluk.co.uk/bsf70-folding-door-system.php?section=literature
Documentation TechnicalTo be added by approved system fabricator
Door Leaf Height2076.200 mm
Door Leaf Width469.640 mm
Duration UnitYear
Expected LifeTo be added by approved system fabricator
Extidentifiern/a
Fabricators AddressTo be added by approved system fabricator
Fabricators Contact NumberTo be added by approved system fabricator
Featuresn/a
Fill GasAir Filled
FinishTo be added by approved system fabricator
Fire Ratingn/a
Fire Ratingn/a
Frame Depth Options70mm Outer Frame; 70mm Door Leaf
Frame MaterialAluminium
FunctionExterior
Glass Colourn/a
Glass Thickness 16.000 mm
Glass Thickness 26.000 mm
Glass Thickness 30.000 mm
Glass Unit OptionsDouble Glazed; Tripple Glazed
Glazing Area Fraction0
Glazing Bead OptionsChamfered; Flat
Glazing Bead PositionInternal
Glazing Thickness Options24-40 mm
Graden/a
Green Guide RatingA
Handle Height1100.000 mm
Hardware SetRX780 Winkhaus FSD lock; RX781 Winkhaus FSD Centre Keep; RX782 Winkhaus FSD End Keep Set; RX730 T-Handle (locking & non locking options); RX180 Lever handle.
Has Anti Finger Trap FacilityNo
Has Breakout FacilityNo
Has Electronic LockNo
Has Powered OperationNo
Has Safety GlazingYes
Height2200.000 mm
Ifc Export AsIfcDoorType
Ifc Export TypeDOOR
Infiltration0
Installation Date1900-12-31 T23:59:59 To be added by approved system fabricator
Is Burglar ResistantNo
Is CoatedNo
Is ExternalYes
Is Fire ExitNo
Is Hold OpenNo
Is LaminatedNo
Is Low ThresholdYes
Is Rebated ThresholdNo
Is TemperedYes
Is WiredNo
KeynoteL20
Key Suitingn/a
Locking OptionsMulti-point locking
ManufacturerAluk(GB)Ltd
Manufacturers AddressAluk(GB)Ltd, Imperial park, Celtic Way, Newport, Wales, United Kingdom. NP10 8BE
Manufacturers Contact Number+44 (0)1633 81 04 40
MaterialAluminium
Maximum Leaf Weight100 kg
Maximum Standard Leaf Height3000mm. Please contact Aluk Technical for greater job specific variances.
Maximum Standard Leaf Width1200mm. Please contact Aluk Technical for greater job specific variances.
Maximum Leaf Weight100 kg
ModelBSF70 5 Pane
NameDoor_Wall_Aluk_BSF70_5-Panel_Type7
NBS DescriptionSliding folding doorset system
NBS Reference25-50-20/180
Open InYes
Opening TypeOpen In
Open OutNo
Operation5 Pane Bi Fold. Open In
Overall Aluminium Height2188.000 mm
Overall Aluminium Width2488.000 mm
Product Documentation Linkwww.aluk.co.uk/bsf70-folding-door-system.php?section=literature
Product Page URLwww.aluk.co.uk/bsf70-folding-door-system.php
Production Year1900-12-31 T23:59:59 To be added by approved system fabricator
Referenced StandardTo be added by approved system fabricator
Reflectivity0
Replacement CostTo be added by approved system fabricator
Security Featuresn/a
Security Ratingn/a
Serial NumberTo be added by approved system fabricator
ShapeTo be added by approved system fabricator
SizeTo be added by approved system fabricator
Solar Heat Gain Transmittance0
Spare Partsn/a
Tag Numbern/a
Thermal BarrierPolyamide
Thermal Transmittance0
Thermal Transmittance Summer0
Thermal Transmittance Winter0
Tolerance Cill6.000 mm
Tolerance Head6.000 mm
Tolerance Left Jamb6.000 mm
Tolerance Right Jamb6.000 mm
Translucency0
Type Comments5 Pane Bi Fold, Open In, Low Threshold
Type NameBSF70_5Pane_Open In_LowThreshold
Uniclass 2Ss-25-30-20-78
URLwww.aluk.co.uk
Wall ClosureBy host
Warranty DescriptionTo be added by approved system fabricator
Warranty Duration LabourTo be added by approved system fabricator
Warranty Duration PartsTo be added by approved system fabricator
Warranty Duration UnitYear
Warranty Guarantor LabourTo be added by approved system fabricator
Warranty Guarantor PartsTo be added by approved system fabricator
Warranty Start Date1900-12-31 T23:59:59 To be added by approved system fabricator
WatertightnessNo Performance Data Available
Width2500.000 mm
Wind ResistanceNo Performance Data Available
