Aluminium Six Panel P-Lux Traditional Lantern - GL1362LU

by Green Lighting

Download Add to collection

Description

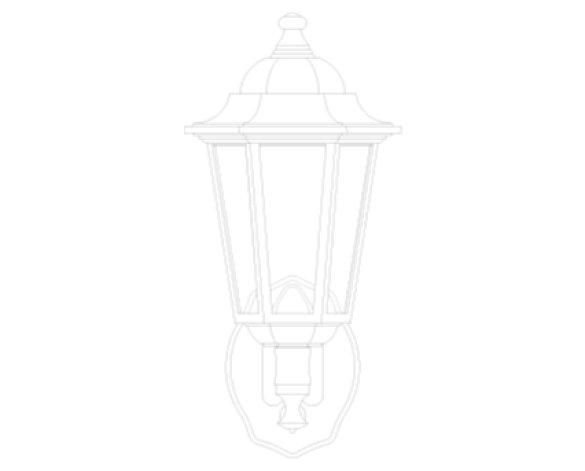

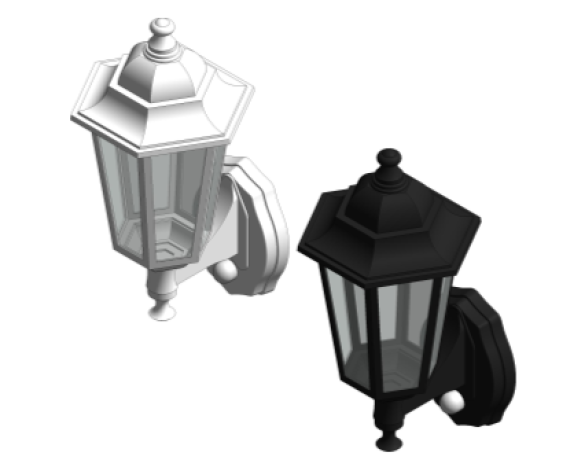

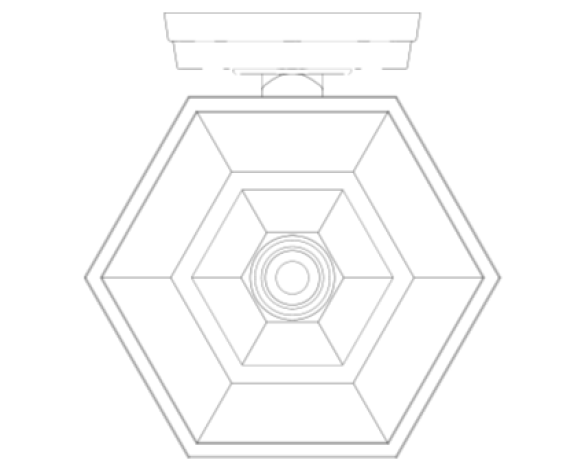

Aluminium Six Panel P-Lux Traditional Lantern

This download is a face based Lighting Fixture component created by bimstore.co.uk for Green Lighting.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

09/12/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

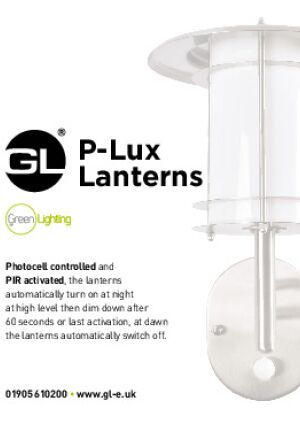

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Bim Spec Guid0
_Bimstore Bible VersionVersion 14 - UK Edition
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD5020200
Asset TypeFixed
BIM Object NameMechanicalEquipment_Lighting_GreenLighting_PLuxLEDLanterns_GL1362LU
Classification NameUniclass2015
Classification ValuePr_70_70_48_46
Clearance Zone MaterialClearanceZone_GreenLightingLtd
Code Performancen/a
ColorBlack & White
Constituentsn/a
Created Bysales@greenlighting.co.uk
Created On2016-09-01-T00:00:00
Default Elevation1219 mm
DescriptionAluminium Six Panel P-Lux Traditional Lantern
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1834
Documentation Literaturespecifi.bimstore.co.uk/document/share/1843
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitHours
Expected Life50000
FeaturesAluminium Six Panel P-Lux Traditional Lantern
FinishMatt UV Resistant Paint
FunctionalityThroughout the night, when triggered by movement, the P-LUX will LUX-UP to 8W to provide full luminance to the area. After 60 seconds from the last activation the P-LUX will dim back down to 2W.
Graden/a
Ifc Export AsIfcLightFixtureType
Ifc Export TypeNOTDEFINED
IP Rating44
KeynoteV90/560
Lamp3000K (P-LUXLMWW-6W)
LensGlass
Lens MaterialGlass_GreenLightingLtd
ManufacturerGreen Lighting Ltd
Manufacturer NameGreen Lighting Ltd
MaterialAluminium
ModelP-Lux LED Lanterns
Model NumberGL1362LU
Model ReferenceP-Lux LED Lanterns
NBS DescriptionLight-emitting diodes (LED) luminaires
NBS Object NameGreen Lighting Ltd - Light-emitting diodes (LED) luminaires
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth200 mm
Nominal Height365 mm
Nominal Length178 mm
Power Factor0.9PF
Primary MaterialMetal_GreenLightingLtd_PaintFinishBlack_Matt
Production Year2016
Product URLwww.greenlighting.co.uk/products/black-aluminium-traditional-lantern-3/
Referenced Standardn/a
Replacement Costn/a
SensorP-LUX3 Type A (P-Lux3/1322)
Shapen/a
SizeL: 178mm H: 365mm D: 200mm
Spare Partsn/a
Type CommentsGL1362LU
Type NameP-Lux LED Lanterns
URLwww.greenlighting.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor1
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborsales@greenlighting.co.uk
Warranty Guarantor Partssales@greenlighting.co.uk
