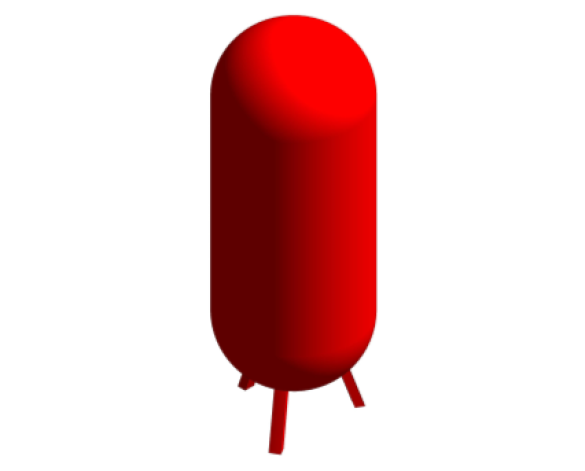

Aquasystem Replaceable Membrane Heating Expansion Vessel

by Reliance Valves

Download Add to collection

Description

- Internal membrane prevents any water contact with the steelshell, stopping internal corrosion- Huge choice of products from 2 litre to 5000 litre to cover allapplications- All versions supplied with a replaceable membrane meaningthe vessel can be serviced without being removed- Complete with pre-charge valve for topping up air pressure

XVES100010 2LtrXVES100020 5LtrXVES100030 8LtrXVES100040 12LtrXVES100050 18LtrXVES100060 24LtrXVES100070 35LtrXVES100080 50LtrXVES100090 80LtrXVES100100 100LtrXVES100110 150LtrXVES100120 200LtrXVES100130 250LtrXVES100140 300LtrXVES100150 500LtrXVES100160 750LtrXVES100170 1000Ltr

Object Data

1 Revision

Last Updated

30/08/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byKris Atkinson
_BIMspec_GUID1
_created byPeter Winterburn
_current revision1
_distributed bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2090600
Asset TypeFixed
Base Bottom Radius133 mm
Base Top Radius91 mm
Bottom Entry_Diameter44 mm
Bottom Entry_Radius22 mm
Capacity(Ltr)50.00 m³
Classification NameUniclass
Classification ValuePr_60_50_20_28
Code Performancen/a
ColorRed
Connection Type¾" MBSP
Connector Height50 mm
Constituentsn/a
Created Bytechnical@rwc.co.uk
Created On2016
DescriptionThe Reliance Water Controls brand specialises in pressure, temperature, flow control and washroom products and has a long history in supplying the sanitary plumbing market and hot water system manufacturers. With our heritage and expertise, Reliance Worldwide Corporation (UK) Ltd (RWC UK) played a key role in the development of thermostatic technology and unvented hot water systems in the UK. Today we remain at the forefront of the industry delivering new innovations each year to drive water efficiency and improve water safety in both domestic and commercial applications.
Duration UnitYears
Expected Life0
FeaturesInternal membrane prevents any water contact with the steel shell, stopping internal corrosion. Huge choice of products from 2 litre to 5000 litre to cover all application. All versions supplied with a replaceable membrane meaning the vessel can be serviced without being removed. Complete with pre-charge valve for topping up air pressure.
FinishEpoxy-coated Steel
Graden/a
KeynoteS12
ManufacturerReliance Worldwide Corporation
Manufacturer AddressReliance Worldwide Corporation (UK) Ltd, Worcester Road, Evesham, Worcestershire, WR11 4RA, UK
Manufacturer Fax+44 (0) 1386 712401
Manufacturer Tel+44 (0) 1386 712400
MaterialShell - Epoxy-Coated Steel, Membrane - EPDM, Bolted Flange - Galzanised Steel
Max Temperature99 °C
Min Temperature10 °C
ModelXVES100080
Model NumberPlease record on commissioning
NBS DescriptionExpansion vessels;
NBS Object Name90-40-75/340 Expansion vessels;
NBS Reference90-40-75/340
Nominal Depth0 mm
Nominal Diameter365 mm
Nominal Height545 mm
Nominal Length365 mm
Nominal Width365 mm
Pre Set Pressure2 bar
Product CodeXVES100080
Production Year2016
Referenced StandardTUV Certified, CE marked according to Directive PED 97/23/CE
Replacement Costn/a
ShapeCapsule
Shell MaterialRWC Epoxy-Coated Steel Red
Size545 x 365Ømm
Spare Partsn/a
Top Entry_Diameter26 mm
Top Entry_Radius13 mm
Type NameXVES100080
URLwww.rwc.co.uk
Vessel Height0 mm
Void Base Bottom83 mm
Void Base Top41 mm
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Working Pressure Max8 bar
