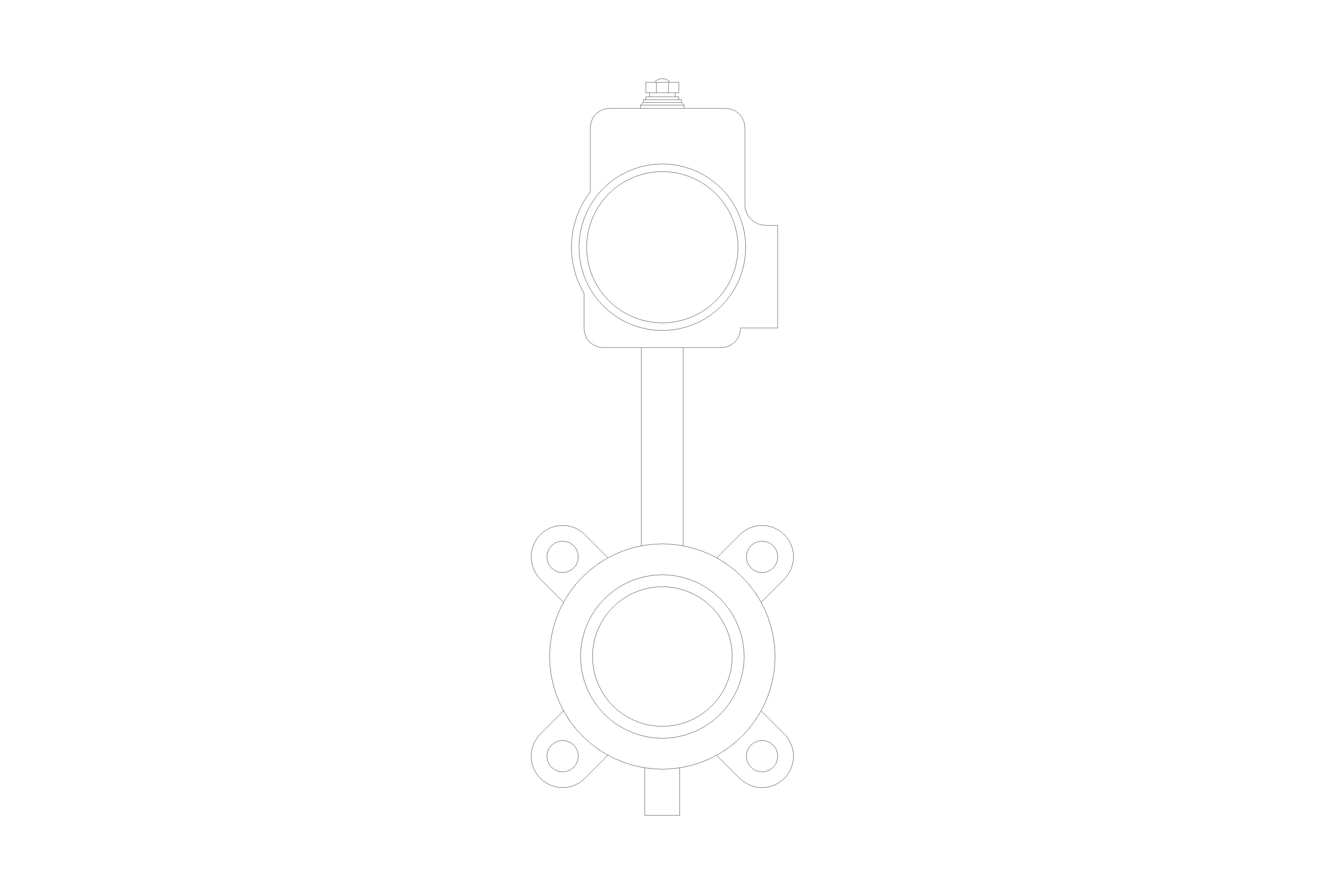

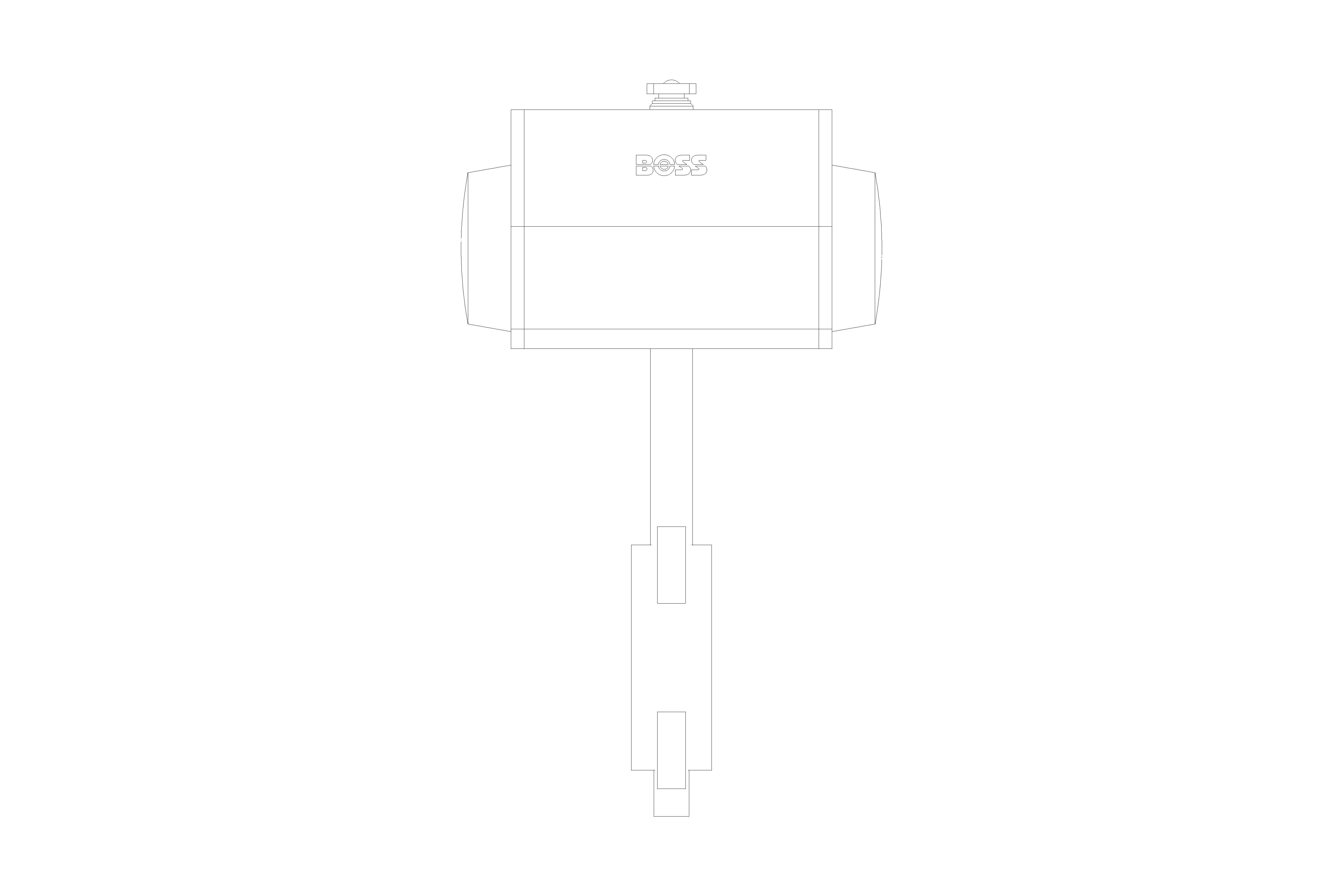

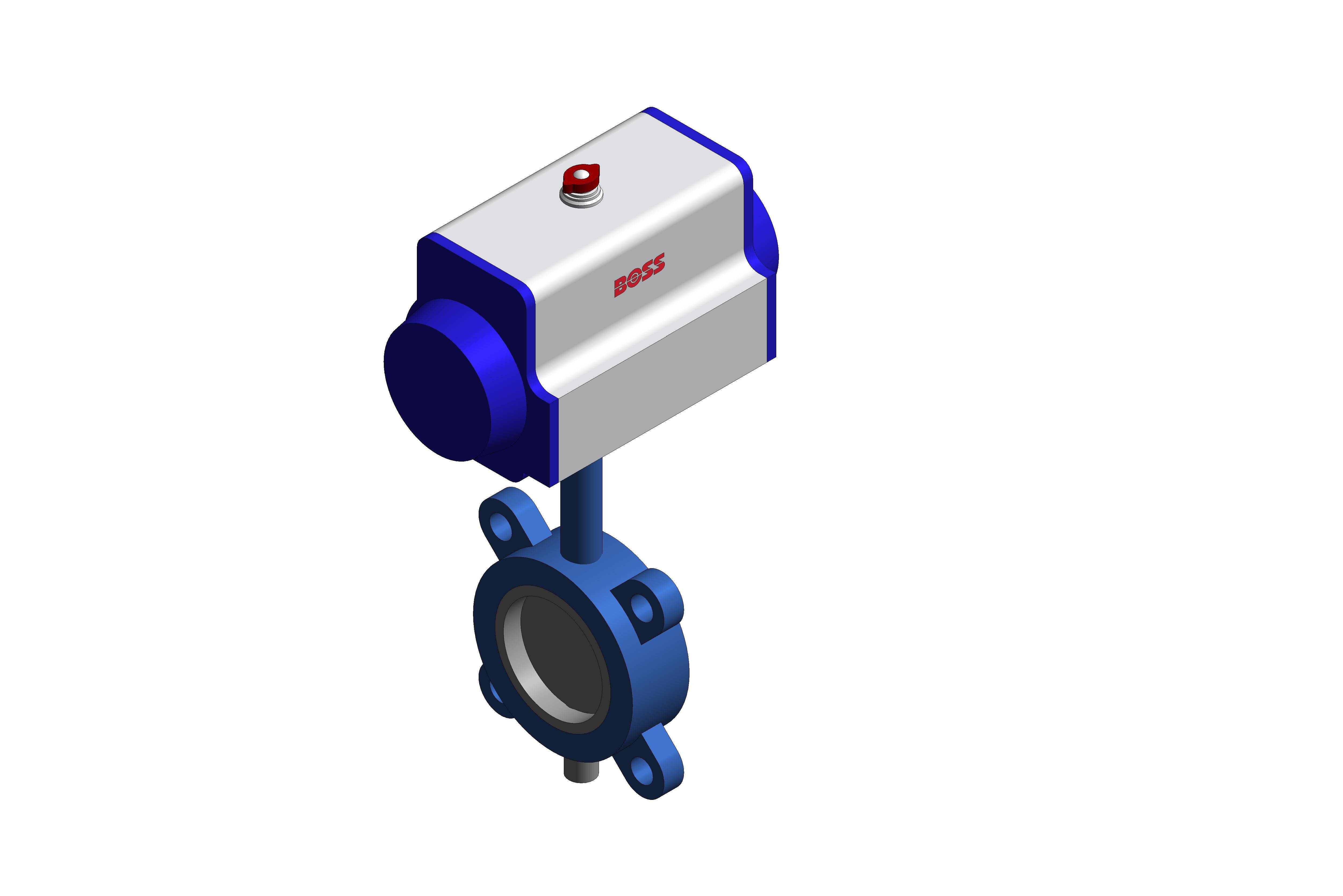

Semi Lugged Butterfly Valve with Spring Return Actuator - 358SE - SR

5.6k
3
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

28/06/2021

Download BIM

Add to collection

Available for:

Butterfly Valve - 358SE - SR

This download is for the Butterfly Valve - 358SE - SR from BOSS Valves. A BSS Company.

The download includes 1no Revit Pipe Accessory family (.rfa file), 1no Type Catalogue (.txt file) containing 13no SKU and 1no Userguide (.pdf file). Ensure the Userguide is read and understood prior to loading the Pipe Accessory family to an MEP System.

Object metadata

_AuthorJoe Shaw
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
4 HolesNo
8 HolesYes
A52 mm
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
B215 mm
BIM Object NameBOSS_PipeAccessory_ButterflyValve_SemiLugged_SpringReturnActuator_358SE-SR
BodyDuctile Iron
C318 mm
calc38 mm
C Diamm110 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_15
Code Performancen/a
Colorn/a
ConnectionsM16
Connection Size100 mm
Connection Size Radius50 mm
Constituentsn/a
Created Byenquiries@bssgroup.com
Created On2017-09-28T09:00:00
D241 mm
DescriptionDuctile Iron Butterfly Valves - Lugged Dimensions (Gear operated)
DiscStainless Steel SS410
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Expected Life0
F45 mm
FeaturesDuctile Iron Butterfly Valves - Lugged Dimensions (Gear operated)
Finishn/a
Flange Connect Offset73 mm
Flange Connect Thickness22 mm
Flange Hole Diameter20 mm
Flow0 L/s
G91 mm
Gearbox Connect Width34.33333333 mm
Gearbox Spindle Dia16.5 mm
Gearbox Wheel Dia22 mm
Graden/a
H1177 mm
HandwheelAluminium die-cast
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient519
KeynoteS
Kmm Radius91 mm
Liner Radius60 mm
Loss Method2
ManufacturerBOSS
Manufacturer NameBOSS
Materialn/a
ModelPN16
Model Number357
Model ReferencePN16
NBS DescriptionButterfly Valve
NBS Noten/a
NBS Object NameBOSS - Butterfly Valve
NBS Office Master Tagn/a
NBS Reference90-10-90/342
Nominal Depth0 mm
Nominal Height286 mm
Nominal Length56 mm
O RingEPDM and BNR (Buna-N)
Pressure RatingPN16
Product Code BUNAN Seatn/a
Product Code EPDM Seatn/a
Production Year2017
Referenced Standardn/a
Replacement Costn/a
SeatEPDM and BNR (Buna-N)
Service Temperature Range BUNANn/a
Service Temperature Range EPDMn/a
Shapen/a
Size100mm
Spare Partsn/a
Spring Return ActuatorSR100
StemStainless Steel SS410
topcalc103 mm
Type Comments100mm
Type Namen/a
URLwww.bssindustrial.co.uk/Product-Centre/BOSS-Own-Brand-Products
Valve MaterialBOSS_CastIron
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Weight Kg0

Report an issue with this object

Accompanying literature

Community comments

You must log in to write a comment

Ian Holmes on 28 June 2021

Good afternoon Marc, thank you for highlighting the error with the type catalogue. The type catalogue has now been fixed and the file reuploaded to bimstore. If you have any other issues on using this family, please do not hesitate to get in touch.
