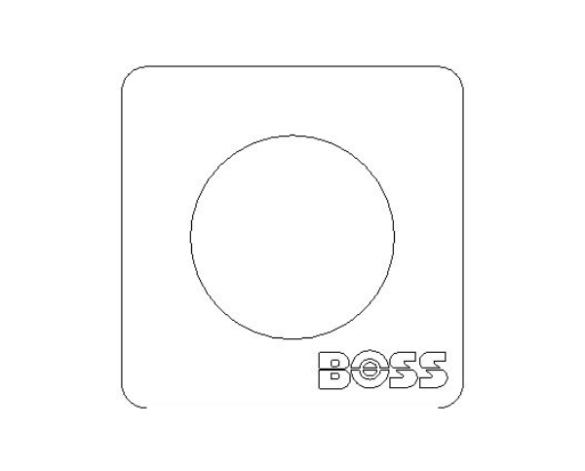

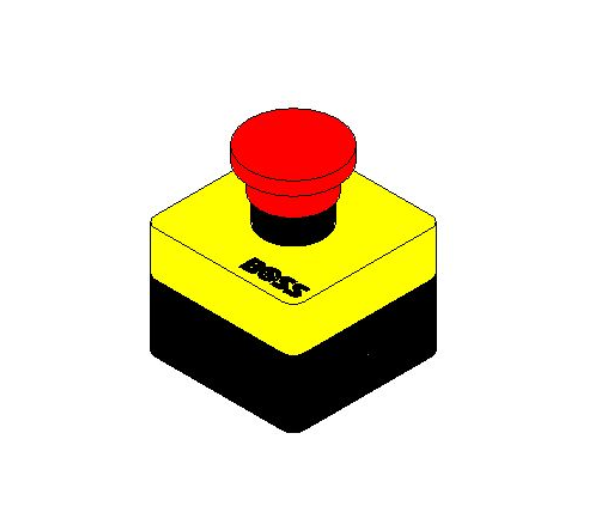

Panic Button Switch - SCPB

Download Add to collection

Description

Panic Button Switch - SCPB

Object Data

1 Revision

Last Updated

15/10/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
ApplicationPanic Alarm
ApprovalN/A
Assembly CodeD5020100
Asset TypeFixed
BIM Object NameBOSS_ElectricalFixtures_PanicButtonSwitch_SCPB
BodyN/A
Cable Entry20 mm Conduit entry, Screw terminals accept 1.5 mm cable.
Classification NameUniclass2015
Classification ValuePr_65_72_27_32
Code PerformanceN/A
ColorYellow/Black
Con Angle90.00 °
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On2019-08-17 T09:00:00
Default Elevation1219 mm
DescriptionBOSS S-CPB Panic Button
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesPanic Button Electrical Rating: Normally closed contacts rated at 10 Amp 240 Volt. Screw terminals accept 1.5 mm cable.
FinishPolymer
GPID CodeN/A
GradeN/A
H150 mm
Ifc Export AsIfcSwitchingDeviceType.EMERGENCYSTOP
Ifc Export TypeIfcSwitchingDevice
KeynoteV
L167 mm
L267 mm
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialPolymer
ModelBOSS S-CPB Panic Button
Model Number20806654
Model ReferenceBOSS S-CPB Panic Button
NBS DescriptionElectromechanical control circuit devices
NBS Object NameBSS BOSS Products -Electromechanical control circuit devices
NBS Office Master TagN/A
NBS Reference90-65-25/360
Nominal Depth80 mm
Nominal Flow67.0
Nominal Length67 mm
Nominal Width67 mm
OperationPush to break contacts, twist to reset
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCuboid
SizeN/A
Spare PartsBOSS Technical Team Tel 0116 245 5940
Type CommentsBOSS S-CPB Panic Button
Type NameBOSS S-CPB Panic Button
URLwww.bssindustrial.co.uk/products/controls-meters-and-firefighting
User InstructionsThe fitting of an Emergency Panic Button is mandatory in boiler and plant rooms. The unit should be located at a height of 1.4 metres adjacent to the entrance of the plant room.
Visibility 6No
Voltage240
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WeightN/A

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
