bimstore - IG Masonry Support - Brick On Soffit System

6.7k
0
4 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

13/07/2020

Download BIM

Add to collection

Available for:

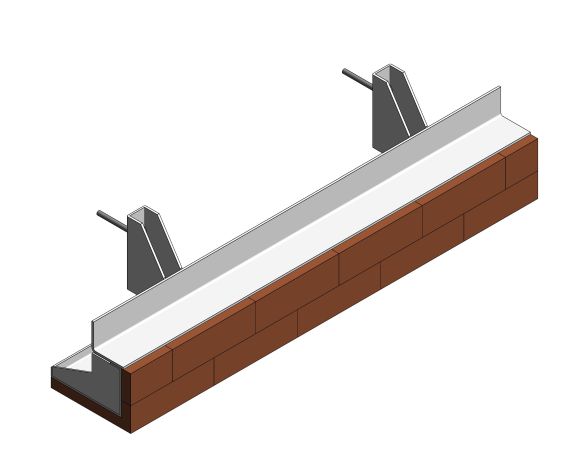

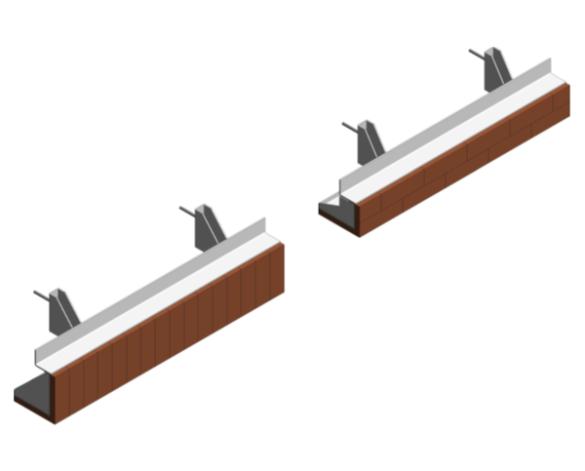

The B.O.S.S.® (Brick On Soffit System) range provides a lighter alternative to concrete, which is faster to install than traditional hanging brick systems. Installed to a pre-fitted masonry support system, B.O.S.S.® allows increased adjustability along three axes. Produced offsite, B.O.S.S.® offers a quicker, lighter, easier and more cost efficient option.

Achieving deep brick soffits and intricate brick patterns around window heads and openings has become quicker, easier and much more cost effective to achieve – all down to the lightweight Brick On Soffit System range developed by IG Masonry Support.

_AuthorCL
_Authorized ByRW
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessory OptionsCavity closer plate, cavity adjustment shims
Accomodated Cavity WidthFrom 50mm to 150mm
Angle Fixing To BracketWelded
Angle Section Thickness4 mm
Assembly CodeB
Asset TypeFixed
Available Lengths440mm / 665mm / 775.5mm / 1150mm

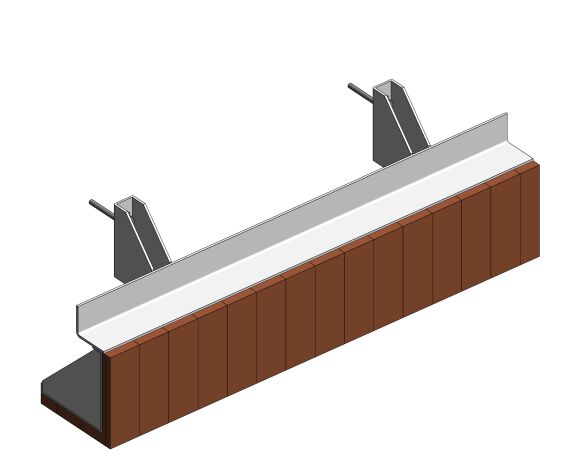

BIM Object NameIGMasonrySupport_MasonryAngleSupports_BOSS_Soldier
Bracket Fixing To StructureExpansion bolts / Cast-in channels / SS set screws
Bracket Height170 mm
Bracket Number2
Bracket PositionMaximum 750mm spacing
Bracket Thickness4mm
Brick Slip FrontBrick, Brown Soldier Course
Classification NameUniclass2015
Classification ValuePr_20_85_03_50
Code Performancen/a
ColorStainless Steel
Constituentsn/a
Created Bysupport@igmss.co.uk
Created On2018-12-01T09:00:00
DescriptionThe B.O.S.S (Brick On Soffit System) provides a lighter alternative to concrete brick slip systems and is faster to install than traditional hanging brick systems. Installed to a pre-fitted masonry support system, B.O.S.S. allows increased adjustability along three axes. Produced offsite, B.O.S.S. offers a quicker, lighter, easier and more cost efficient option.
Documentation Certificateswww.bimstore.co/products/brick-on-soffit-system/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/brick-on-soffit-system/document/installation-guide
Documentation Literaturewww.bimstore.co/products/brick-on-soffit-system/document/product-literature
Documentation Maintenancewww.bimstore.co/products/brick-on-soffit-system/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/brick-on-soffit-system/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesAll solutions are customised to customers requirements. This system offers a major reduction in onsite labour and installation time. 70% reduction in weight. 90% reduction in installation time
FinishStainless Steel
Fire Ratingn/a
First Bracket Offset218 mm
Fixing Length100 mm
Fixing Position0 mm
GradeGrade 304
Gusset6
Ifc Export AsIfcBeam
Ifc Export TypeIfcBeamTypeEnum.LINTEL
Loading LimitMax. 5kN/m
ManufacturerIG Masonry Support, Ryder Close, Cadley Hill Ind Estate, Swadlincote, South Derbyshire, DE119EU
Manufacturer NameIG Masonry Support, Ryder Close, Cadley Hill Ind Estate, Swadlincote, South Derbyshire, DE119EU
MaterialStainless Steel
ModelB.O.S.S. Soldier
Model NumberB.O.S.S. Soldier
Model ReferenceB.O.S.S. Soldier
NBS DescriptionMasonry angle supports
NBS Object NameIG Masonry Support - Masonry angle supports
NBS Reference45-25-95/410
Nominal Depth0 mm
Nominal Height0 mm
Production Year2018
Referenced Standardn/a
Replacement Costn/a
ShapeRectangle
Sizen/a
Sofit Fixing Position50 mm
Spare Partsn/a
Thermal BreakNo
Type CommentsIG Welded Masonry Support (BOSS)
Type NameB.O.S.S. Soldier
URLigmasonrysupport.com
Warranty Description10 Years
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partssupport@igmss.co.uk
