Brick Slip Lintel

by IG Masonry Support

Download Add to collection

Description

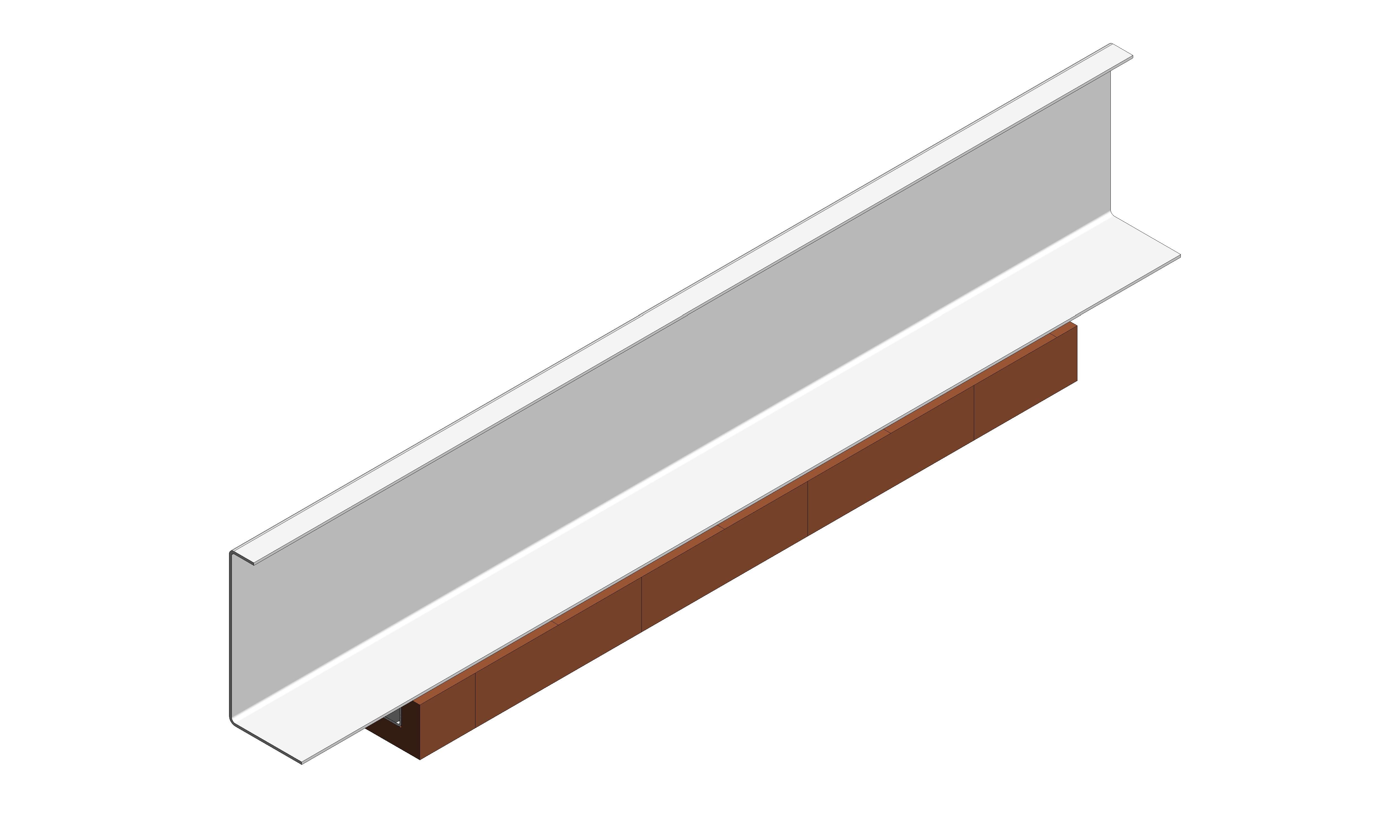

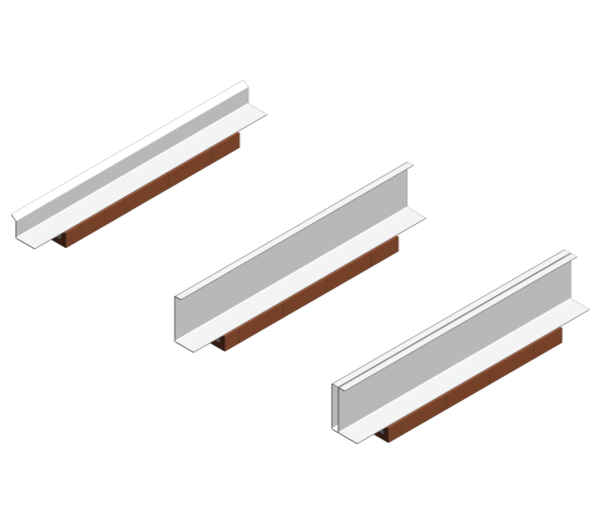

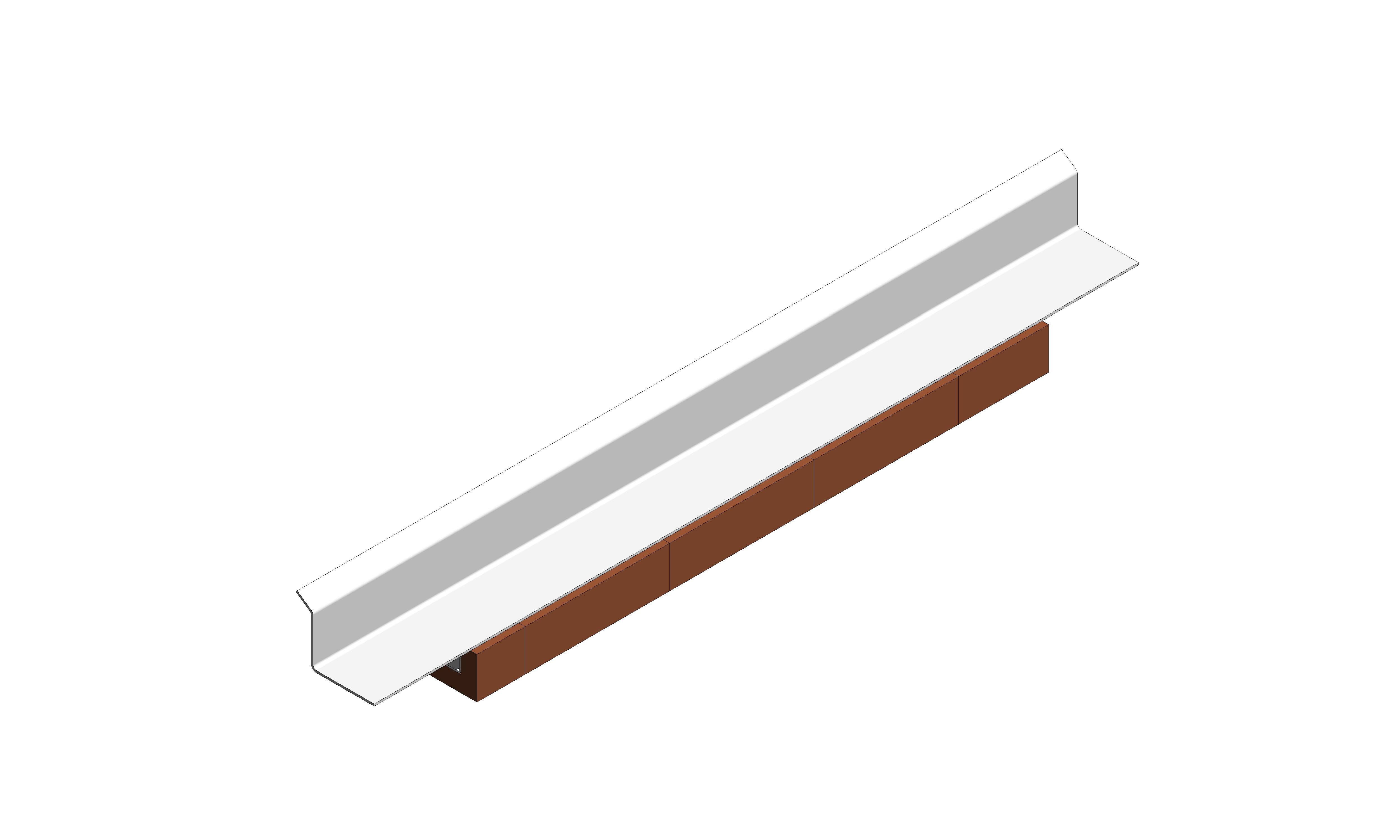

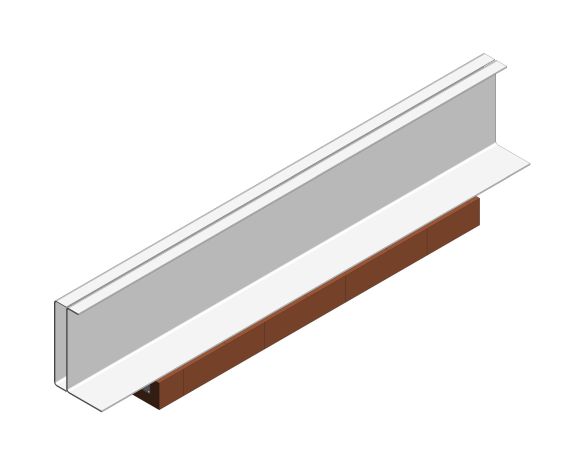

IG Masonry Support brick slip lintels can be used over small openings to eliminate the need for additional masonry support. Supplied in stainless steel or galvanised steel, IG Masonry Support’s Brick Slip Lintels have the same profile as a standard lintel and are delivered to site as a one-piece unit, complete with brick slips attached, eliminating the need for specialist installation onsite. With thousands of installations completed over the past decade, the IG brick slip system is a proven and reliable solution, which provides maximum adhesion of the brick slips.

Object Data

1 Revision

Last Updated

13/07/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorCL
_Authorized ByRW
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessory Optionsn/a
Accomodated Cavity Widthn/a
Angle Section Thickness4 mm
Assembly CodeB
Asset TypeFixed
BIM Object NameIGMasonrySupport_StainlessSteelLintels_BrickSlipLintel
Bracket Fixing To Structuren/a
Brick Slip Thickness25 mm
Classification NameUniclass2015
Classification ValuePr_20_85_48_84
Code Performancen/a
ColorStainless Steel
Constituentsn/a
Created Bysupport@igmss.co.uk
Created On2018-12-01T09:00:00
DescriptionIG Masonry Support brick slip lintels can be used over small openings to eliminate the need for additional masonry support.
Documentation Certificateswww.bimstore.co/products/brick-slip-lintel/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/brick-slip-lintel/document/installation-guide
Documentation Literaturewww.bimstore.co/products/brick-slip-lintel/document/product-literature
Documentation Maintenancewww.bimstore.co/products/brick-slip-lintel/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/brick-slip-lintel/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesStainless Steel Lintel with Brick Slips bonded to a perforated stainless steel carrier
FinishProject specific brick type
Fire Ratingn/a
GradeGrade 304
Gusset6
Ifc Export AsIfcBeam
Ifc Export TypeIfcBeamTypeEnum.LINTEL
KeynoteL
Loading Limitn/a
ManufacturerIG Masonry Support, Ryder Close, Cadley Hill Ind Estate, Swadlincote, South Derbyshire, DE119EU
Manufacturer NameIG Masonry Support, Ryder Close, Cadley Hill Ind Estate, Swadlincote, South Derbyshire, DE119EU
MaterialStainless Steel
ModelBrick Slip Lintel
Model Numbern/a
Model ReferenceBrick Slip Lintel
NBS DescriptionStainless steel lintels
NBS Object NameIG Masonry Support - Stainless steel lintels
NBS Reference45-80-50/406
Nominal Depth0 mm
Nominal Height0 mm
Production Year2018
Referenced Standardn/a
Replacement Costn/a
ShapeRectangle
Sizen/a
Spare Partsn/a
Thermal BreakNo
Type CommentsIG Welded Masonry Support (BSL)
Type NameBSL
URLigmasonrysupport.com
Warranty Description10 Years
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partssupport@igmss.co.uk
