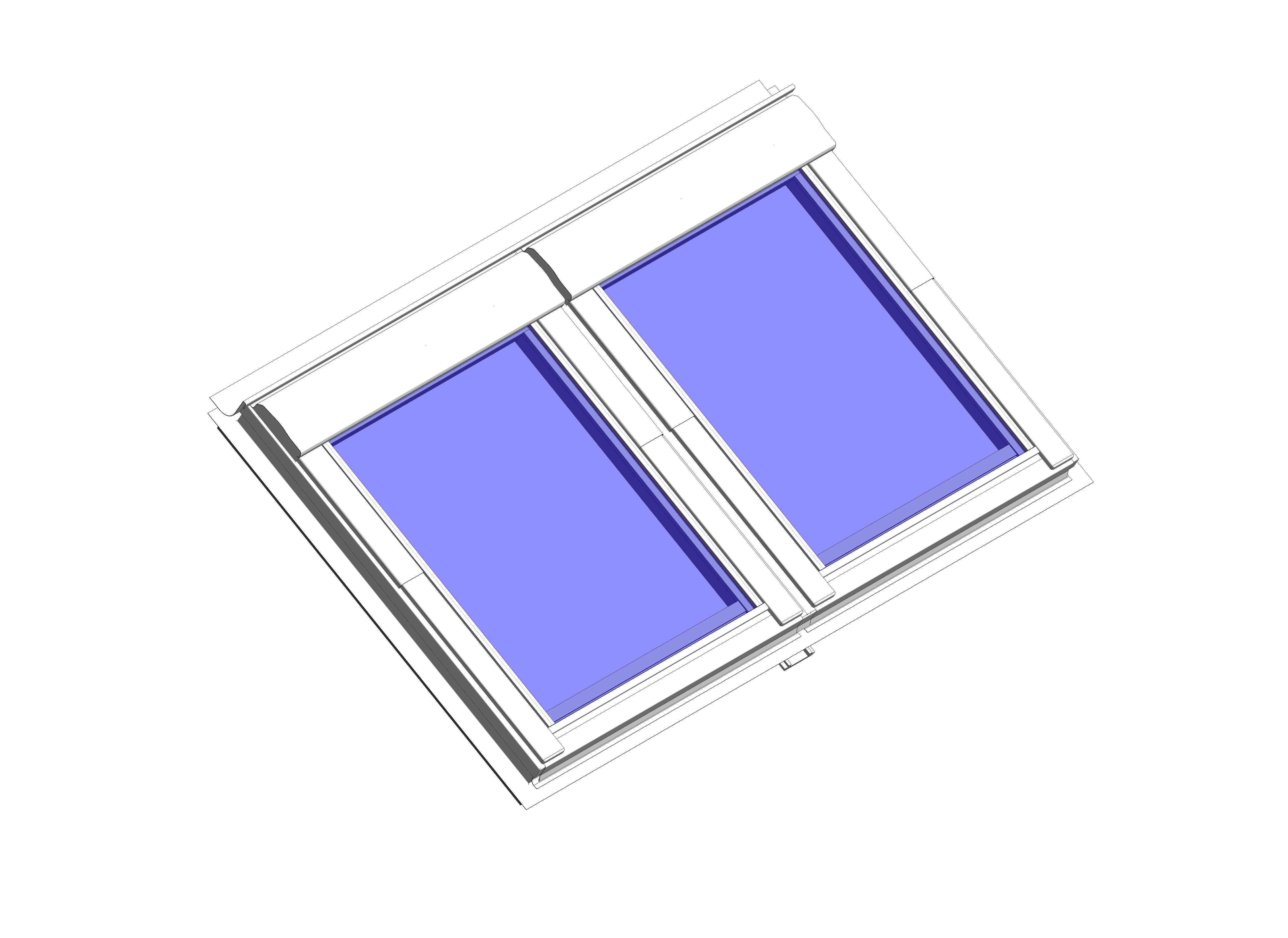

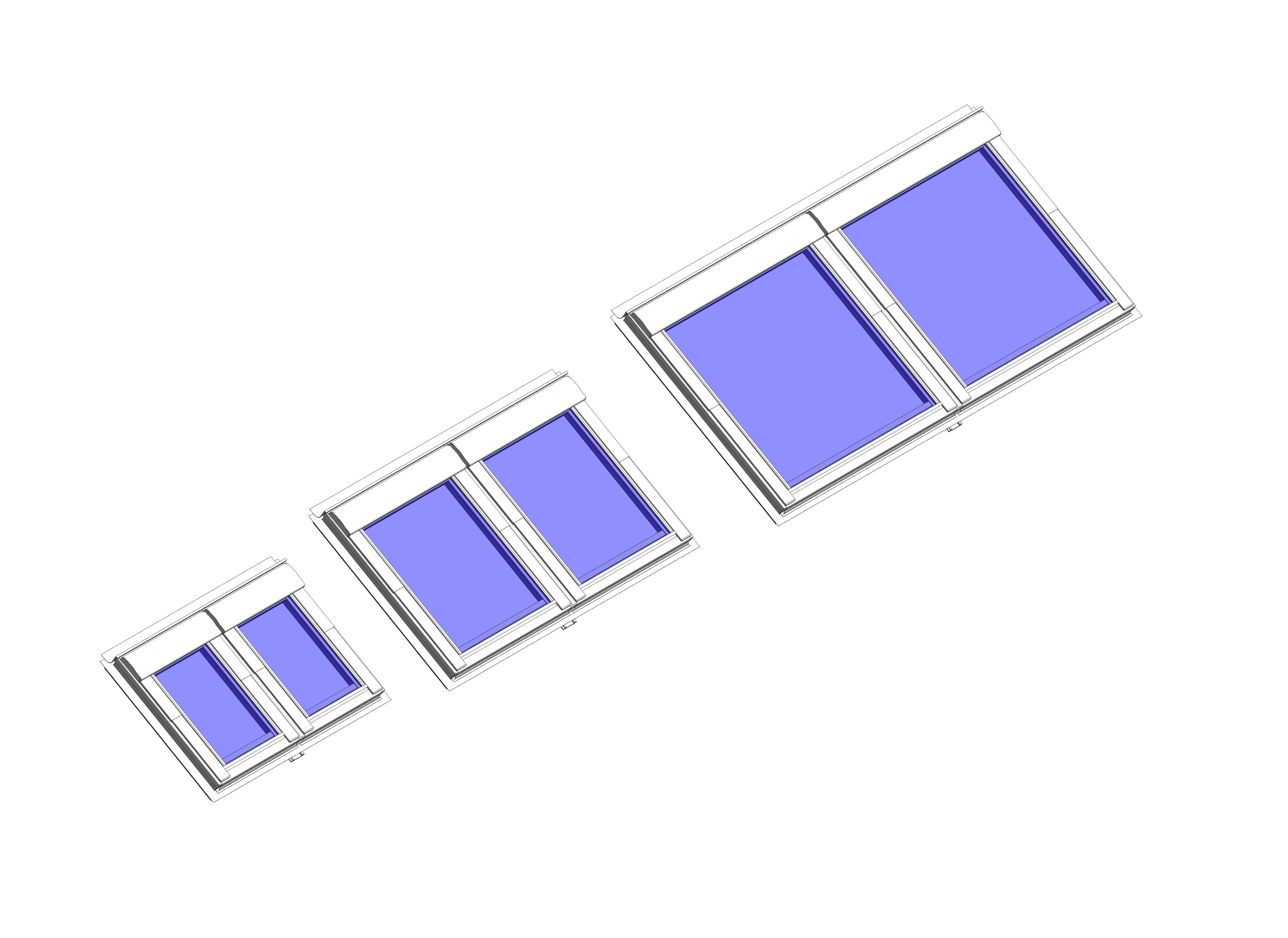

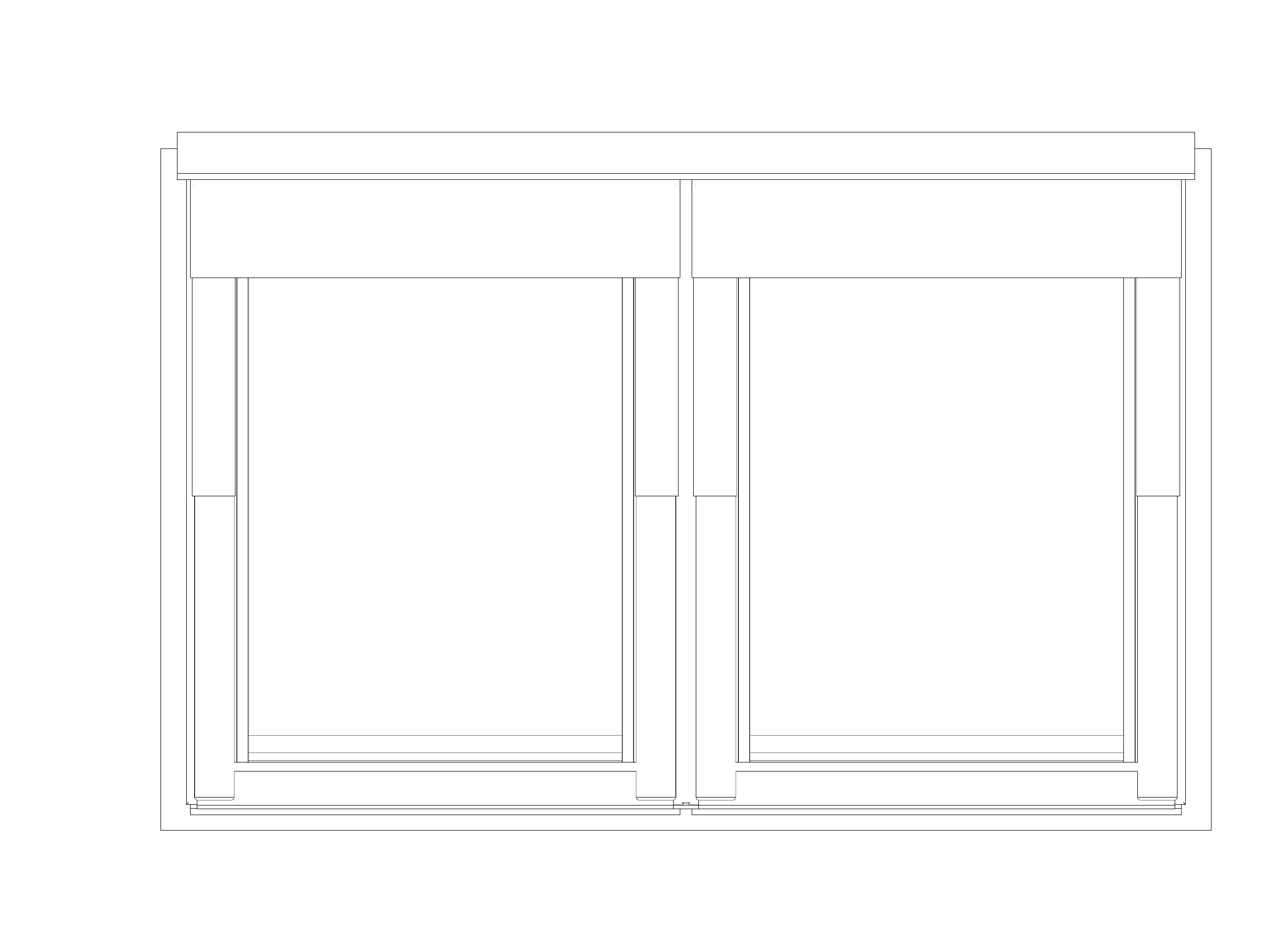

The Keylite range of Combination Flashing Systems allows any of the standard Keylite Roof Windows to be installed in vertical, horizontal or group blocks. This system see’s two windows placed side by side across the horizontal plane with a minimum of 100mm between the windows.

Click here to visit Keylite Roof Windows for more information.

Object metadata

_Authorinfo@keyliteuk.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@keyliteuk.com
_Current Revision49
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/centre-pivot-combination/document/object-user-guide
2D Detailwww.keyliteroofwindows.com/architects/cad-drawings/
Accessibility Performancen/a
Acoustic Performance32
Air PermeabilityClass 3
Analytic Construction<None>
Assembly CodeB3020100
Asset TypeFixed
BIM Object NameKeylite_Window_CentrePivotCombination
Classification NameUniclass2015
Classification ValuePr_30_59_98_97
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo@keylite.co.uk
Created On03-08-2020T09:00:00
Define Thermal Properties bySchematic Type
DescriptionSide by side on a horizontal plane
Documentation Certificateswww.bimstore.co/products/centre-pivot-combination/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/centre-pivot-combination/document/installation-guide
Documentation Literaturewww.bimstore.co/products/centre-pivot-combination/document/product-literature
Documentation Maintenancewww.bimstore.co/products/centre-pivot-combination/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/centre-pivot-combination/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesMultiple windows in combination
FinishInterior: Laquered Pine Exterior: Powder Coated Aluminium
Graden/a
Height1180 mm
Ifc Export AsIfcWindow
Ifc Export TypeIfcWindowTypeEnum.WINDOW
Impact ResistanceClass 2
Keylite AccessoriesAluminium
Keylite Construction WoodPine
Keylite Decoration TrimPlaster wall
Keylite External PartsAluminium
Keylite FlashingAluminium
Keylite Internal PartsPine
Keylite Thermal CollarPolyurethane Foam
KeynoteL10
Light Transmittance0.85
ManufacturerKeylite
Manufacturer NameKeylite
MaterialLaminate, Pine, Aluminum
ModelCentre Pivot Combination
Model NumberC 01C
Model ReferenceCentre Pivot Combination
NBS DescriptionWood frame roof window units
NBS Object NameKeylite - Wood frame roof window units
NBS Office Master Tagn/a
NBS Reference45-25-99/390
Nominal Depth1180 mm
Nominal Height0 mm
Nominal Length1158 mm
Offset From Roof0 mm
Picture Typehhttps://www.keyliteroofwindows.com/products/roof-windows/combination-window-options/
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Resistance To Snow Load4H-20, Ar-4TM
Resistance To Wind LoadClass C4
Rough Height1180 mm
Rough Width1158 mm
ShapeRectangle
Single Unit Height1180 mm
Single Unit Width550 mm
Size1200(W) x 1180(H)
Solar Factor G0.65
Spare Partsn/a
Thermal Transmittance Of Glass1.1
Thermal Transmittance Of Window1.3
Type CommentsC 01C
Type NameC 01C
URLwww.keyliteroofwindows.com
Vertical18 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@keyliteuk.com
Warranty Guarantor Partsinfo@keylite.co.uk
Water TightnessE1050
Width1158 mm
