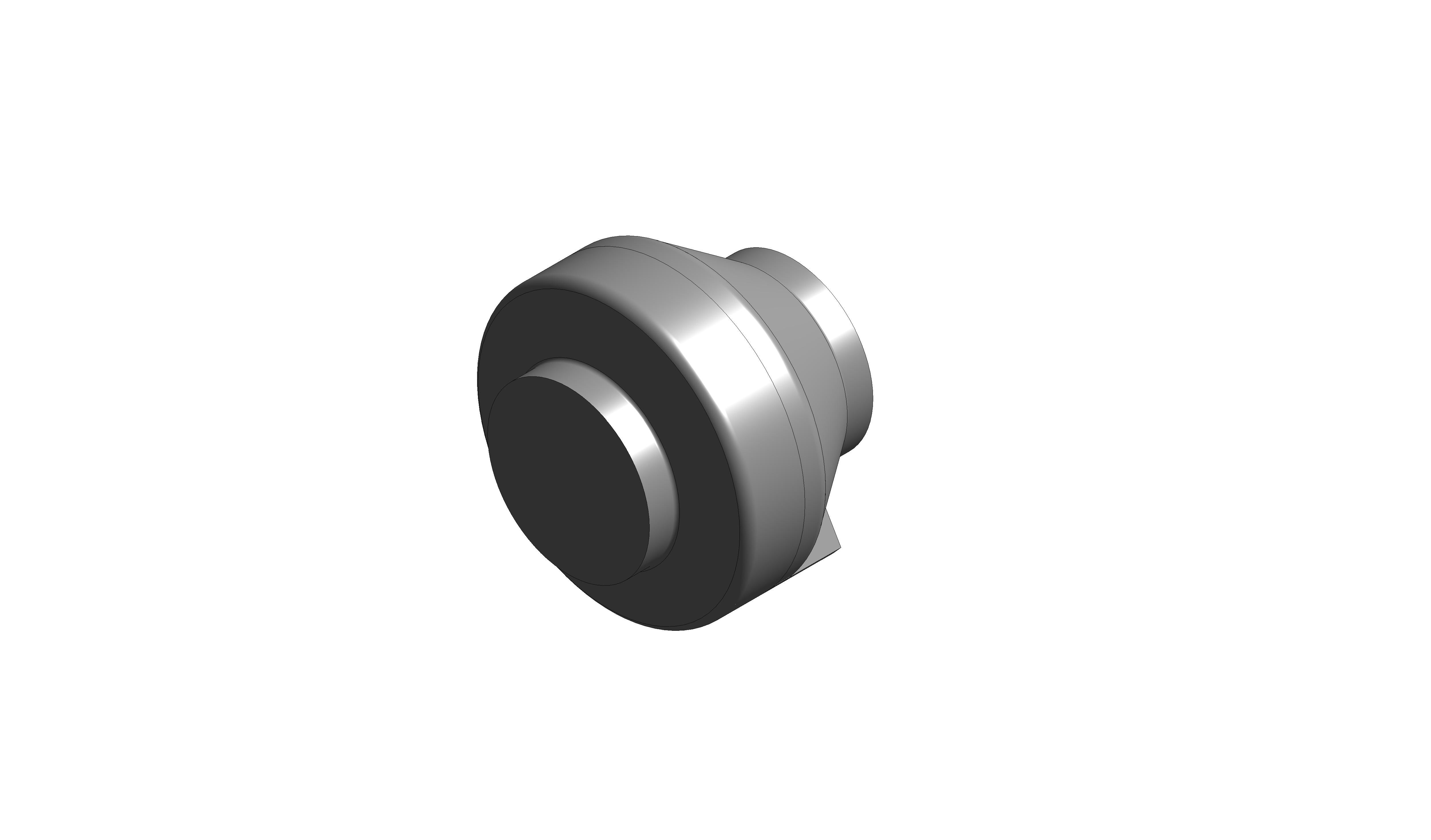

Centro - Inline Fan

Object metadata

• _Authortechnicalsupport@blauberg.co.uk
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created ByBlauberg UK
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/centro/document/object-user-guide
• Accessibility Performancen/a
• Apparent Power80 VA
• Asset TypeFixed
• BIM Object NameBlauberg_MechanicalEquipment_Centro
• Box A85 mm
• Box Angle90.00 °
• Box D250 mm
• Box Depth78 mm
• Classification NameUniclass2015
• Classification ValuePr_30_59_96
• Code Performancen/a
• Colorn/a
• Constituentsn/a
• Created Bytechnicalsupport@blauberg.co.uk
• Created On2021-09-22T09:00:00
• Current0 A
• D100 mm
• D1250 mm
• DescriptionInline centrifugal fan for round ducts
• Documentation Certificateswww.bimstore.co/products/centro/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/centro/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/centro/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/centro/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/centro/document/technical-data-sheet
• Duct Connection Size100 mm
• Duration UnitYears
• Expected Life0
• Fan MaterialPlastic White Glazed
• Featuresn/a
• Finishn/a
• Graden/a
• Ifc Export AsIfcEnergyConversionDeviceType
• Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRHANDLER
• L230 mm
• L128 mm
• L1240 mm
• L1340 mm
• L232 mm
• L2270 mm
• L2320 mm
• Load ClassificationHVAC
• Maintenance Zone Height600 mm
• Maintenance Zone Length600 mm
• Maintenance Zone MaterialMaintenance Zone
• Maintenance Zone Width600 mm
• ManufacturerBlauberg UK
• Manufacturer NameBlauberg UK
• Materialn/a
• Maximum Air Flow250 m³/h
• ModelCentro 100 (50Hz)
• Model Number100(50Hz)
• Model Reference100(50Hz)
• NBS DescriptionWall Venting Products
• NBS Object NameBlauberg UK - Wall Venting Products
• NBS Office Master Tagn/a
• NBS Reference90-45-30/320
• Noise Level At 3m D Ba40
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Number Of Poles1
• Power80 W
• Power Factor1
• Production Year2021
• Protection RatingIPX4
• R1125 mm
• R115 mm
• R1215 mm
• R215 mm
• R2215 mm
• Referenced Standardn/a
• Replacement Costn/a
• RP Mmin 12820
• Shapen/a
• Sizen/a
• Spare Partsn/a
• Transported Air Temperature Degrees C-25...+60
• Type CommentsInline centrifugal fan
• Type NameCentro 100 (50Hz)
• URLblaubergventilatoren.de/en/product/centro-100
• Voltage230 V
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
• Weight2.01 kg
