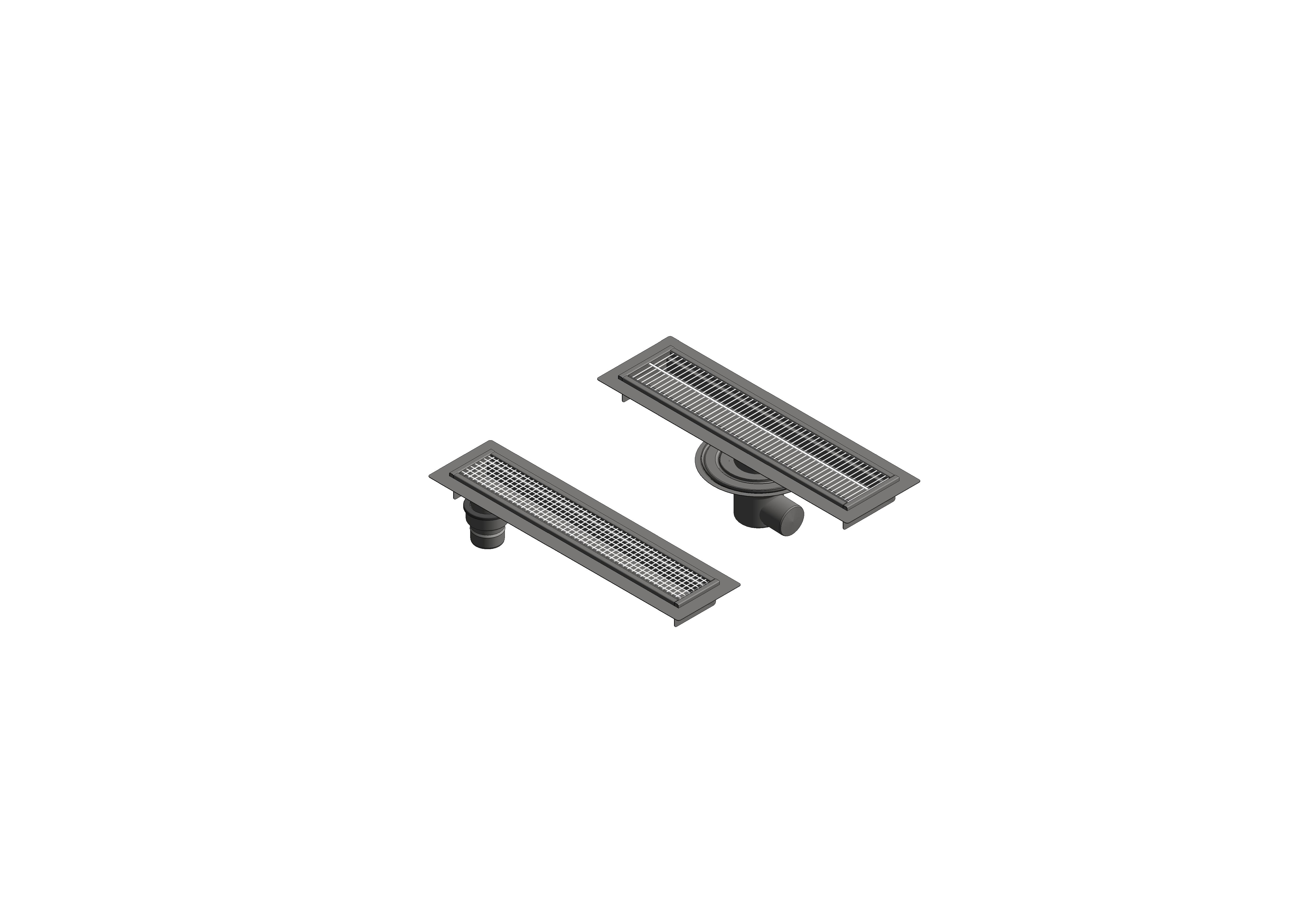

Channel 674 with Membrane - Tile / Resin / Concrete
36.7k
0
5 / 5Rate this product
Available for:
Drains & Upper Parts with Rectangular Top (Channels) : Channel-Liquid membrane : 674CH / 674DH / 674DK / 674EK / 674FK
The channel is made from 2 mm acid-pickled stainless steel.
Designed in accordance with standard EN1253.
The longitudinal fall is 1% and the cross fall corresponds to 160°-170°.
Floor: concrete, tiled and resin.
Liquid membrane.
Stainless steel: AISI304/EN1.4301.
Width: 150, 200, 300 and 400 mm.
Length: 1000 mm up to 6000 mm.
Select the product(s) based on outside (visible) dimension, flow rate, and / or item number, to upload in your project.
- Horizontal and Vertical outlet, height adjustable, 75 and 110 mm
- With and without membrane and for concrete, tiled and resin floors.
- The product is made from 2 mm acid-pickled stainless steel.
- 4 Grating options load class up to 20.000 kg
- Designed in accordance with EN1253.
Key Component Features:
- User selectable Channel
- User selectable Gratings
- User selectable Lower Parts
- User selectable Watertrap
- User selectable Filter Basket
- 360 degree Lower Part
- Height adjustment
- Automated product codes
- Pre-selected concrete cut out / base concrete slab option for installation purpose
Search Opt.: blucher
