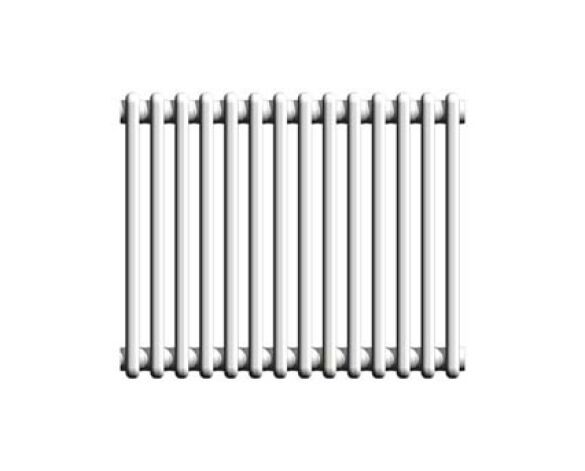

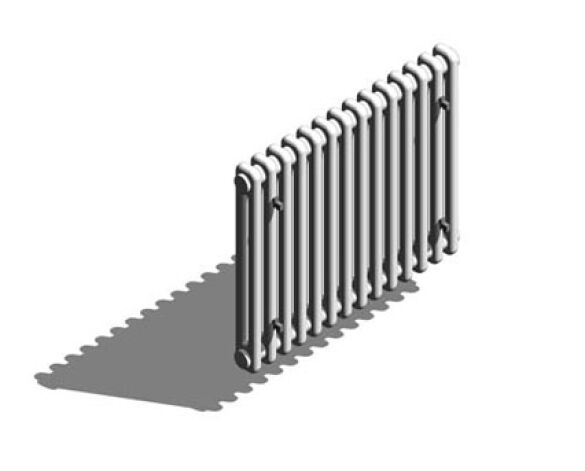

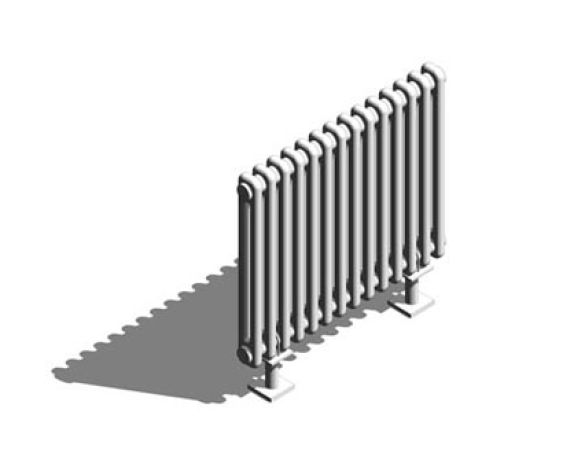

Classic Column Horizontal Radiator (2 Columns)

19.7k
0
5 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

20/02/2024

Download BIM

Add to collection

Available for:

This column is truly a classic, dramatically enhancing the appearance of contemporary or period interiors. The Classic Column is one of the ultimate style statements, beautifully finished and available in a wide range of sizes to suit almost any application.

For a chic solution that can accentuate the use of traditional materials, enhance a contemporary or period appearance, the Classic Column is the perfect choice.

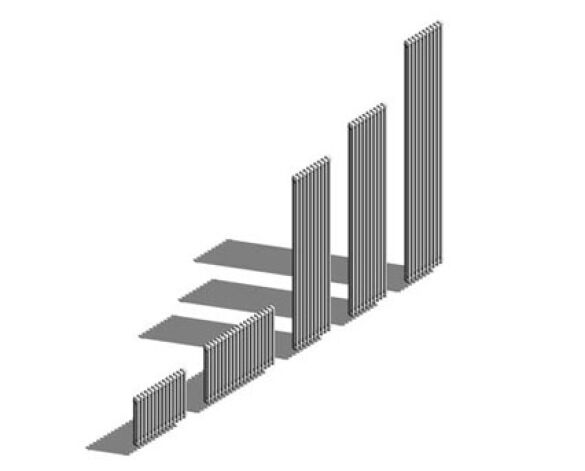

Our extensive range of size options provides fitting flexibility

As a measure of all round dependable quality and performance, the Stelrad Classic Column radiator comes complete with a 5 Year Warranty.

This download is for the 2 Column version of the Classic Column Radiator.

Click here to view our interactive brochure

_AuthorKA
_Bim Spec Guid0
_Bimstore Bible Versionv15
_Created Bywww.bimstore.co.uk
_Current Revision2
_Distributed Bywww.bimstore.co.uk
2nd Bracket Offset Calc225 mm
Accessibility Performancen/a
Assembly CodeD3020
Asset TypeFixed
BIM Object NameMechanical_Equipment-Radiators-Stelrad-Classic_Column_2_Column
Bracket Depth23 mm
Bracket Offset Calc68 mm
Bracket Width45 mm
Centres from wall Kg54/59
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
ColorRAL 9016
Columns2
Connection Dia13 mm
Connection Offset54 mm
Connection RAD6.5 mm
Delta Rating50?t
Depth62 mm
DescriptionFor a chic solution that can accentuate the use of traditional materials, enhance a contemporary or period appearance, the Classic Column is the perfect choice.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.stelrad.com/uk/radiators/classic_column
Documentation Maintenancen/a
Documentation Technicaln/a
Dry Weight kg18.9
Duration UnitYears
Elements8
Exact Length Tapping Centres mm352 mm
Expected Life0
Finn Array8
Heat Output Btu/hr2962
Heat Output Watts868
Height1800 mm
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
KeynoteT32
Length352 mm
ManufacturerStelrad Ltd
Manufacturer NameStelrad Ltd
Max projection mm85/90
ModelClassic Column - 2 Col
Model Number1800mm High 352mm Wide Classic Column - 2 Col Radiator
NBS DescriptionRadiators
NBS Object NameStelrad - Radiators
NBS Reference90-40-35/405
Nominal Depth62 mm
Nominal Height1800 mm
Nominal Length352 mm
Product Documentation Linkwww.stelrad.com/uk/docs/classic_column_brochure.pdf
Product Page URLwww.stelrad.com/uk/radiators/classic_column
Product Technical Informationwww.stelrad.com/uk/docs/classic_column_technical_info.pdf
Section Width45 mm
ShapeRectangle
Size1800mm High 352mm Wide Classic Column - 2 Col Radiator
Spare Partsn/a
Support Feet Offset90 mm
Tap Centre mm1734 mm
Type Comments1800mm High 352mm Wide Classic Column - 2 Col Radiator
Type NameClassic Column - 2 Col
UIN163054
URLwww.stelrad.com/uk/
Wall Bracket Offset100 mm
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water Content Litres10.5
