Cloud Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

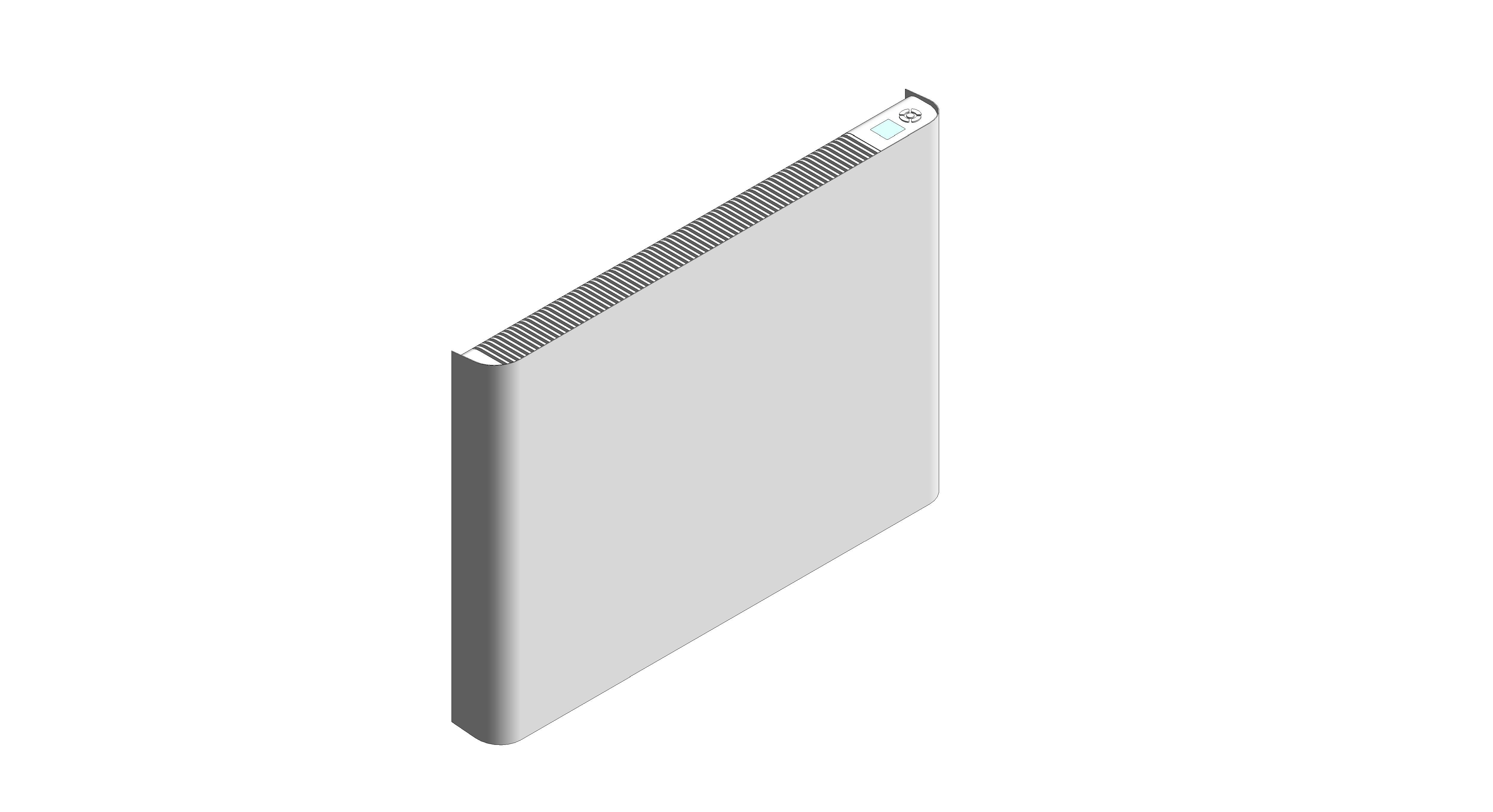

The Cloud is a smooth fronted, curved faced steel radiator encasing a natural volcanic stone. Using dry inertia technology, the radiator heats the air in your rooms via a process of convection, offering exceptional warmth and remarkable energy efficiency wrapped up in a single solution.

Corrosion resistant with no fluids or chemicals and with no chance of leaks, this has a high energy efficiency rating due to the stone’s natural ability to absorb, hold and radiate heat faster and for longer.

Click here to view our interactive brochure

Object Data

1 Revision

Last Updated

23/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

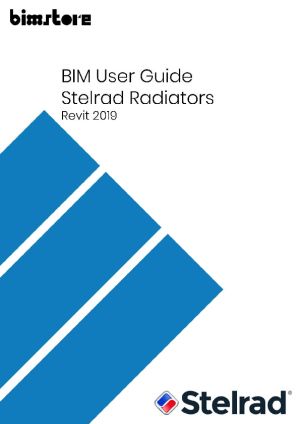

Object User Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD3020
Asset TypeFixed
BIM Object NameStelrad_MechanicalEquipment_Radiator_Cloud
Btu/hr6828
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Class Of ProtectionII
Code Performancen/a
ColorAnthracite
Constituentsn/a
ControlsIntegrated Control Panel
Created Byinfo@stelrad.com
Created On2024-01-11 T09:00:00
Default Elevation0.00 mm
DescriptionThe Cloud is a smooth fronted, curved faced steel radiator encasing a natural volcanic stone. Using dry inertia technology, the radiator heats the air in your rooms via a process of convection, offering exceptional warmth and remarkable energy efficiency wrapped up in a single solution. Corrosion resistant with no fluids or chemicals and with no chance of leaks, this has a high energy efficiency rating due to the stone’s natural ability to absorb, hold and radiate heat faster and for longer.
Documentation Certificateswww.bimstore.co/products/cloud/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/cloud/document/installation-guide
Documentation Literaturewww.bimstore.co/products/cloud/document/product-literature
Documentation Maintenancewww.bimstore.co/products/cloud/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/cloud/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Heat Output2000 W
Heat SourceDry Stone
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Indice Of ProtectionIP24
KeynoteT
Length Calc1032.00 mm
ManufacturerStelrad
Manufacturer NameStelrad
Materialn/a
ModelCloud
Model NumberCloud
Model Reference600mm(H) x 1040mm(L) - Anthracite
NBS DescriptionRadiators
NBS Noten/a
NBS Object NameStelrad - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth0.00 mm
Nominal Height600.00 mm
Nominal Length1040.00 mm
Production Year2024
Radiator FinishStelrad - Metal - Anthracite
Referenced Standardn/a
Replacement Costn/a
Sizen/a
Spare Partsn/a
Type Comments600mm(H) x 1040mm(L) - Anthracite
Type Name600mm(H) x 1040mm(L) - Anthracite
UINE015-0600-0830
URLwww.stelrad.com
Vent Array98
Voltage230V - 50Hz
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@stelrad.com
Weight29.60 kg
