Commercial Bulkheads

by Luceco

Download Add to collection

Description

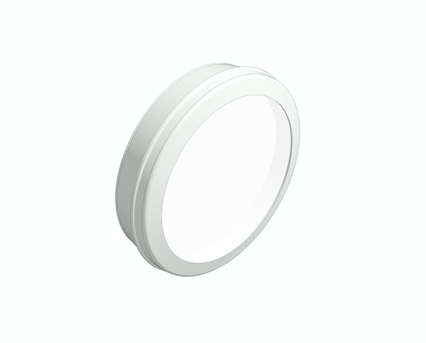

Luceco Commercial Bulkhead.

Alternative to 28W TC-DD(2D) compact flourescent
Multiple mounting options include, ceiling surface, ceiling semi-recessed, wall mounted and provision for BESA and four side conduit entries.
Microwave presense detector switches the output to 10% in "corridor function" standby mode
Microwave version includes photocell for dusk-till-dawn switching option

This download contains a Revit family for the Luceco Commercial Bulkhead lighting fixture. Features include:

IES files and Photometric data for all types embedded into the family.
User can select from 6 different cover and accessory options
Face based component so can be wall mounted, ceiling mounted and semi-recessed and allows for use in linked models
Electrical MEP connector

Object Data

2 Revision

Last Updated

30/09/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_BIMspec_GUID0
_created byAndy Smart
_current revision1
_distributed bywww.bimstore.co.uk
Accessory Cover FinishAluminium-Luceco-RAL7026-Die Cast Aluminium

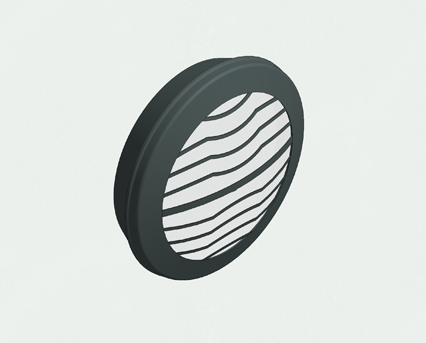

Accessory Option AAccessories : Metal Grille
Accessory Option BAccessories : Metal Standard
Accessory Option CAccessories : Metal Split Eyelid

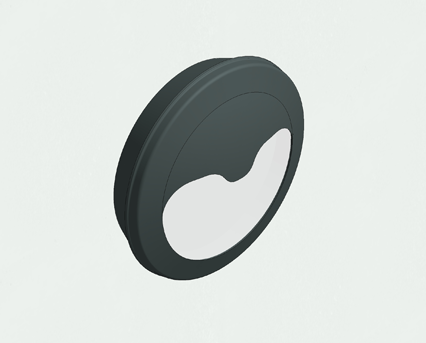

Accessory Option DAccessories : Metal Eyelid
Accessory Option EAccessories : Plastic Eyelid Cover
Accessory Option FAccessories : Has No Accessory
Apparent Load17 VA
Assembly CodeD5020200
Asset TypeFixed
Bar Code5015056531090
Battery InformationThe battery has a 4 year service life provided it is operated and maintained by regular testing. See technical information for information on testing requirements.
Battery Replacement ScheduleIt is recommended that batteries are replaced every 4 years to ensure the optimum charging cycle is maintained.
Battery SpecificationNi-Cd SC1600mAh 3.6V
Color Filter16777215
Colour Rendering Index80-89 ra.
Control Gear Positionintegral within luminaire
Created Bysales@luceco.co
Created On16/07/2014
Current<100mA
Default Elevation1219 mm
DescriptionLuceco Commercial Bulkheads - Multiple mounting options and models - including Microwave presence detecting and Emergency lighting.
Dimming Lamp Color Temperature Shift<None>
DocumentationLink URLwww.luceco.co/public/downloads/instructions/bulkhead-instruction-leaflet.pdf
Duration UnitHours
Emergency Duration3 hour
Emergency Lighting TestingMonths 1 to 11 inclusive - Function Test, interrupt the permanent/UnSwitched supply and check the luminaire operates in Emergency mode at reduced output. Month 12(Annual) - As months 1 to 11 but for a full 3 hour duration
Expected Life50000
Frequency50 Hz
Has Microwave SensorNo
Has PhotocellNo
Has Protective EarthNo
Ingress Protectionto BS EN 60529 IP65
Insulation Standard Classclass II appliance
Internal FuseNo
IP CodeIP65
IP Code NoteTo maintain the IP65 rating of the bulkhead, a suitable 20mm cable gland should be used in conjunction with rubber insulated cable to ensure the supply cable is sealed in the gland. Failure to use a gland and/or rubber insulated cable may result in water ingress.
KeynoteV90/510
LampContains built-in SMD2835 LED lamps - the lamps cannot be changed
LED pcs96
LED TypeSMD2835
Light Fixture Mounting TypeCan be Semi-recessed in Ceilings or Surface Mounted
Light Fixture Placing TypeCeiling, Wall, Other
Load ClassificationLighting
Lumens with Diffuser1050Lm
Lumens with No Diffuser1700Lm
Maintenance Factor0.9
ManufacturerLuceco
Manufacturer AddressStafford Park 1, Telford, Shropshire, England, TF3 3BD
Manufacturer Fax+44 (0)1952 238 180
Manufacturer Tel+44 (0)1952 238 100
Microwave Sensor CommentsN/A
ModelCommercial Bulkheads
Model NumberCommercial Bulkheads
NameLighting_Fixture-LED-Commercial_Bulkhead
Number of Poles2
Number of Sources1
Part No.LBH154K3M
Photometric Performanceto BS EN 13032-1
Photometric Web FileLBH154K3M_LDT.ies
Power19 W
Power Factor0.9
Product Documentation Linkwww.luceco.co/public/downloads/instructions/bulkhead-instruction-leaflet.pdf
Product Page Linkwww.luceco.co/uk/bulkheads
Rated Voltage220-240V - 50Hz
Rating15 W
Spare PartsThe luminaire contains no user replaceable components other than the battery pack contained in Emergency Versions.
Standard Cover FinishPlastic- Luceco-White
Standardsto BS EN 605890-2-22, to BS EN 60598-2-1
Tilt Angle90.00 °
Total Wattage19 W
Type Name3hr Emergency
Uniclass 270-70-49-43 Light-emitting diode (LED) luminaires
URLwww.luceco.co/uk
Voltage230 V
Wattage CommentsAlternative to 28watt TC-DD(2D) compact flourescent
