Commercial Sliding Door

by Architectural & Metal Systems

Download Add to collection

Description

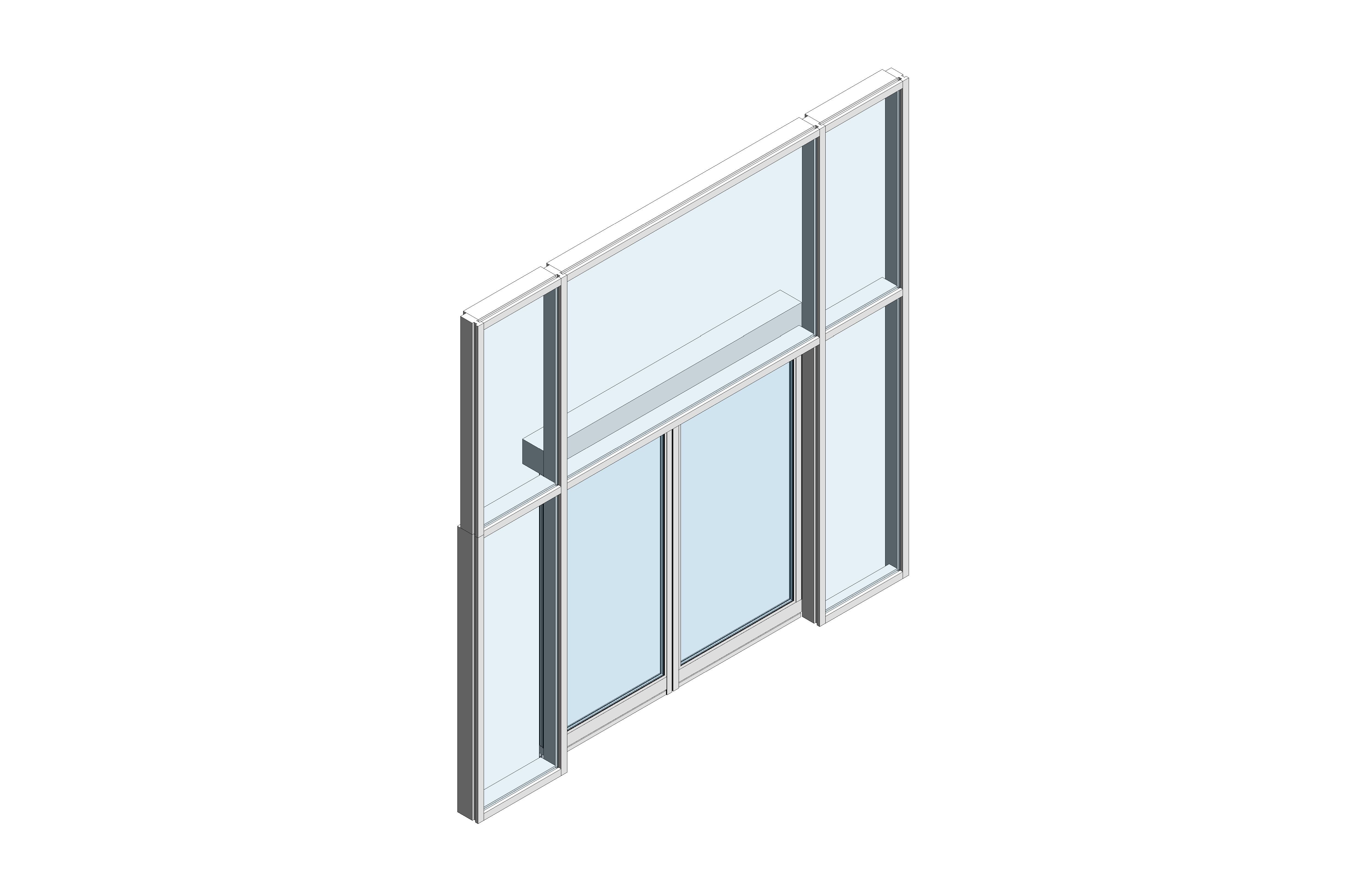

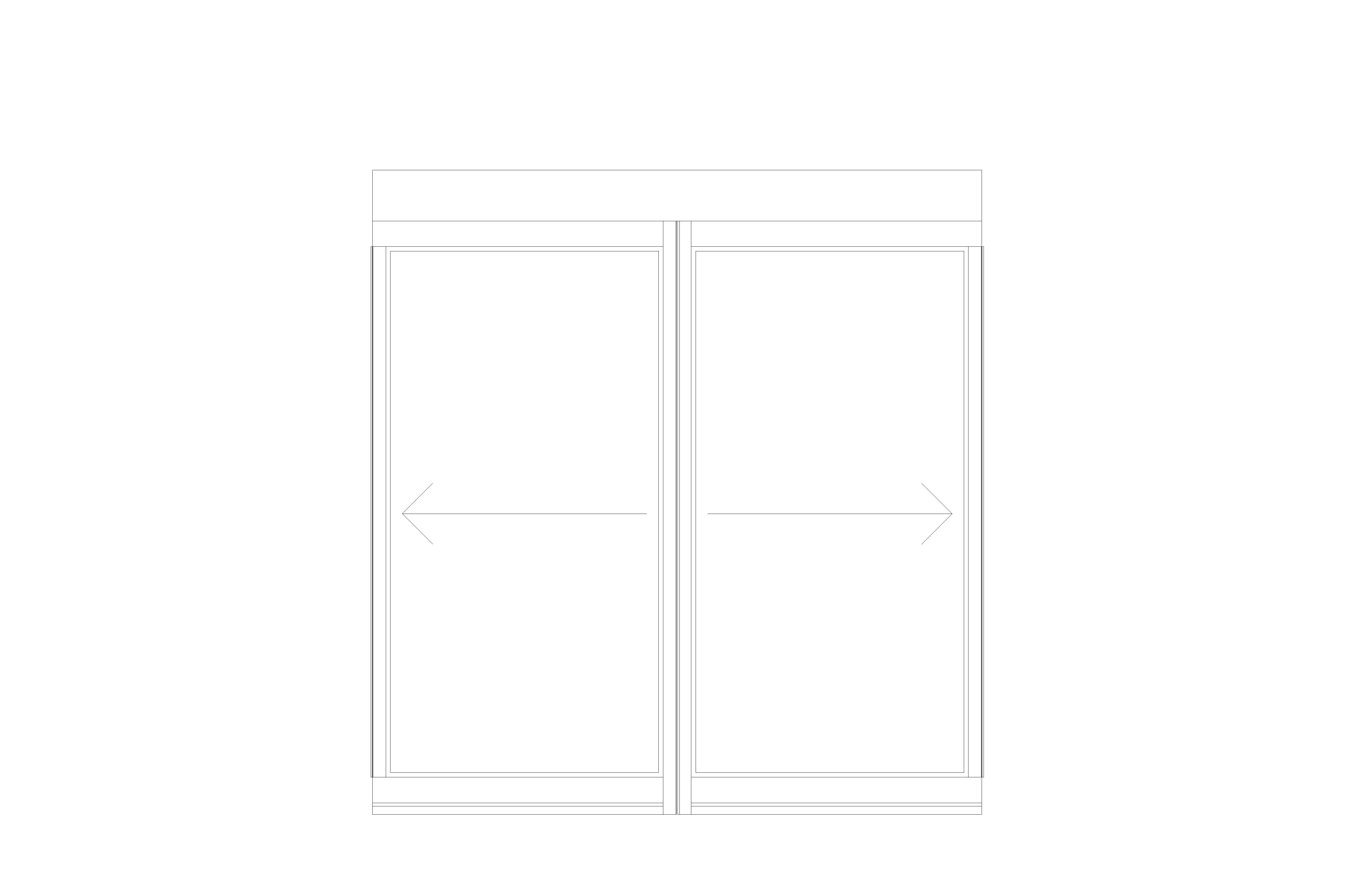

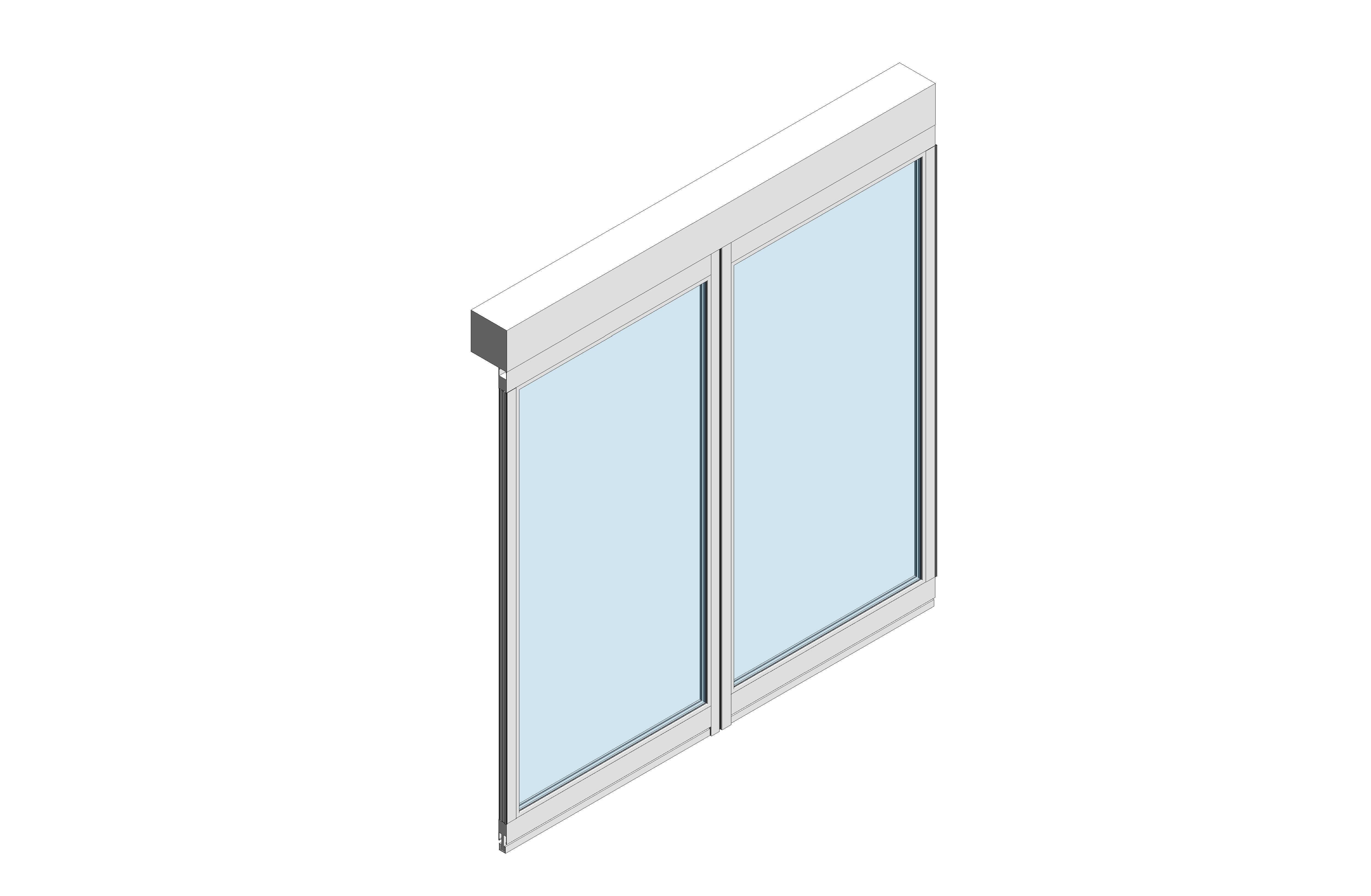

AMS Auto sliding doors into curtain wall.

Object Data

1 Revision

Last Updated

02/09/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Accompanying literature coming soon.

Object metadata

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
28mmYes
40mmNo
Accessibility PerformanceDoc M
Accessoriesn/a
Air Classificationn/a
Analytic Construction<None>
Architraves Finish And Colourn/a
Architraves Materialn/a
Architraves Preservative Treatmentn/a
Architraves Wood Appearance Classn/a
Assembly CodeB2030
Asset TypeFixed
BIM Object NameAMS_Door_CurtainWalling_Commercial_SlidingDoor
Classification NameUniclass2015
Classification ValuePr_30_59_24_52
Code Performancen/a
ColorStandard RAL range of colours and Decoral wood finish
ConfigurationDouble leaf, sliding action
Constituentsn/a
Created Bypohara@ams.ie
Created On2019-08-05T09:00:00
Cycle Testingn/a
DescriptionAMS Non-thermal sliding door system
Documentation Certificateswww.ams.ie/members-area/downloads/
Documentation Installation Guidewww.ams.ie/members-area/downloads/
Documentation Literaturewww.ams.ie/members-area/downloads/
Documentation Maintenancewww.ams.ie/members-area/downloads/
Documentation Technicalwww.ams.ie/members-area/downloads/
Door Leaf Beading FixingSnap in beads
Door Leaf Beading MaterialSnap in beads
Door Leaf Beading Type OptionsExternal, Internal
Door Leaf CoreNon thermal door
Door Leaf Door Accessoriesn/a
Door Leaf Finish Coating OptionsPolyester powder coated and Decoral wood finish to BS EN 12206-1, Anodized to EN ISO 7599; BS 3987
Door Leaf Finish External Colour OptionsAnodized: Many colours availablel; Decoral: Many wood grain effect available; Polyester powder coated: Many colours available
Door Leaf Finish Internal Colour OptionsAnodized: Many colours availablel; Decoral: Many wood grain effect available; Polyester powder coated: Many colours available
Door Leaf Glazing GasketsEPDM
Door Leaf Glazing Unit Options28 mm double glazed unit
Door Leaf Lippingsn/a
Door Leaf Manifestationn/a
Door Leaf MaterialAluminium alloy 6063 T5 and T6
Door Leaf Panel DetailsDPP-28 door plank
Door Leaf Perimeter SealsEPDM continuous door seals
Door Leaf Size Options1250 x 2300 mm (maximum)
Door Leaf Thickness47 mm
Door Leaf TypeIn accordance with BS 6262 & AMS installation manual, www.ams.ie
Duration UnitYear
Expected Life40
FeaturesCan be glazed internally or externally , single colours available
FinishStandard RAL colour, Decoral wood finish
Fire Ratingn/a
Frame Depth47.00 mm
Frame Finish Coating OptionsPolyester powder coated & Decoral wood finish to BS EN 12206-1, Anodized to EN ISO 7599; BS 3987
Frame Finish Colour OptionsAnodized: Many colours availablel; Decoral: Many wood grain effect available; Polyester powder coated: Many colours available
Frame Finish TextureStandard RAL (Gloss, Matt satin) & Decoral wood finish.
Frame Frame Accessoriesn/a
Frame Installation FastenersSquare cut, cleated and butt jointed corners
Frame MaterialAluminium alloy 6063 T5 and T6
Frame Mullion MaterialAluminium
Frame Perimeter Seals Or InsertsEPDM continuous weather seals
Frame Threshold OptionsThreshold options A, contact manufacturer for details
FunctionExterior
Gear Box MaterialAluminium
Glazing Ofset22.31 mm
Glazing Panel MaterialGlass
Graden/a
Handle Height1085.00 mm
Handle Position1100.00 mm
HardwareAuto sliding door gear by specialist contractor, centre hook lock.
Ifc Export AsIfcDoorType
Ifc Export TypeNOTDEFINED
Ironmongery MaterialAluminium
KeynoteL20
Locking OptionsStandard hook lock
Manufacturerpohara@ams.ie
Manufacturer NameArchitectural & Metal Systems
MaterialAluminium alloy 6063 T5 and T6
Maximum Leaf Weight110.00 kg
Midrail Options150mm midrail CDM051, 30mm midrail CDM052
ModelCommercial Sliding Door
Model NumberCommercial Sliding Door
Model ReferenceCommercial Sliding Door
NBS DescriptionMetal doorsets
NBS Object NameArchitectural & Metal Systems - Metal doorsets
NBS Office Master Tagn/a
NBS Reference45-25-28/344
Nominal Depth47.00 mm
Nominal Height2300.00 mm
Nominal Length2400.00 mm
Offset From Level32.14 mm
Opening OptionsSliding
Operation OptionsAutomatic sliding gear, standard hook lock
Performance Bullet Resistancen/a
Performance Explosion Resistance Accessibilityn/a
Performance Explosion Resistance Blast Durationn/a
Performance Explosion Resistance Overpressure Maximumn/a
Performance Explosion Resistance Pressure Moden/a
Performance Explosion Resistance Rebound Pressure Maximumn/a
Performance Fire Insulationn/a
Performance Fire Integrityn/a
Performance Intruder Resistance Applicationn/a
Performance Intruder Resistance Conformityn/a
Performance Radiationn/a
Performance Smoke Controln/a
Performance Strength And Durabilityn/a
Performance Surface Spread Of FlameClass O
Production Year2019
Referenced StandardBS EN 14351-1
Replacement Costn/a
ShapeRectangular
Size2400x2300mm
Spare Partsn/a
Thermal BarrierNon Thermal
Third Party Accreditationn/a
Threshold RequiredYes
Type CommentsCommercial Sliding Door
Type NameCommercial Sliding Door
URLwww.ams.ie/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration PartsPaint finish min 25years, hardware 10 years
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partspohara@ams.ie
Water Tightnessn/a
Wind Resistancen/a
