Compact Concealed Cistern

by Fluidmaster


DownloadAdd to collection

Description

Compact concealed cistern. Fits narrow 500mm furniture. Simple install. Pre-assembled.

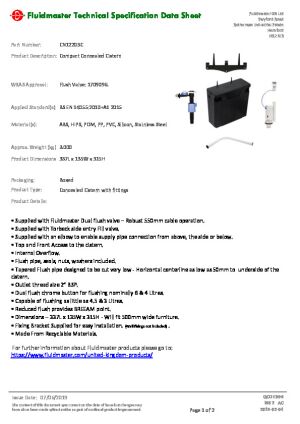

TECHNICAL DATA

  • Part Number: CN12203C
  • Product Description: Compact Concealed Cistern
  • WRAS Approval: Flush Valve: 1709096.
  • Applied Standard(s): BS EN 14055:2010+A1 2015
  • Material(s): ABS, HIPS, POM, PP, PVC, Silicon, Stainless Steel
  • Approx. Weight: 3 kg
  • Product Dimensions: 337L x 135W x 315H
  • Product Type: Concealed Cistern with fittings
  • Supplied with Fluidmaster Dual flush valve – Robust 550mm cable operation.
  • Supplied with Airgap 6710-D-001 side entry Fill valve.
  • Supplied with an elbow to enable supply pipe connection from above, the side or below.
  • Top and Front Access to the cistern.
  • Internal Overflow.
  • Flush pipe, seals, nuts, washers included.
  • Tapered Flush pipe designed to be cut very low - Horizontal centerline as low as 50mm to underside of the cistern.
  • Outlet thread size 2” BSP.
  • Dual flush chrome button for flushing nominally 6 & 4 Litres.
  • Capable of flushing as little as 4.5 & 3 Litres.
  • Reduced flush provides BREEAM point.
  • Fixing Bracket Supplied for easy installation. (Wall fixings not included).
  • Made From Recyclable Materials.
