Compact With Style Horizontal Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

The Stelrad Compact with Style bridges the gap between standard radiators and the more expensive decorative models.

If you are working to a tight budget but require a radiator that is different and can add a new dimension to a room, then you have found it with the Stelrad Compact with Style.

Stunning good looks are combined with the quality and performance you would expect from Stelrad, the UK's No.1 radiator manufacturer

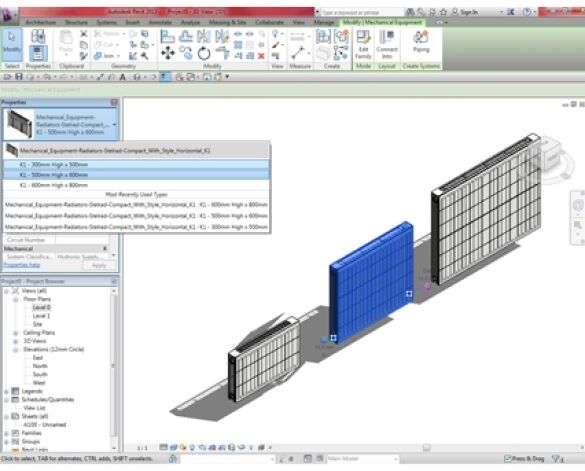

This radiator download comes complete with the K1, K2, K3 and P+ style radiators

Click here to view our interactive brochure

Object Data

2 Revision

Last Updated

29/10/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

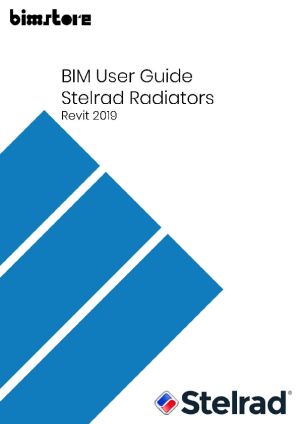

Object User Guide

Product Literature

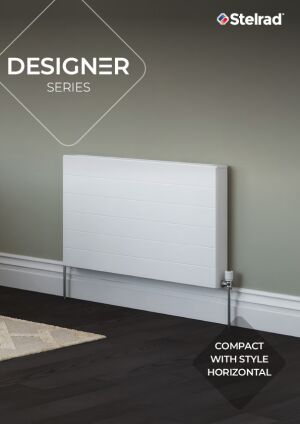

Technical Data Sheet

Product Data Sheet

Object metadata

Object

Parameter Type

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
6 Monthlyn/a
Access Clearance Zone Back0 mm
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Air VentNo
Annuallyn/a
Assembly CodeD3020
Asset TypeFixed
Bespoke Timeframen/a
BIM Object NameStelrad_MechanicalEquipment_Radiators_CompactWithStyle_K3
Bracket A133 mm
Bracket B60 mm
Bracket C17 mm
Btu Heat Output1287
Casing MaterialStainless Steel
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorWhite RAL 9016
ColourWhite RAL 9016
Constituentsn/a
Created Byinfo@stelrad.com
Created On2020-09-08T09:00:00
Dailyn/a
Depth158 mm
Documentation Certificateswww.bimstore.co/products/compact-with-style/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/compact-with-style/document/installation-guide
Documentation Literaturewww.bimstore.co/products/compact-with-style/document/product-literature
Documentation Maintenancewww.bimstore.co/products/compact-with-style/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/compact-with-style/document/technical-data-sheet
Drain TapNo
Duration UnitYears
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
Expected Life0
Featuresn/a
Finishn/a
Floor StandsNo
Front Panel Calc3
Graden/a
Green Guide For Specificationn/a
Grille Depth149 mm
Gross Weight0.00 kg
Heat Emitter Materialn/a
Heat ReflectorNo
Heat Transfer Medium0
Height300 mm
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Individual Panel Height103 mm
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
Length1000 mm
Life Cycle Analysisn/a
Location Of Manufacturern/a
Maintenance Required 0-300hrsPlease record on commissioning
Maintenance Required 1001-2000hrsPlease record on commissioning
Maintenance Required 2001-4000hrsPlease record on commissioning
Maintenance Required 301-600hrsPlease record on commissioning
Maintenance Required 4001-8000hrsPlease record on commissioning
Maintenance Required 601-1000hrsPlease record on commissioning
Maintenance Required 8001-12000hrsPlease record on commissioning
ManufacturerStelrad
Manufacturer NameStelrad
MaterialSteel
Material Ingredient Reportingn/a
Maximum Operating Pressure0.0 kPa
Maximum Operating Temperature0 °C
Maximum Test Pressure0.0 kPa
Middle Mounting BracketNo
ModelCompact With Style
Model Number7433310
Model ReferenceCompact With Style
Monthlyn/a
Mounting TypeWall Mounted
NBS DescriptionRadiators
NBS Object NameStelrad - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth158 mm
Nominal Height300 mm
Nominal Length1000 mm
Number Of Panels0
Number Of Sections0
O&M Manualn/a
Outlet GrilleNo
Overall Height300 mm
Overall Length1000 mm
Overall Width158 mm
Panel Head Dim3 mm
Pipe Connection Size15 mm
Possible Connections Positionsn/a
Production Year2020
Product Literaturewww.bimstore.co/products/compact-with-style/document/product-literature
Product RangeCompact With Style
Quaterlyn/a
Radiator FinishStelrad - Standard - RAL 9016 - Traffic White
Radiator MaterialStelrad - RAL 9016
Referenced Standardn/a
Reference Standardn/a
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Seam Typen/a
ShapeRectangle
Shipping Weight0.00 kg
Size300mm (H) x 1000mm (L) x 158mm (D)
Spare Partsn/a
Temperature ClassificationEN 442
Thermal Output0 W
TypeK3
Type CommentsCompact with Style - K3 - 7433310
Type NameCompact with Style - K3 - 7433310
UIN7433310
URLwww.stelrad.com
Wall BracketsYes
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@stelrad.com
Warranty Guarantor Partsinfo@stelrad.com
Warranty IDn/a
Water Content0.0 L
Water Flow Rate0
Watts0
Weeklyn/a
Working Pressure0 bar
