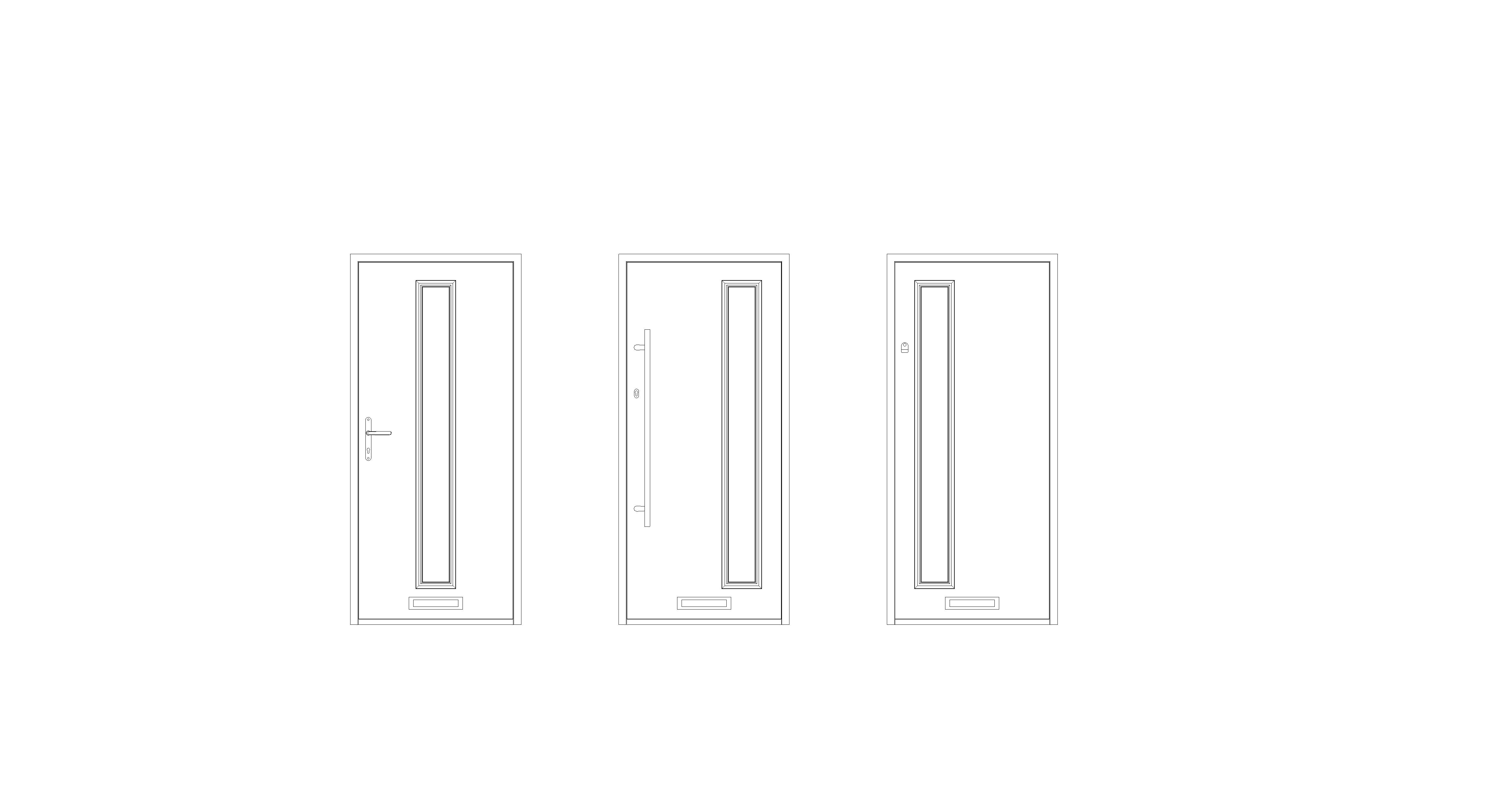

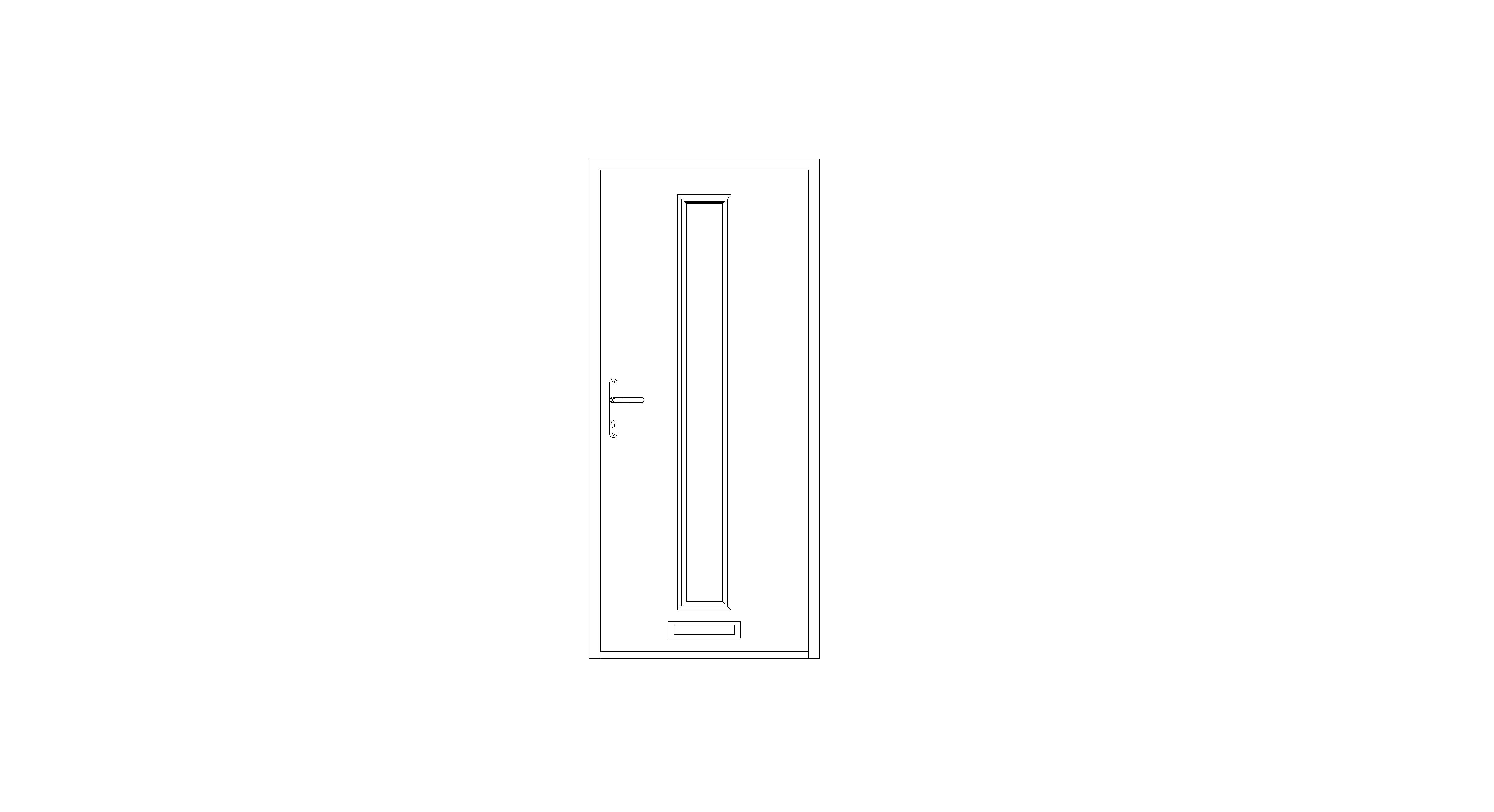

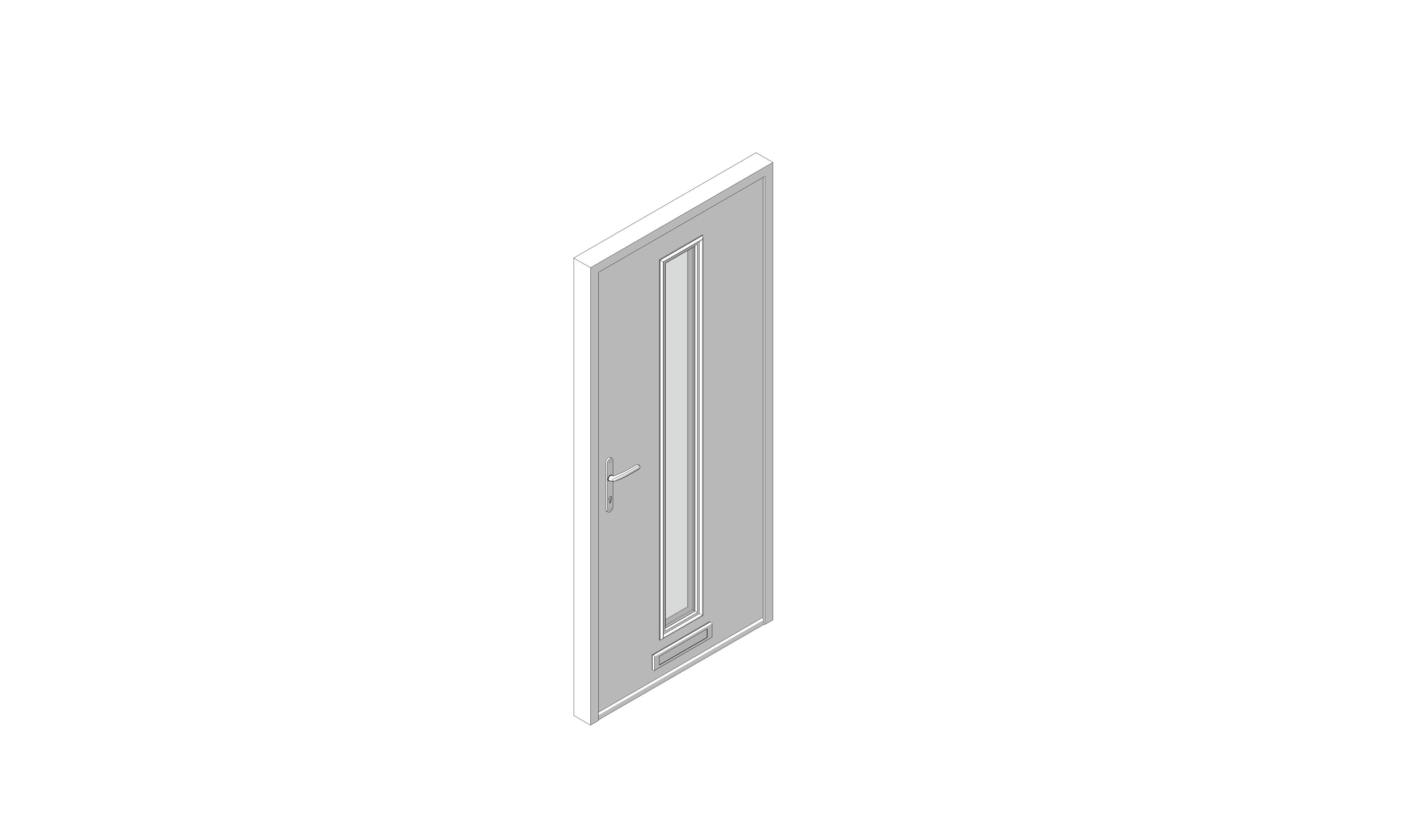

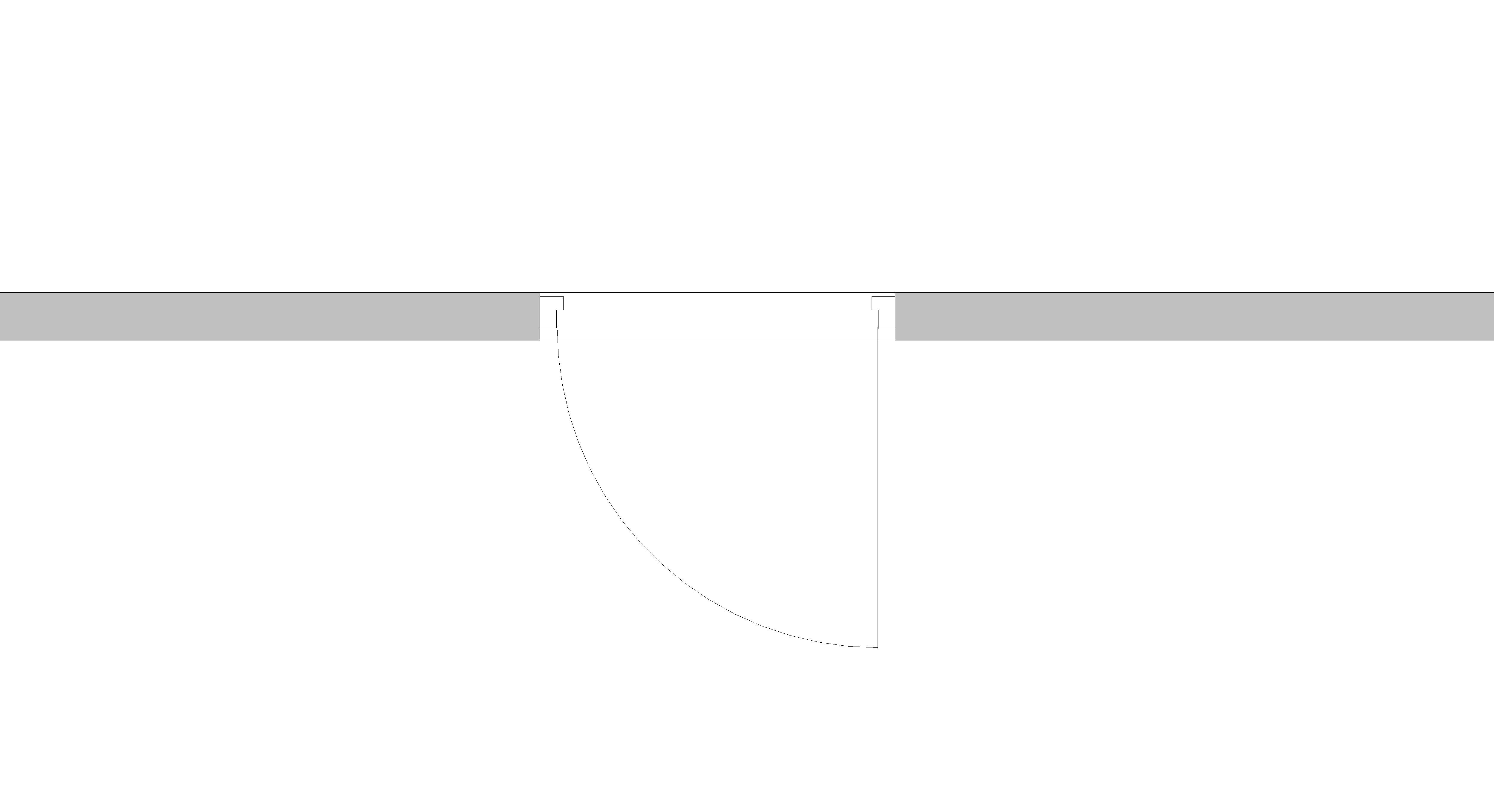

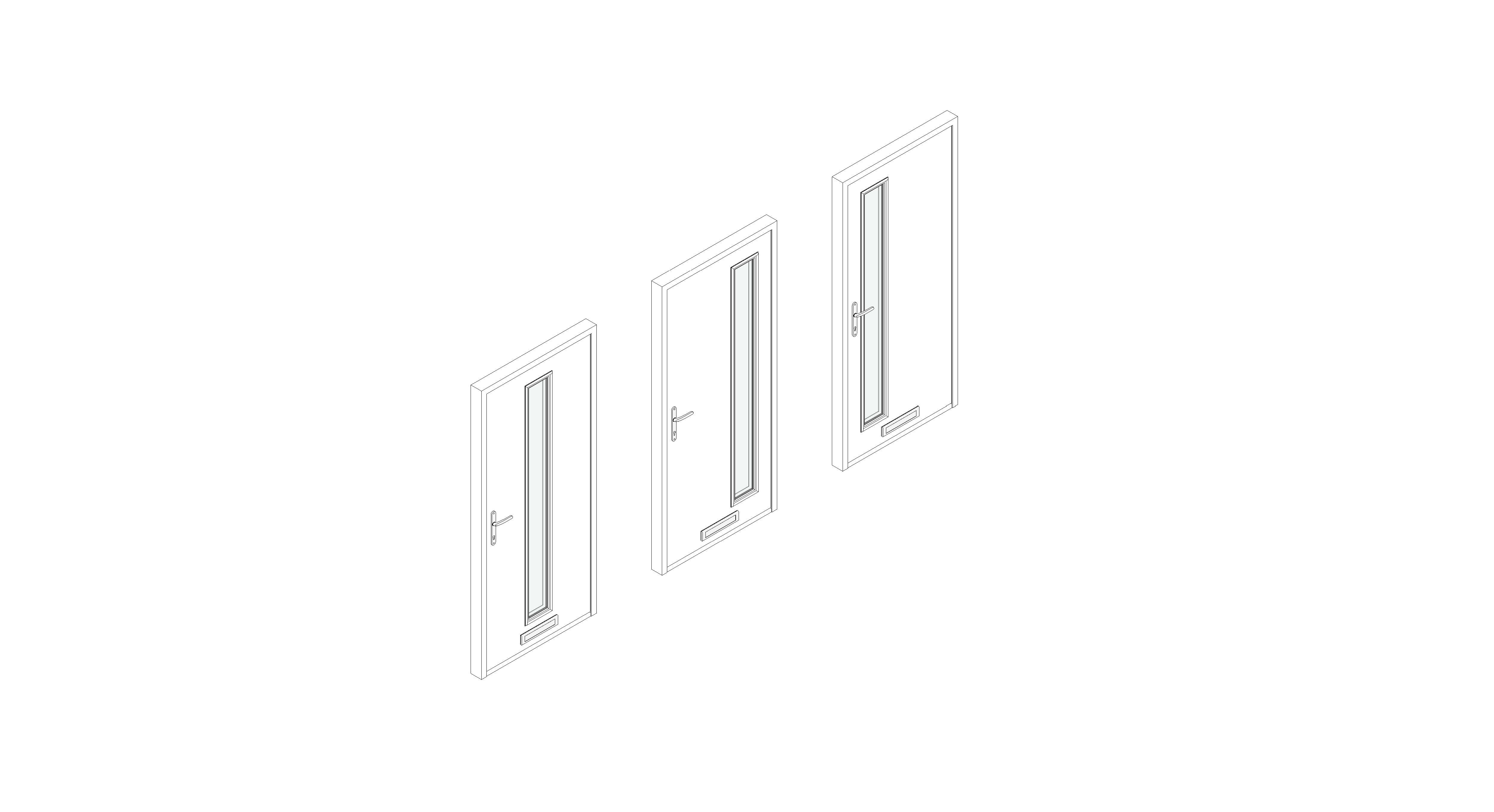

Composite Door - Davy

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility PerformanceManual Operation
Assembly CodeB2030200
Asset TypeFixed
BIM Object NameBowater_Doors_CompositeDoorsets_Davy-OpenIn
Cill ColourBowater - Woodgrain - White
Cill Width950.0 mm
Classification NameUniclass 2015
Classification ValuePr_30_59_24_16
Code Performancen/a
ColorUser defined
Constituentsn/a
Created Bybowaterdoors@birtleygroup.co.uk
Created On2019-10-25 T09:00:00
DescriptionSingle Rebated (44mm) External Composite Door
Documentation Certificateswww.bowaterdoors.co.uk
Documentation Installation Guidewww.bimstore.co/products/composite-door-davy/document/installation-guide
Documentation Literaturewww.bimstore.co/products/composite-door-davy/document/product-literature
Documentation Maintenancewww.bimstore.co/products/composite-door-davy/document/maintenance-information
Documentation Technicalwww.bowaterdoors.co.uk
Duration UnitYear
Eurocell FrameBowater_Frame : Eurocell
Expected Life0
External Finish Thickness0.0 mm
FeaturesGRP skin to minimise scratches. Supplied fully framed for easy installation. Inner core made of polyurethane foam for superior thermal insulation.
FinishWoodgrain or smooth
Fire RatingFD30S
Fixed Cowl Letter PlateBowater_LetterPlates : FixedCowlLetterPlate
Frame ColourBowater - Woodgrain - White
FunctionExterior
Glazing MaterialGlass - Bowater - Clear
Graden/a
Handle MaterialBowater - Metal - Chrome
Handle Offset100.0 mm
Height0.0 mm
Ifc Export AsIfcDoor
Ifc Export TypeIfcDoorTypeEnum.DOOR
Internal Finish Thickness0.0 mm
KeynoteL20/280
Leaf ColourBowater - Woodgrain - White
Leaf Thickness44.0 mm
Letter Plate MaterialBowater - Metal - Chrome
Lever HandleBowater_Ironmongery : LeverHandle
ManufacturerBowater Doors
Manufacturer NameBowater Doors
Materialn/a
MDS150Bowater_Cill : MDS 150
ModelDavy
Model NumberDavy
Model ReferenceDavy External Composite Door
MXS15-2Bowater_Cill : MXS 15-2
NBS DescriptionComposite doorsets
NBS Object NameBowater; Composite doorsets
NBS Office Master Tagn/a
NBS Reference45-25-28/342
No Letter PlateBowater_LetterPlates : NoLetterPlate
Nominal Height2100.0 mm
Nominal Length950.0 mm
Opening Tolerance1.5 mm
Production Year2019
PVC150x 30Bowater_Cill : PVC 150x30
PVC180x 30Bowater_Cill : PVC 180x30
PVC85x 30Bowater_Cill : PVC 85x30
Replacement Costn/a
ShapeRectangle
SizeUser defined
Spare Partsn/a
Structural Opening Height2100.0 mm
Structural Opening Width950.0 mm
Structural Tolerance Head0.0 mm
Structural Tolerance Jamb0.0 mm
Synthetic 145x 46Bowater_Cill : Synthetic 145x46
Synthetic 170x 25Bowater_Cill : Synthetic 170x25
Timber 145x 23Bowater_Cill : Timber 145x23
Timber 145x 45Bowater_Cill : Timber 145x45
Timber 180x 45Bowater_Cill : Timber 180x45
Timber 200x 23Bowater_Cill : Timber 200x23
Timber 88x 15Bowater_Cill : Timber 88x15
Timber FrameBowater_Frame : Timber
Type CommentsDavy External Composite Door
Type NameDavy External Composite Door
URLwww.bowaterdoors.co.uk
Wall ClosureInterior
Warranty DescriptionFibre/Composite Slab - 10; Multipoint Lock (operating mechanism only) - 10; Standard Handle (not suitable for coastal regions) - 2; Stainless Steel Handles - 10; Sash Lock/Dead Lock/Nightlatch - 10; PVD Sash Lock Handles (excluding finish) - 2; Chrome Sash Lock Handles (excluding finish) - 2; Security Bolts/Thumb Turns - 2; Standard Letter Plates - 2; Stainless Steel Letter Plate - 10; Eye Viewers/Door Chains (excluding finish) - 2; Threshold - 2; All Glass - 2; Styrene/Glazing Beads - 2; Frames and Hinges - 2; Restrictor For Open Out Door - 1; Draught Seal - 1; Cylinder (SBD and Non-SBD) - 10; Letter Plate Cowl (excluding finish) - 2. These guarantees apply from the delivery date and are only valid when correct care and maintainence have been regularly completed. 2 years manufacturers labour from door delivery date. Parts will be changed over within 2 years from delivery, after 2 years parts will be sent on a supply-only basis within 10 years.
Warranty Duration LaborSee WarrantyDescription
Warranty Duration PartsSee WarrantyDescription
Warranty Duration UnitYear
Warranty Guarantor Labordoor.warranty@birtleygroup.co.uk
Warranty Guarantor Partsdoor.warranty@birtleygroup.co.uk
Width0.0 mm
