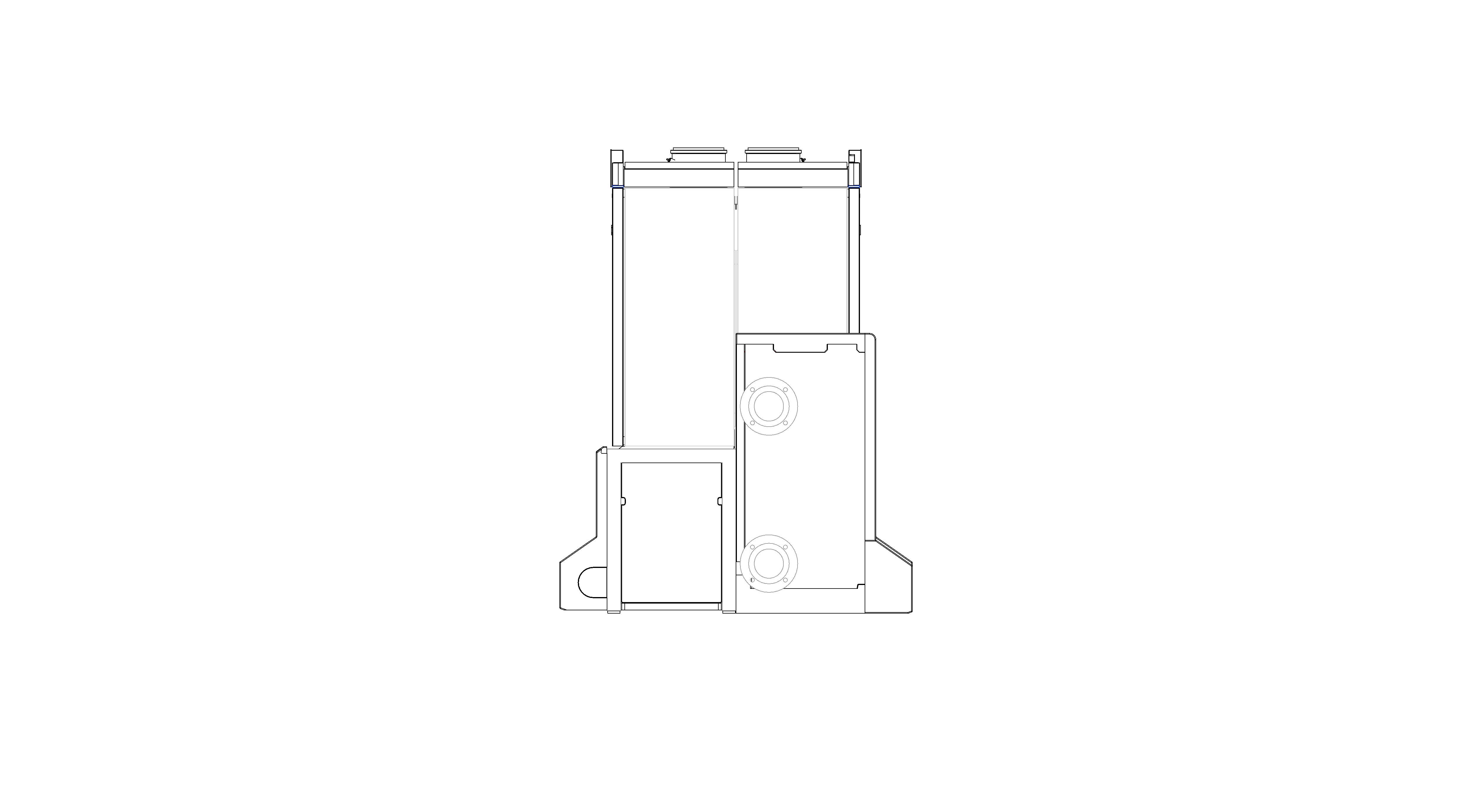

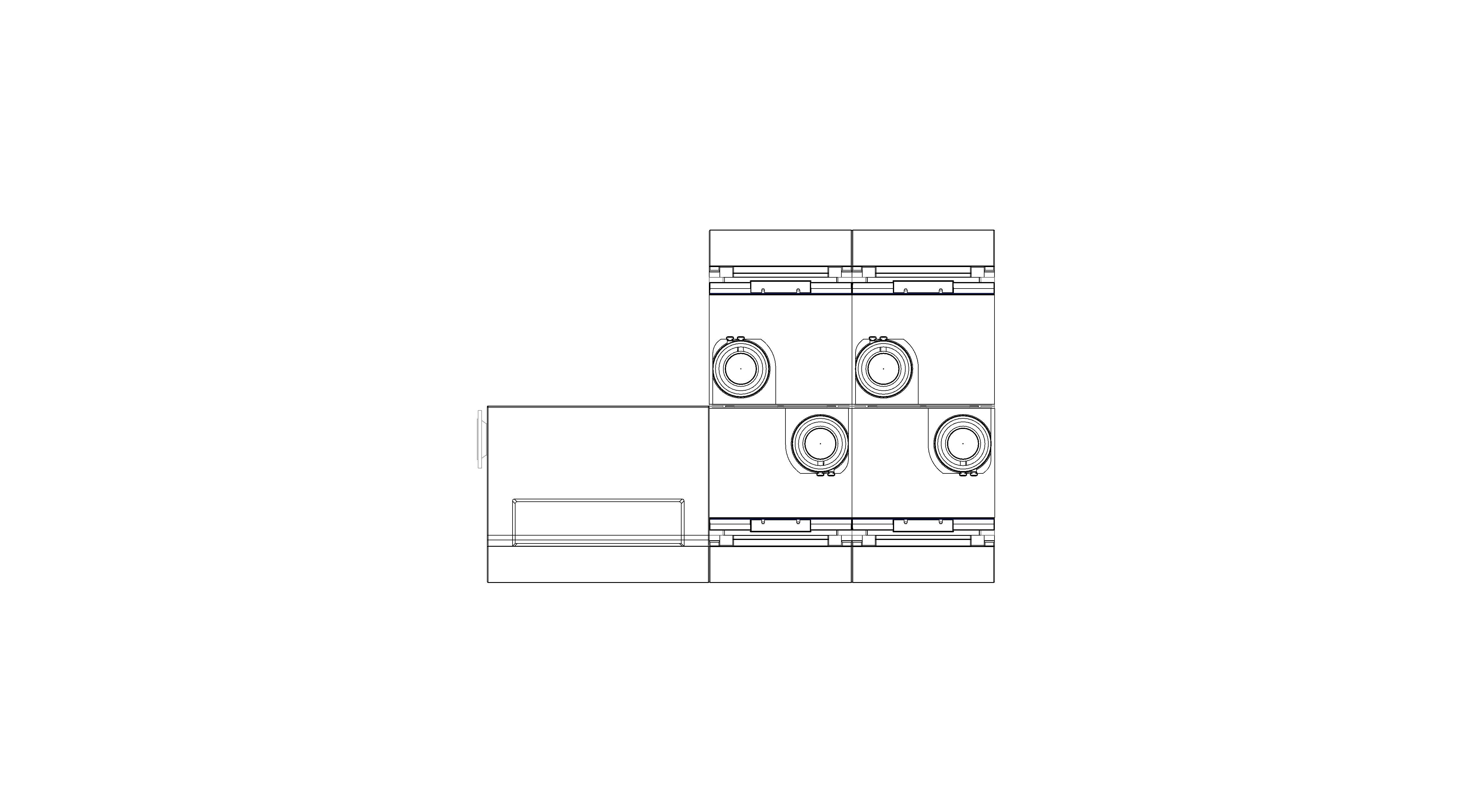

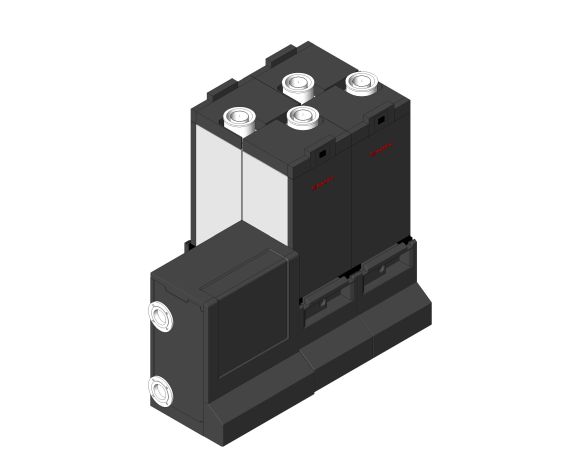

Condens 7000WP Back to Back Gas Boiler - TR4

Object metadata

• _AuthorSM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co.uk
• _Current Revision1
• _Distributed Bywww.bimstore.co.uk
• _Object User Guidewww.bimstore.co/products/condens-7000wp-back-to-back-gas-boiler-tr4/document/object-user-guide
• Access Clearance Bottom100 mm
• Access Clearance Front600 mm
• Access Clearance Left5 mm
• Access Clearance Rear0 mm
• Access Clearance Right5 mm
• Access Clearance Top100 mm
• Air Inlet Connection Size160 mm
• Assembly CodeD3020100
• Asset Identifierplease record on commissioning.
• Asset TypeFixed
• BIM Object NameBosch_MechanicalEquipment_GasCondensingBoilerCascade_Condens7000WP_200kW
• BMS LinksYes
• Building Regulations Seasonal EfficiencyN/A
• CE ApprovalCE-0085DL0480
• Classification NameUniclass2015
• Classification ValuePr_60_60_08_34
• Code PerformanceEU Regulations 811/2013, 812/2013, 813/2013 and 814/2013 of Directive 2010/30/EU
• ColorGrey
• ColourGrey
• Condensate Drain Size0 mm
• Condensate Drain TypePipe
• ConfigurationCascade
• ConstituentsAluminium, steel, polymers
• Control TypeEMS, Volt free, 0-10VDC
• Created Bycommercial.industrial@uk.bosch.com
• Created On2022-05-17T:09:00:00
• Default Elevation0 mm
• DescriptionHigher fuel efficiency, lower environmental impact and exemplary economy - the condensing boiler Condens 7000 F offers you a new level of efficiency in condensing technology. Suitable for multi-family homes and commercial properties, they are the ideal solution for large projects from 75 to 600 kW.
• Documentation Certificateswww.bimstore.co/products/condens-7000wp-back-to-back-gas-boiler-tr4/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/condens-7000wp-back-to-back-gas-boiler-tr4/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/condens-7000wp-back-to-back-gas-boiler-tr4/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/condens-7000wp-back-to-back-gas-boiler-tr4/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/condens-7000wp-back-to-back-gas-boiler-tr4/document/technical-data-sheet
• Drain Connection Size19 mm
• Drain Connection TypeThreaded
• Duration UnitYears
• ErP Energy LabelNA
• ErP Rated Efficiency At Full LoadN/A
• ErP Rated Efficiency At Part LoadN/A
• ErP Seasonal Efficiencyn/a
• Expected Life15
• External MaterialSteel
• FeaturesOptional retrofittable internet interface via MEC Remote
• FinishPaint
• Flow And Return Connection Size0 mm
• Flow And Return Connection TypeFlanged
• Flue Connection Size110 mm
• Flue Or Air Intake ClassificationOF or RS
• Frequency50Hz
• Fuel Connection Size0 mm
• Fuel Connection TypeFlanged
• Full Load CurrentN/A
• Fuse Rating5A
• Gas Consumption Rate20.12
• Graden/a
• Gross Weight0.00 kg
• Heater OperationSealed System
• Heat Exchanger MaterialAluminium
• Ifc Export AsIfcBoiler
• Ifc Export TypeIfcBoilerTypeEnum.GAS
• IK RatingNA
• InterlocksYes
• IP RatingIPX0D
• KeynoteT20/320
• Low Loss Header VisibilityYes
• ManufacturerBosch Thermotechnology
• Manufacturer NameBosch Thermotechnology
• MaterialAluminium, steel, stainless steel, polymers
• Maximum Gas Inlet Pressure25mbar
• Maximum Oil Inlet PressureNA
• Maximum Operating Pressure6bar
• Maximum Power Consumption420
• Minimum Gas Inlet Pressure17mbar
• Minimum Oil Inlet PressureNA
• Minimum Operating Pressure0.7bar
• Minimum Power Consumption2
• Model NumberTR4 - 200kW
• Model ReferenceCondens 7000WP Gas Condensing Boiler (Cascade)
• MountingWall/Frame Mounted
• NBS DescriptionGas fired condensing boilers
• NBS Noten/a
• NBS Office Master Tagn/a
• NBS Reference90-40-05/340
• Nominal Depth1891 mm
• Nominal Gas Inlet Pressure20mbar
• Nominal Height1702 mm
• Nominal Length1047 mm
• Nominal Oil Inlet PressureNA
• NOx Emissions25
• Oil Consumption RateNA
• Overall Length0 mm
• Overall Height0 mm
• Overall Width0 mm
• Primary FuelGas - NG
• Production Year2022
• Product Literaturewww.bosch-thermotechnology.com
• Product Model NumberTR4 - 200kW
• Product RangeCondens 7000WP
• Rated Criteria50/30
• Rated Output199.6
• Referenced StandardBS EN 15502
• Reference StandardBS EN 15502
• Replacement Costn/a
• Safety Valve Connection Size25 mm
• Safety Valve Connection TypeThreaded
• ShapeRectangular (Vertical)
• Shipping Weight0.00 kg
• Sound Pressure Level55
• Spare Partsn/a
• Starting CurrentN/A
• Supply PhaseSingle
• Turndown Ratio13.958041958042
• Type CommentsTR4 - 200kW
• URLwww.bosch-thermotechnology.com/gb/en/commercial-industrial/home/
• Voltage230
• Warranty Descriptionn/a
• Warranty Duration Labor2
• Warranty Duration Parts2
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partscommercial.industrial@uk.bosch.com
• Water Content0
