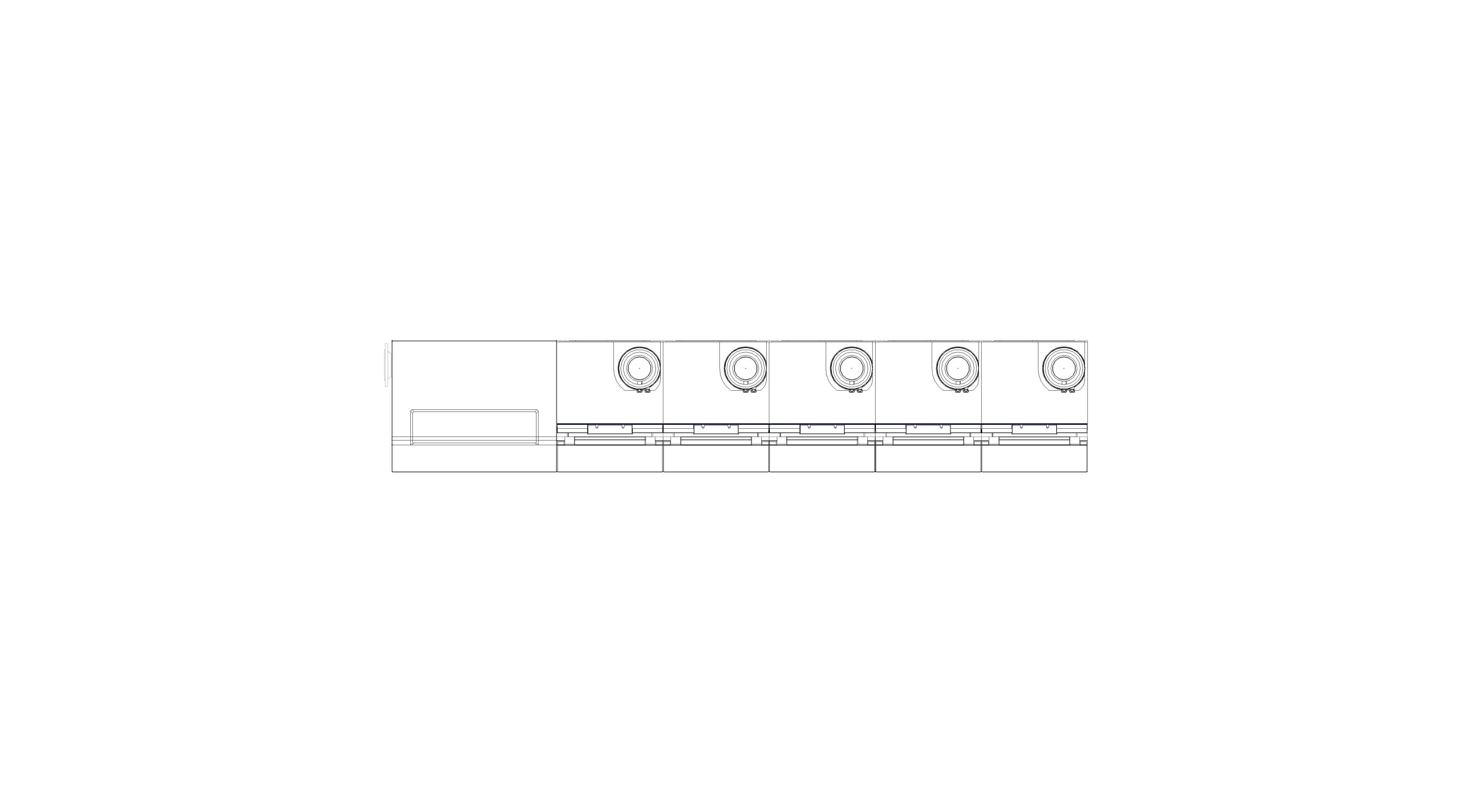

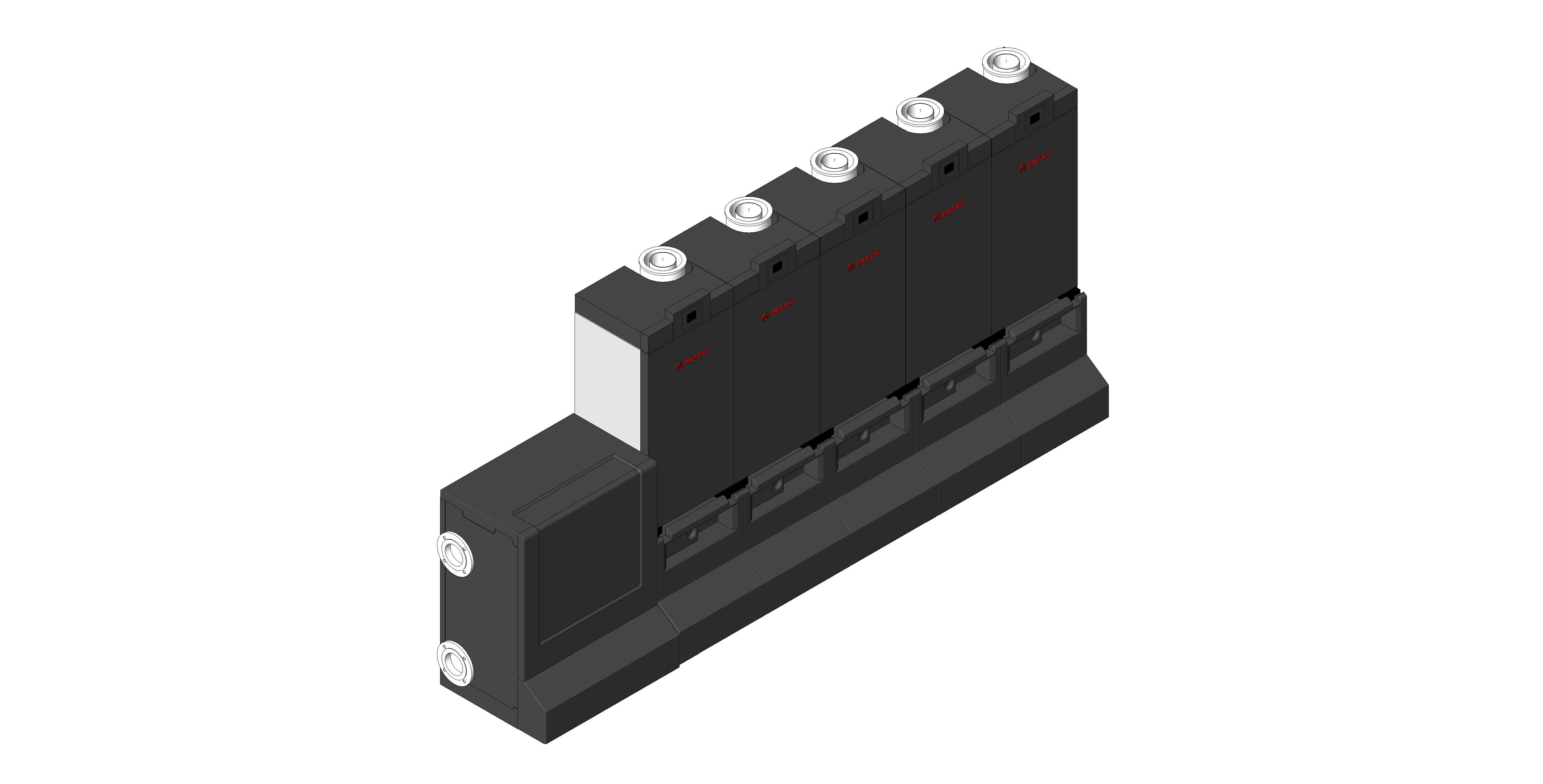

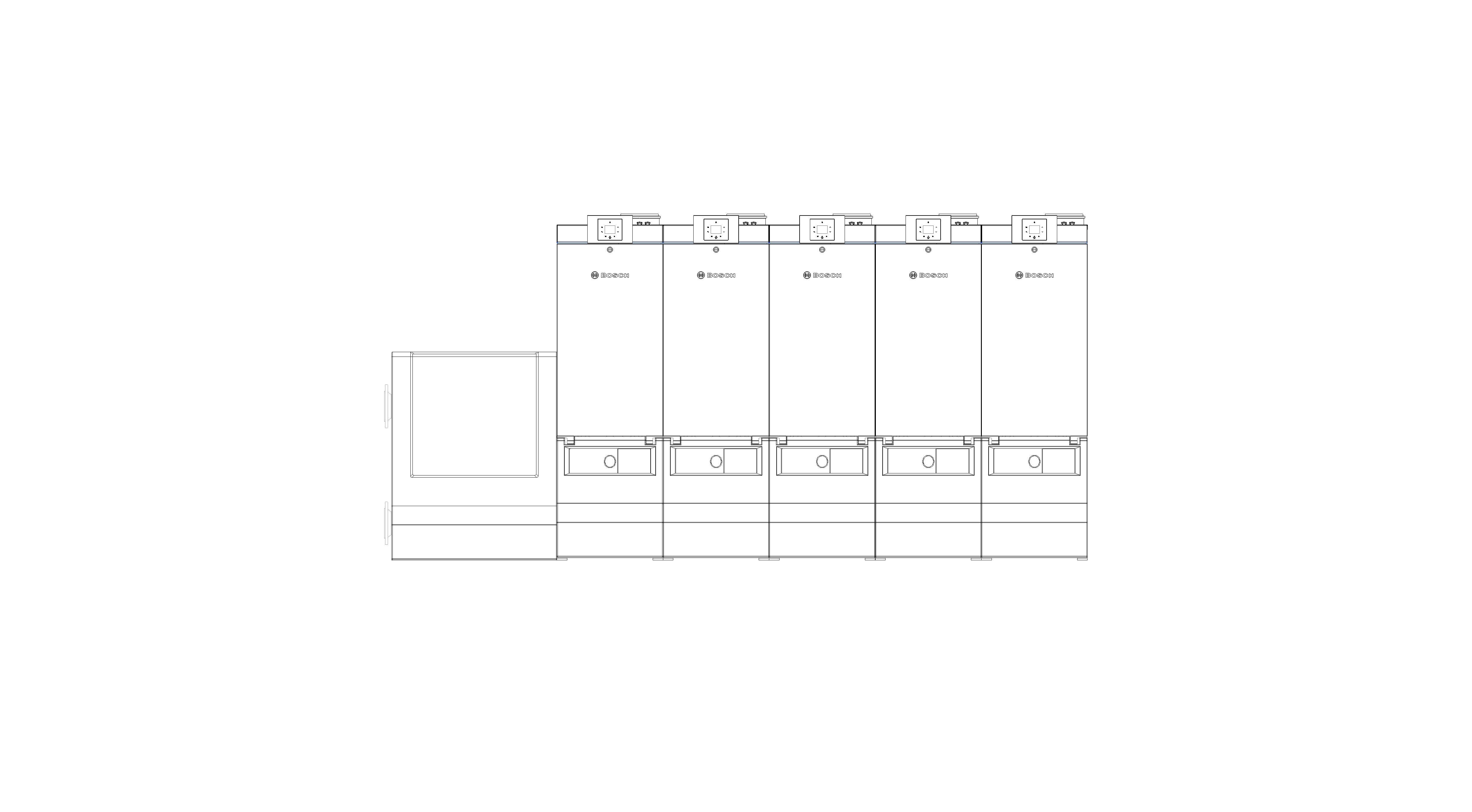

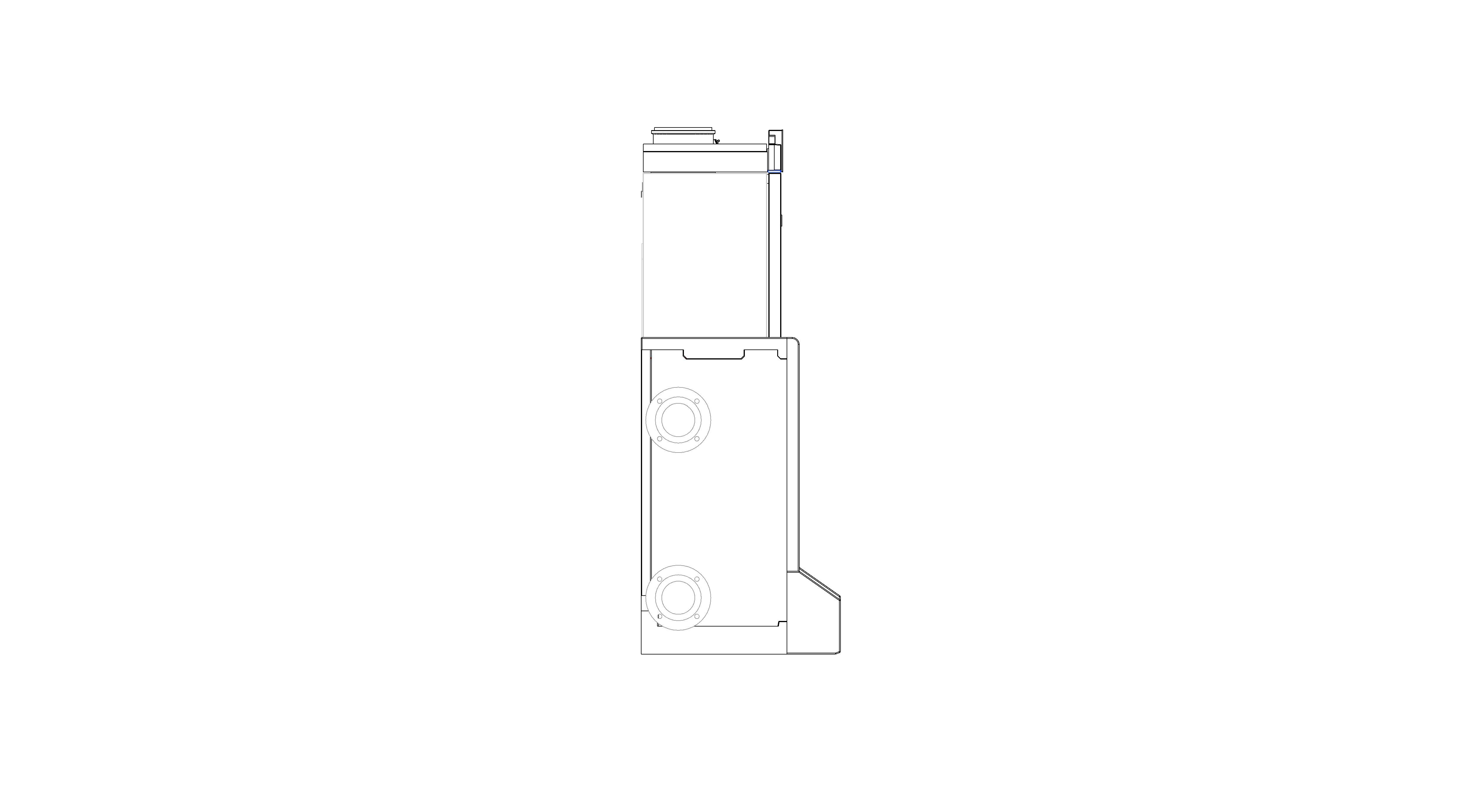

Condens 7000WP Inline Gas Boiler - TL5

by Bosch Commercial and Industrial Heating

Download Add to collection

Description

A new condensing wall-hung and floor-standing commercial boiler series, suitable for larger domestic properties, commercial, hybrid and communal systems.

Available in natural gas and LPG
Ability to cascade in banks up to 860kW
Perfect for small spaces and low ceiling environments with 570kW achievable in 1m2
Low Class 6 NOx and 20% Hydrogen Blend Ready

Object Data

1 Revision

Last Updated

12/10/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Operator Manual

Object metadata

_AuthorSM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
_Object User Guidewww.bimstore.co/products/condens-7000wp-inline-gas-boiler-tl5/document/object-user-guide
Access Clearance Bottom100 mm
Access Clearance Front600 mm
Access Clearance Left5 mm
Access Clearance Rear0 mm
Access Clearance Right5 mm
Access Clearance Top100 mm
Air Inlet Connection Size160 mm
Assembly CodeD3020100
Asset Identifierplease record on commissioning.
Asset TypeFixed
BIM Object NameBosch_MechanicalEquipment_GasCondensingBoilerCascade_Condens7000WP_250kW
BMS LinksYes
Building Regulations Seasonal EfficiencyN/A
CE ApprovalCE-0085DL0480
Classification NameUniclass2015
Classification ValuePr_60_60_08_34
Code PerformanceEU Regulations 811/2013, 812/2013, 813/2013 and 814/2013 of Directive 2010/30/EU
ColorGrey
ColourGrey
Condensate Drain Size0 mm
Condensate Drain TypePipe
ConfigurationCascade
ConstituentsAluminium, steel, polymers
Control TypeEMS, Volt free, 0-10VDC
Created Bycommercial.industrial@uk.bosch.com
Created On2022-05-17T:09:00:00
Default Elevation0 mm
DescriptionHigher fuel efficiency, lower environmental impact and exemplary economy - the condensing boiler Condens 7000 F offers you a new level of efficiency in condensing technology. Suitable for multi-family homes and commercial properties, they are the ideal solution for large projects from 75 to 600 kW.
Documentation Certificateswww.bimstore.co/products/condens-7000wp-inline-gas-boiler-tl5/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/condens-7000wp-inline-gas-boiler-tl5/document/installation-guide
Documentation Literaturewww.bimstore.co/products/condens-7000wp-inline-gas-boiler-tl5/document/product-literature
Documentation Maintenancewww.bimstore.co/products/condens-7000wp-inline-gas-boiler-tl5/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/condens-7000wp-inline-gas-boiler-tl5/document/technical-data-sheet
Drain Connection Size19 mm
Drain Connection TypeThreaded
Duration UnitYears
ErP Energy LabelNA
ErP Rated Efficiency At Full LoadN/A
ErP Rated Efficiency At Part LoadN/A
ErP Seasonal Efficiencyn/a
Expected Life15
External MaterialSteel
FeaturesOptional retrofittable internet interface via MEC Remote
FinishPaint
Flow And Return Connection Size0 mm
Flow And Return Connection TypeFlanged
Flue Connection Size110 mm
Flue Or Air Intake ClassificationOF or RS
Frequency50Hz
Fuel Connection Size0 mm
Fuel Connection TypeFlanged
Full Load CurrentN/A
Fuse Rating5A
Gas Consumption Rate25.15
Graden/a
Gross Weight0.00 kg
Heater OperationSealed System
Heat Exchanger MaterialAluminium
Ifc Export AsIfcBoiler
Ifc Export TypeIfcBoilerTypeEnum.GAS
IK RatingNA
InterlocksYes
IP RatingIPX0D
KeynoteT20/320
Low Loss Header VisibilityYes
ManufacturerBosch Thermotechnology
Manufacturer NameBosch Thermotechnology
MaterialAluminium, steel, stainless steel, polymers
Maximum Gas Inlet Pressure25mbar
Maximum Oil Inlet PressureNA
Maximum Operating Pressure6bar
Maximum Power Consumption525
Minimum Gas Inlet Pressure17mbar
Minimum Oil Inlet PressureNA
Minimum Operating Pressure0.7bar
Minimum Power Consumption2
Model NumberTL5 - 250kW
Model ReferenceCondens 7000WP Gas Condensing Boiler (Cascade)
MountingWall/Frame Mounted
NBS DescriptionGas fired condensing boilers
NBS Noten/a
NBS Office Master Tagn/a
NBS Reference90-40-05/340
Nominal Depth3466 mm
Nominal Gas Inlet Pressure20mbar
Nominal Height1702 mm
Nominal Length521 mm
Nominal Oil Inlet PressureNA
NOx Emissions25
Oil Consumption RateNA
Overall Length0 mm
Overall Height0 mm
Overall Width0 mm
Primary FuelGas - NG
Production Year2022
Product Literaturewww.bosch-thermotechnology.com
Product Model NumberTL5 - 250kW
Product RangeCondens 7000WP
Rated Criteria50/30
Rated Output249.5
Referenced StandardBS EN 15502
Reference StandardBS EN 15502
Replacement Costn/a
Safety Valve Connection Size25 mm
Safety Valve Connection TypeThreaded
ShapeRectangular (Vertical)
Shipping Weight0.00 kg
Sound Pressure Level55
Spare Partsn/a
Starting CurrentN/A
Supply PhaseSingle
Turndown Ratio17.4475524475524
Type CommentsTL5 - 250kW
URLwww.bosch-thermotechnology.com/gb/en/commercial-industrial/home/
Voltage230
Warranty Descriptionn/a
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partscommercial.industrial@uk.bosch.com
Water Content0
