Coping System

by Guttercrest

Download Add to collection

Description

Aluminium Coping provides an aesthetically pleasing and economic finish to a Parapet Wall or Boundary Walls. Aluminium Wall Copings are Made Specifically for Each Project to individual specifications, sizes and profiles. Guttercrest use Marine Grade Aluminium for Pressed Metal Copings which can be fabricated for Ramped, Stepped and Serpentine Parapet Walls. Unlike Stone Wall Copings, Aluminium Copings are lightweight, versatile, adaptable and very quick to install. Matching Pier Caps or Column Capping too. Aluminium Coping offers a long term weather proof Parapet Wall protection.

This download is for the Guttercrest Coping System and contains the following types;

Coping Profile

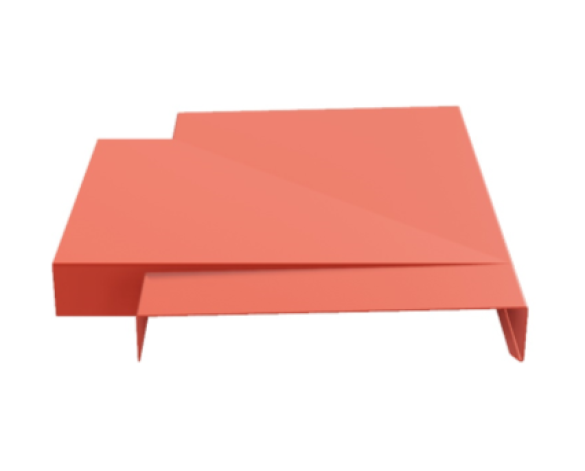

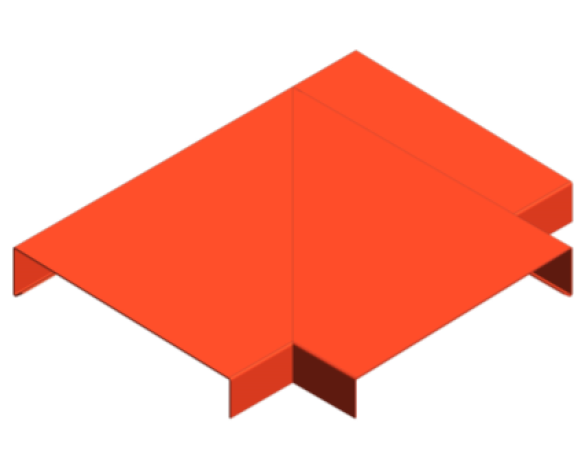

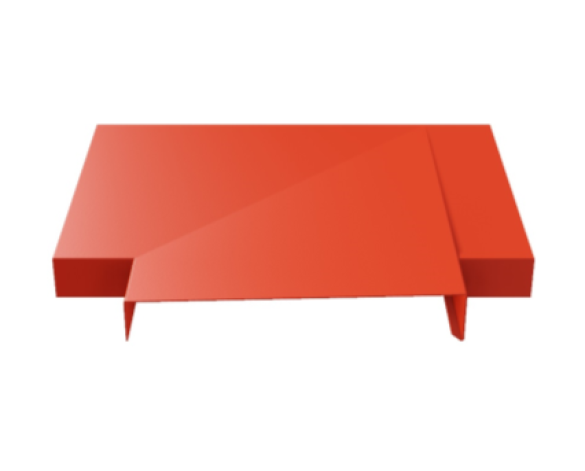

T-Section

Object Data

2 Revision

Last Updated

25/06/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorTechnical Dept
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.Guttercrest.co.uk
_Current Revision1
_Distributed Bywww.Bimstore.co.uk
Accessibility Performancen/a
Assembly Coden/a
Asset TypeFixed
Available Colourswww.guttercrest.co.uk/images/lib/guttercrest-colour-chart.pdf
BIM Object NameGuttercrest_SpecialtyEquipment_CopingSystem_CopingProfile
Brkt Offset5 mm
Classification NameUniclass2015
Classification ValuePr_65_50_35_06
Code Performancen/a
ColorAny Standard RAL, BS Colour or Heritage (Textured)
ConstituentsIntegral Double Jointing & Single SupportBrackets
Created ByInfo@Guttercrest.co.uk
Created On2018-03-22T00:00:00
Default Elevation1000 mm
DescriptionAluminium Coping provides an aesthetically pleasing and economic finish to a Parapet Wall or Boundary Walls. Aluminium Wall Copings are Made Specifically for Each Project to individual specifications, sizes and profiles. Guttercrest use Marine Grade Aluminium for Pressed Metal Copings which can be fabricated for Ramped, Stepped and Serpentine Parapet Walls. Unlike Stone Wall Copings, Aluminium Copings are lightweight, versatile, adaptable and very quick to install. Matching Pier Caps or Column Capping too. Aluminium Coping offers a long term weather proof Parapet Wall protection.
Documentation Certificatesn/a
Documentation Installation Guidewww.Guttercrest.co.uk
Documentation Literaturewww.Guttercrest.co.uk
Documentation Maintenancen/a
Documentation Technicalwww.Guttercrest.co.uk
Duration UnitYear
Expected Life7
FeaturesLH & RH Adjustable Angles, Stop Ends & Upstand Ends
FinishMill finish or PPC in Matt, Satin, Gloss and Heritage
Grade1050A
Height Offset21 mm
Ifc Export AsAluminium Coping Units
Ifc Export TypeIfcBuildingElementPart
Is ExternalYes
KeynoteR10/350
ManufacturerGuttercrest Limited
Manufacturer NameGuttercrest Limited
MaterialAluminium
Material GradeAluminum 1050
ModelAluminium Coping
Model NumberVaries On Size - See Construction Parameters
Model ReferenceCOP
NBS DescriptionAluminium Coping Units
NBS Object NameGuttercrest - Aluminium Coping System
NBS Office Master Tagn/a
NBS Reference45-25-75-/326
Offstand16 mm
Production Year2018
Product Page Linkwww.guttercrest.co.uk/aluminium-coping-metal-parapet-wall-copings-cappings-curved.html
RAD3 mm
Referenced Standardn/a
Replacement Cost0
Spare Partsn/a
Type CommentsAluminium Coping - COP
Type NameAluminium Coping
URLwww.Guttercrest.co.uk
Warranty DescriptionInfo@Guttercrest.co.uk
Warranty Duration Labor0
Warranty Duration PartsInfo@Guttercrest.co.uk
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor PartsInfo@Guttercrest.co.uk
