Decor 550 Blackout Blinds

by Decor Systems

Download Add to collection

Description

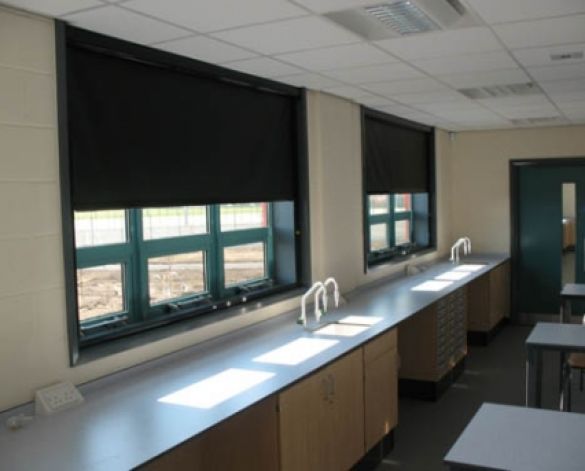

decor 550 Blackout Blinds are the perfect solution for total light control in laboratories, lecture theatres, conference rooms and teaching areas, being compact enough for small windows and door vision panels. A neat cassette headbox and matching interlocking aluminium side channels complete the decor 550 blackout blind.

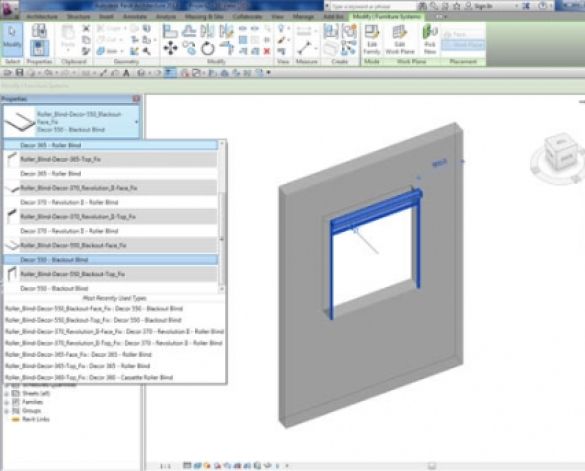

This download contains both Face and Top fixed versions of the Decor 550 Blackout Blind system.

Object Data

1 Revision

Last Updated

13/03/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorRyan Wigham
_created bywww.bimstore.co.uk
_current revision1
Assembly CodeE2010310
Barcode0
ContactDecor Systems, New Street, Doncaster, DN1 3QU - Tel: 03030 300 120 - Email: sales@decorsystems.co.uk
Default Elevation1219 mm
Descriptiondecor 550 Blackout Blinds are the perfect solution for total light control in laboratories, lecture theatres, conference rooms and teaching areas, being compact enough for small windows and door vision panels. A neat cassette headbox and matching interlocking aluminium side channels complete the decor 550 blackout blind.
Fabrics Availabledecor Tempest, decor Dynasty, decor Mystique
Fabrics Rangewww.decorsystems.co.uk/pages/blind_fabrics.html
KeynoteN10/240
ManufacturerDecor Systems
Maximum Drop1800mm (3000mm - Manual Crank Operation) (1600mm - Motorised Operation)
Maximum Fabric Area3.6m² (4.0m² - Manual Crank Operation) (2.0m² - Motorised Operation)
Maximum Width2400mm (2400mm - Manual Crank Operation) (2000mm - Motorised Operation)
Minimum Drop400mm (400mm - Manual Crank Operation) (400mm - Motorised Operation)
Minimum Width500mm (500mm - Manual Crank Operation) (600mm - Motorised Operation)
ModelDecor 550 Blackout - Face Fix
Serial Number0
Solar Anodized SilverDecor Systems - Aluminum, Anodized Silver
Solar BlackDecor Systems - Black
Solar GreyDecor Systems - Grey
Solar WhiteDecor Systems - White
Tag Number0
Type CommentsFully channelled blackout blind for effective room darkening
URLdecorsystems.co.uk/pages/products.html
Webwww.decorsystems.co.uk
