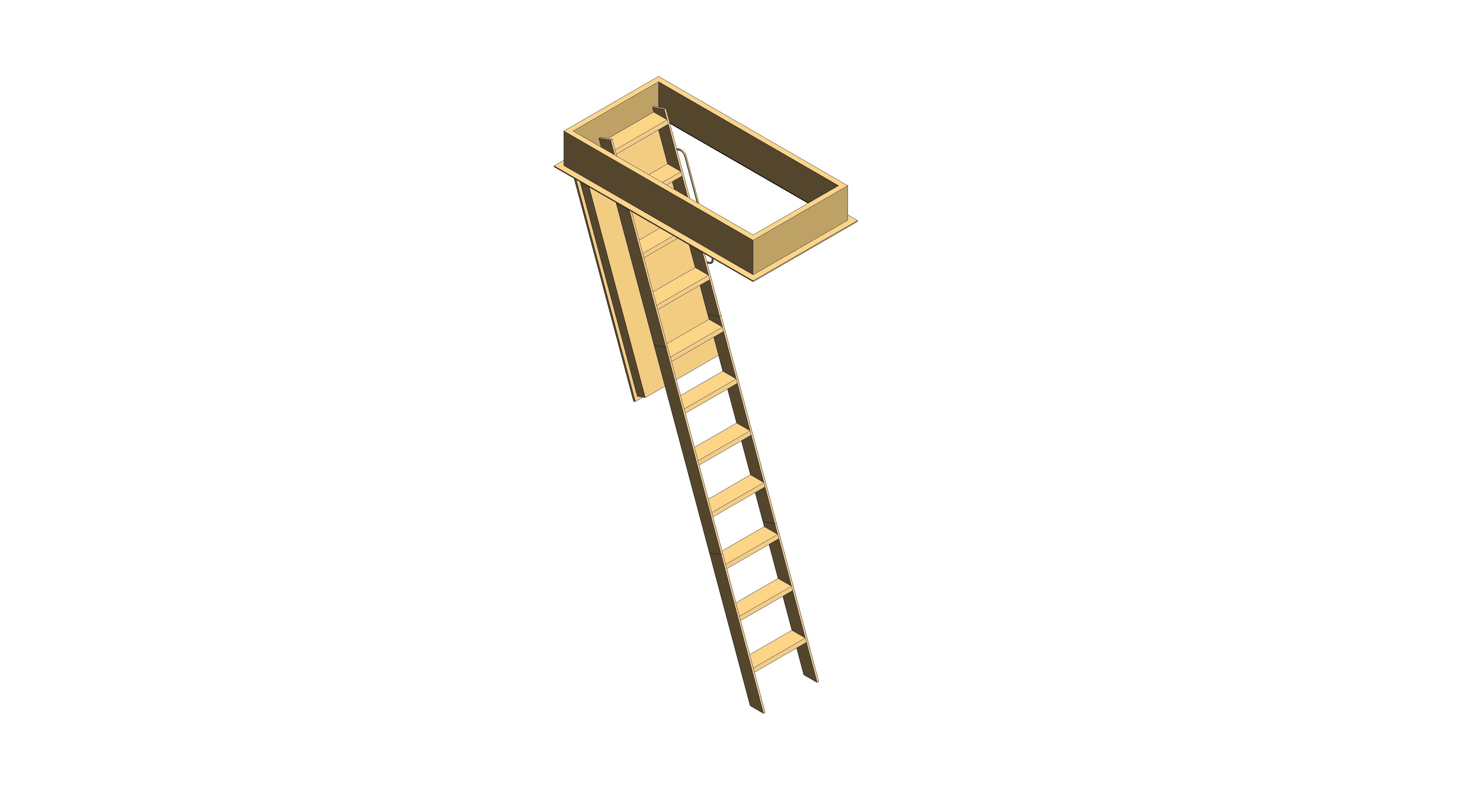

Designo Wooden Loft Ladder

by Premier Loft Ladders Ltd

Download Add to collection

Description

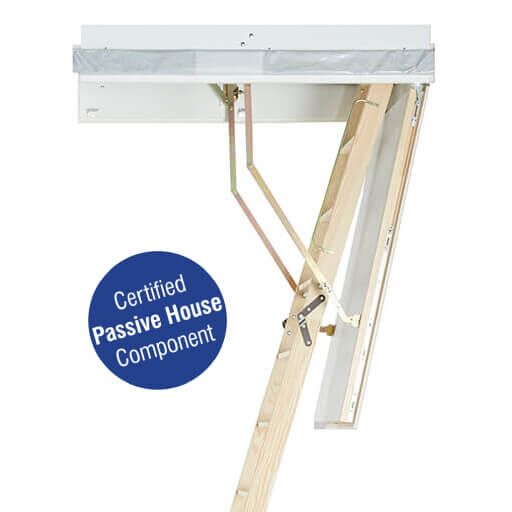

The Designo wooden loft ladder…

…sets the standard in energy efficiency, long-lasting quality and ease-of-installation

KEY FEATURES

Material: Wood
Operation: 3-part folding
Load capacity: 180kg per step
U-value: 0.60 W/m2K
Max floor-to-ceiling height: 3.3m

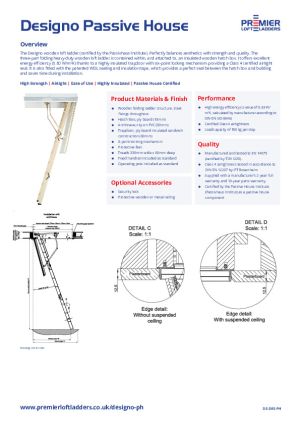

Available as a Passive House Institute certified component
Click here for full details and more images

This product is made-to-order

Delivery approx. 3 weeks

For other floor-to-ceiling heights and opening dimensions, please contact us for a quote.

Object Data

1 Revision

Last Updated

10/06/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

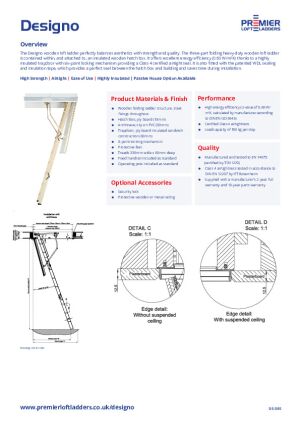

Product Data Sheet

Object metadata

Accessibility Performancen/a
AccessoriesInstallation assembly aid, 3-sided upper level guard rail, upper trapdoor (min. case height 670mm)
Acoustic Ratingn/a
Air PermeabilityClass 4 certified
Asset TypeFixed
AuthorPremier Loft Ladders
BIM Object NamePremierLoftLadders_TimberLoftLadders_Designo
Case Height200 - 710 mm
CategoryPr_25_30_85_36:Hardwood loft ladders
Clearance Zone MaterialClearanceZone
Code PerformanceEN 14975, DIN EN ISO 6946
Colorn/a
Constituentsn/a
Default Elevation0 mm
DescriptionA 3-part folding heavy duty wooden loft ladder contained within, and attached to, an insulated wooden hatch box and available made to measure
Durability Ratingn/a
Duration Unityear
Expected LifeIn excess of 20 years under normal use and maintenance
FeaturesAvailable made to measure, class 4 certified airtight seal, high strength ladder, 6-point locking trapdoor for a tight seal when closed, wide steps with anti slip profile,
FinishLadder - natural timber, hatch - white
Fire ExitNo
Fire Ratingn/a
Glazing Area Fraction0
Graden/a
Handicap AccessibleNo
Handrail MaterialWood
HandrailsSupplied with handrail as standard
Has DriveNo
Has Non Skid SurfaceYes
Hatchbox Height190 mm
Hatch Box MaterialWood
Hygrothermal Ratingn/a
Ifc Export AsIfcStairType
Ifc Export TypeSTRAIGHT_RUN_STAIR
Infiltration0
Is ExternalNo
Ladder MaterialWood
Load BearingYes
Load Capacity180 kg per step
Loft Trap Door Operating MechanismManual pull and push
Manufacturersales@premierloftladders.com
Manufacturer NamePremier Loft Ladders
Manufacturer URLwww.premierloftladders.co.uk
MaterialWood
Max Floor To Ceiling Height2800 mm
Mechanical Load Ratingn/a
Model NumberDES-2800-1200-600
Model ReferenceDesigno Loft Ladder
NameAluminiumLoftLadders_DES-1200-600_PremierLoftLadders
NBS DescriptionTimber loft ladders
NBS Reference45-30-75/405
Nominal Height190 mm
Nominal Length1200 mm
Nominal Width600 mm
Nosing Length0 mm
Number Of Riser0
Number Of Treads0
Operation3 part folding
Product Informationwww.premierloftladders.co.uk/product-range/wooden-loft-ladders/designo-loft-ladder/
Referencen/a
Replacement Costn/a
Required Headroom0 mm
Revisionn/a
Riser Height0 mm
Security Ratingn/a
Self ClosingNo
Shapen/a
Side Beam Thickness10 mm
Size1200 x 600 mm
Smoke StopNo
StatusUNSET
Step Depth Range80 mm
Step Width330 mm
Step Width Range330 mm
Structural Opening Length1200 mm
Structural Opening Width600 mm
Sustainability Performancen/a
Thermal Transmittance0
Trapdoor Length1153 mm
Trapdoor MaterialWood
Tread Length0 mm
Tread Length At Inner Side0 mm
Tread Length At Offset0 mm
Uniclass 2015 CodePr_25_30_85_36
Uniclass 2015 TitleHardwood loft ladders
Uniclass 2015 VersionProducts v1.14
U Value0.60 W/m²K
Version3
Waist Thickness0 mm
Walking Line Offset0 mm
Warranty Description2 year full manufacturers warranty
Warranty Duration Laborn/a
Warranty Duration Parts10 year
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water Tightness Ratingn/a
Wind Load Ratingn/a
