Digital Pressurisation Units

Object metadata

• _Authorinfo@adey.com
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Byinfo@adey.com
• _Current Revision1
• _Distributed Bywww.bimstore.co
• Accessibility Performancen/a
• Assembly CodeD2020200
• Asset TypeFixed
• BIM Object NameAdey_MechanicalEquipment_PressurisationUnits_Maxi
• Classification NameUniclass2015
• Classification ValuePr_65_53_86_68
• Code PerformanceCE compliant
• ColorWhite
• ConstituentsPerpherial brass pumps. Digitial Controller. Pressure Transdcuer. Low level water float switch. Polyethylene tank. Steel housing.
• Created Byinfo@adey.com
• Created On2020-07-30T09:00:00
• DescriptionADEY’s new range of Digital Pressurisation Units represent the latest innovation in automatic filling and pressure maintenance solutions for sealed heating and chilled systems
• Documentation Certificateswww.bimstore.co/products/digital-pressurisation-units/document/product-certificates

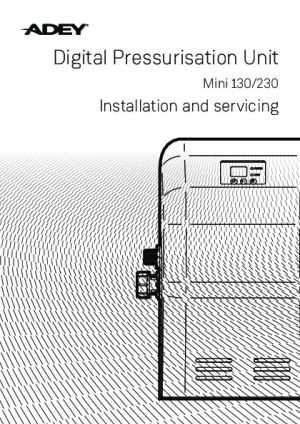

• Documentation Installation Guidewww.bimstore.co/products/digital-pressurisation-units/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/digital-pressurisation-units/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/digital-pressurisation-units/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/digital-pressurisation-units/document/technical-data-sheet
• Duration UnitYears
• Expected Life0
• FeaturesCompact floor standing design. Advanced digital control system. Automated system pressure maintenance. Robust steel enclosure. 8 bar pressure. Single or Twin pump options. 18 litre tank capacity. High recovery fill valve - 12 ltrs/minute at 1 bar. WRAS compliant Catergory 5 backflow protection - TYPE AB air gap.
• FinishPowder coated
• Graden/a
• Ifc Export AsIfcDistributionControlElementType
• Ifc Export TypeIfcFlowInstrumentType
• KeynoteS10
• ManufacturerAdey Ltd
• Manufacturer NameAdey
• MaterialSteel
• ModelMaxi 180
• Model NumberCP1-03-04998
• Model ReferenceMaxi 180
• NBS DescriptionPressurization units
• NBS Object NameAdey - Pressurization units
• NBS Office Master Tagn/a
• NBS Reference90-10-70/400
• Nominal Depth324 mm
• Nominal Height780 mm
• Nominal Length477 mm
• Production Year2020
• Referenced Standardn/a
• Replacement Costn/a
• ShapeRectangular
• Size477mm x 324mm x 780mm
• Spare Partsn/a
• Type CommentsCP1-03-04998
• Type NameCP1-03-04998
• URLwww.adey.com/
• Warranty DescriptionIn warranty period we will repair, free of charge, any defects in the unit resulting from faults in material or workmanshop, repairing or exchanging the whole unit as we may reasonably decide. Not covered by this guarantee includes damage arising from incorrect installation, improper use, unauthorised repair, normal wear and tear and defects which have neglibile effect on the value or operation of the unit
• Warranty Duration Labor2
• Warranty Duration Parts2
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo@adey.com
• Warranty Guarantor Partsinfo@adey.com
