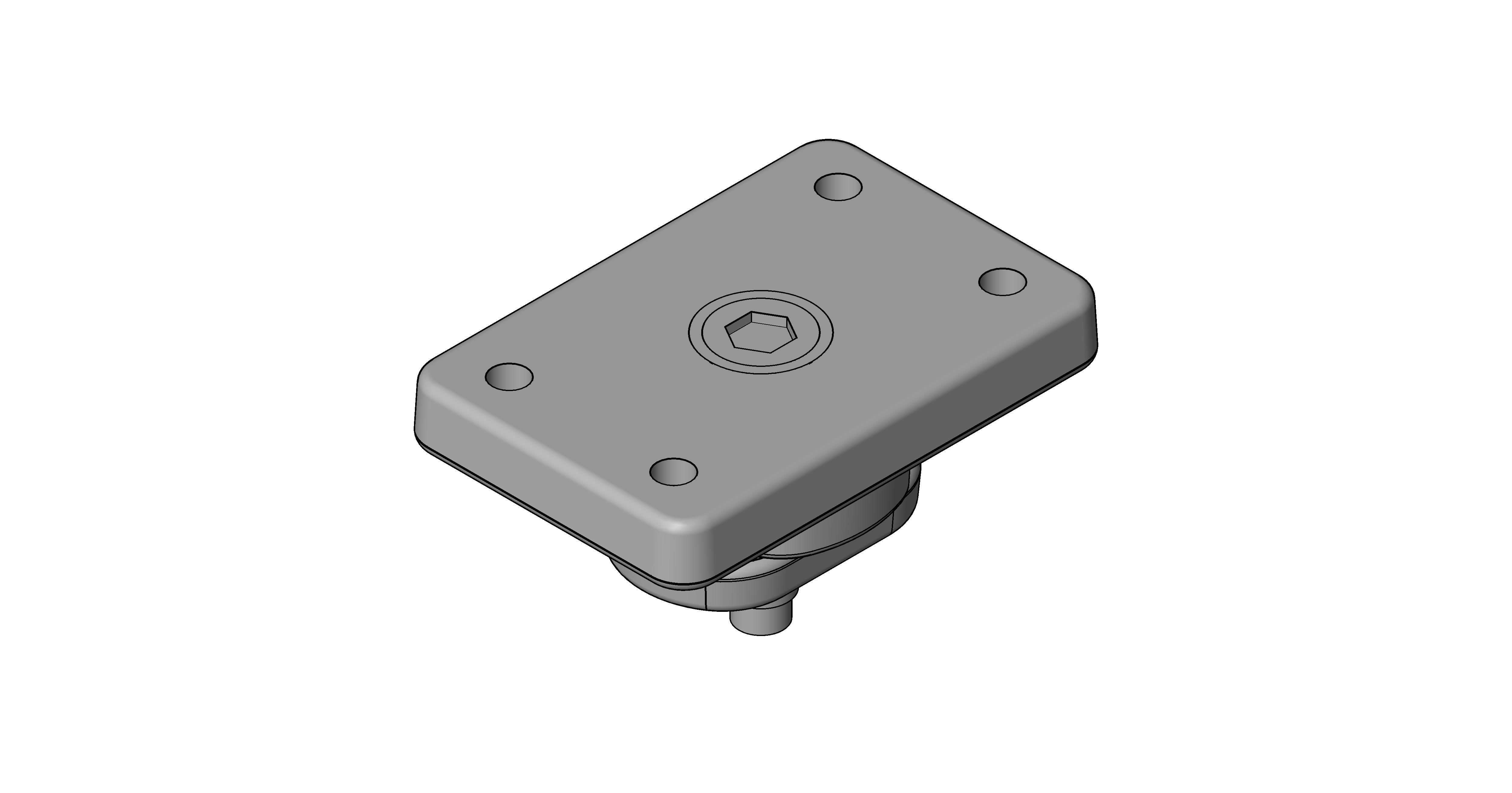

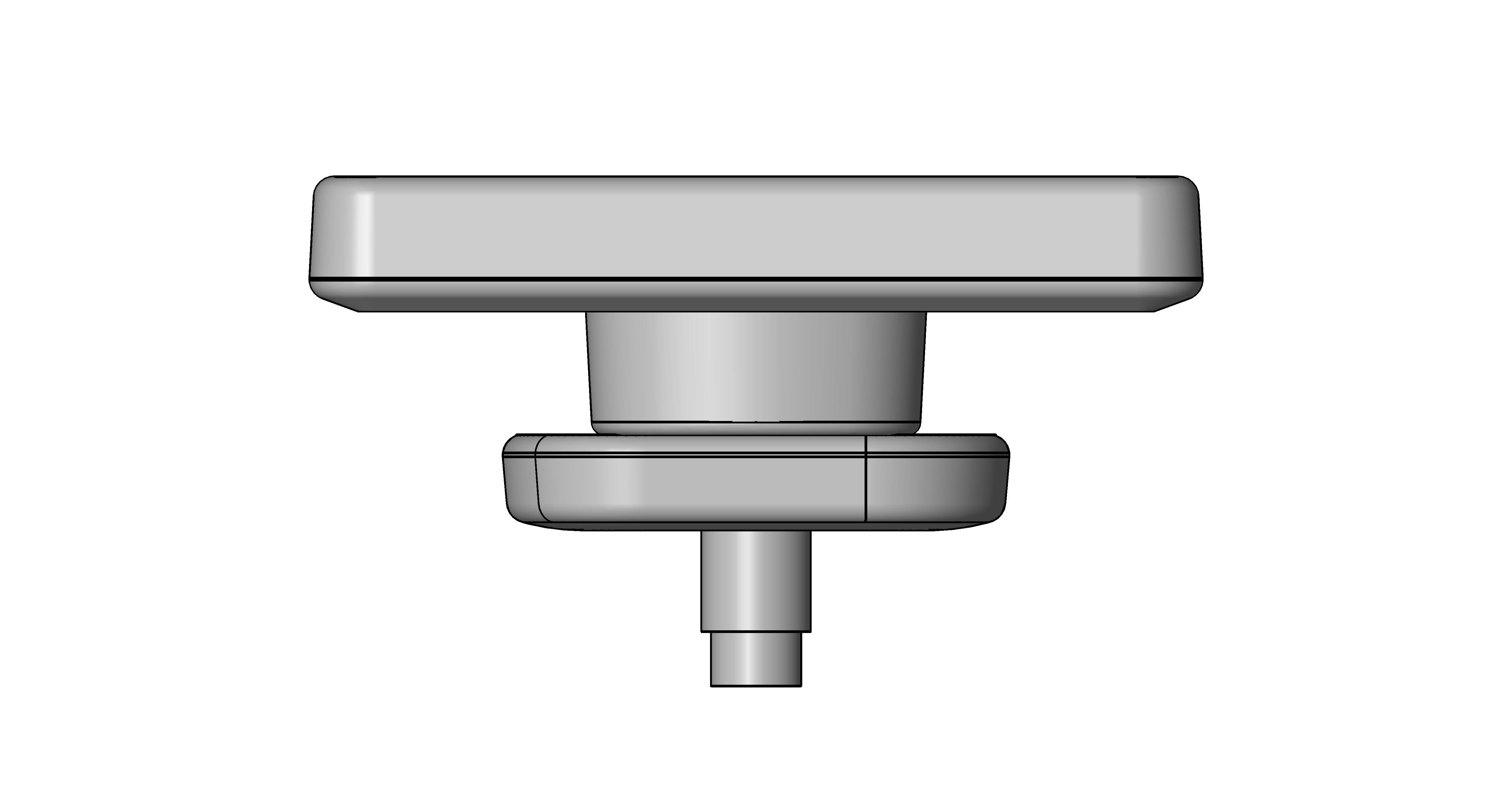

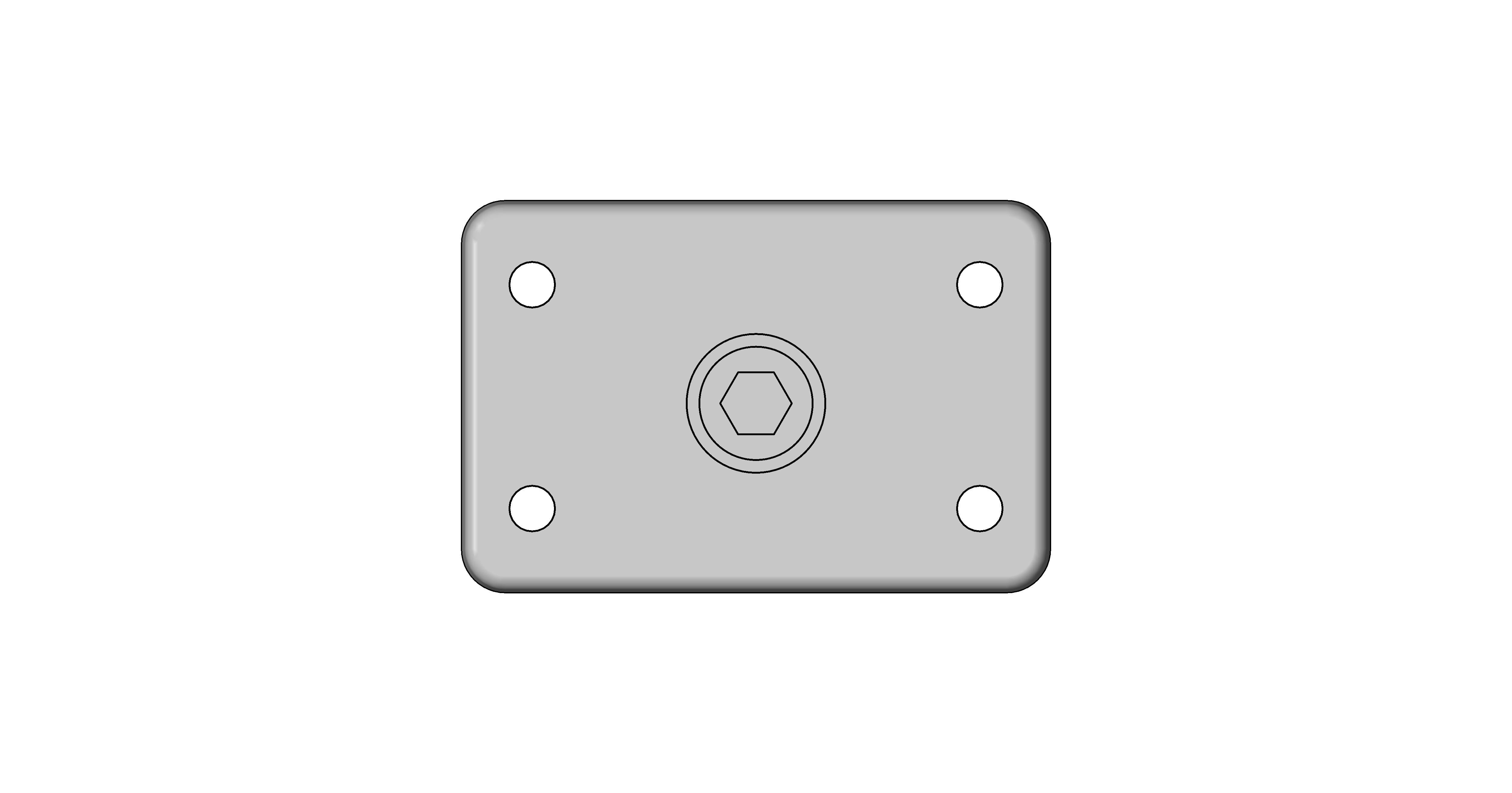

Domino Clamp

by Domino Clamps

Download Add to collection

Description

Drop-forged in the UK
Zinc and Xylan Coated for outdoor protection
2000kg NWL Capacity (See Tech sheet for details)
4x M12 threads for additional attachments.
Safe and easy to use.
No damage to the container.

Object Data

1 Revision

Last Updated

30/06/2020

Available Software

EPD

Not Available

Accompanying literature

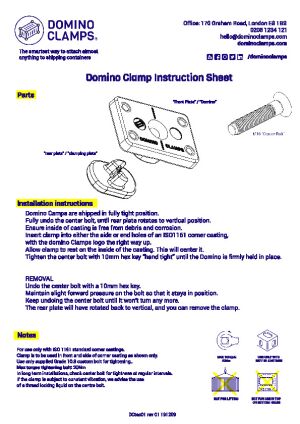

Installation Guide

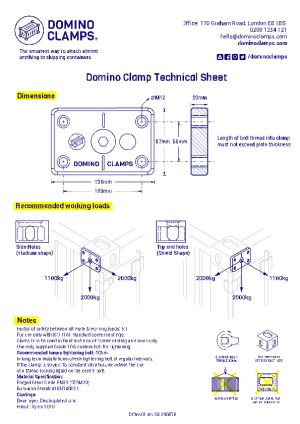

Product Literature

Product Data Sheet

Object metadata

_AuthorHello@dominoclamps.com
_Bim Spec Guid0
_BS Bible Version0
_Created ByContainer Clamps Ltd
_Current Revision1
_Distributed ByHello@dominoclamps.com
_Object User Guidedominoclamps.com/pages/how-it-works
Accessibility Performancen/a
Asset Typen/a
BIM Object NameDomino Clamps
Classification NameMounting Brackets
Classification ValuePr_20_85_09_54
Code Performancen/a
ColourXXX
Constituentsn/a
Created Byn/a
Created Onn/a
Default Elevation1219 mm
DescriptionDomino Clamps allow you to bolt almost anything to a shipping container, without damaging it. They can be used both for projects that utilise containers as part of the structure, as well as for attaching things like temporary lighting, signs and CCTV to any other ISO containerised unit on a construction site.
Documentation Certificatesdominoclamps.com/
Documentation Installation Guidedominoclamps.com/blogs/uses/how-to-install-and-use-domino-clamps-on-shipping-container
Documentation Literaturedominoclamps.com/
Documentation Maintenancedominoclamps.com/
Documentation Technicalwww.dominoclamps.com/pages/downloads
Duration Unitn/a
Expected Life0
Featuresn/a
FinishZinc (8 microns) - Xylan 1070
GradeSteel Grade EN38
Ifc Export AsStructural Connection
Ifc Export TypeStructural Connection
ManufacturerContainer Clamps Ltd
Manufacturer NameContainer Clamps Ltd
MaterialSteel Grade EN38
ModelDC20
Model NumberDC20
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
NWL Capacity2000 kg
Protection Base LayerZinc (8 microns)
Protection Top LayerXylan 1070
Replacement Cost0
Shapen/a
Sizen/a
Spare Partsn/a
Type CommentsDomino Clamp
URLwww.dominoclamps.com
Warranty Descriptionn/a
Warranty Duration Labour0
Warranty Duration Parts0
Warranty Duration Unitn/a
Warranty Guarantor Labourn/a
Warranty Guarantor PartsHello@dominoclamps.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
