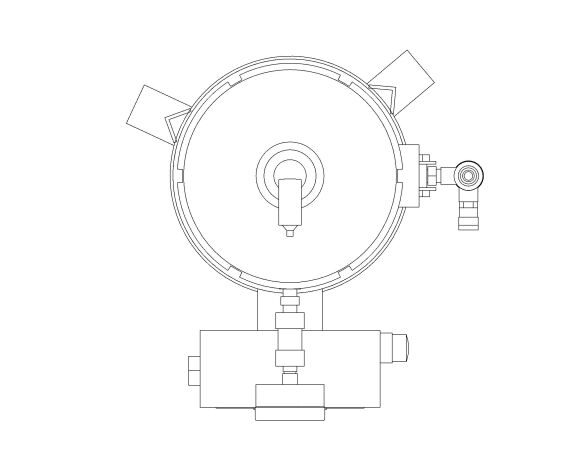

DosaFil-Duo® HF+

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/dosafil-duo-hf/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeD2090
• Asset TypeFixed
• Automatic Air Vent Fitted As StandardYES
• Automatic Air Vent Standard Warranty20 Years
• BIM Object NameDosaFil_WaterFilter_Duo_HF+
• BMS Outputs On DP Alarms Fitted As Standard2 x VFC
• Classification NameUniclass2015
• Classification ValuePr_65_57_95
• Code Performancen/a
• Colorn/a
• Constituentsn/a
• Created Byhello@dosafil.co.uk
• Created On2023-03-15 T09:00:00
• Custom Insulated Vessel Jacket SuppliedYES
• DescriptionFrustrated with traditional water treatment? So were we. That’s why we created DosaFil-Duo®, a unique and patented range of innovative devices that enable complete online cleaning, protection and maintenance of closed loop heating and cooling systems. Safer, easier and more environmentally-friendly than traditional water treatment methods, DosaFil-Duo® prevents scale, corrosion and fouling in closed recirculating systems by combining high performance side stream filtration with constant air removal and safe chemical dosing of both liquid and solid chemicals. The magnet-free design features smart monitoring to notify users of required filter bag changes for seriously easy maintenance, whilst BMS is built in as standard. DosaFil-Duo® standard operating pressure and temperature ranges are unmatched in the market today, meaning more systems than ever can be efficiently operated and maintained in line with the guidelines detailed BSRIA BG29 & BG50.
• Designed Fabricated&Assembled In The UKYES
• Documentation Certificateswww.bimstore.co/products/dosafil-duo-hf/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/dosafil-duo-hf/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/dosafil-duo-hf/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/dosafil-duo-hf/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/dosafil-duo-hf/document/technical-data-sheet
• DP Controller Enclosure IP RatingIP65
• DP Controller Power Supply Requirements240v 13amp
• DP Control Voltage24v
• DP Sensors With Local Audible&Visual Alarms Fitted As StandardYES
• Duration UnitYear
• Expected Life0
• Features- The only device to combine safe dosing of solid or liquid treatment chemicals with constant side stream filtration and continuous air removal - Unmatched standard operating pressure and temperature ranges - Suitable for use with any brand of chemical treatment - Enables online remediation of fouled systems - Fast: isolate, open & change a filter bag in under five minutes - Smart monitoring notifies users when filter bags need changing - Communication options for BMS built-in as standard - Fully insulated jacket prevents heat loss - Designed & Manufactured in Britain
• Filtration Range50, 25, 10, 5, 1, 0.5μm
• Finishn/a
• Graden/a
• Ifc Export AsIfcFlowControllerType
• Ifc Export TypeIfcFlowMeterTypeEnum.USERDEFINED
• Inlet/Outlet Connection Size1.5" BSPTF
• Integrated Coalescing Assembly Using Proven TechnologyYES
• KeynoteD
• Liquid Chemical Dosing Capacity19 lt
• ManufacturerDosaFil
• Manufacturer NameDosaFil
• Materialn/a
• Maximum Flow Rate212.5 L/min
• Maximum Fluid Operating Temperature130 °C
• Maximum Inlet Height1005.00 mm
• Maximum Operating Pressure16.0 bar
• Maximum System Volume306,000 lt
• Minimum Fluid Operating Temperature5 °C
• Minimum Inlet Height890.00 mm
• ModelDosaFil-Duo® HF+
• Model NumberDosaFil-Duo® HF+
• Model ReferenceDosaFil-Duo® HF+ Water Filter
• NBS DescriptionWater filters and strainers
• NBS Noten/a
• NBS Object NameDosaFil - Water filters and strainers
• NBS Office Master Tagn/a
• NBS Referencen/a
• Nominal Depth0.00 mm
• Nominal Height0.00 mm
• Nominal Length0.00 mm
• Operating Weight56.00 kg
• Pressure Gauge Fitted As StandardYES 20bar
• Production Year2023
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Solid Chemical Dosing CapabilityYES
• Spare Partsn/a
• System Standard Warranty5 Years
• Type CommentsDosaFil-Duo® HF+ Water Filter
• Type NameDosaFil-Duo® HF+
• URLdosafil.co.uk/
• Vessel Drain/Clean Water Sample Point Fitted As StandardYES
• Vessel Material304 Stainless Steel
• Vessel MountingFloor
• Vessel PED CertificationCE
• Vessel Test Pressure23.0 bar
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborhello@dosafil.co.uk
• Warranty Guarantor Partshello@dosafil.co.uk
• Weight Empty37.00 kg
