Dublin HIU Hydraulic Interface Unit Twin Indirect

by Herz UK Ltd

Download Add to collection

Description

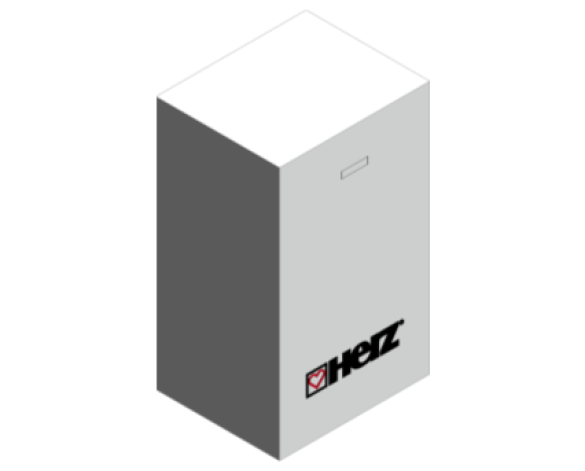

The Herz Hydraulic Interface Units (HIU) are suitable for all community heating schemes and enables LTHW from a central plant to provide heating and DHWS to each dwelling with complete hydraulic separation between the LTHW primary and secondary heating and DHWS systems.

The HIU is a complete package comprising of all components mounted on a frame, factory assembled and tested.

This download includes the Dublin HIU Hydraulic Interface Unit Indirect from Herz Valves UK Ltd.

Object Data

1 Revision

Last Updated

16/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorized byCL
_BIMspec_GUID0
_created byConnor Laing
_current revision1
_distributed bywww.bimstore.co.uk
Assembly CodeD30
Asset TypeFixed
Bar CodePlease Record on Commissioning
base offset0 mm
Body MaterialDefault New Material
Classification NameUniclass 2015
Classification ValuePr_65_54_95
ColorWhite
Created Bysales@herzvalves.com
Created OnApril 2015
Depth362 mm
DescriptionThe HERZ 4017 DZR combined regulating and measuring valve has an integral orifice incorporated into the valve casting. Available in sizes from DN15 to DN50, ½” to 2”, with BSP female threaded ends to BS21 and manufactured to BS 7350. The valve is also available in Low Flow and Medium Flow DN15 versions. The commissioning valve has hidden regulating and locking functions.
Documentation Literaturewww.herzvalves.com/catalog.php?prodID=1447&lng=gbr
Documentation Technicalherzmediaserver.com/data/_www/uk//datasheets/06_distribution_systems/HIU/Herz_Dublin_HIU_0115.pdf
Dood Width79 mm
Door Height20 mm
Door Offset89 mm
Duration UnitYears
Expected Life10
FinishWhite
Height744 mm
K Coefficient46.7
KeynoteS51
Kilo Watts10
ManufacturerHerz Valves UK Ltd
MaterialVarious
Maximum Operating Pressure20 bar at 20 °C
Maximum Operating Temperature130 °C at 10 bar
ModelHerz - Dublin Heat Interface Unit
Model Number1402065
Offset215 mm
Opening Depth80 mm
Opening Width411 mm
Order Number1402065
Pressure RatingPN16
Product Documentation Linkwww.herzvalves.com/www/downloads/Herz%20Guildford%20HIU%20data%20sheet.pdf
Product O&M Linkwww.herzvalves.com/www/downloads/Herz%20Guildford%20HIU%20data%20sheet.pdf
Production Year2015
Size50mm
Type CommentsHeat Interface Unit
Type NameHeat Interface Unit
URLherzmediaserver.com/data/_www/uk//datasheets/06_distribution_systems/HIU/Herz_Dublin_HIU_0115.pdf
Width440 mm
