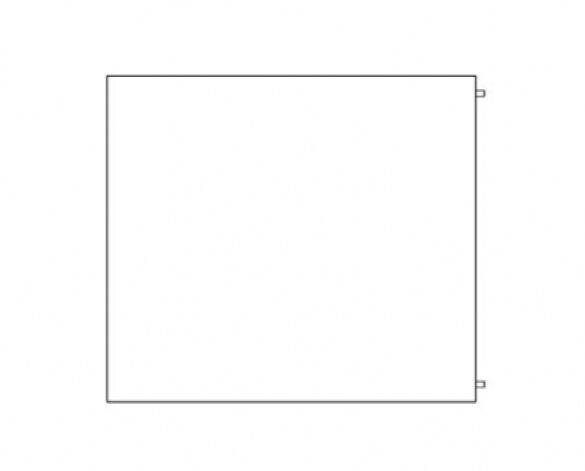

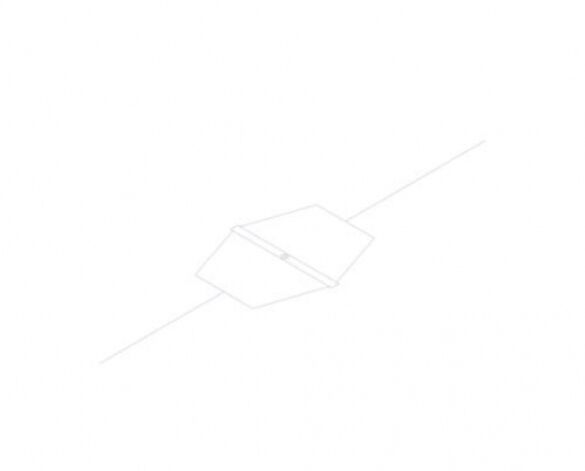

Economy Coil Heat Exchanger Range

by SPC

Download Add to collection

Description

S & P Coil Products Limited have been making coil heat exchangers for over 30 years and with our vast array of knowledge and experience we are able to help in almost any scenario.

A water coil is a heat exchanger. It transfers heat energy between water and another medium (usually air) as quickly and efficiently as possible. Heating coils transmit energy from hot water to a stream of air.

This download is for the Economy range of coil heat exchanger components and includes the following range types;

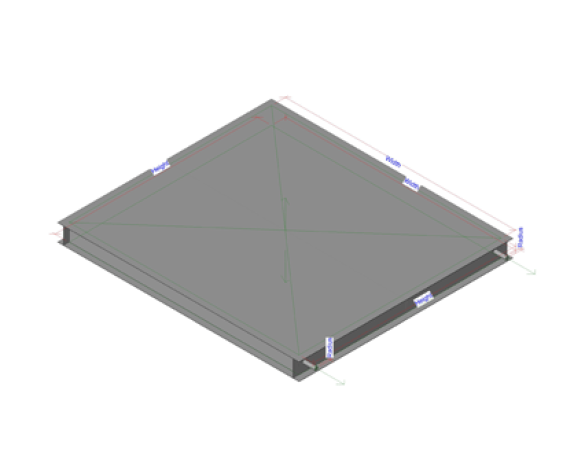

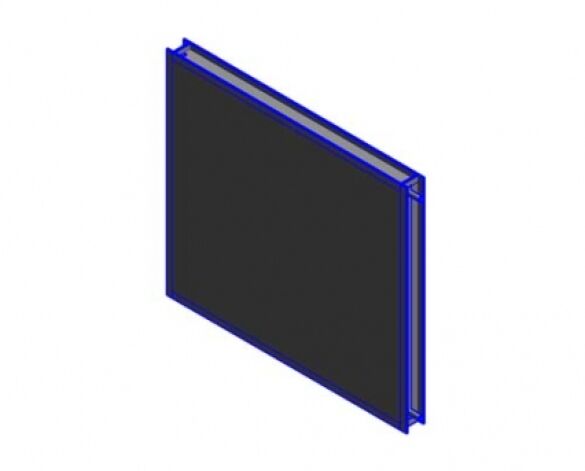

Economy Coil Heat Exchanger.

Rev 02 - Parameter update.

Object Data

2 Revision

Last Updated

21/05/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_BIMspec_GUID0
_created byRyan Wigham
_current revision2
2 RowNo
Actual Supply Air Flow0.0 L/s
Air Pressure Drop0.0 Pa
Assembly CodeD3020
Connection Diameter15 mm
Connection Radius8 mm
Contact SP CoilsS & P Coil Products Limited, SPC House, Evington Valley Road, Leicester, LE5 5LU, United Kingdom - Tel: +44 (0)116 2490044 - Fax: +44 (0)116 2490033 - Email: spc@spcoils.co.uk
Cooling SymbolYes
Created Byspc@spcoils.co.uk
Depth75 mm
DescriptionS & P Coil Products Limited manufacture coils to suit low, medium and high temperature water as well as chilled water and glycol systems. All coils are designed to suit the application, so can be tailored to suit the physical constraints, pressure drop requirements or environmental / economic considerations.
DocumentationLink URLwww.spcoils.co.uk/Portals/0/pdfs/SPC%20Coil%20Brochure%202013.pdf
Duct Height880 mm
Duct Width1000 mm
Expected Life0
Flange Thickness2 mm
Flange Width25 mm
Flow Offset 138 mm
Flow Rate0.0 L/s
KeynoteT
Manifold Offset0 mm
ManufacturerS & P Coil Products Limited
ModelInsert 'Coil Code'
Model NumberInsert 'Coil Code'
NameEconomy Coil
Offset0 mm
Pressure Drop0.0 Pa
Return Offset 138 mm
SPC_Case MaterialInsert 'Material Text'
SPC_CoolingNo
SPC_Fin MaterialInsert 'Material Text'
SPC_HeatingYes
Tube Diameter12 mm
Tube Radius6 mm
Tubes High23
Type CommentsEconomy Coil
Type NameInsert 'Coil Code'
Uniclass 2Pr_60_65_37_47 - Coil Units
URLwww.spcoils.co.uk/home.aspx

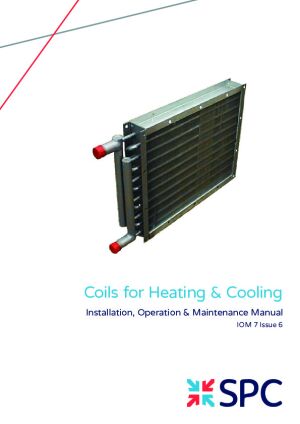

URL - Installation Maintenance and Operationwww.spcoils.co.uk/user_files/pdf/1248348410SPC_IOM07_Coils_Issue05.pdf
URL - Product Documentationwww.spcoils.co.uk/Portals/0/pdfs/SPC%20Coil%20Brochure%202013.pdf
URL - Product Pagewww.spcoils.co.uk/Products/SPCHeatingCoolingCoils.aspx
URL - Software Downloadwww.spcoils.co.uk/Software/SPC2000CoilSelectionSoftware.aspx
