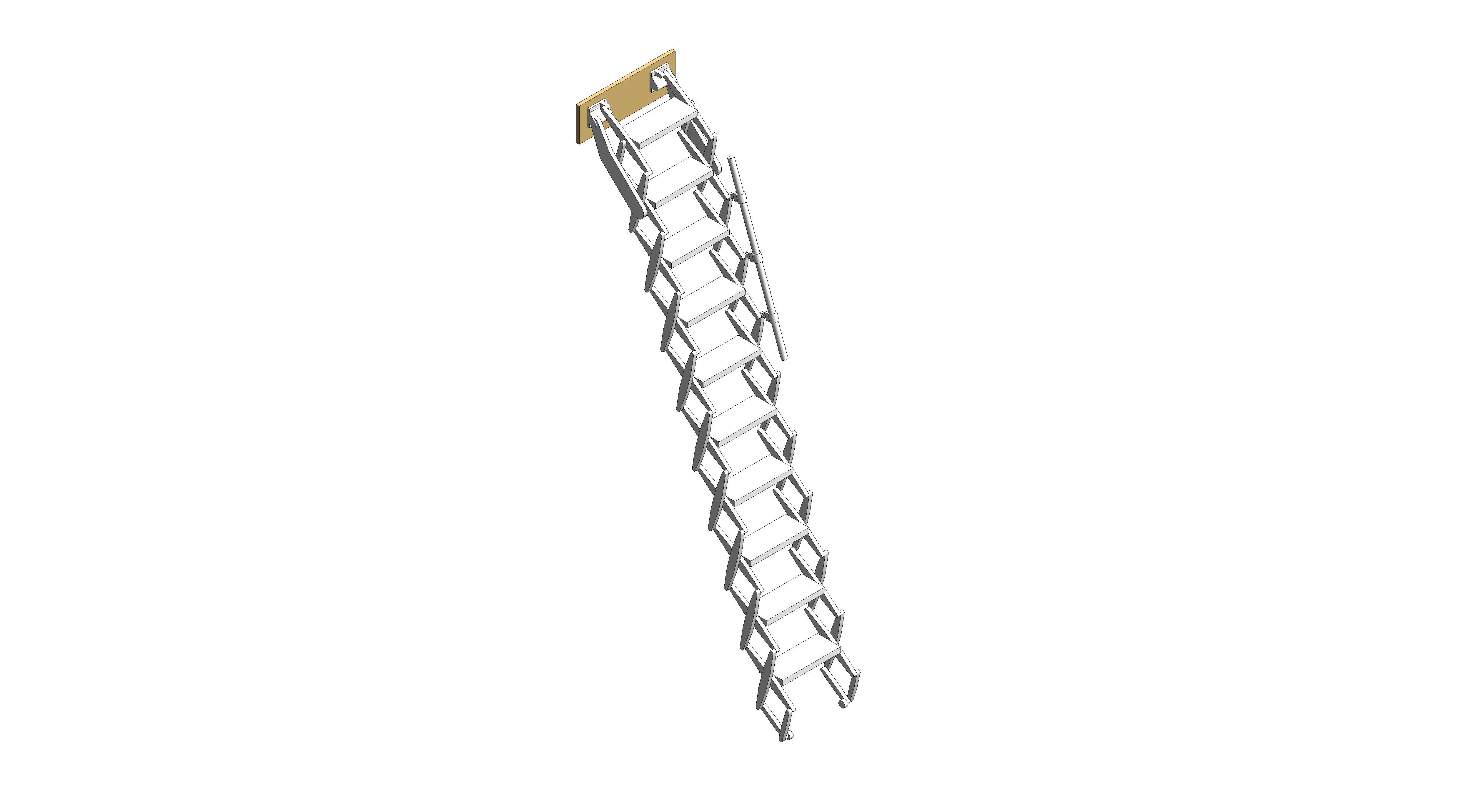

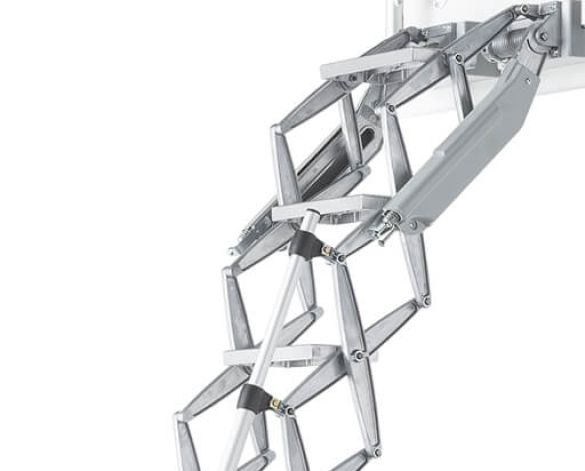

Elite Retractable Loft Ladder

by Premier Loft Ladders Ltd

Download Add to collection

Description

The Elite retractable loft ladder…

…easy to operate and very strong; a proven solution for a wide range of applications

KEY FEATURES

Material: Pressure die-cast aluminium
Operation: Spring-assisted retractable ladder
Load capacity: 200kg per step
U-value: N/A
Max floor-to-ceiling height: 3.39m
Telescopic handrail: Included (left or right fitting)
Click here for full details and more images

Delivery 2-3 working days

For the Elite with vertical hinge mechanism or special headboard, please contact us for a quote.

Object Data

1 Revision

Last Updated

10/06/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Data Sheet

Object metadata

Accessibility Performancen/a
AccessoriesAdditional telescopic handrail, spacer, additional treads and folding treads, grab rail, spring hardware set for customer own trapdoor
Acoustic Ratingn/a
Asset TypeFixed
AuthorPremier Loft Ladders
BIM Object NamePremierLoftLadders_AluminiumLoftLadders_Elite
CategoryPr_25_30_85_03:Aluminium loft ladders
Code PerformanceEN 14975
ColorNatural
Constituentsn/a
Default Elevation0 mm
DescriptionHeavy duty aluminium retractable loft ladder without hatch box
Durability Ratingn/a
Duration Unityear
Expected LifeIn excess of 20 years under normal use and maintenance
FeaturesHigh strength, high load capacity, space saving from retractability, ease of use, large steps for comfort and safety
FinishNatural
Fire ExitNo
Fire Ratingn/a
Glazing Area Fraction0
Graden/a
Handicap AccessibleNo
Handrail MaterialAluminum
HandrailsSupplied with handrail as standard
Has DriveNo
Has Non Skid SurfaceYes
Hatchbox Height200 mm
Hatch Box MaterialWood
Hygrothermal Ratingn/a
Ifc Export AsIfcStairType
Ifc Export TypeSTRAIGHT_RUN_STAIR
Infiltration0
Is ExternalNo
Ladder MaterialAluminum
Ladder Offset60 mm
Ladder Recess155 mm
Load BearingYes
Load Capacity200 kg per step
Loft Trap Door Operating MechanismManually retracted ladder
Manufacturersales@premierloftladders.com
Manufacturer NamePremier Loft Ladders
Manufacturer URLwww.premierloftladders.co.uk
MaterialPressure die-cast aluminium
Max Floor To Ceiling Height2500 mm
Mechanical Load Ratingn/a
Model NumberELI-2500-9T
Model ReferenceElite Loft Ladder
NameAluminiumLoftLadders_ELI-2500-9T-350_PremierLoftLadders
NBS DescriptionAluminium loft ladders
NBS Reference45-30-75/400
Nominal Height0 mm
Nominal Length620 mm
Nominal Width580 mm
Nosing Length0 mm
Number Of Riser0
OperationSpring assisted retractable ladder
Overall Load Capacity500 kg/m²
Product Informationwww.premierloftladders.co.uk/product-range/aluminium-loft-ladders/elite-loft-ladder/
Referencen/a
Replacement Costn/a
Required Headroom0 mm
Revisionn/a
Riser Height0 mm
Scissor Thickness20 mm
Security Ratingn/a
Self ClosingNo
Shapen/a
Size620 x 580 mm
Smoke StopNo
StatusUNSET
Step Depth140 mm
Step Depth Range140 mm
Step MaterialAluminum
Step Width350 mm
Step Width Range350 mm (also available 200 mm - 380 mm)
Structural Opening Length620 mm
Structural Opening Width580 mm
Sustainability Performancen/a
Thermal Transmittance0
Tread Length0 mm
Tread Length At Inner Side0 mm
Tread Length At Offset0 mm
Uniclass 2015 CodePr_25_30_85_03
Uniclass 2015 TitleAluminium loft ladders
Uniclass 2015 VersionProducts v1.14
Version2
Waist Thickness0 mm
Walking Line Offset0 mm
Warranty Description2 year full warranty
Warranty Duration Laborn/a
Warranty Duration Parts10 year
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water Tightness Ratingn/a
Wind Load Ratingn/a
