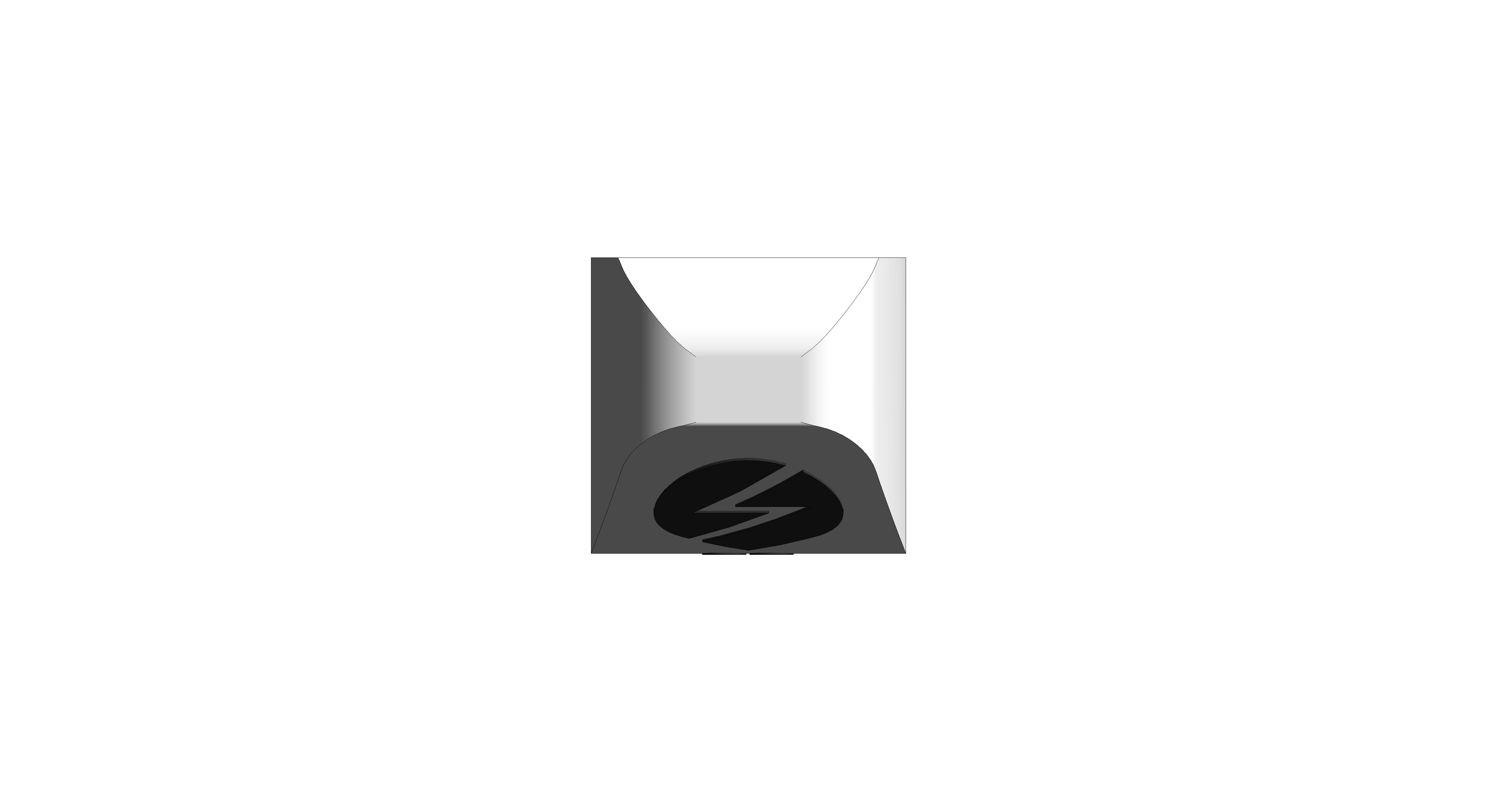

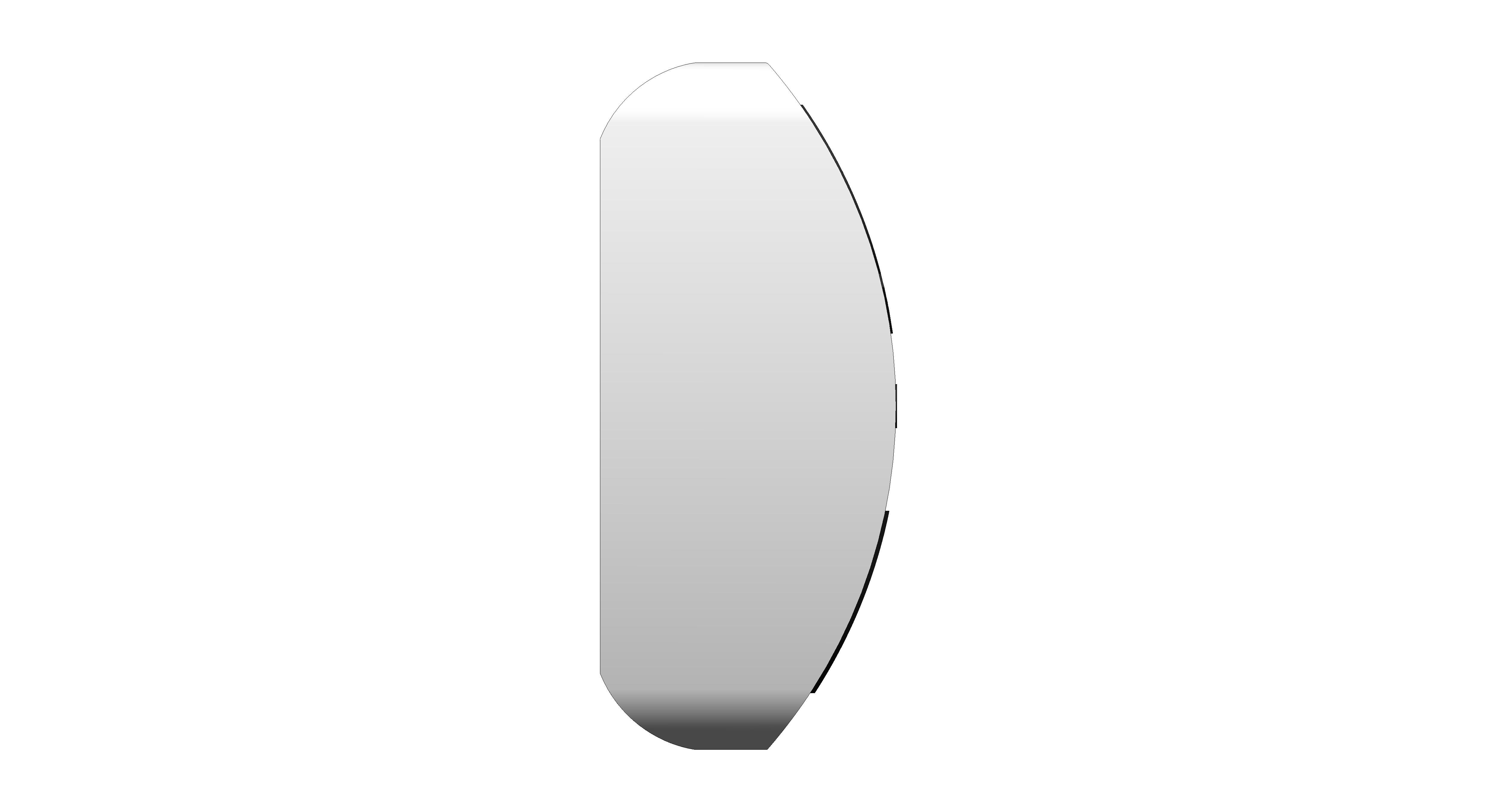

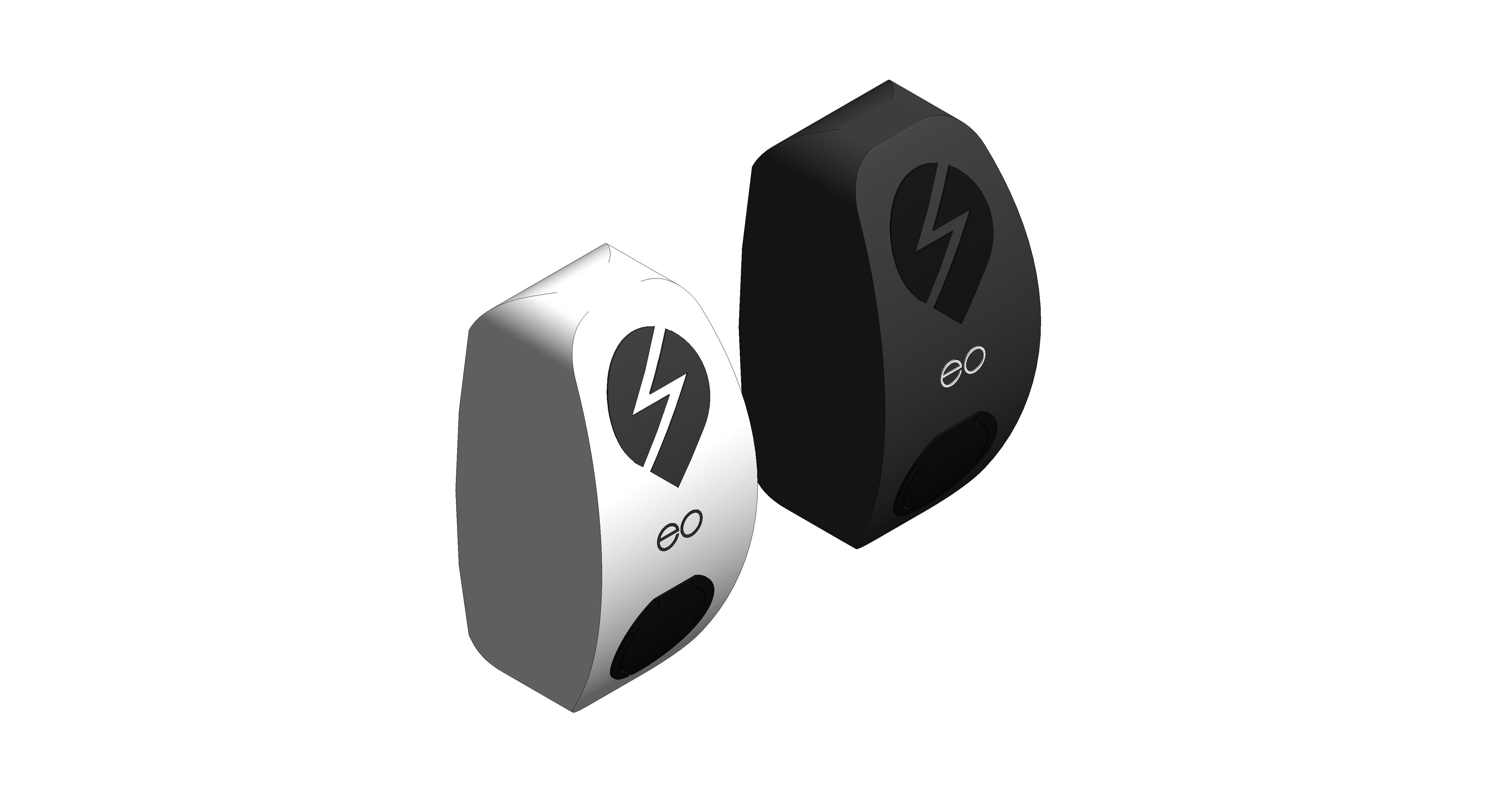

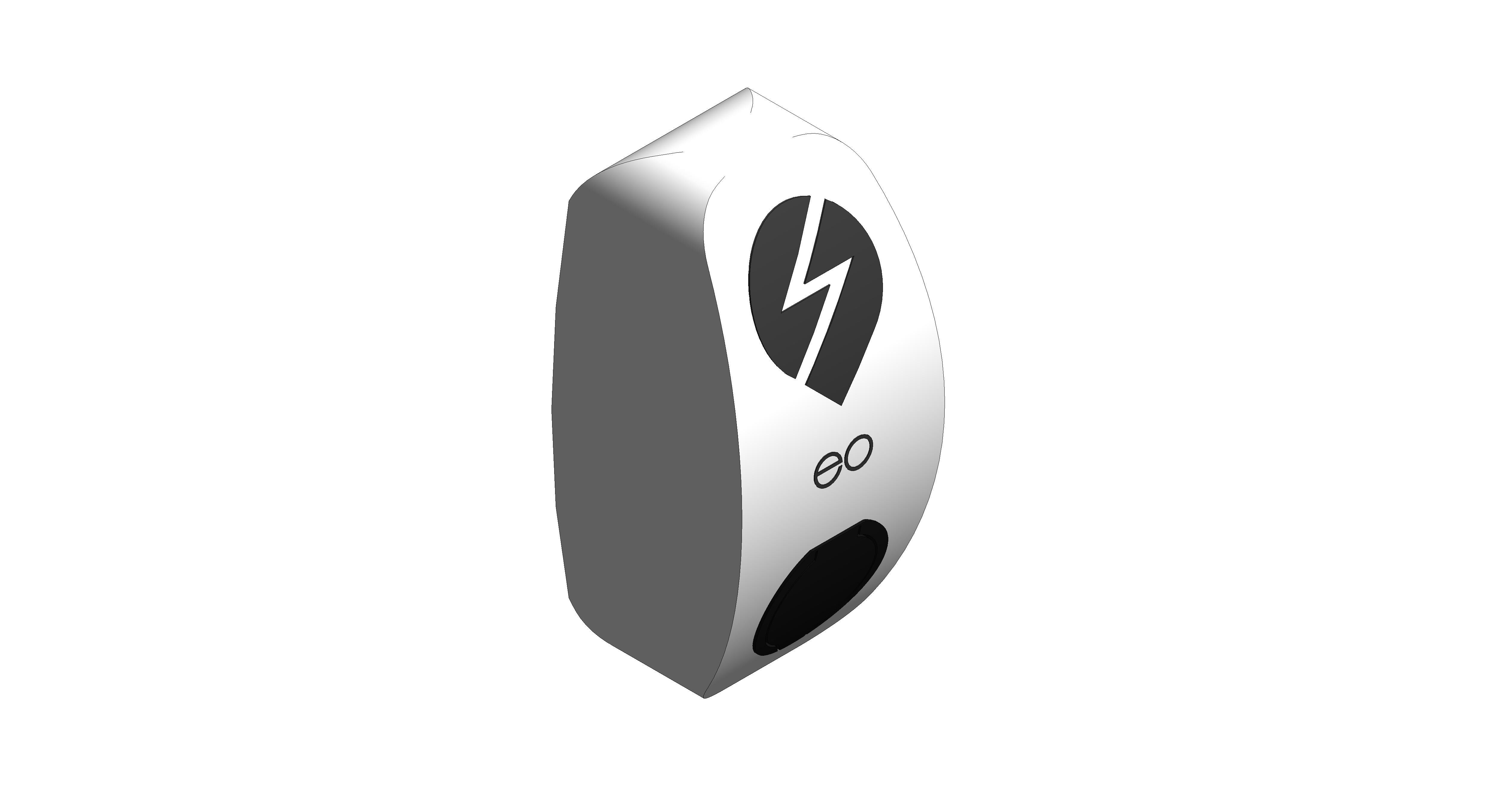

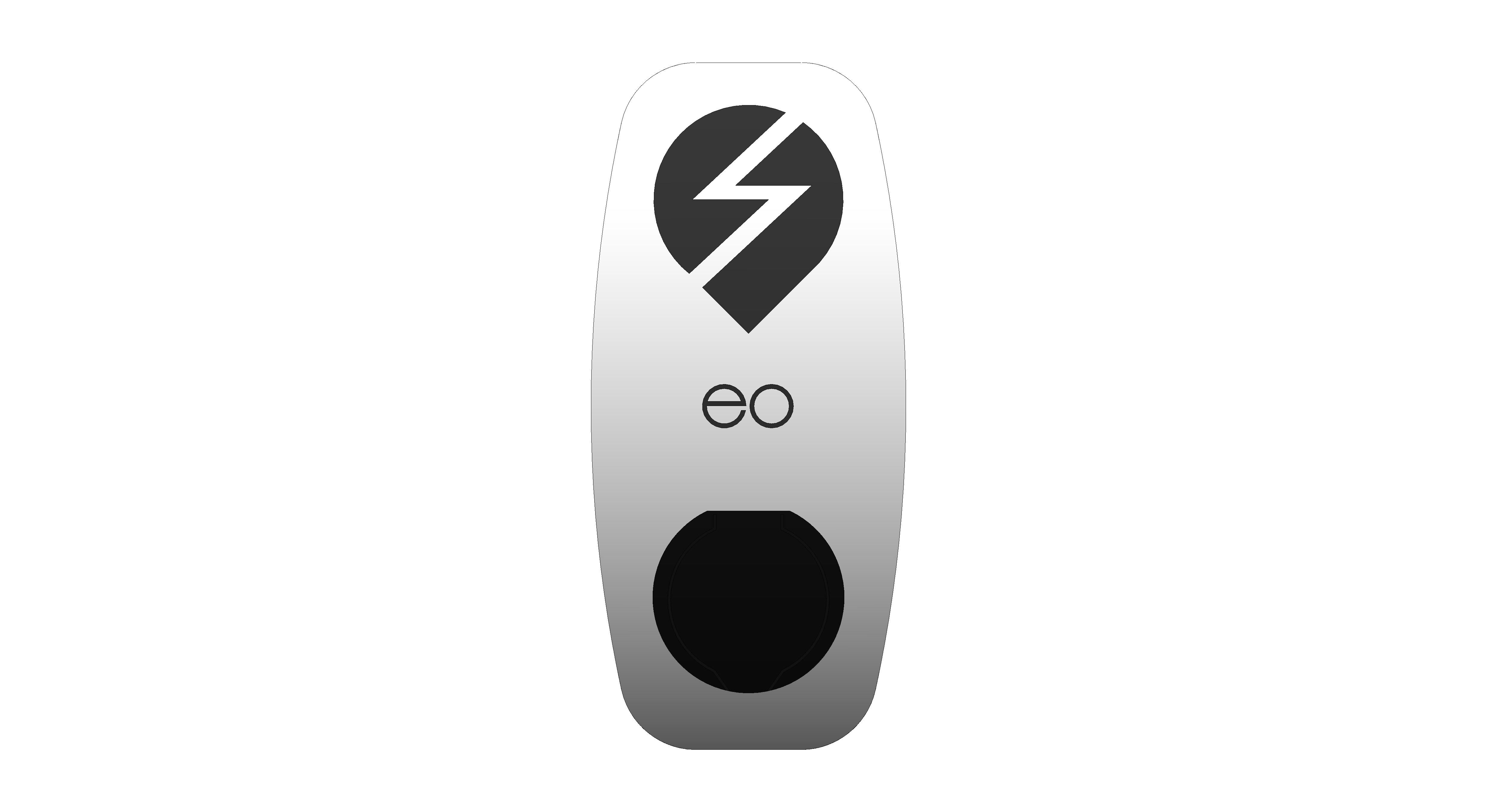

EO Genius

by EO Charging

Download Add to collection

Description

Meet our app-enabled commercial charge point. Future proof smart hardware suitable for the EVs of today and tomorrow.

Key features:

Charge up to 22kW
Built-in active load management
Restrict access using RFID or EO App
Charging insights via the EO Cloud
Dimensions - 175mm x 125mm x 125mm
OLEV Approved - Eligible for the Workplace Charging Scheme (UK)

Object Data

1 Revision

Last Updated

22/12/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

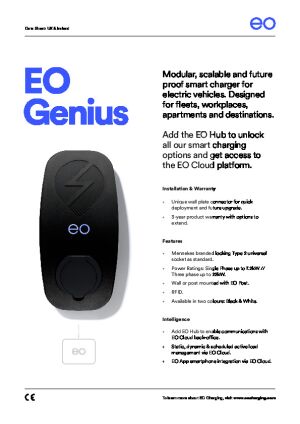

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/eo-genius/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD5090900
Asset TypeFixed
BIM Object NameEOCharging_SpecialtyEquipment_EOGenius
CapEO Charging - Black - Matte
CasingEO Charging - Black - Gloss
Classification NameUniclass2015
Classification ValuePr_65_72_97_29
Code PerformanceDesigned to permit installations compliant with IET Wiring Regulations BS 7671:2018 and the Electricity Safety, Quality, and Continuity Regulations 2002 and BS 8300:2009+A1:2010. In no event will EO Charging accept any liability for any loss, costs or damage consequential on the use and/or misuse of our hardware or software products except and only to the extent that this is caused by our negligence.
ColorBlack
Constituentsn/a
Created Byhello@eocharging.com
Created On2020-12-17T09:00:00
Default Elevation0 mm
Depth155 mm
DescriptionEO Genius 32A
Documentation Certificateswww.eocharging.com/
Documentation Installation Guidewww.bimstore.co/products/eo-genius/document/installation-guide
Documentation Literaturewww.eocharging.com/
Documentation Maintenancewww.eocharging.com/
Documentation Technicalwww.bimstore.co/products/eo-genius/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesMennekes branded locking Type 2 universal socket as standard. Power Ratings: Single Phase up to 7.2kW / Three phase up to 22kW. Wall or post mounted with EO Post. RFID.
Finishn/a
Graden/a
Height360 mm
Ifc Export AsIfcElectricGenerator
Ifc Export TypeIfcElectricGeneratorTypeEnum.STANDALONE
KeynoteV90
LogoEO Charging - White
ManufacturerEO Charging
Manufacturer NameEO Charging
Materialn/a
ModelEO Genius
Model NumberEO Genius
Model ReferenceBlack
NBS DescriptionElectric vehicle charging points
NBS Noten/a
NBS Object NameEC Charging - Electric vehicle charging points
NBS Office Master Tagn/a
NBS Reference90-60-25/352
Nominal Depth155 mm
Nominal Height360 mm
Nominal Length165 mm
Production Year2020
Referenced StandardOLEV EVHS & WCS Approved. CE Marked, EMC Directive 2014/30/EU, IEC 61851-1, IEC 61851-22, IEC 62196-2, EN 301-489. RFID - ISO/IEC 14443 (MIFARE)
Replacement Costn/a
ScreenEO Charging - Green - Screen
ShapeRectangular
Size360mm (h) x 165mm (w) x 155mm (d)
SocketEO Charging - Black - Matte
Spare Partsn/a
Type CommentsBlack
Type NameBlack
URLwww.eocharging.com/
Voltage230 V
Warranty Description3-year product warranty with options to extend.
Warranty Duration Labor0
Warranty Duration Parts3
Warranty Duration UnitYears
Warranty Guarantor Laborhello@eocharging.com
Warranty Guarantor Partshello@eocharging.com
Width165 mm
