Eos

by DW Windsor

Download Add to collection

Description

Specification

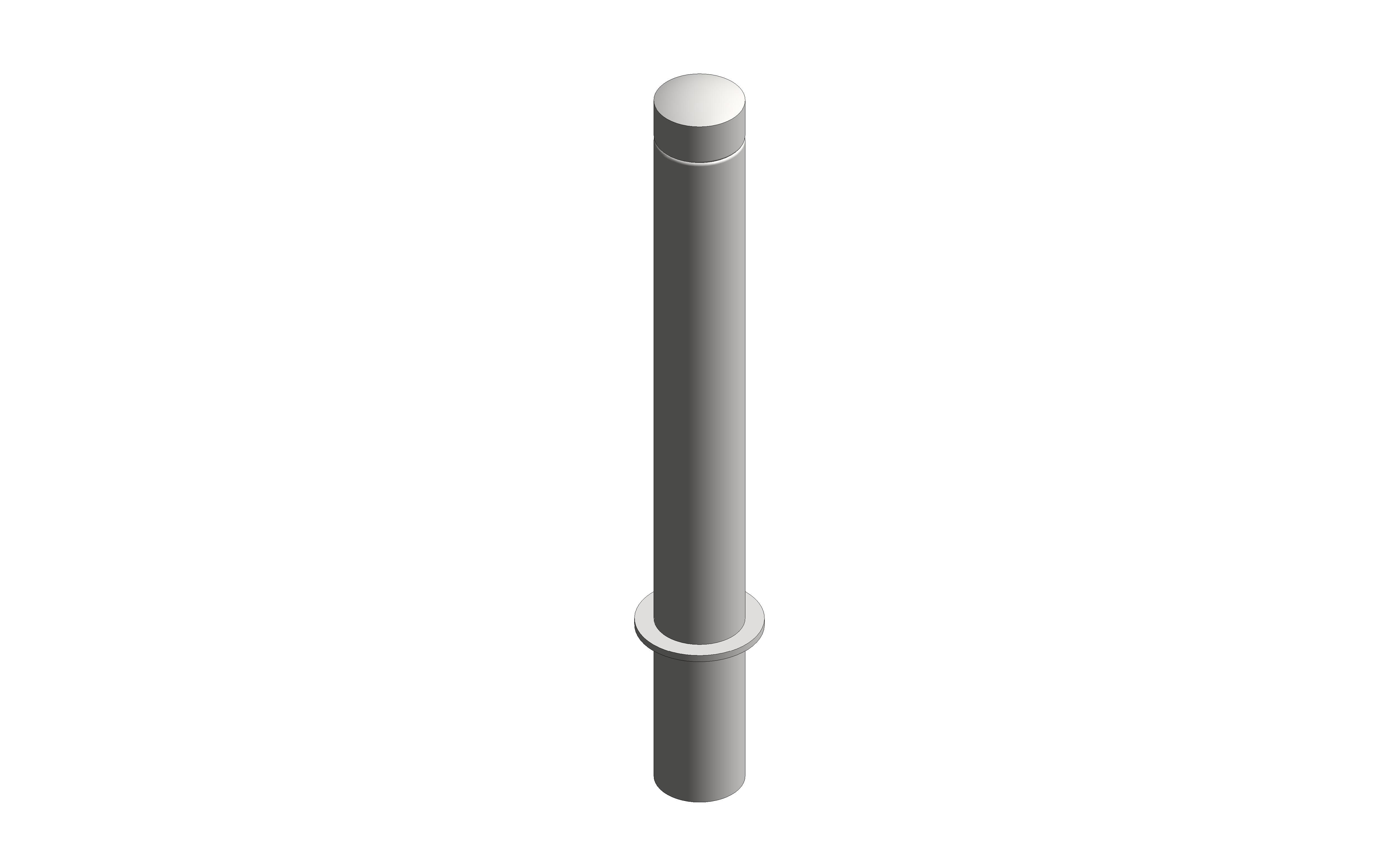

Cylindrical bollard made from a choice of stainless steel grade 304, stainless steel grade 316 or galvanised steel with a cast stainless steel top cap.

Mounting

300mm buried root, buried flange plate, or surface mounted flange plate

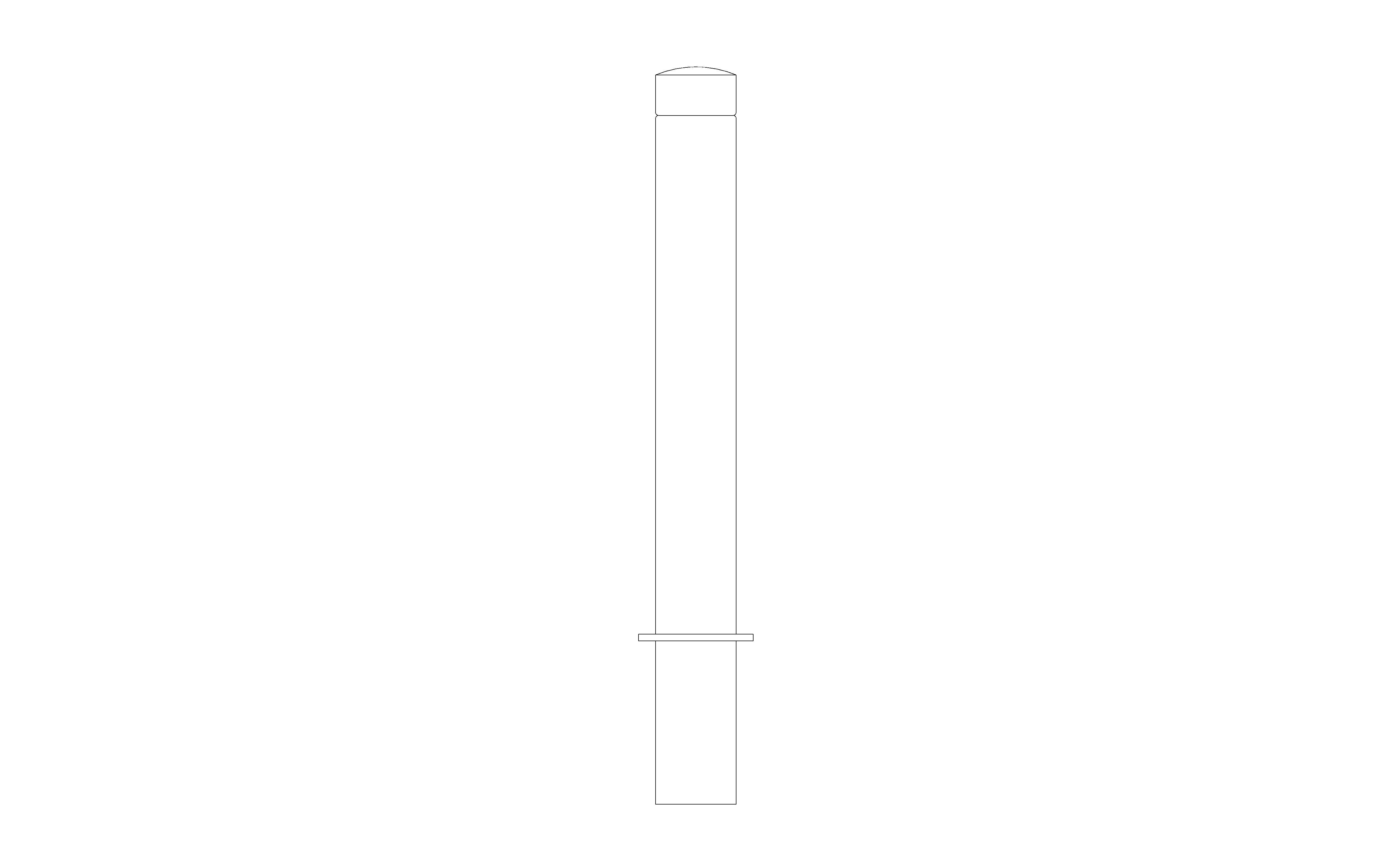

Measurements

Height above ground level: 1000mm

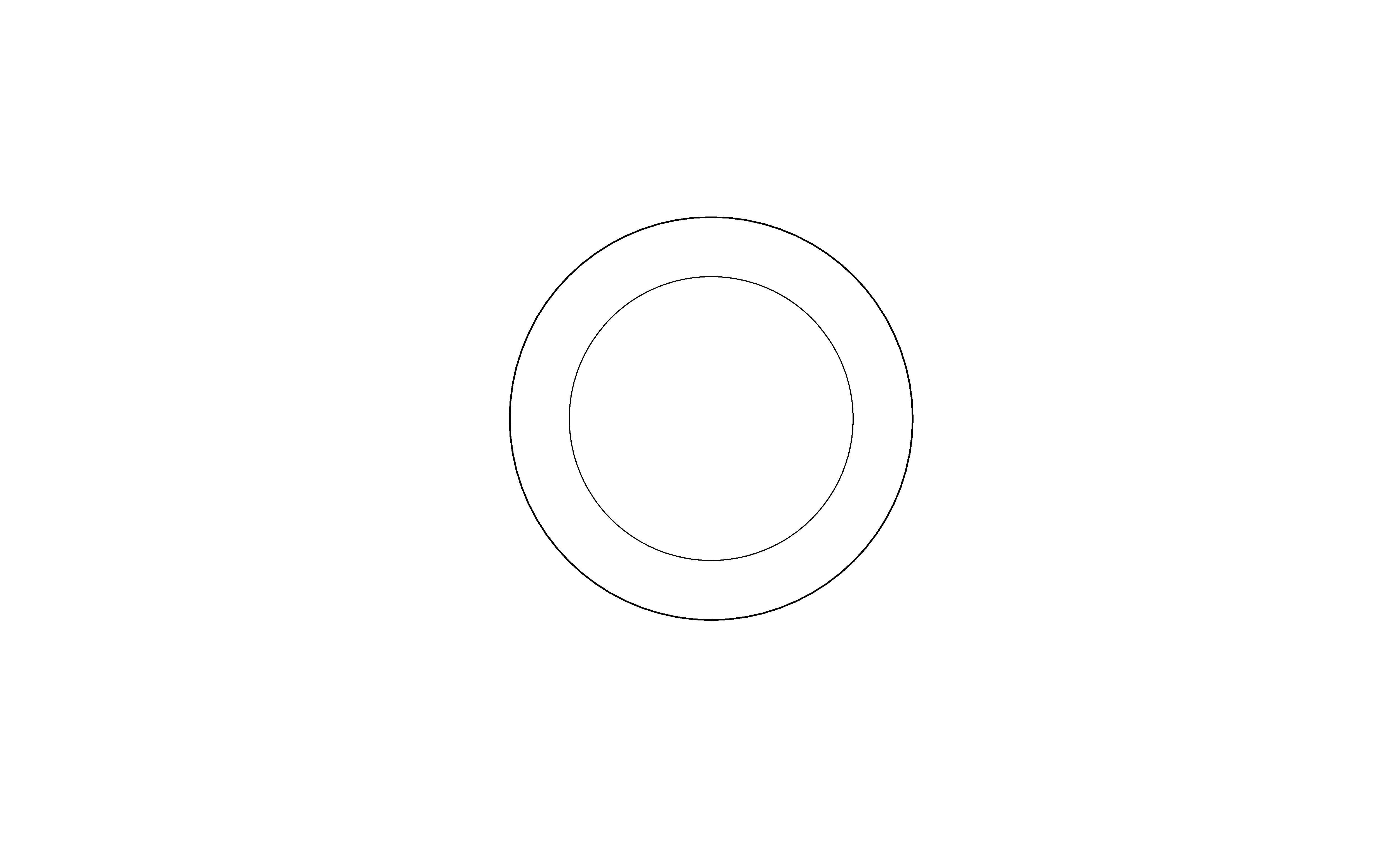

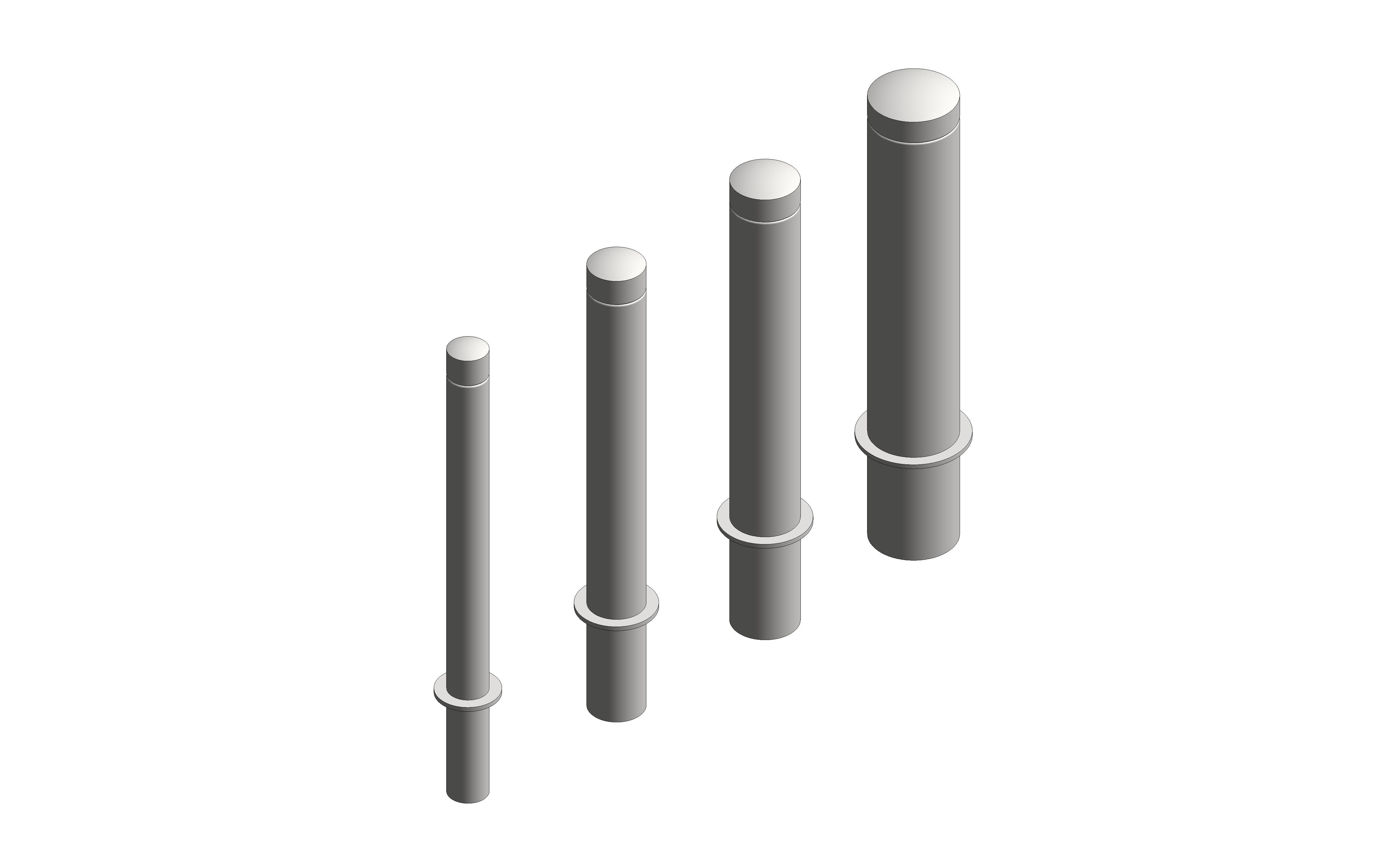

Diameter: 102mm / 142mm / 169mm / 220mm
Height ground shell: 300mm (standard)
Weight: approx. 10kg, 17kg, 20kg, 30kg

Object Data

1 Revision

Last Updated

13/02/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

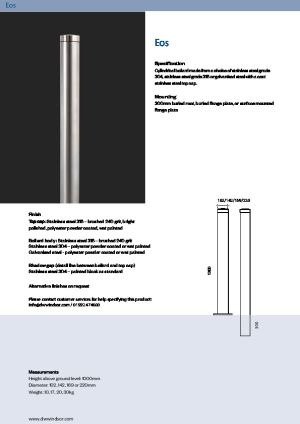

Product Literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
a45.24 °
Accessibility Performancen/a
Arc Height10 mm
Assembly CodeG2040900
Asset TypeFixed
BIM Object NameDwWindsor_Site_Furniture_Bollards_Eos
Bollard MaterialStainless Steel - Brushed
c102 mm
Classification NameUniclass2015
Classification ValuePr_20_76_08_82
Code Performancen/a
ColorStainless steel
Constituentsn/a
Created Byinfo@dwwindsor.com
Created On2020-02-13T09:00:00
d122 mm
Default Elevation0 mm
DescriptionCylindrical bollardmade from a choice of stainless steel grade 304, stainless steel grade 316or galvanised steel with a cast stainless steeltop cap.
Documentation Certificateswww.dwwindsor.com/products/eos/
Documentation Installation Guidewww.dwwindsor.com/products/eos/
Documentation Literaturewww.bimstore.co/products/eos/document/product-literature
Documentation Maintenancewww.dwwindsor.com/products/eos/
Documentation Technicalwww.dwwindsor.com/products/eos/
Duration UnitYears
Expected Life0
FeaturesChoice of four diameters. Shadow gap detail painted black as standard.
FinishBody: Grade 102 Galvanised steel OR Grade 304/316 Stainless steel. Top Cap: Stainless steel
Graden/a
h10 mm
Height1300 mm
Height Above Ground Level1000 mm
Height Below Ground Level300 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteQ50/190
ManufacturerDW Windsor
Manufacturer NameDW Windsor
MaterialStainless Steel
ModelBollards
Model NumberEos 102
Model ReferenceBollards
NBS DescriptionStainless steel bollards
NBS Object NameDW Windsor - Stainless steel bollards
NBS Office Master Tagn/a
NBS Reference45-25-15/313
Nominal Depth102 mm
Nominal Height1300 mm
Nominal Length102 mm
Production Year2020
r133 mm
Referenced Standardn/a
Replacement Costn/a
s105 mm
ShapeCylindrical
SizeHeight: 1000mm x Shaft: Ø102
Spare Partsn/a
Top CapStainless Steel - Semi-polished
Top Diameter102 mm
Type CommentsEos 102
Type NameEos 102
URLwww.dwwindsor.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@dwwindsor.com
