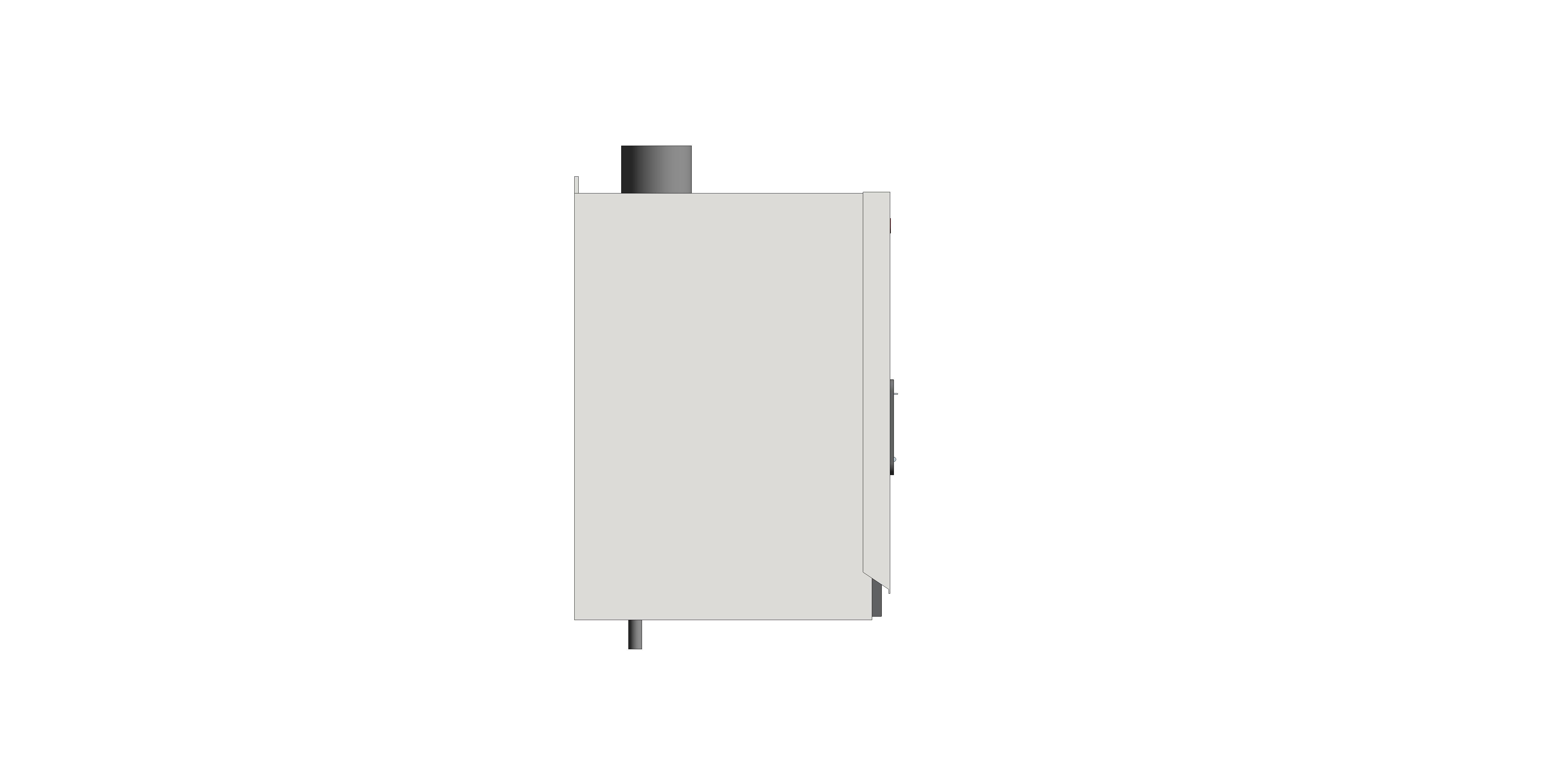

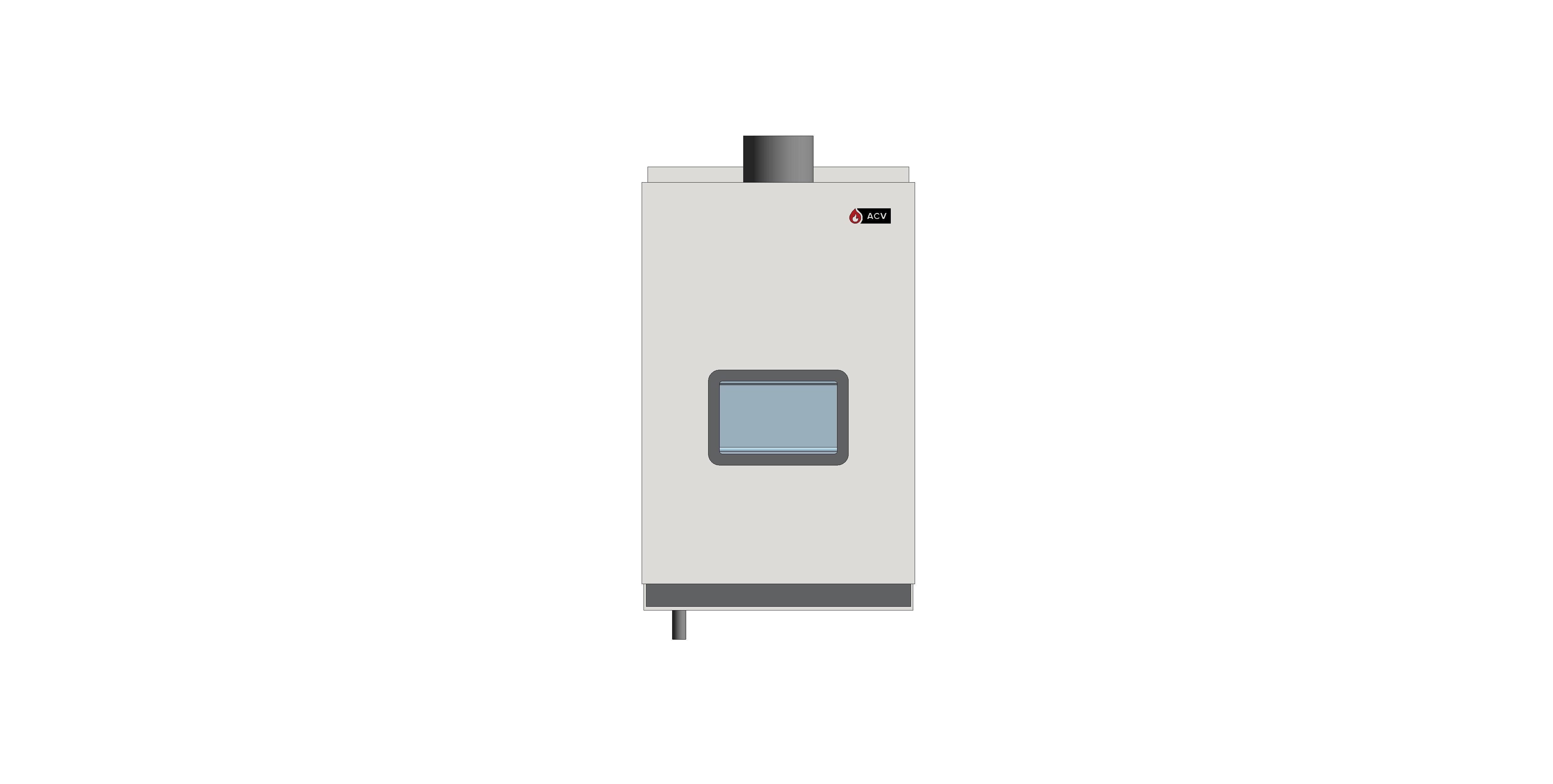

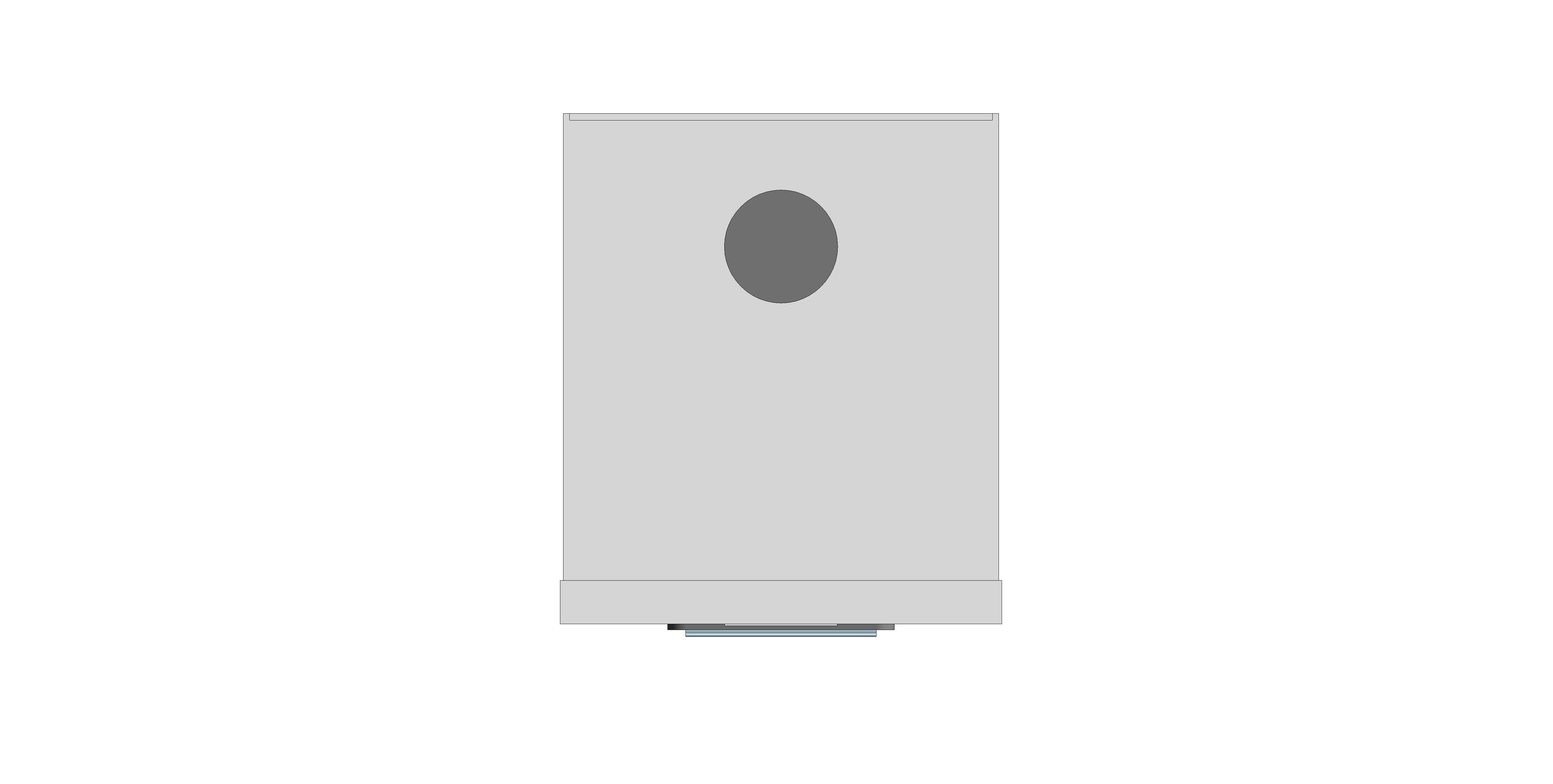

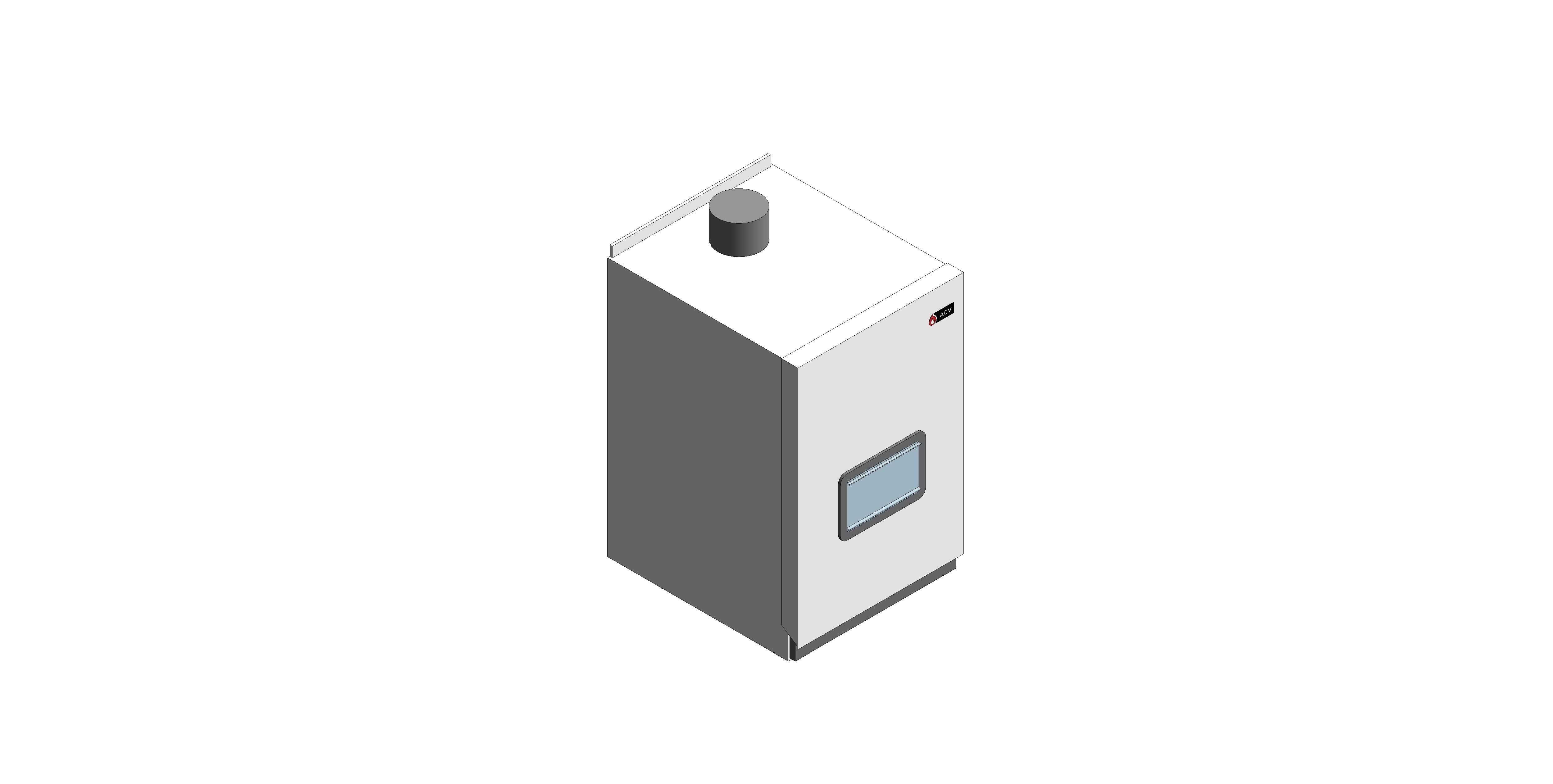

Evo S Condensing Boiler (Single)

by ACV

Download Add to collection

Description

ACV is pleased to announce the launch of the new EVO S range of wall mounted condensing boilers with stainless steel heat exchanger technology.

Available with outputs of 40, 60, 70, 80, 100, 120 and 150kW, EVO S combines the latest stainless steel heat exchanger technology with straightforward installation and maintenance. LPG convertible on all models up to and including 120kW.

Click here to visit ACV for more information.

Object Data

1 Revision

Last Updated

10/07/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

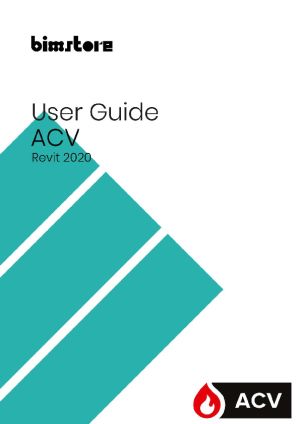

Object User Guide

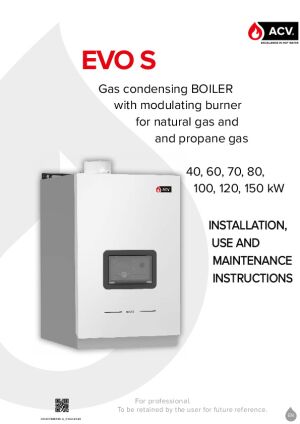

Installation Guide

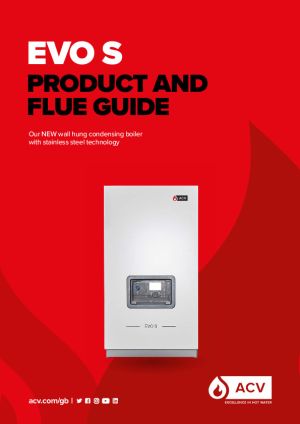

Product Literature

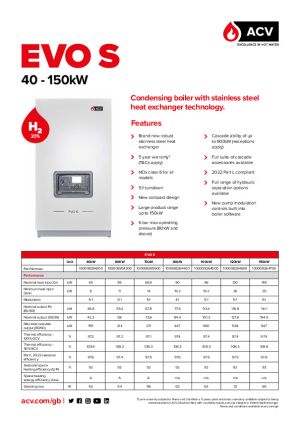

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid1
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/evo-s-condensing-boiler-single/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3020100
Asset TypeFixed
BIM Object NameACV_Boiler_EvoS_Single
Classification NameUniclass 2015
Classification ValuePr_60_60_08_34
Clearance Bottom100 mm
Clearance Front800 mm
Clearance Side250 mm
Clearance ZoneACV - Clearance Zone
Code PerformanceCE certificated
ColorWhite
Constituentsn/a
Created Byuk.sales@acvuk.com
Created On2023-04-21T09:00:00
Default Elevation0 mm
Depth668 mm
DescriptionAvailable with outputs of 40, 60, 70, 80, 100, 120 and 150kW, EVO S combines the latest stainless steel heat exchanger technology with straightforward installation and maintenance. LPG convertible on models up to and including 120kW.
Documentation Certificateswww.bimstore.co/products/evo-s-condensing-boiler-single/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/evo-s-condensing-boiler-single/document/installation-guide
Documentation Literaturewww.bimstore.co/products/evo-s-condensing-boiler-single/document/product-literature
Documentation Maintenancewww.bimstore.co/products/evo-s-condensing-boiler-single/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/evo-s-condensing-boiler-single/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesStainless steel heat exchanger for added durability. Low height for tight plantrooms. Up to 5:1 turndown ratio. Up to 97% gross seasonal efficiency. NOx class 6. Single units can be cascaded for larger installations. Advanced sequence control for up to 16 boiler modules. Easy access for service and system cleaning. Connections in recess at base of the boiler. Suitable for natural gas (all sizes) and LPG (up to 120kW) applications. Full range of hydraulic separation options available. Room sealed and open flue options.
Finishn/a
Flue_Dia150 mm
Graden/a
H66 mm
Height895 mm
I75 mm
Ifc Export AsIfcBoiler
Ifc Export TypeIfcBoilerTypeEnum.WATER
KeynoteT32
M123 mm
ManufacturerACV
Manufacturer NameACV
Materialn/a
ModelEvo S
Model NumberEvo S
Model Reference100kW
NBS DescriptionGas-fired condensing boilers
NBS Noten/a
NBS Object NameACV - Gas-fired condensing boilers
NBS Office Master Tagn/a
NBS Reference90-40-05/340
Nominal Depth668 mm
Nominal Height895 mm
Nominal Length487 mm
O32 mm
Offset0 mm
P25 mm
Production Year2023
Q32 mm
Referenced Standardn/a
Replacement Costn/a
S24 mm
ShapeRectangle
Size487x668x895mm
Spare Partsuk.sales@acvuk.com
Type Comments100kW
Type Name100kW
URLwww.acv.com/gb
Warranty Description5 year warranty, terms and conditions apply.
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laboruk.sales@acvuk.com
Warranty Guarantor Partsuk.sales@acvuk.com
Width487 mm
