1 Revision
27/05/2016

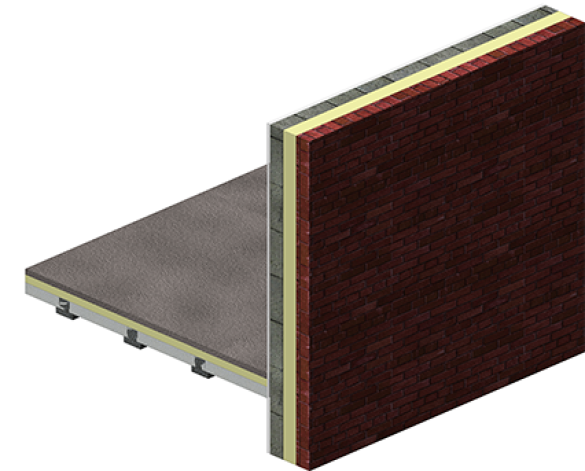

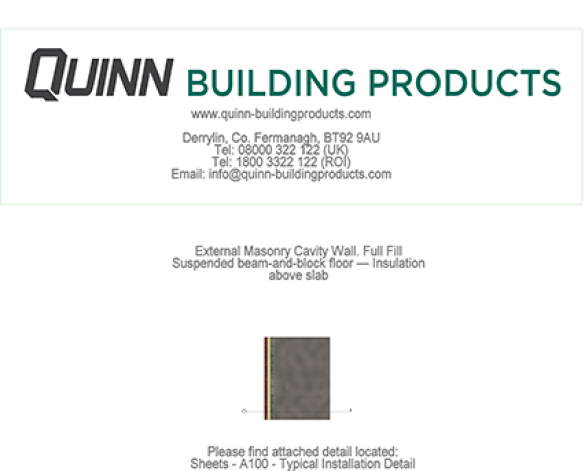

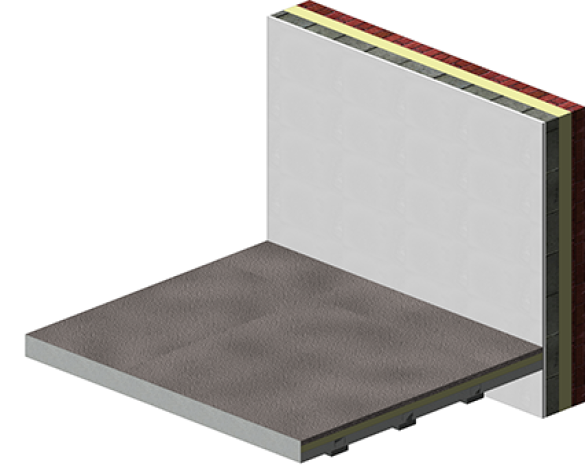

Quinn Building Products BIM Object System for External Masonry Cavity Wall. Full Fill. Suspended beam and block floor - Insulation above slab.
This systems contains a full fill Quinn Therm PIR board. Engineered to eliminate the cavity construction.
The Quinn Therm full fill board features a rebated edge profile to stop water regress.
Quinn Lite blocks are used for the inner leaf of the wall construction, dramatically reducing thermal bridging. Psi Value – 0.056Wall U Value – 0.18 W/m²K

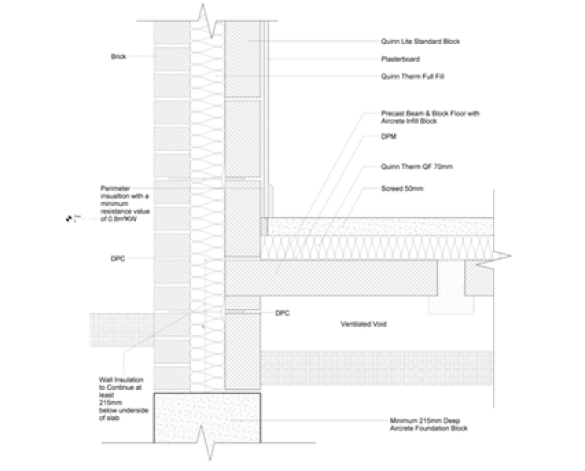

Quinn BIM Object Systems are modelled on accredited construction details prepared for the Aircrete Products Association by the BBA and RDL. Quinn BIM Object Systems provide multiple Quinn products in a structured format, native to the authoring application, to optimise workflows and provide advanced performance data. Each system is accompanied with a detail drawn in the native authoring application.
Read moreAccompanying literature coming soon.
