Fire Door - Cuthbert

by Bowater Doors

Download Add to collection

Description

Bowater Doors are specialists in the design and manufacture of high quality composite doors. We have over 40 years experience supplying the UK Housebuilders with a range of composite doors including fire and bespoke specifications.

Building a safe and secure future is at the heart of everything we do. Our ethos is reflected in our culture, environment and our entire product range.

FireShield delivers a revolutionary fire protection solution. It’s the result of innovative design combined with extensive testing all sealed with third-party certified consistent quality.

Object Data

1 Revision

Last Updated

03/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

BS8541-2

Compliant

EPD

Not Available

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility PerformanceAutomatic Door Closer
Analytic Construction<None>
Assembly CodeB2030
Asset TypeFixed
BIM Object NameBowaterDoors_FireDoors_Cuthbert-OpenIn
Cill ColourBowaterDoors - Woodgrain - White
Cill Width855.0 mm
Classification NameUniclass 2015
Classification ValuePr_30_59_24_16
Code Performancen/a
ColorUser defined
Constituentsn/a
Created Bybowaterfd@birtleygroup.co.uk
Created On2021-07-06 T09:00:00
DescriptionBM TRADA Q Mark Accredited FD30S Composite Fire Door
Documentation Certificateswww.bowaterdoors.co.uk/fd30s-composite-fire-doors/
Documentation Installation Guidewww.bowaterdoors.co.uk/fd30s-composite-fire-doors/
Documentation Literaturewww.bowaterdoors.co.uk/fd30s-composite-fire-doors/
Documentation Maintenancewww.bowaterdoors.co.uk/fd30s-composite-fire-doors/
Documentation Technicalwww.bowaterdoors.co.uk/fd30s-composite-fire-doors/
Door Knocker MaterialBowaterDoors - Metal - Chrome
Door Knocker TypeBowaterDoors_DoorKnocker : NoDoorKnocker
Duration UnitYear
Eurocell FrameBowaterDoors_FireFrame : FireFrame
Expected Life0
External Finish Thickness0.0 mm

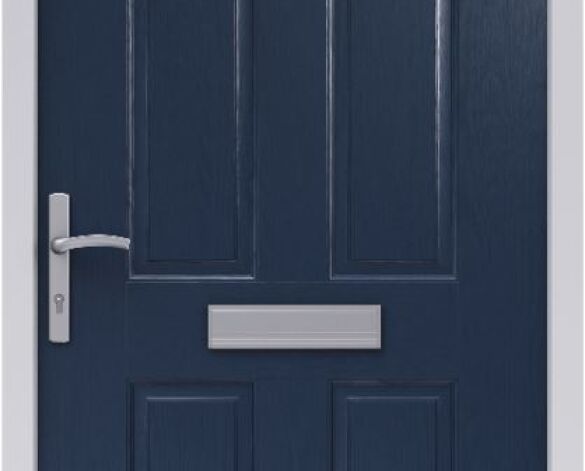

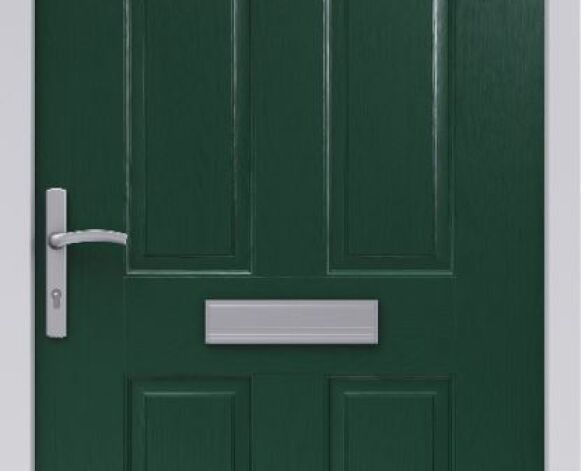

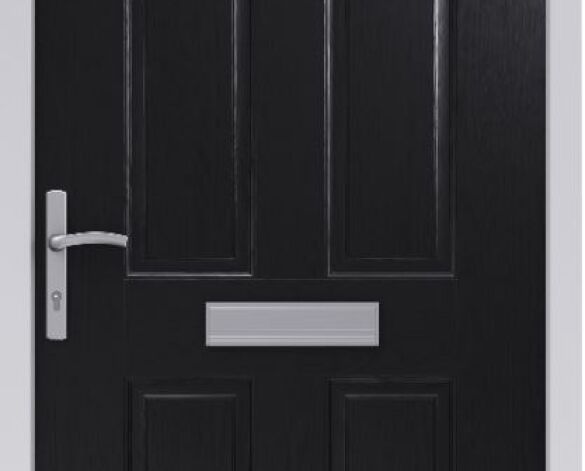

FeaturesTested to BS EN1634-1:2014 and Cerified as a BM TRADA Q Mark Fire Door Manufacturer. Ideal for use as a Flat entrance door. GRP skin to minimise scratches. Supplied fully finished with specialist low maintenance fire resistant frame for easy installation. Inner core of the door is made from Agrifiber, an environmentally friendly green building product. Tested to PAS 24 and accredited by Secured by Design. Supplied with AV2 or AV2E (electronic) lock for enhanced security and performance. Available in a variety of colours.
FinishWoodgrain
Fire Rating30 minutes
Fixed Cowl Letter PlateBowaterDoors_LetterPlates : FixedCowlLetterPlate
Frame ColourBowaterDoors - Woodgrain - White
FunctionExterior
Graden/a
Handle MaterialBowaterDoors - Metal - Chrome
Handle Offset100.0 mm
Height0.0 mm
Ifc Export AsIfcDoor
Ifc Export TypeIfcDoorTypeEnum.DOOR
Internal Finish Thickness0.0 mm
KeynoteL20/115
Leaf ColourBowaterDoors - Woodgrain - White
Leaf Thickness44.0 mm
Letter Plate MaterialBowaterDoors - Metal - Chrome
Lever HandleBowater_Ironmongery : LeverHandle
ManufacturerBowater Doors
Manufacturer NameBowater Doors
Materialn/a
MDS150BowaterDoors_Cill : MDS 150
ModelCuthbert Composite FD30S Fire Door
Model NumberCuthbert Composite FD30S Fire Door
Model ReferenceCuthbert Composite FD30S Fire Door
MXS15-2BowaterDoors_Cill : MXS 15-2
NBS DescriptionComposite doorsets
NBS Object NameBowater Doors - Composite doorsets
NBS Office Master Tagn/a
NBS Reference45-25-28/342
No Letter PlateBowaterDoors_LetterPlates : NoLetterPlate
Nominal Height2074.5 mm
Nominal Length855.0 mm
Opening Tolerance1.5 mm
Production Year2021
PVC150x 30BowaterDoors_Cill : PVC 150x30
PVC180x 30BowaterDoors_Cill : PVC 180x30
PVC85x 30BowaterDoors_Cill : PVC 85x30
Replacement Costn/a
ShapeRectangle
SizeUser defined
Spare Partsn/a
Structural Opening Height2074.5 mm
Structural Opening Width855.0 mm
Structural Tolerance Head0.0 mm
Structural Tolerance Jamb0.0 mm
Synthetic 145x 46BowaterDoors_Cill : Synthetic 145x46
Synthetic 170x 25BowaterDoors_Cill : Synthetic 170x25
Timber 145x 23BowaterDoors_Cill : Timber 145x23
Timber 145x 45BowaterDoors_Cill : Timber 145x45
Timber 180x 45BowaterDoors_Cill : Timber 180x45
Timber 200x 23BowaterDoors_Cill : Timber 200x23
Timber 88x 15BowaterDoors_Cill : Timber 88x15
Type CommentsCuthbert Composite FD30S Fire Door
Type NameCuthbert Composite FD30S Fire Door
U-ValueContact Bowater Doors
URLwww.bowaterdoors.co.uk
Wall ClosureInterior
Warranty DescriptionThese guarantees apply from the delivery date and are only valid when correct care and maintainence have been regularly completed.
Warranty Duration LaborSee WarrantyDescription
Warranty Duration PartsSee WarrantyDescription
Warranty Duration UnitYear
Warranty Guarantor Labordoor.warranty@birtleygroup.co.uk
Warranty Guarantor Partsdoor.warranty@birtleygroup.co.uk
Width0.0 mm
